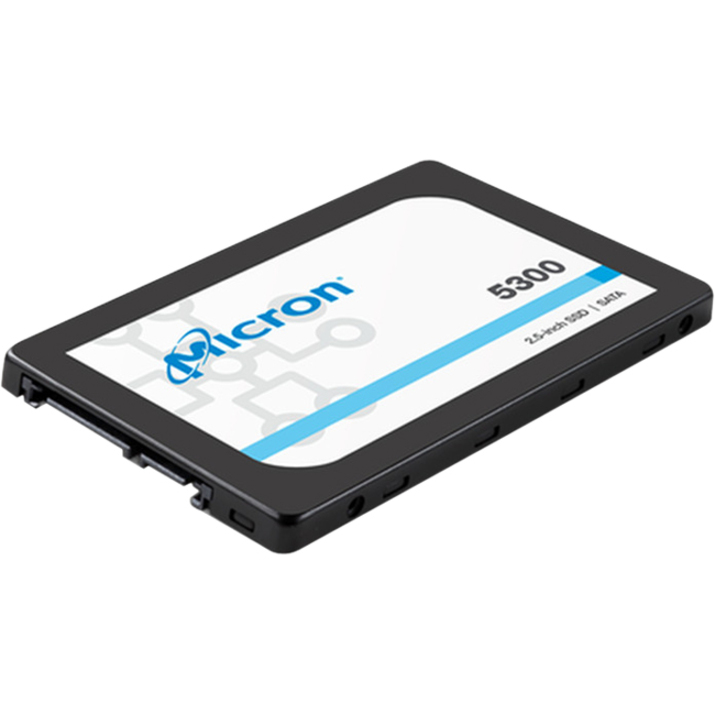

Lenovo 5300 960 GB Solid State Drive - 2.5" Internal - SATA (SATA/600) - Mixed Use
Server Device Supported - 5.0 DWPD - 8760 TB TBW - 540 MB/s Maximum Read Transfer Rate - 256-bit AES Encryption Standard - 1 Year Warranty
- SKU
- 4XB7A17188
- Category
- Hard Drives/Solid State Drives
$867.43
Back ordered
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A17188
- Category
- Hard Drives/Solid State Drives
Overview
The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases.
Highlights
- Industry standard 2.5-inch or 3.5-inch form factors
- New generation 96-layer 3D TLC NAND flash memory
- Suitable for mixed read/write workloads with an endurance of between 2.5 and 5 drive writes per day (DWPD) for 5 years
- 6 Gbps SATA host interface
- High reliability and enhanced ruggedness
- MTTF of 3 million device hours - 50% more than most drives
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
Specifications
| Product Type | Solid State Drive |
|---|---|
| Compatibility | Lenovo ThinKSystem Servers: SD650 V2 (7D1M) SD650-N V2 (7D1N) |
| Device Supported | Server |
| Storage Capacity | 960 GB |
| Manufacturer Part Number | 4XB7A17188 |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 2.47 oz |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 2.5" 7mm 5300 960GB Mainstream SATA 6Gb Trayless SSD |
| Product Series | 5300 |
| Brand Name | Lenovo |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Encryption Standard | 256-bit AES |
| Maximum Read Transfer Rate | 540 MB/s |
| Maximum Write Transfer Rate | 520 MB/s |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 95000IOPS |
| Random 4KB Write | 75000IOPS |
| Drive Carrier | No |
| Endurance (DWPD) | 5.0 |
| Endurance (TBW) | 8760 TB |
| Endurance Type | Mixed Use |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
