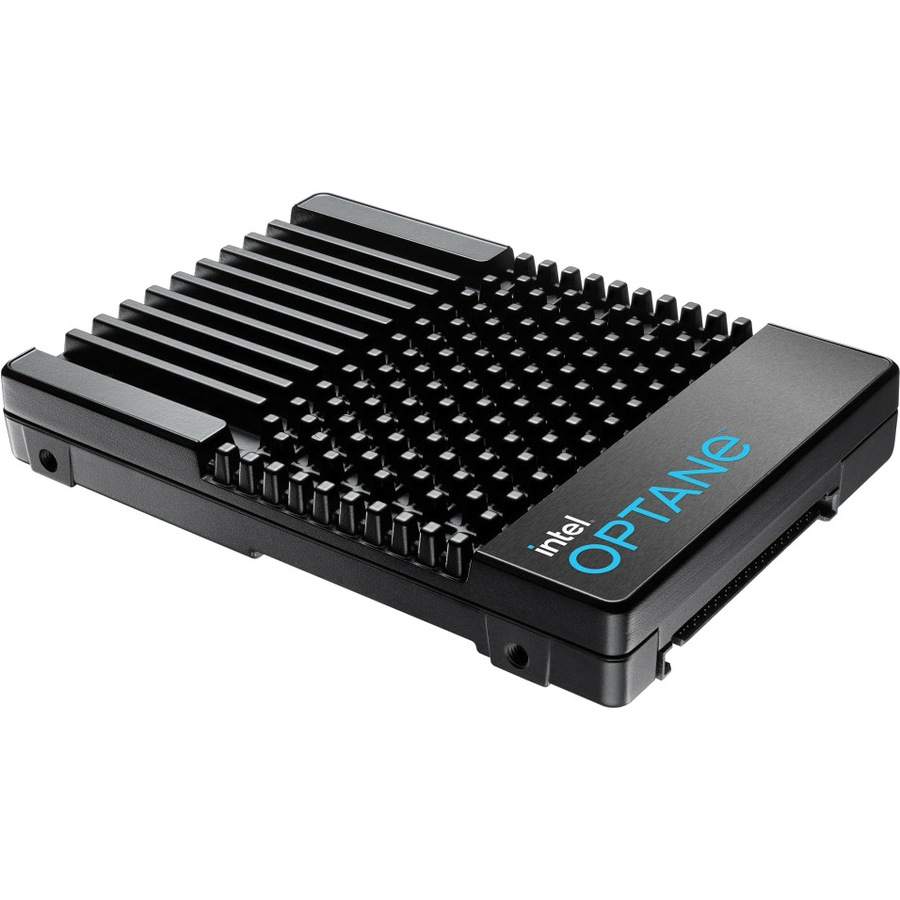

Lenovo P5800X 400 GB Solid State Drive - 3.5" Internal - U.2 (PCI Express NVMe 4.0 x4) - Write Intensive
Lenovo

Lenovo P5800X 400 GB Solid State Drive - 3.5" Internal - U.2 (PCI Express NVMe 4.0 x4) - Write Intensive

Server Device Supported - 100 DWPD - 74752 TB TBW - 7372.80 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty

SKU
4XB7A17161
Category
Hard Drives/Solid State Drives

$14,501.72

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4XB7A17161
Category
Hard Drives/Solid State Drives

Overview

The ThinkSystem U.2 P5800X Write Intensive NVMe PCIe 4.0 x4 SSD is the ultimate in high performance solid state drive with ultra-low latency, very high bandwidth, and an endurance of up to 100 drive writes per day, making this drive the best choice for write-intensive high-performance workloads.

This product guide introduces the P5800X drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the drives and consider their use in IT solutions.

Highlights

  • PCIe 4.0 connection for each NVMe drive
  • Also supports PCIe 3.0 host connection for servers with first and second-generation Intel Xeon Scalable processors or with PCIe 3.0 NVMe switch adapters
  • Ultra-low I/O latency, with a read/write latency of as low as 5 µs.
  • Consistently reliable quality of service
  • Excellent read and write performance at low queue depths
  • Near symmetrical read and write performance
  • Very high endurance at 100 full drive writes per day
  • Variable sector size and end-to-end data-path protection
  • Enhanced power-loss data protection
  • Thermal throttling and monitoring

Specifications

Additional Warranty InformationThe ThinkSystem U.2 P5800X Write Intensive NVMe PCIe 4.0 x4 SSD carries a 1-year, customer-replaceable unit (CRU) limited warranty.
Product TypeSolid State Drive
CompatibilityLenovo ThinkSystem Servers: SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73)
Device SupportedServer
Storage Capacity400 GB
Hot SwappableYes
Manufacturer Part Number4XB7A17161
Limited Warranty1 Year
Drive TypeInternal
Form Factor3.5"
ManufacturerLenovo Group Limited
Product NameThinkSystem 3.5" U.2 P5800X 400GB Write Intensive NVMe PCIe 4.0 x4 HS SSD
Product SeriesP5800X
Brand NameLenovo
Height0.6"
Width2.8"
Depth3.9"
Environmentally FriendlyYes
Wireless LANNo
Maximum Read Transfer Rate7372.80 MB/s
Maximum Write Transfer Rate4915.20 MB/s
Drive InterfaceU.2
Drive Interface StandardPCI Express NVMe 4.0 x4
Random 4KB Read1500000IOPS
Random 4KB Write1150000IOPS
Endurance (DWPD)100
Endurance (TBW)74752 TB
Endurance TypeWrite Intensive
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
