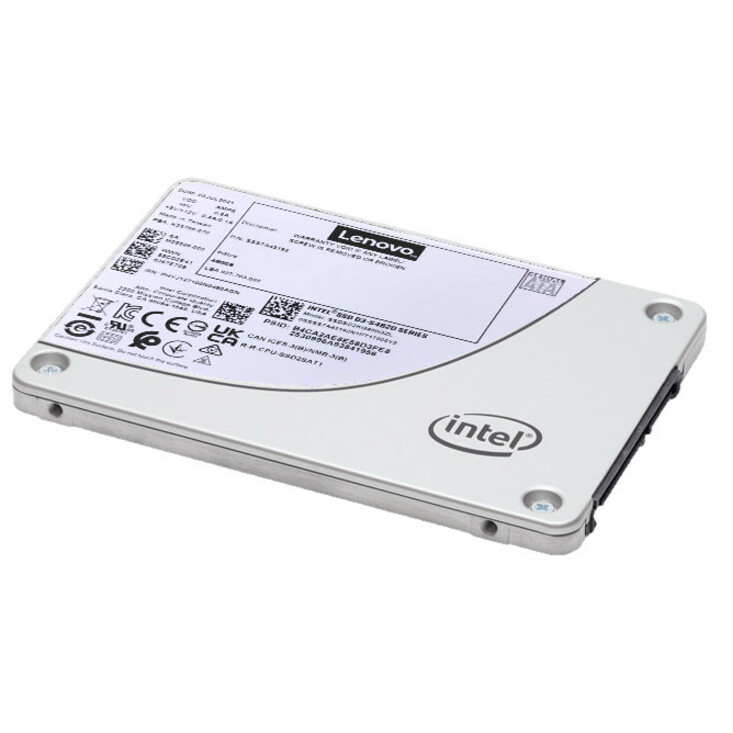

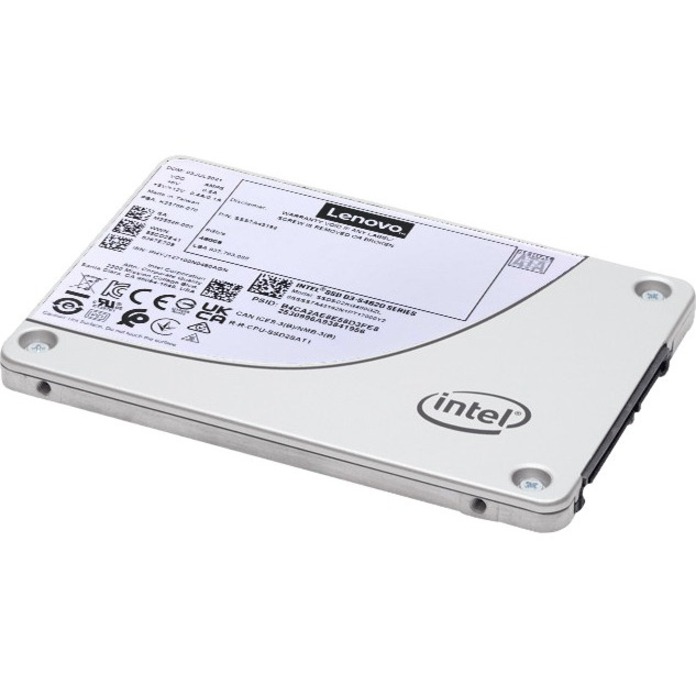

Lenovo S4620 480 GB Solid State Drive - 3.5" Internal - SATA (SATA/600) - Mixed Use
Server Device Supported - 4.7 DWPD - 4300.80 TB TBW - 550 MB/s Maximum Read Transfer Rate - Hot Swappable - 256-bit Encryption Standard - 1 Year Warranty
- SKU
- 4XB7A17137
- Category
- Hard Drives/Solid State Drives
MSRP$3,999.00
$3,656.34
Save 9%Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A17137
- Category
- Hard Drives/Solid State Drives
Overview
The ThinkSystem S4520 Mixed Use SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S4620 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4620 SSDs and consider their use in IT solutions.
Highlights
- 2.5-inch drives in multiple form form factors:2.5-inch SFF hot-swap tray-7mm hot-swap tray-3.5-inch LFF hot-swap tray-3.5-inch LFF simple-swap tray-Trayless drives
- Cost-effective Intel 3D NAND TLC Flash Memory
- Endurance of up to 5 drive writes per day (DWPD) for 5 years, using Intel Standard Endurance Technology (SET).
- SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
- High reliability and enhanced ruggedness
- Energy savings, with typical write power consumption as low as 3.0 W per drive
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
- Full end-to-end data path protection
Specifications
| Additional Warranty Information | The S4620 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. |
|---|---|
| Product Type | Solid State Drive |
| Compatibility | Lenovo ThinkSystem Servers: SR250 V2 (7D7R / 7D7Q) SR655 V3 (7D9F / 7D9E) SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) ST650 V2 (7Z75 / 7Z74) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR655 Client OS SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) ST250 (7Y45 / 7Y46) SR250 (7Y52 / 7Y51) ST550 (7X09 / 7X10) SR530 (7X07 / 7X08) SR550 (7X03 / 7X04) SR570 (7Y02 / 7Y03) SR590 (7X98 / 7X99) SR630 (7X01 / 7X02) SR650 (7X05 / 7X06) |
| Device Supported | Server |
| Storage Capacity | 480 GB |
| Hot Swappable | Yes |
| Manufacturer Part Number | 4XB7A17137 |
| Limited Warranty | 1 Year |
| Drive Type | Internal |
| Form Factor | 3.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 3.5" S4620 480GB Mixed Use SATA 6Gb HS SSD |
| Product Series | S4620 |
| Brand Name | Lenovo |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Encryption Standard | 256-bit |
| Maximum Read Transfer Rate | 550 MB/s |
| Maximum Write Transfer Rate | 500 MB/s |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 85000IOPS |
| Random 4KB Write | 48000IOPS |
| Endurance (DWPD) | 4.7 |
| Endurance (TBW) | 4300.80 TB |
| Endurance Type | Mixed Use |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
