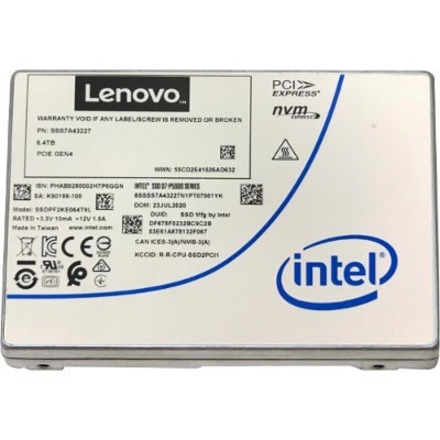

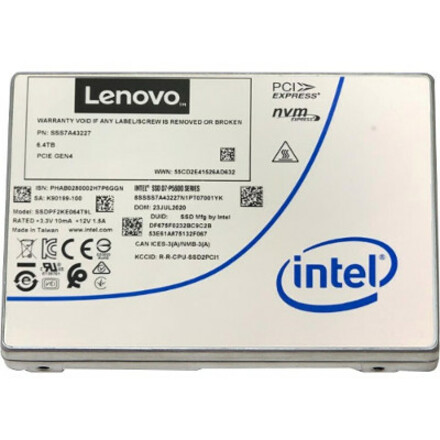

Lenovo D7-P5620 1.60 TB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 4.0 x4) - Mixed Use
Server Device Supported - 3 DWPD - 8908.80 TB TBW - 5427.20 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty - 1
- SKU
- 4XB7A17129
- Category
- Hard Drives/Solid State Drives
$3,130.49
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A17129
- Category
- Hard Drives/Solid State Drives
Overview
The P5620 SSDs are part of the growing family of PCIe 4.0 SSDs that match the performance of the ThinkSystem V2 family of servers. By having a Gen 4 host interface, sequential performance is doubled compared to Gen 3 SSDs. The NVMe host interface also maximizes flash storage performance and minimizes latency. The P5620 SSDs drives offer 40% and 60% improvements in latency over SAS and SATA SSDs respectively.
Lenovo Mixed Used SSDs like the P5620 SSDs are suitable for mixed read-write and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.
Highlights
- Based on the Solidigm D7-P5620 SSDs (formerly known as the Intel D7-P5620 SSDs)
- PCIe 4.0 connection for each NVMe drive
- Also supports PCIe 3.0 host connection for servers with first and second-generation Intel Xeon Scalable processors or with PCIe 3.0 NVMe switch adapters
- Compliant with Trusted Computing Group Opal 2.01 Security Subsystem Class cryptographic standard (TCG Opal 2.01 SSC)
- Intel 144-layer TLC 3D NAND Flash Memory
- Ultra-low I/O latency, with a read latency as low as of 9 µs and write latency as low as 12 µs
- Suitable for mixed read-write workloads
- Available in capacities up to 12.8 TB
- Variable sector size and end-to-end data-path protection
- Enhanced power-loss data protection
Specifications
| Package Contents |
|
|---|---|
| Product Type | Solid State Drive |
| Compatibility | ThinkSystem Servers: ST650 V2 (7Z75 / 7Z74) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) SD630 V2 (7D1K) SN550 V2 (7Z69) |
| Device Supported | Server |
| Storage Capacity | 1.60 TB |
| Hot Swappable | Yes |
| Manufacturer Part Number | 4XB7A17129 |
| Packaged Quantity | 1 |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 5.15 oz |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 2.5" U.2 P5620 1.6TB Mixed Use NVMe PCIe 4.0 x4 HS SSD |
| Product Series | D7-P5620 |
| Brand Name | Lenovo |
| Height | 0.6" |
| Width | 2.8" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Maximum Read Transfer Rate | 5427.20 MB/s |
| Maximum Write Transfer Rate | 1945.60 MB/s |
| Drive Interface | U.2 |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Random 4KB Read | 700000IOPS |
| Random 4KB Write | 200000IOPS |
| Endurance (DWPD) | 3 |
| Endurance (TBW) | 8908.80 TB |
| Endurance Type | Mixed Use |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
