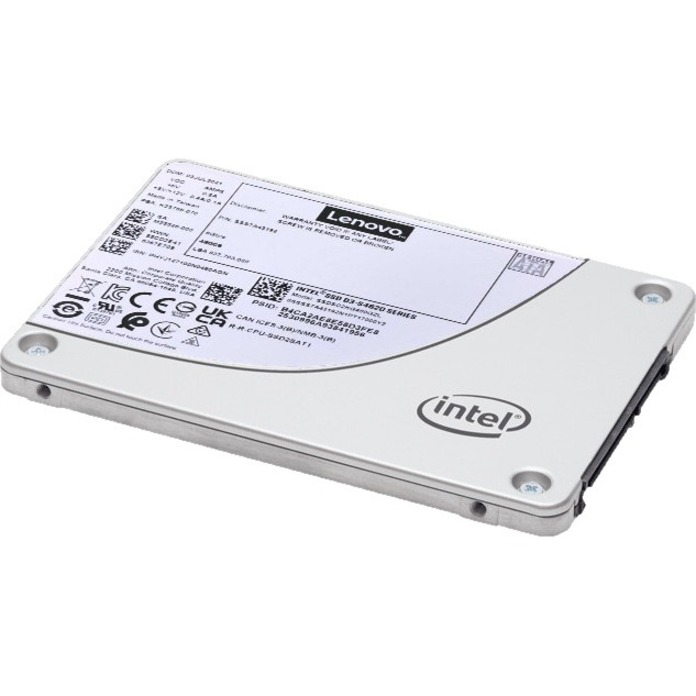

Lenovo S4620 3.84 TB Rugged Solid State Drive - 2.5" Internal - SATA (SATA/600) - Mixed Use
Server Device Supported - 5.0 DWPD - 35942.40 TB TBW - 550 MB/s Maximum Read Transfer Rate - Hot Swappable - 256-bit Encryption Standard - 1 Year Warranty
- SKU
- 4XB7A17128
- Category
- Hard Drives/Solid State Drives
MSRP$16,899.00
$15,427.59
Save 9%Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A17128
- Category
- Hard Drives/Solid State Drives
Overview
The ThinkSystem S4520 Mixed Use SATA SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. Compared with the Intel S4610 series, these new drives offer improved endurance.
The S4620 SSDs with up to 5 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.
Highlights
- 2.5-inch drives in multiple form form factors:
- 2.5-inch SFF hot-swap tray
- 7mm hot-swap tray
- 3.5-inch LFF hot-swap tray
- 3.5-inch LFF simple-swap tray
- Trayless drives
- Cost-effective Intel 3D NAND TLC Flash Memory
- Endurance of up to 5 drive writes per day (DWPD) for 5 years, using Intel Standard Endurance Technology (SET).
- SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
- High reliability and enhanced ruggedness
Specifications
| Additional Warranty Information | The S4620 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty |
|---|---|
| Product Type | Solid State Drive |
| Compatibility | Lenovo Thinksystem Servers: SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR675 V3 (7D9Q / 7D9R) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) SR850 V3 (7D97 / 7D96) SR860 V3 (7D94 / 7D93) ST650 V2 (7Z75 / 7Z74) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR655 Client OS SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) SR850P (7D2F / 2D2G) SR860 (7X69 / 7X70) SD630 V2 (7D1K) SN550 V2 (7Z69) ST550 (7X09 / 7X10) SR530 (7X07 / 7X08) SR550 (7X03 / 7X04) SR570 (7Y02 / 7Y03) SR590 (7X98 / 7X99) SR630 (7X01 / 7X02) SR650 (7X05 / 7X06) SR670 (7Y36 / 7Y37) SD530 (7X21) SN550 (7X16) SN850 (7X15) |
| Device Supported | Server |
| Storage Capacity | 3.84 TB |
| Hot Swappable | Yes |
| Manufacturer Part Number | 4XB7A17128 |
| Limited Warranty | 1 Year |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 2.5" S4620 3.84TB Mixed Use SATA 6Gb HS SSD |
| Product Series | S4620 |
| Brand Name | Lenovo |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Encryption Standard | 256-bit |
| Maximum Read Transfer Rate | 550 MB/s |
| Maximum Write Transfer Rate | 510 MB/s |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 91000IOPS |
| Random 4KB Write | 60000IOPS |
| Endurance (DWPD) | 5.0 |
| Endurance (TBW) | 35942.40 TB |
| Endurance Type | Mixed Use |
| Rugged | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
