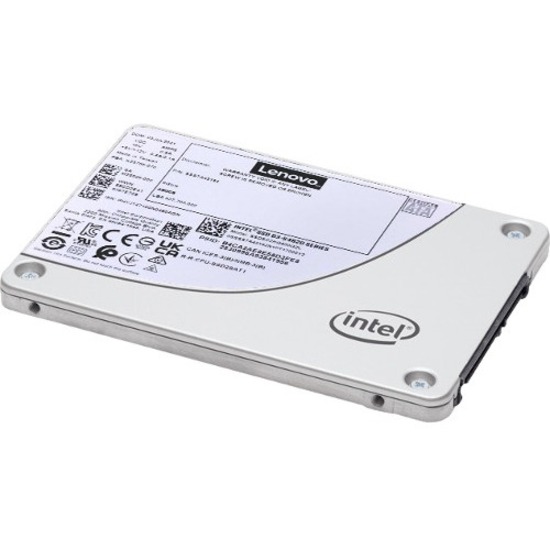

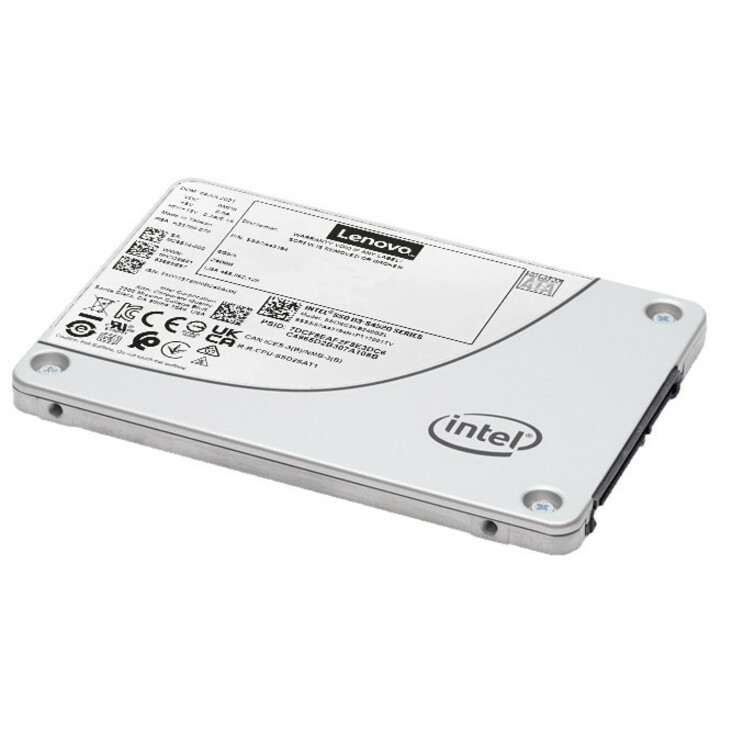

Lenovo S4520 240 GB Solid State Drive - 3.5" Internal - SATA (SATA/600) - Read Intensive
Server Device Supported - 2.5 DWPD - 1024 TB TBW - 470 MB/s Maximum Read Transfer Rate - Hot Swappable - 256-bit Encryption Standard - 1 Year Warranty
- SKU
- 4XB7A17118
- Category
- Hard Drives/Solid State Drives
$1,039.20
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A17118
- Category
- Hard Drives/Solid State Drives
Overview
The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S4520 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4520 SSDs and consider their use in IT solutions.
Highlights
- 2.5-inch drives in multiple form form factors
- Cost-effective Intel 3D NAND TLC Flash Memory
- Endurance of up to 3 drive writes per day (DWPD) for 5 years, using Intel Standard Endurance Technology (SET).
- SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
- High reliability and enhanced ruggedness
- Energy savings, with typical write power consumption as low as 2.3 W per drive
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
- Full end-to-end data path protection
Specifications
| Additional Warranty Information | The S4520 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. |
|---|---|
| Product Type | Solid State Drive |
| Compatibility | Lenovo ThinkSystem Servers: ST250 V2 (7D8G / 7D8F) SR250 V2 (7D7R / 7D7Q) SR655 V3 (7D9F / 7D9E) SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) ST650 V2 (7Z75 / 7Z74) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR655 Client OS SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) ST250 (7Y45 / 7Y46) SR250 (7Y52 / 7Y51) ST550 (7X09 / 7X10) SR530 (7X07 / 7X08) SR550 (7X03 / 7X04) SR570 (7Y02 / 7Y03) SR590 (7X98 / 7X99) SR630 (7X01 / 7X02) SR650 (7X05 / 7X06) |
| Device Supported | Server |
| Storage Capacity | 240 GB |
| Hot Swappable | Yes |
| Manufacturer Part Number | 4XB7A17118 |
| Limited Warranty | 1 Year |
| Drive Type | Internal |
| Form Factor | 3.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 3.5" S4520 240GB Read Intensive SATA 6Gb HS SSD |
| Product Series | S4520 |
| Brand Name | Lenovo |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Encryption Standard | 256-bit |
| Maximum Read Transfer Rate | 470 MB/s |
| Maximum Write Transfer Rate | 233 MB/s |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 44000IOPS |
| Random 4KB Write | 15500IOPS |
| Endurance (DWPD) | 2.5 |
| Endurance (TBW) | 1024 TB |
| Endurance Type | Read Intensive |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
