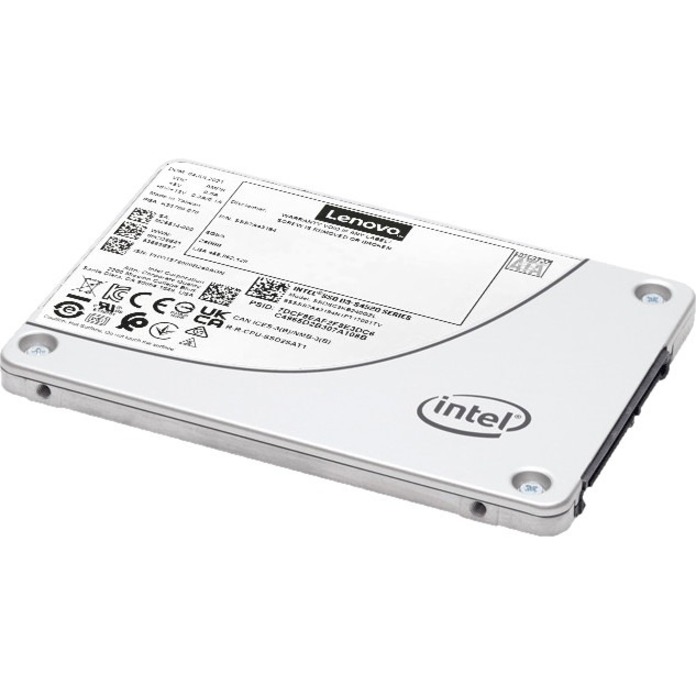

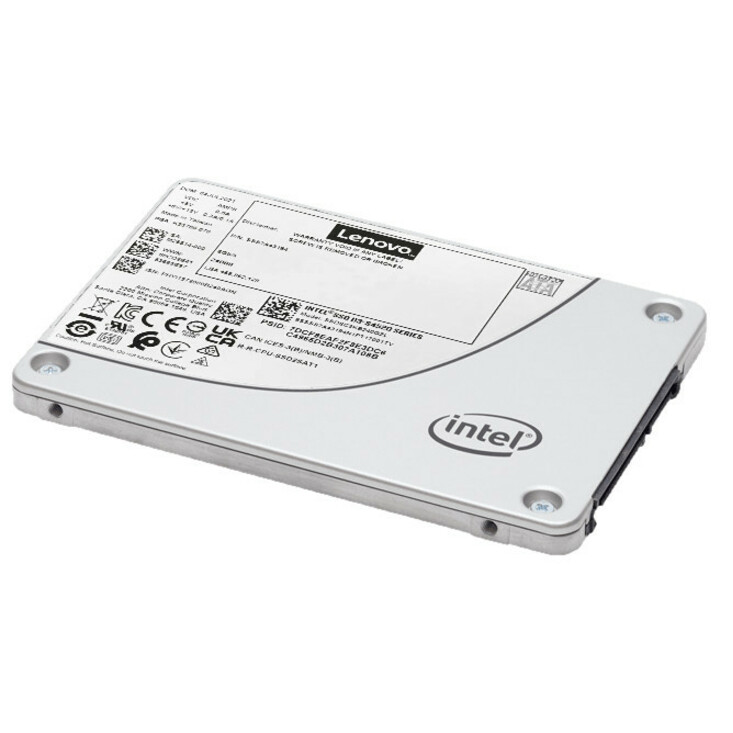

Lenovo S4520 480 GB Solid State Drive - 2.5" Internal - SATA (SATA/600) - Read Intensive
Lenovo

Lenovo S4520 480 GB Solid State Drive - 2.5" Internal - SATA (SATA/600) - Read Intensive

Server Device Supported - 2.8 DWPD - 2560 TB TBW - 550 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty

SKU
4XB7A17107
Category
Hard Drives/Solid State Drives

MSRP$2,699.00

$2,513.15

Save 7%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4XB7A17107
Category
Hard Drives/Solid State Drives

Overview

The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.

This product guide provides essential presales information to understand the S4520 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4520 SSDs and consider their use in IT solutions.

Highlights

  • 2.5-inch drives in multiple form form factors
  • Cost-effective Intel 3D NAND TLC Flash Memory
  • Endurance of up to 3 drive writes per day (DWPD) for 5 years, using Intel Standard Endurance Technology (SET).
  • SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
  • High reliability and enhanced ruggedness
  • Energy savings, with typical write power consumption as low as 2.3 W per drive
  • Absence of moving parts to reduce potential failure points in the server
  • S.M.A.R.T. support
  • Advanced Encrypting Standard (AES) 256-bit encryption
  • Full end-to-end data path protection

Specifications

Additional Warranty InformationThe S4520 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty.
Product TypeSolid State Drive
CompatibilityLenovo ThinkSystem Servers: SR635 V3 (7D9H / 7D9G) SR655 V3 (7D9F / 7D9E) SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) SR850 V3 (7D97 / 7D96) SR860 V3 (7D94 / 7D93) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) SD630 V2 (7D1K) SR850 V2 (7D31 / 7D32) SR860 V2 (7Z59 / 7Z60)
Device SupportedServer
Storage Capacity480 GB
Hot SwappableYes
Manufacturer Part Number4XB7A17107
Limited Warranty1 Year
Drive TypeInternal
Form Factor2.5"
ManufacturerLenovo Group Limited
Product NameThinkSystem 7mm S4520 480GB Read Intensive SATA 6Gb HS SSD
Product SeriesS4520
Brand NameLenovo
Height0.3"
Environmentally FriendlyYes
Wireless LANNo
Maximum Read Transfer Rate550 MB/s
Maximum Write Transfer Rate460 MB/s
Drive InterfaceSATA
Drive Interface StandardSATA/600
Random 4KB Read79000IOPS
Random 4KB Write30000IOPS
Endurance (DWPD)2.8
Endurance (TBW)2560 TB
Endurance TypeRead Intensive
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
