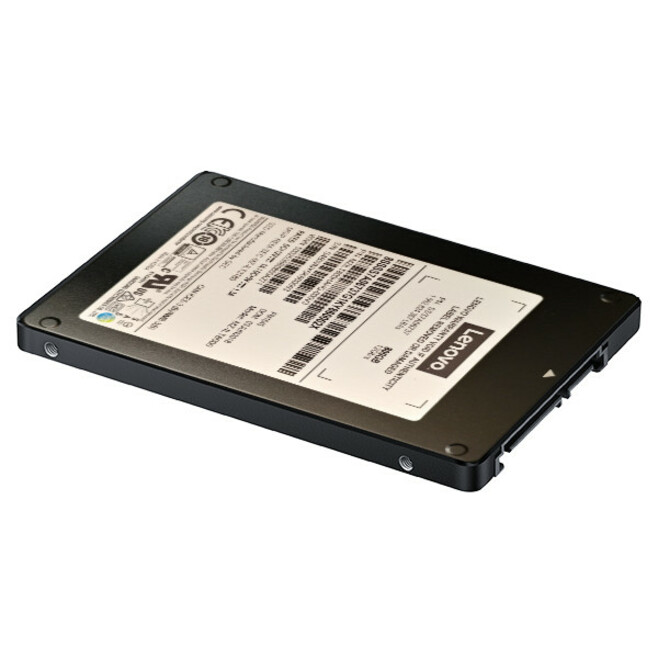

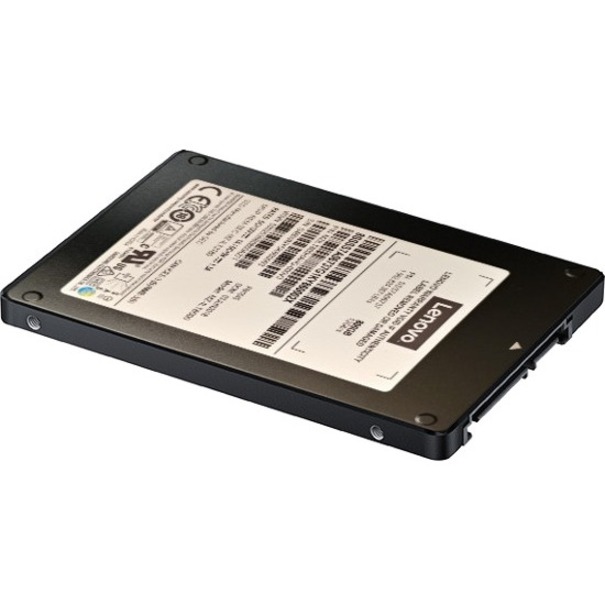

Lenovo PM1645a 3.20 TB Solid State Drive - 3.5" Internal - SAS (12Gb/s SAS)
Server Device Supported - 3 DWPD - 17520 TB TBW - 1000 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty - 1
- SKU
- 4XB7A17067
- Category
- Hard Drives/Solid State Drives
$4,524.58
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A17067
- Category
- Hard Drives/Solid State Drives
Overview
The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 6.4 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.
This product guide provides essential presales information to understand the Mainstream 12Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Highlights
- Mainstream server SSD suitable for mixed read-write-intensive workloads
- Endurance of 3 drive-writes per day (DWPD)
- 2.5-inch or 3.5-inch industry standard form factor with hot-swap tray
- SAS 12 Gbps interface
- Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture
- Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
- End-to-end data protection
- Support 16 Initiator with Tag Command Queuing (TCQ) Command Set with a queue-depth of up to 128 commands
- Compliant with SCSI Specification (SAS-3 / SPL-3 / SBC-4 / SPC-4 / SAM-5)
- RoHS Compliant
Specifications
| Package Contents |
|
|---|---|
| Product Type | Solid State Drive |
| Compatibility | Lenovo ThinkSystem Servers: ST550 (7X09 / 7X10) SR530 (7X07 / 7X08) SR550 (7X03 / 7X04) SR570 (7Y02 / 7Y03) SR590 (7X98 / 7X99) SR630 (7X01 / 7X02) SR650 (7X05 / 7X06) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) |
| Device Supported | Server |
| Storage Capacity | 3.20 TB |
| Hot Swappable | Yes |
| Manufacturer Part Number | 4XB7A17067 |
| Packaged Quantity | 1 |
| Limited Warranty | 1 Year |
| Drive Type | Internal |
| Form Factor | 3.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 3.5" PM1645a 3.2TB Mainstream SAS 12Gb Hot Swap SSD |
| Product Series | PM1645a |
| Brand Name | Lenovo |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Maximum Read Transfer Rate | 1000 MB/s |
| Maximum Write Transfer Rate | 1000 MB/s |
| Drive Interface | SAS |
| Drive Interface Standard | 12Gb/s SAS |
| Random 4KB Read | 230000IOPS |
| Random 4KB Write | 140000IOPS |
| Endurance (DWPD) | 3 |
| Endurance (TBW) | 17520 TB |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
