Chief Suspended Ceiling Projector System with Storage - White
35 lb Load Capacity
- SKU
- SYS474UW
- Category
- Mounting Kits
MSRP$901.00
$630.35
Save 30%Back ordered
Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SYS474UW
- Category
- Mounting Kits
Overview

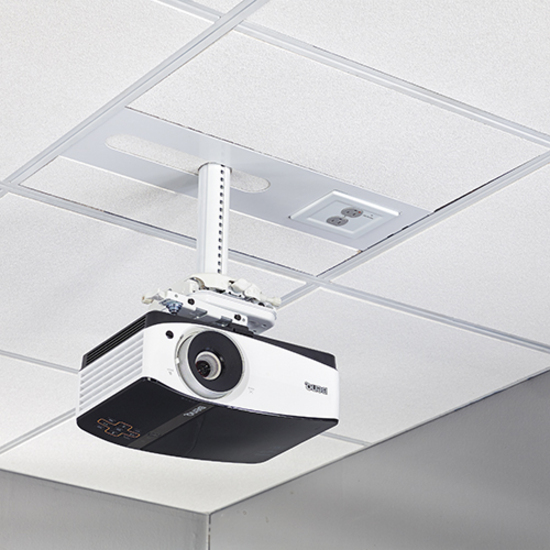

Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.

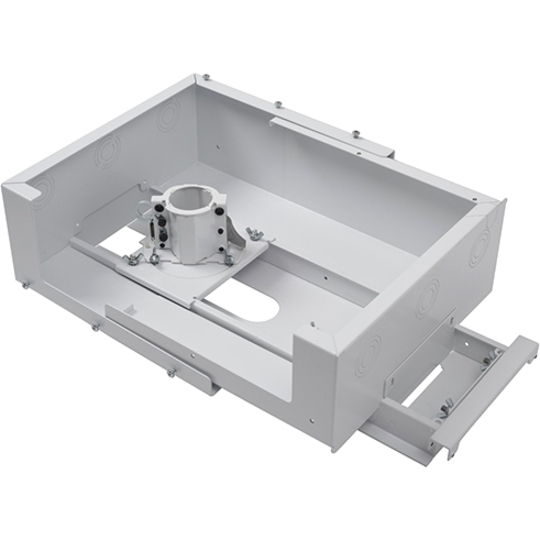

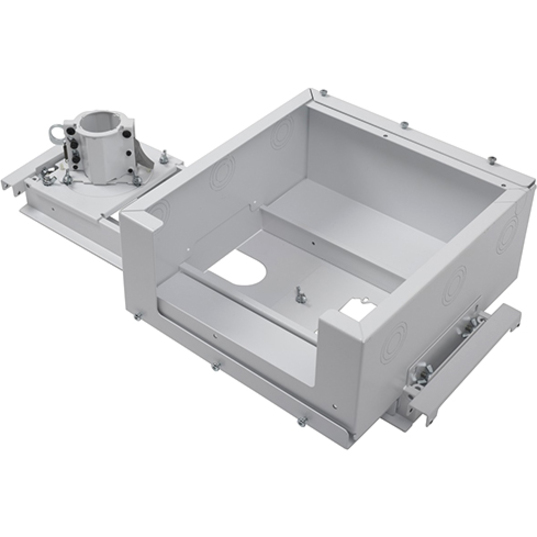

This option includes a flexible and scalable plenum-rated storage box
Highlights

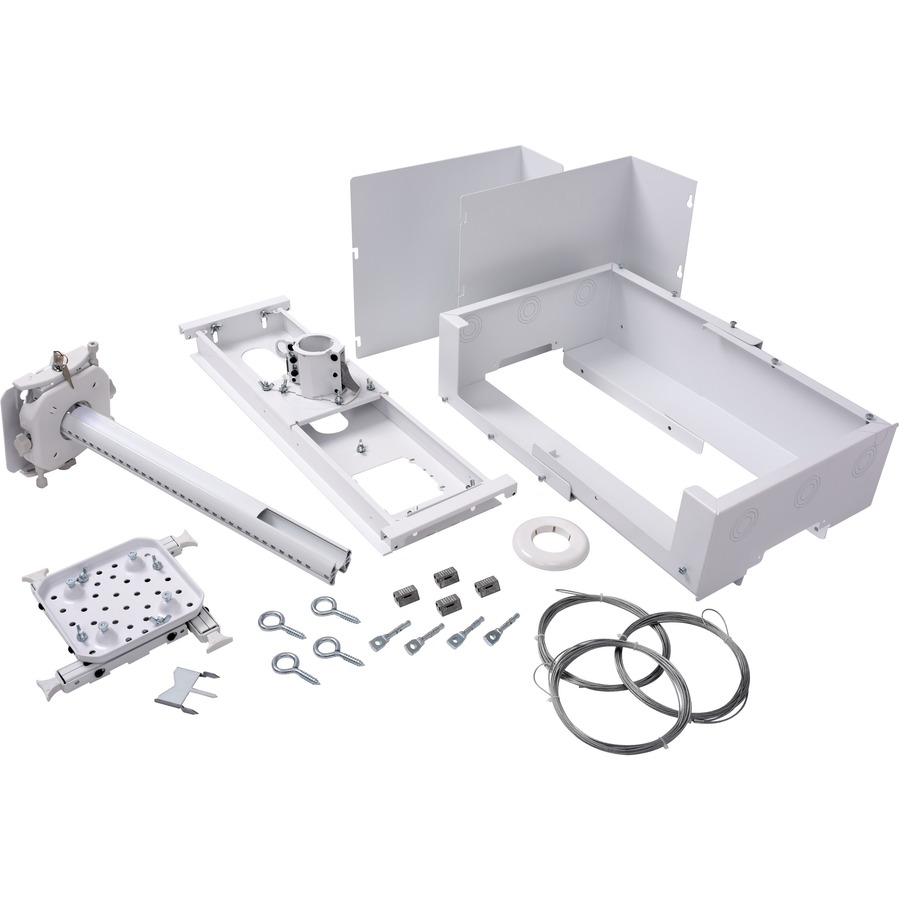

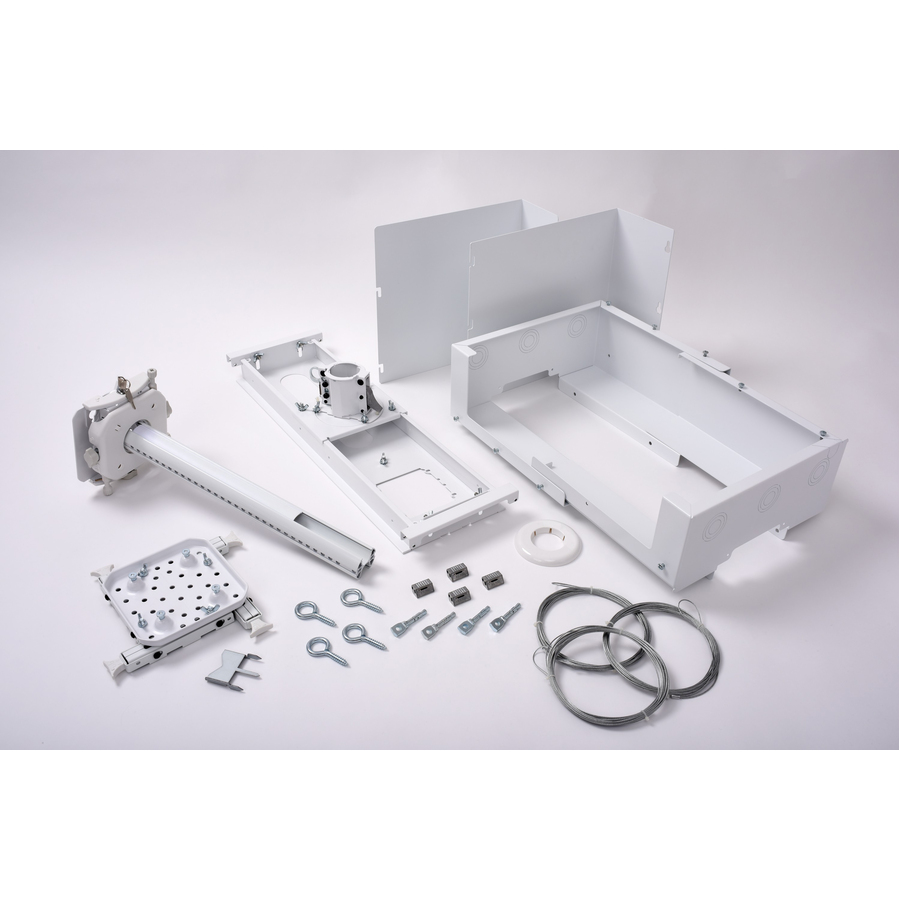

- System comes out of box in the order needed with mount and column preassembled
- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
- Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
- Tool-FreeMicrozone adjustment eliminates the need for set screws
- CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
- Adjustable 0-12" column with dual inlay channels for high and low voltage cables
- Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
- Improved universal interface for easier lock/unlock at projector connection
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ceiling Mount |
| Device Supported | Projector, A/V Equipment |
| Manufacturer Part Number | SYS474UW |
| Limited Warranty | 10 Year |
| Manufacturer | Legrand Group |
| Product Model | SYS474UW |
| Product Name | Suspended Ceiling Projector System with Storage |
| Maximum Load Capacity | 35 lb |
| Brand Name | Chief |
| Country of Origin | United States |
| Height | 19.82" |
| Width | 7.25" |
| Depth | 24.94" |
| Product Color | White |
