Chief Fixed Medium Fixed Display Wall Mount - For Displays 32-65" - Black
Height Adjustable - 32" to 65" Screen Support - 125 lb Load Capacity - 550 x 450 VESA Standard
- SKU
- RMF3
- Category
- Mounting Kits
MSRP$135.00
$103.50
Save 23%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- RMF3
- Category
- Mounting Kits
Overview

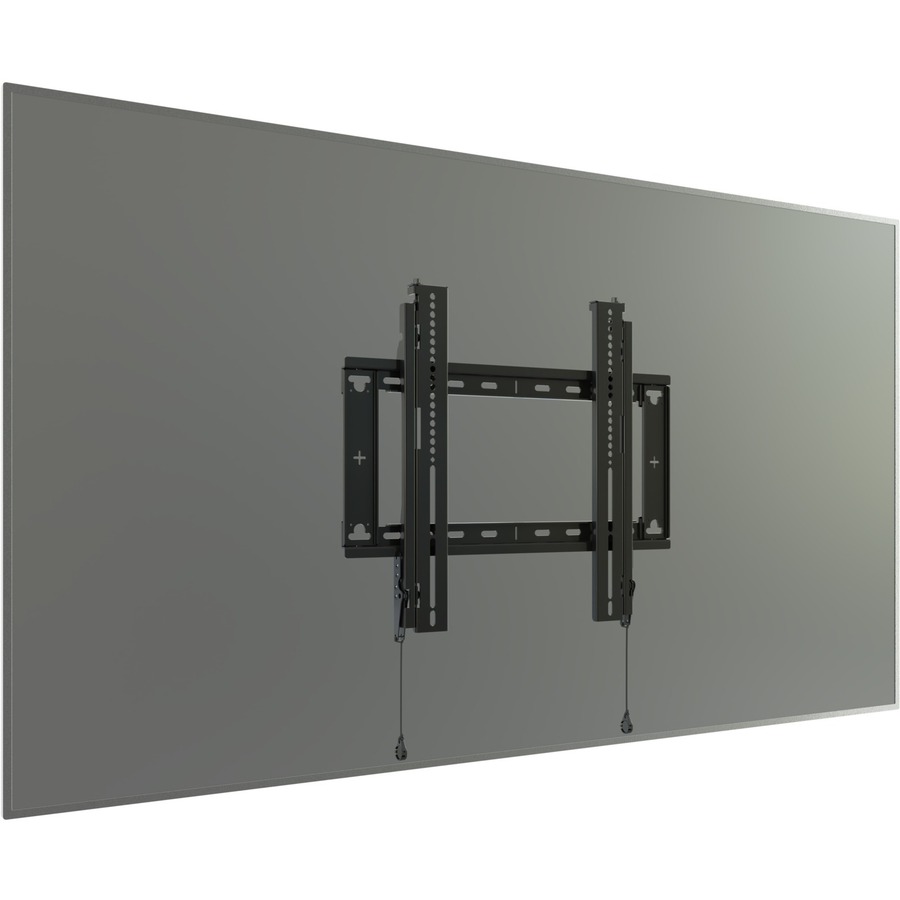

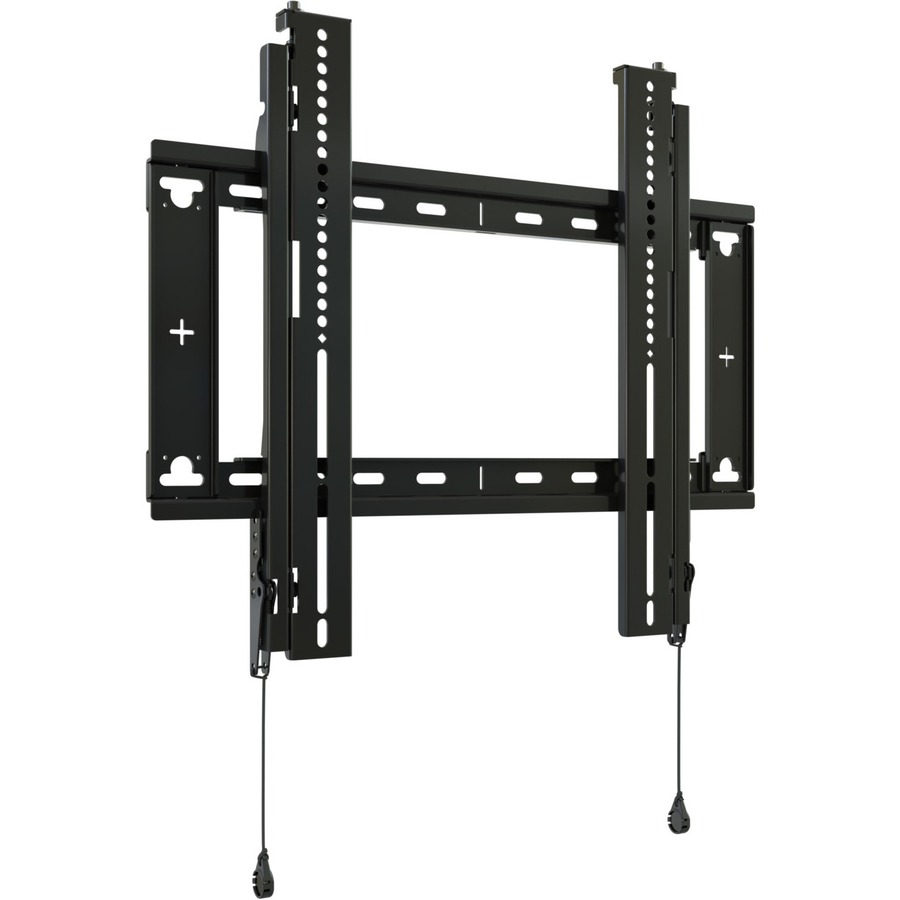

The Fit series RMF3 is a medium fixed display wall mount for 32" to 65" typical display sizes and supports mounting patterns up to 550 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 1" (25 mm) low-profile depth, and UL and TUV safety standard approvals.
More from the Manufacturer
Highlights
- Low-profile 1" (25 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 550 x 450 mm
- Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards compliant
Specifications
| Application/Usage | Wall |
|---|---|
| Product Type | Wall Mount |
| Device Supported | Display |
| Manufacturer Part Number | RMF3 |
| Limited Warranty | 10 Year |
| Features | Robust, Magnetic Pull/Release System |
| Manufacturer | Legrand Group |
| Product Model | RMF3 |
| Product Name | Medium Fit Fixed Display Wall Mount |
| Product Line | Medium FIT |
| Maximum Load Capacity | 125 lb |
| Brand Name | Chief |
| Height | 22.01" |
| Width | 19.17" |
| Depth | 0.98" |
| Minimum Screen Size Supported | 32" |
| Maximum Screen Size Supported | 65" |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 550 x 450 |
| Product Color | Black |
| Color Family | Black |
| Mount Profile | Low Profile |
| Height Adjustable | Yes |
