Chief Fit Large Tilt Display Wall Mount - For Displays 43-86" - Black
Height Adjustable - 43" to 86" Screen Support - 200 lb Load Capacity - 915 x 450 VESA Standard
- SKU
- RLT3
- Category
- Mounting Kits
MSRP$216.00
$160.23
Save 26%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- RLT3
- Category
- Mounting Kits
Overview

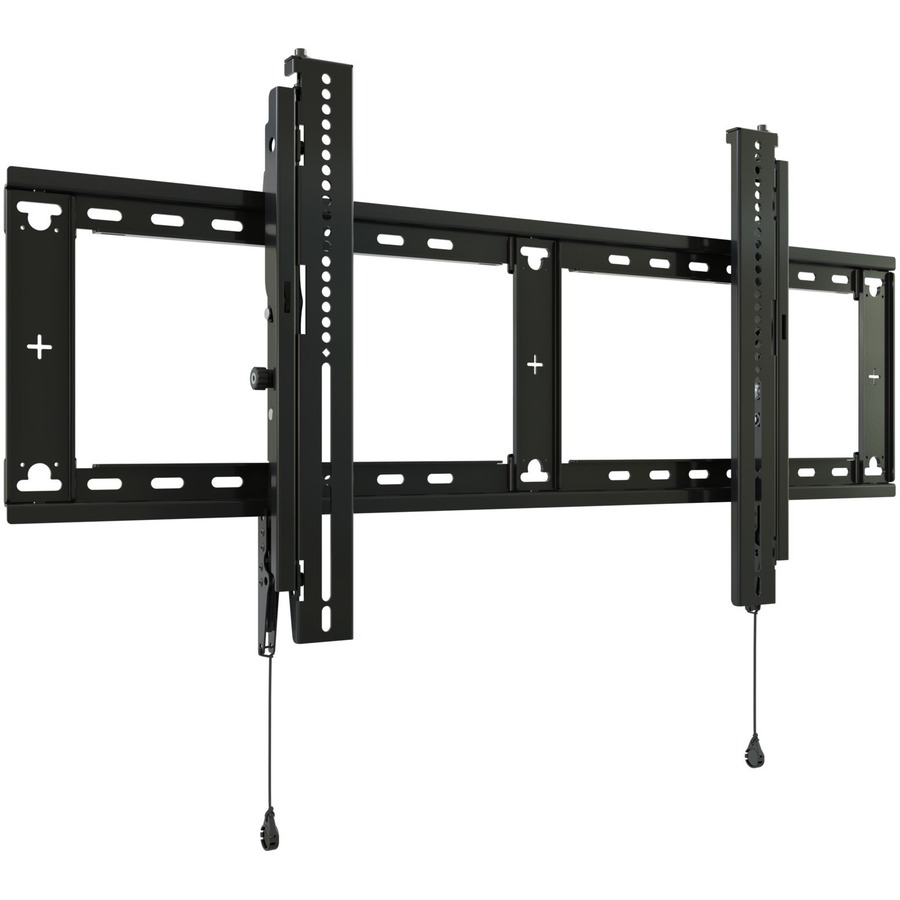

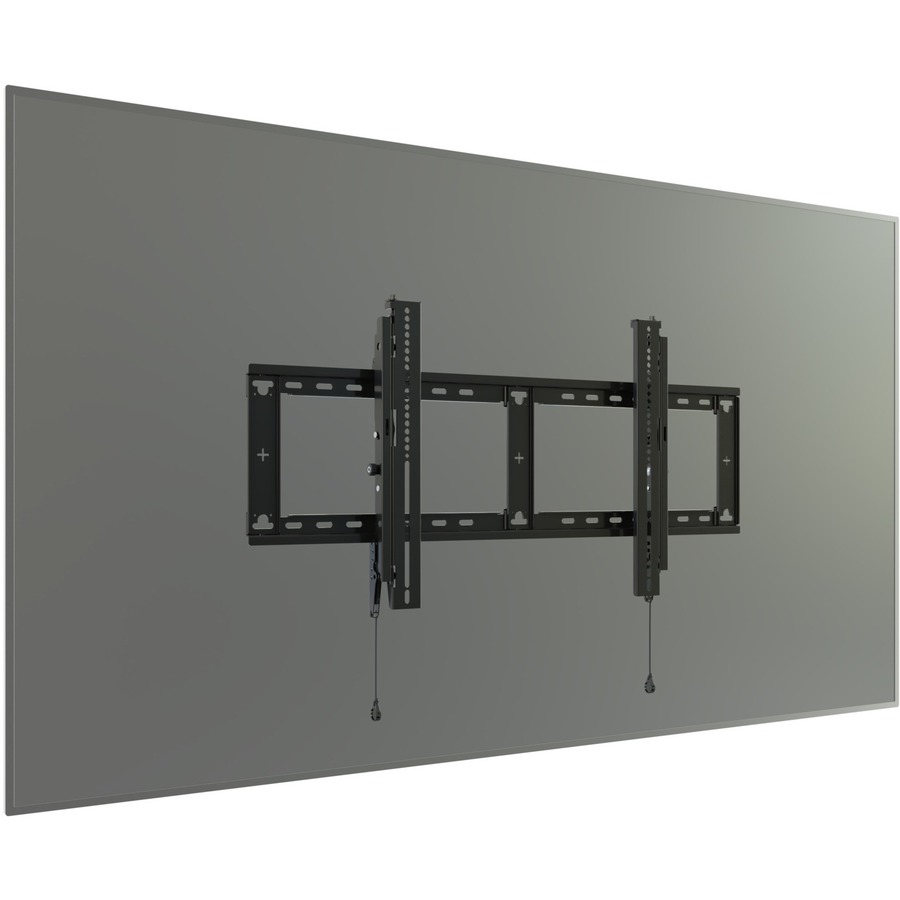

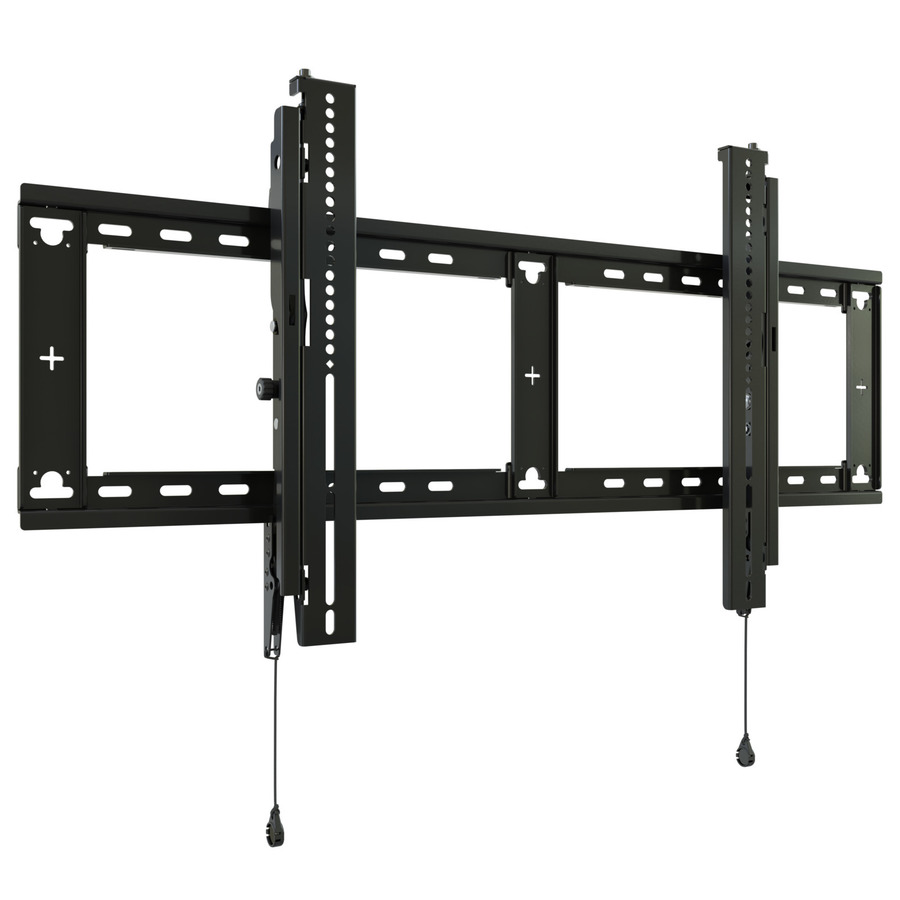

The Fit series RLT3 is a large tilt display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
More from the Manufacturer
Highlights
- Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included

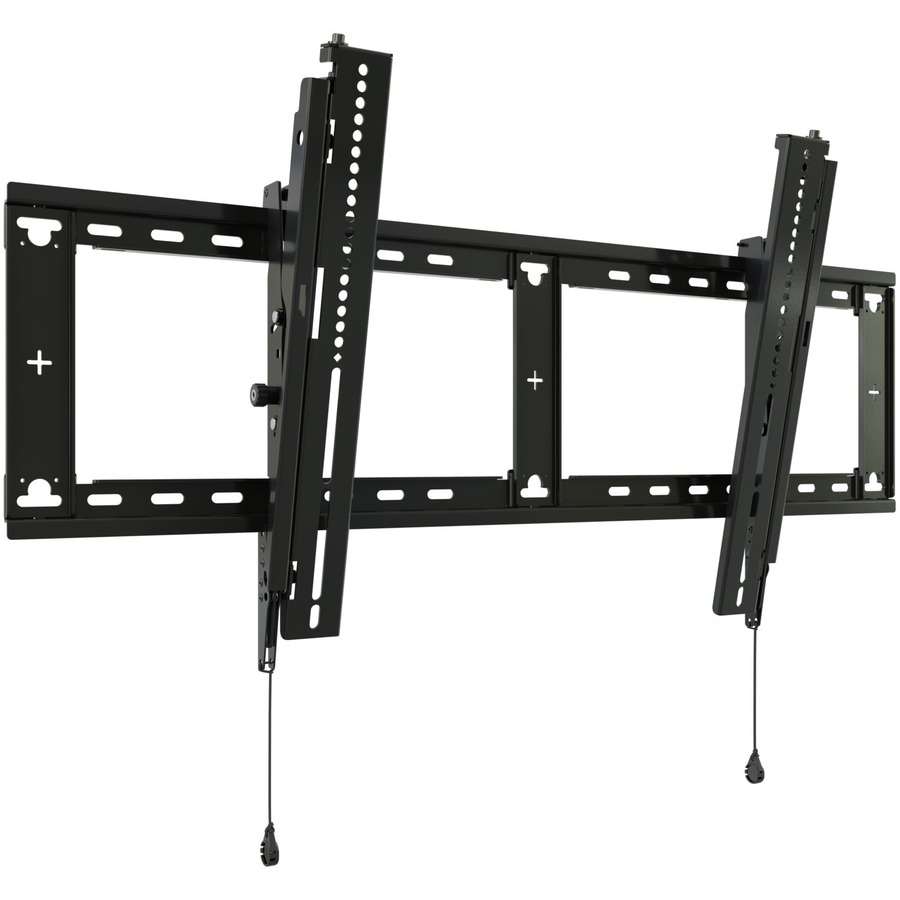

- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 450 mm
- Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
Specifications
| Application/Usage | Wall, Stud |
|---|---|
| Package Contents |
|
| Product Type | Wall Mount |
| Compatibility | Chief Storage Boxes: PAC525 PAC526 Chief PACSBM Sound Bar Mount Chief Mounting Panels: CSMP9X12 CSSLP15X10 |
| Device Supported | Display, Flat Panel Display, Mounting Panel, Storage Box, Sound Bar Mount |
| Manufacturer Part Number | RLT3 |
| Limited Warranty | 10 Year |
| Durability | Theft Resistant |
| Features | Tilt, Leveling System, Robust, 12° Tilt, Flexible, Lateral Adjustment, Tool-less Adjustment, Pull Cord, Kickstand, Landscape Mounting, Adjustable Tilt, -12° Tilt |
| Manufacturer | Legrand Group |
| Product Model | RLT3 |
| Product Name | Large Fit Tilt Display Wall Mount |
| Product Line | Large FIT |
| Maximum Load Capacity | 200 lb |
| Brand Name | Chief |
| Height | 19.18" |
| Width | 38" |
| Depth | 2" |
| Minimum Screen Size Supported | 43" |
| Maximum Screen Size Supported | 86" |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 915 x 450 |
| Product Color | Black |
| Color Family | Black |
| Mount Profile | Low Profile |
| Height Adjustable | Yes |
