Approved Networks 40GBASE QSFP+ Passive DAC Cable (QSFP+ to QSFP+)
Legrand

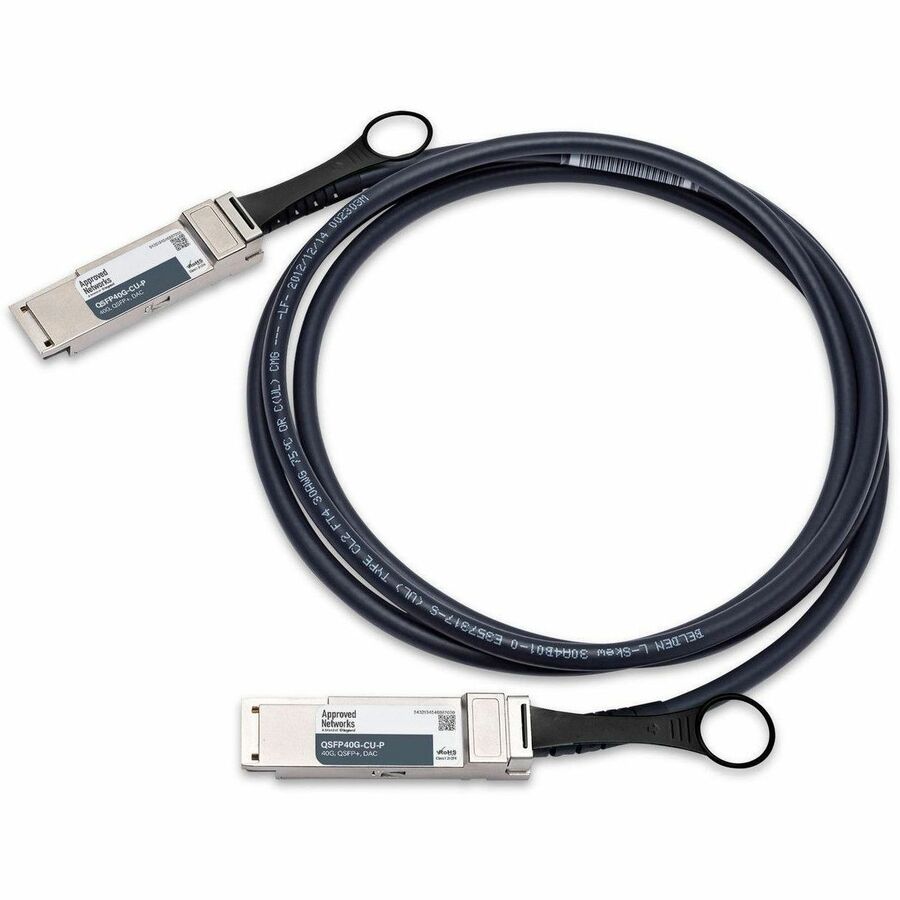

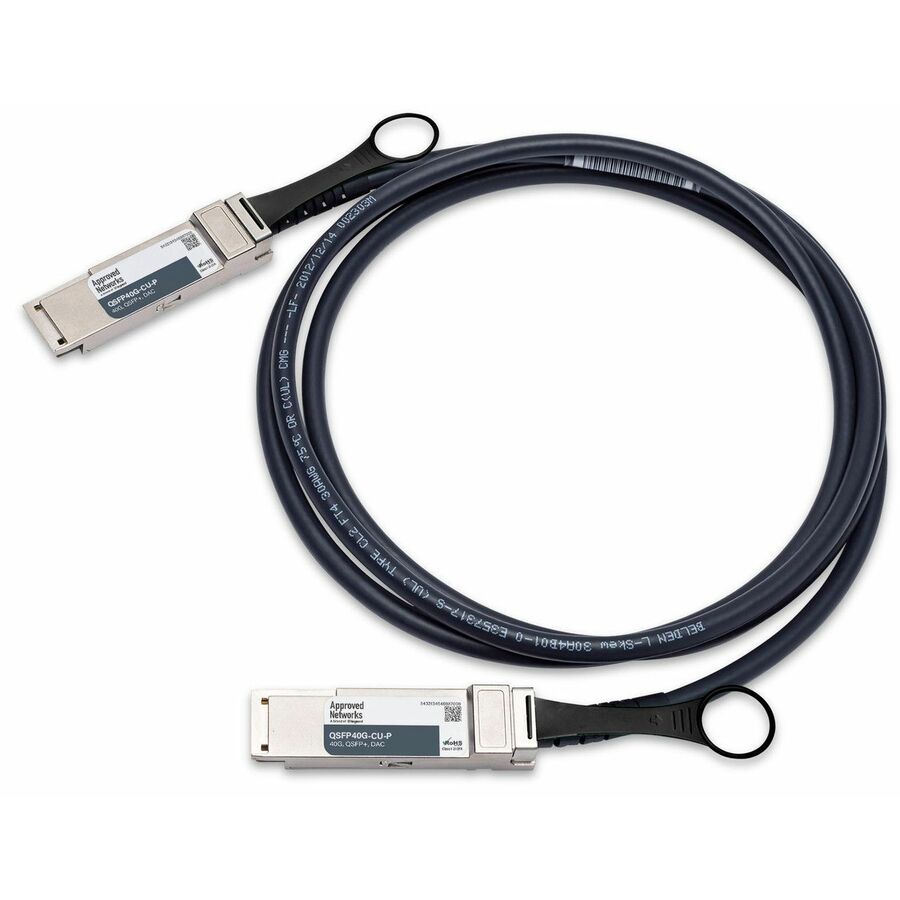

Approved Networks 40GBASE QSFP+ Passive DAC Cable (QSFP+ to QSFP+)

9.84 ft Twinaxial Network Cable for Network Device, Router, Switch, Communication System, Storage System, Server - First End: 1 x QSFP+ Network - Second End: 1 x QSFP+ Network - 40 Gbit/s - 30 AWG

SKU
QSFP-40GE-DAC-3M-A
Category
Connector Cables

MSRP$77.00

$66.73

Save 13%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
QSFP-40GE-DAC-3M-A
Category
Connector Cables

Highlights

  • Compliant QSFP MSA specifications
  • Fully compatible with IEEE802.3ba and Infiniband QDR specifications 40 Gb/s total bandwidth
  • 4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbps data rates
  • 100 ohm differential impedance system
  • Low Near-End Crosstalk (NEXT)
  • Operating case temperature: -40 to 85°C
  • All-metal housing for superior EMI performance
  • Precision process control for minimization of pair-to-pair skew
  • AC coupling of PECL signals
  • EEPROM for cable signature & system communications
  • 30 AWG to 24 AWG cable sizes available
  • RoHS compliant

Specifications

Cable Length9.84 ft
Product TypeNetwork Cable
Data Transfer Rate40 Gbit/s
Device SupportedNetwork Device, Router, Switch, Communication System, Storage System, Server
Manufacturer Part NumberQSFP-40GE-DAC-3M-A
FeaturesPassive, Bendable, InfiniBand QDR, EMI Protection, Near End Cross Talk (NEXT)
ManufacturerLegrand Group
Product Name40GBASE QSFP+ Passive DAC Cable (QSFP+ to QSFP+)
Package TypeOEM
Brand NameApproved Networks
Environmentally FriendlyYes
Cable TypeTwinaxial
Connector Type on First EndQSFP+ Network
Connector Type on Second EndQSFP+ Network
Maximum Distance22.97 ft
American Wire Gauge30 AWG
Jacket MaterialPolyvinyl Chloride (PVC)
Connector on First End Details1 x QSFP+ Network
Connector on Second End Details1 x QSFP+ Network
Product MaterialSilver-plated Copper, Metal
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
