Legrand

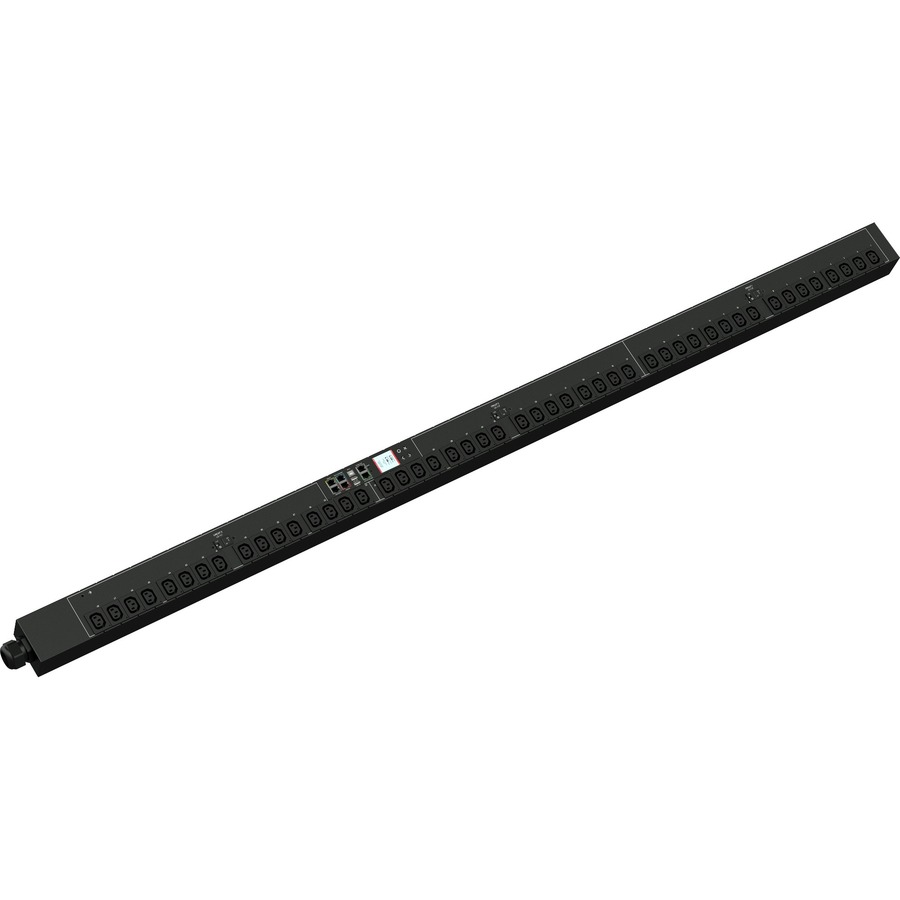

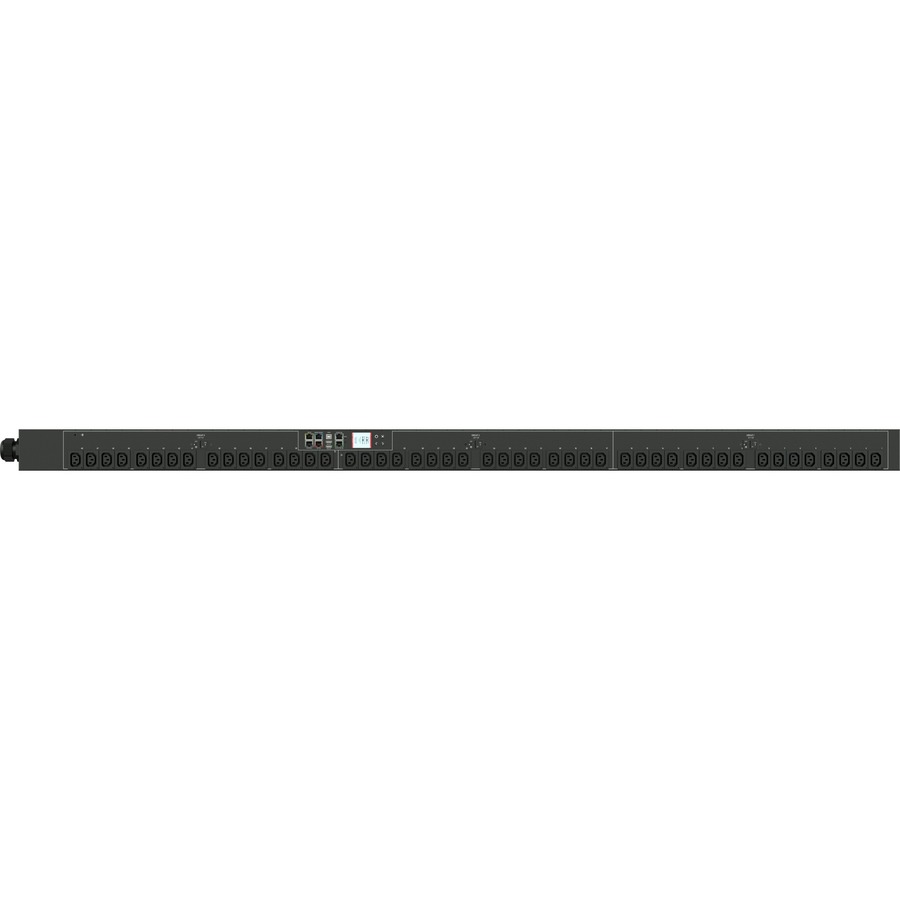

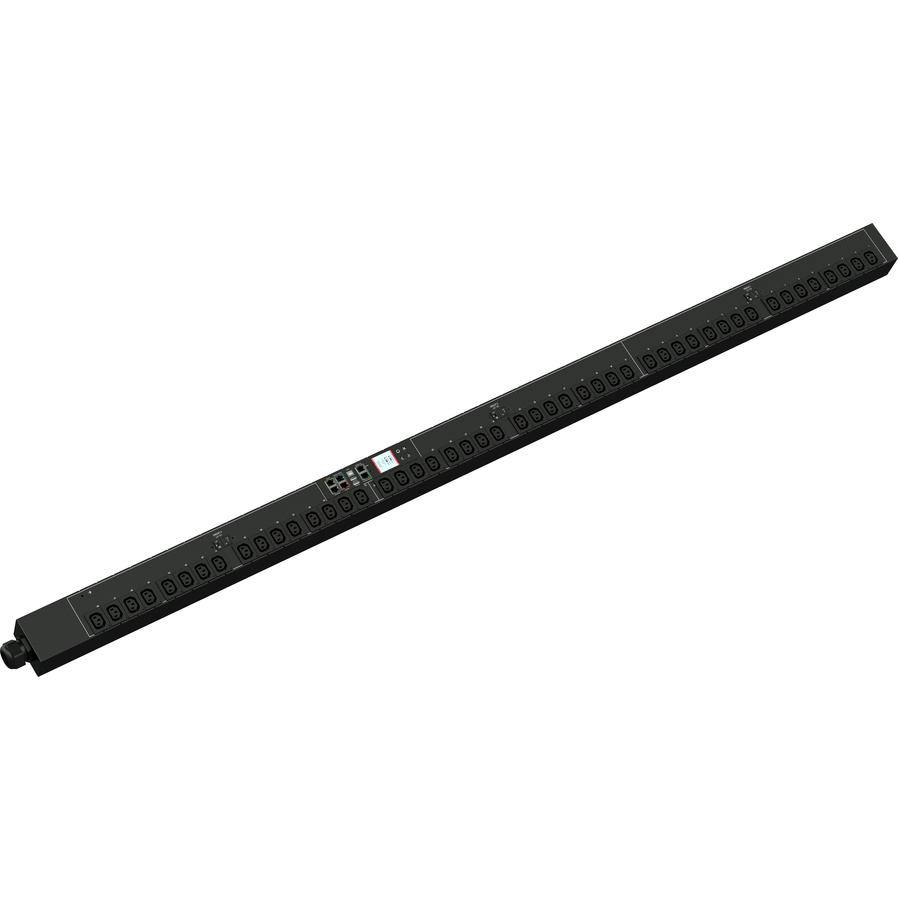

Raritan PX3-5776U-N2 (48) IEC320 C13 PDU
CS8365C (3P4W) - 48 x IEC 60320 C13 - 208 V - Network (RJ-45)
- SKU
- PX3-5776U-N2
- Category
- PDUs
MSRP$3,484.00
$3,285.96
Save 6%Back ordered
Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PX3-5776U-N2
- Category
- PDUs
Highlights
- PDU improves efficiency, uptime and growth of data centers
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- Three Phase phase PDU provides optimal power output with added usability
- CS8365C (3P4W) plug/connector type for efficient connectivity and feasible power output
- 208 V input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for maximum dependability and added productivity
Specifications
| Product Type | PDU |
|---|---|
| Input Voltage | 208 V |
| Manufacturer Part Number | PX3-5776U-N2 |
| Limited Warranty | 2 Year |
| Output Voltage | 208 V AC |
| Weight (Approximate) | 25.35 lb |
| Input Current | 50 A |
| Manufacturer | Legrand Group |
| Product Model | PX3-5776U-N2 |
| Product Name | PX3-5776U-N2 (48) IEC320 C13 PDU |
| Protection Type | Overload Protection |
| Product Series | PX3 |
| Brand Name | Raritan |
| Plug/Connector Type | CS8365C (3P4W) |
| Height | 74.5" |
| Width | 3.5" |
| Depth | 2.6" |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| Network (RJ-45) | Yes |
| Remote Outlet Switching | Yes |
| Power Rating (VA) | 12.60 kVA |
| Environmental Sensors | Differential Pressure, Contact Closure, Temperature, Water, Air Flow, Humidity |
| Receptacle Detail | 48 x IEC 60320 C13 |
