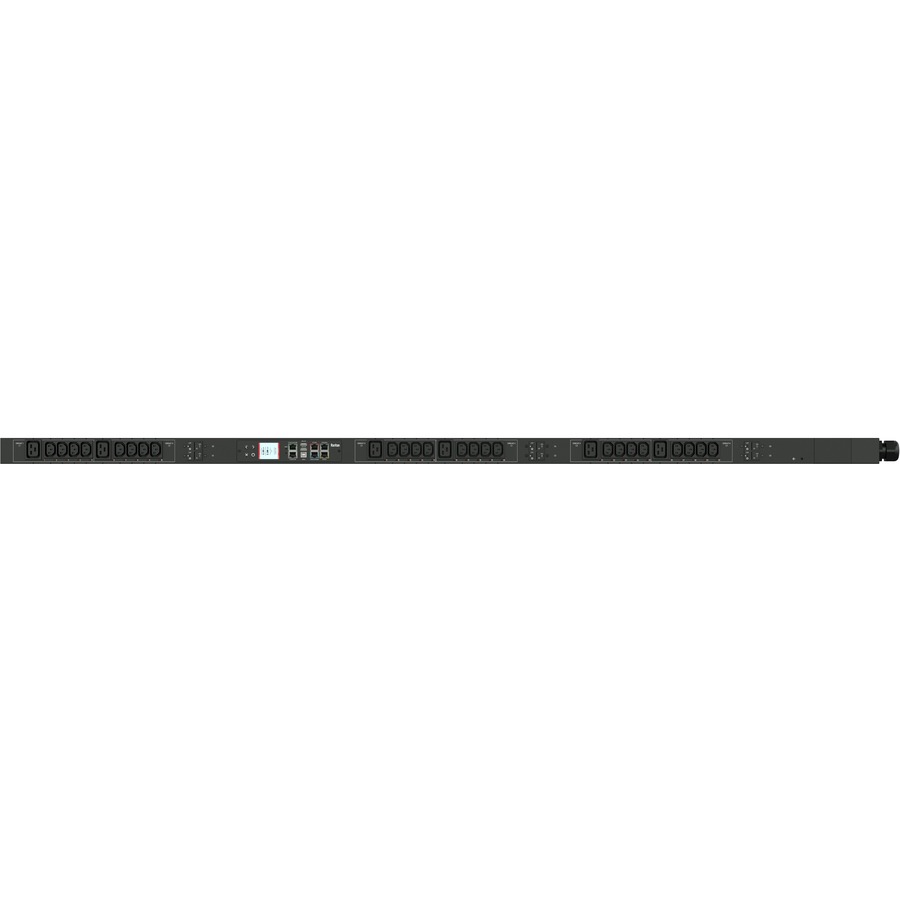

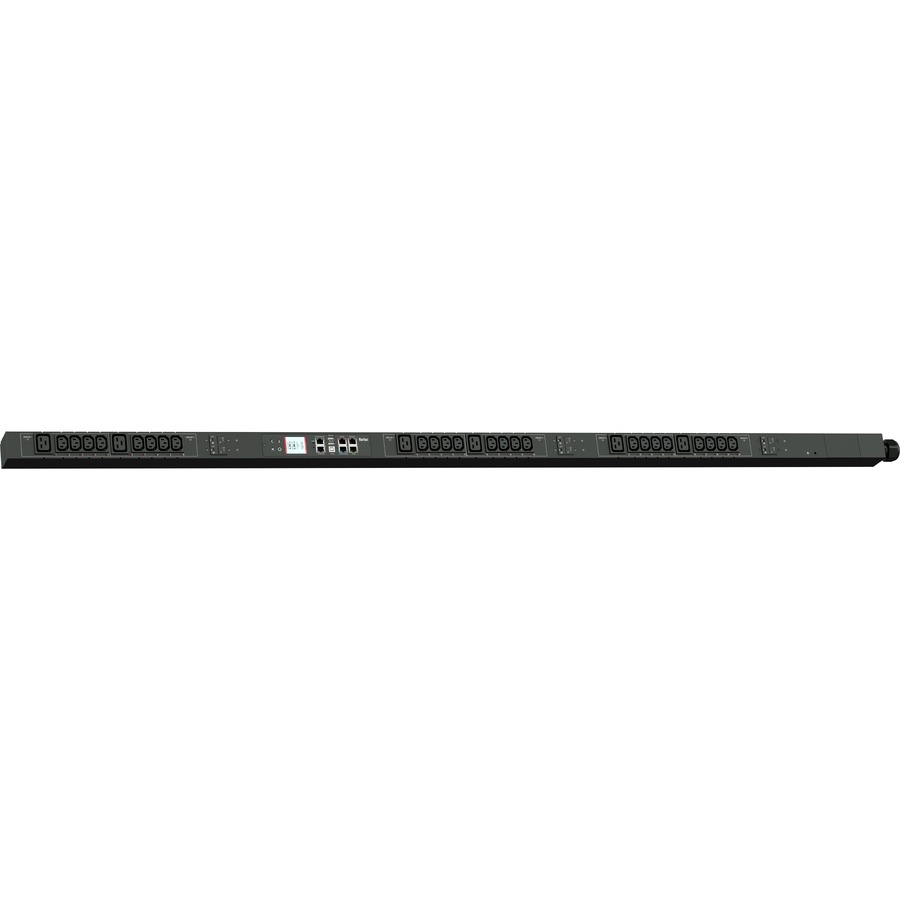

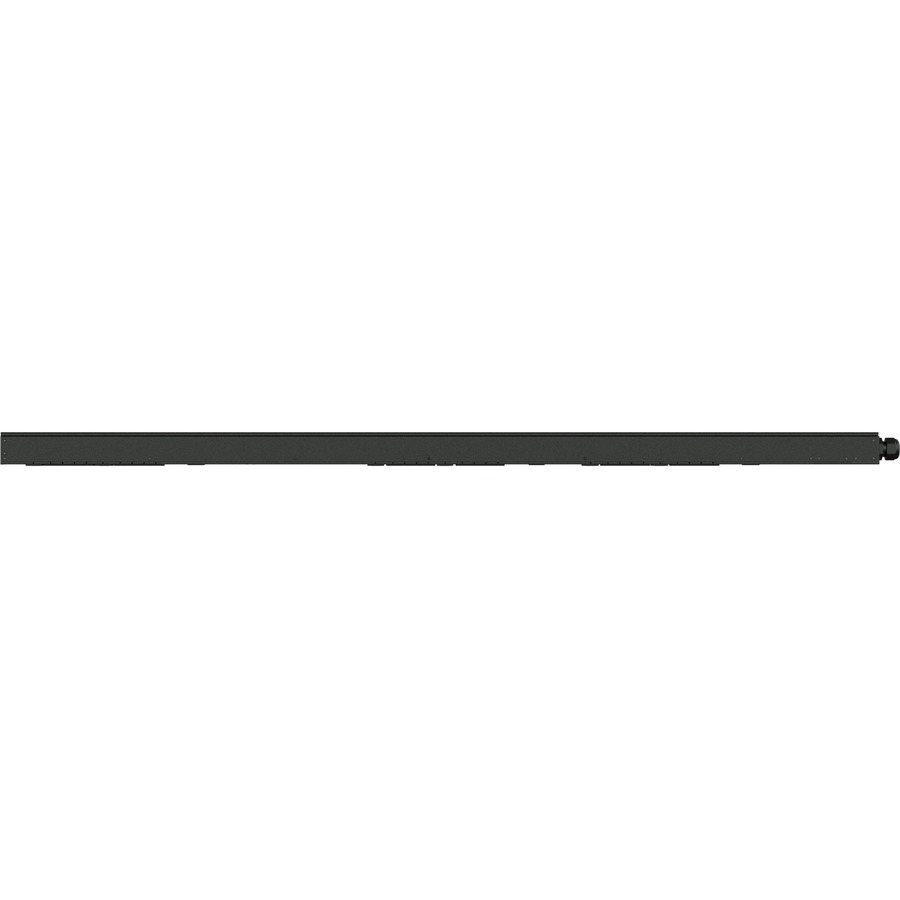

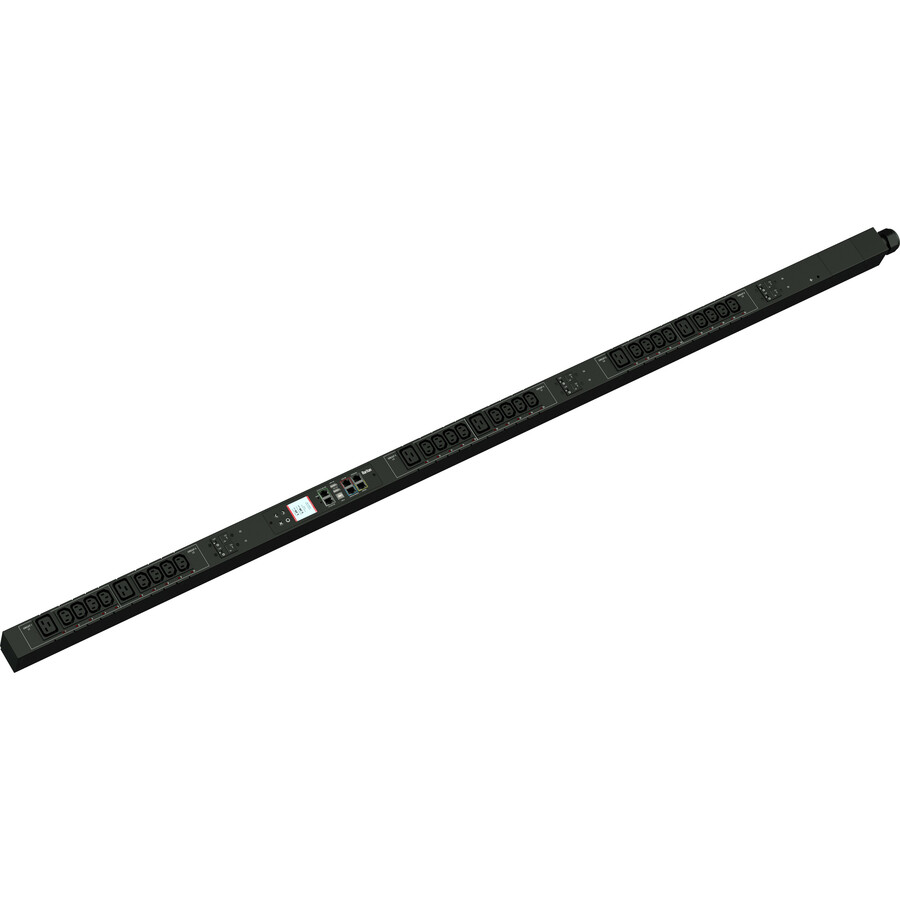

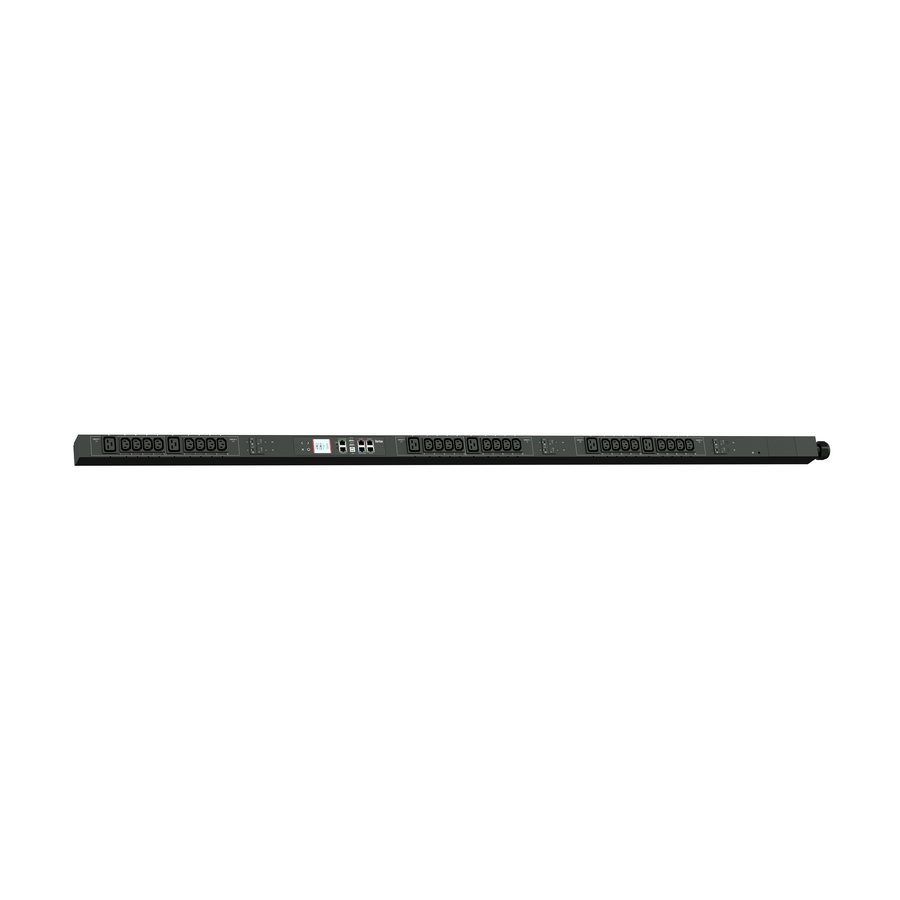

Raritan PX 30-Outlets PDU
Monitored - IEC 60309 3P+N+E 6h 32A (4P5W) - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 400 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable
- SKU
- PX3-5668V-M5V2
- Category
- PDUs
MSRP$2,840.00
$2,678.57
Save 6%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PX3-5668V-M5V2
- Category
- PDUs
Overview
SMARTER RACK POWER DISTRIBUTION
Raritan's PX intelligent rack PDU Series offers more than just power distribution-it's a launch pad for real-time remote power monitoring, environmental sensors, and data center infrastructure management. The PX Series offers hundreds of models with options including outlet switching, individual outlet metering, high power, and 400V three-phase power distribution. Have certain off-the-shelf models delivered in only a few days, or have PDUs purpose-built to meet the needs of your unique application. See for yourself why 9 of the top 10 Fortune 500 technology companies trust PX intelligent PDUs.
XERUS? TECHNOLOGY PLATFORM: RAISING THE BAR
Forming the backbone of all Raritan power products, Xerus comprises an extremely reliable, battle-tested, and ultra-secure hardware and software technology platform that integrates over 30 years of data center management expertise into every PDU. Developed and maintained by our team of technology experts, Xerus provides an open and flexible architecture collecting data, alarming, and communicating to operators and infrastructure software systems. With plenty of power under the hood, Xerus can uniquely deliver new and advanced capabilities to every Raritan PDU deployed-not only today, but far into your data center's future.
Highlights
- Provide circuit protection and easy configuration for trouble-free access
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Three Phase phase PDU for reliable performance with maximum productivity
- IEC 60309 3P+N+E 6h 32A (4P5W) plug/connector type for efficient connectivity and feasible power output
- 400 V AC input voltage for maximum feasibility and added productivity
- 230 V AC output voltage for maximum dependability and added productivity
Specifications
| Product Type | PDU |
|---|---|
| Input Voltage | 400 V AC |
| Manufacturer Part Number | PX3-5668V-M5V2 |
| Limited Warranty | 2 Year |
| Output Voltage | 230 V AC |
| Weight (Approximate) | 17.64 lb |
| Input Current | 32 A |
| Management |
|
| Manufacturer | Legrand Group |
| Product Name | PX 30-Outlets PDU |
| Mount Type | Rack-mountable |
| Protection Type | Overload Protection, Overcurrent Protection |
| Product Series | PX |
| Rack Height | 0U |
| Brand Name | Raritan |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 32A (4P5W) |
| Country of Origin | Taiwan |
| Height | 70.1" |
| Width | 2" |
| Depth | 2.6" |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Environmentally Friendly | Yes |
| Network (RJ-45) | Yes |
| PDU Type | Monitored |
| Remote Outlet Switching | Yes |
| Mounting Orientation | Vertical |
| Power Rating (VA) | 22.20 kVA |
| Receptacle Detail | 24 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
