Raritan PX3-5551U-V2 24-Outlets PDU
Legrand

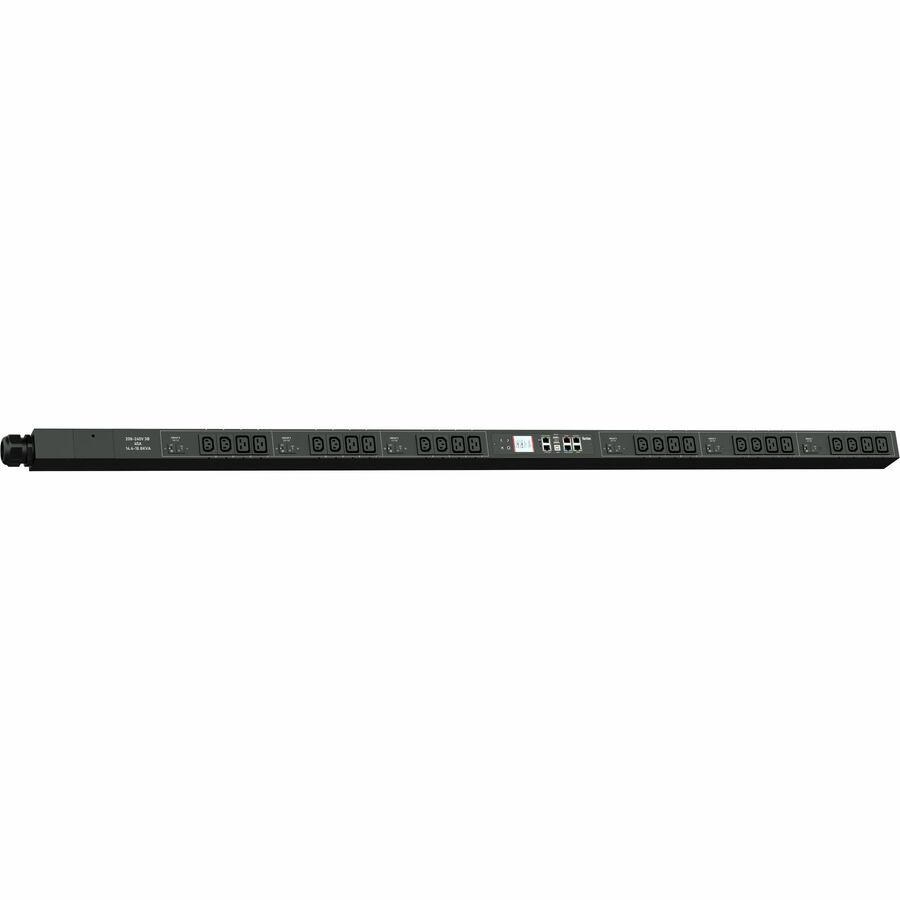

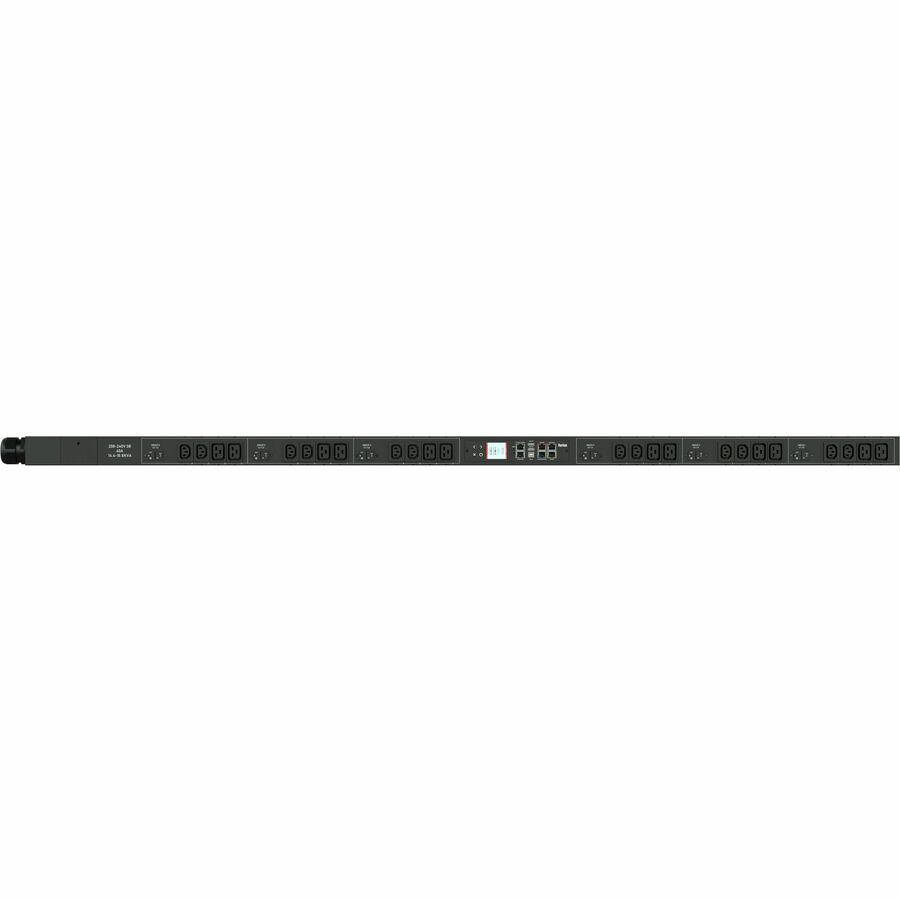

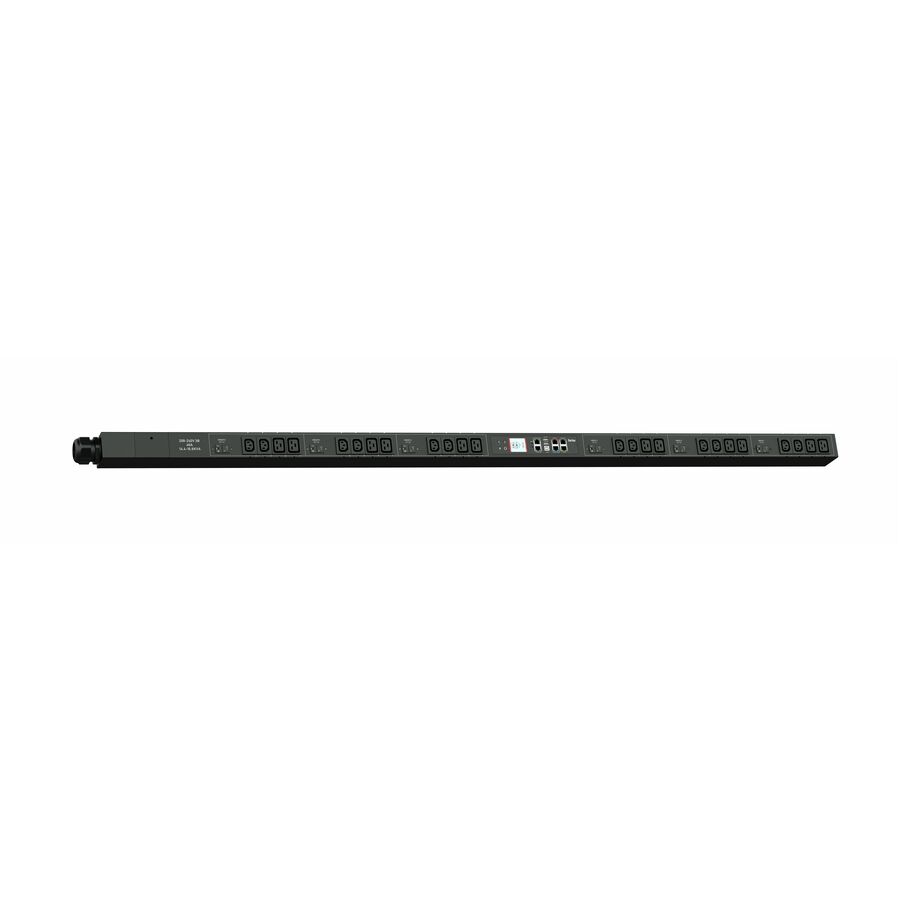

Raritan PX3-5551U-V2 24-Outlets PDU

Switched, Metered-by-Outlet - IEC 60309 3P+E 9h 60A (3P4W) - 12 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - Rack-mountable

SKU
PX3-5551U-V2
Category
PDUs

MSRP$3,097.00

$2,920.96

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PX3-5551U-V2
Category
PDUs

Highlights

  • PDU improves efficiency, uptime and growth of data centers
  • With switched PDU, remotely monitor, connect or disconnect data center loads
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • Three Phase phase PDU for reliable performance with maximum productivity
  • IEC 60309 3P+E 9h 60A (3P4W) plug/connector type for better, dependable connectivity and desired power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for maximum dependability and added productivity

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPX3-5551U-V2
Limited Warranty2 Year
Output Voltage208 V AC
FeaturesOnboard Display
Input Current60 A
Management
  • HTTP(s)
  • SSH
  • Telnet
  • RS-232 (Serial)
  • Power IQ
  • SNMP version v2/v3
  • SMTP
  • JSON-RPC
  • Modbus over TCP
ManufacturerLegrand Group
Product ModelPX3-5551U-V2
Product NamePX3-5551U-V2 24-Outlets PDU
Mount TypeRack-mountable
Protection TypeOverload Protection, Branch Circuit, Circuit Breaker
Product SeriesPX3
Brand NameRaritan
Plug/Connector TypeIEC 60309 3P+E 9h 60A (3P4W)
Input Voltage Range208 V AC - 240 V AC
Height70.1"
Width2.3"
Depth3.1"
PhaseThree Phase
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Environmentally FriendlyYes
Output Voltage Range208 V AC - 240 V AC
Network (RJ-45)Yes
PDU TypeSwitched, Metered-by-Outlet
Remote Outlet SwitchingYes
Power Rating (VA)20 kVA
Product ColorBlack Powder Coat
Environmental SensorsTemperature, Humidity, Water, Differential Pressure, Contact Closure, Air Flow
Color FamilyBlack
Locking ReceptaclesSecureLock
Receptacle Detail12 x IEC 60320 C13, 12 x IEC 60320 C19
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
