Legrand

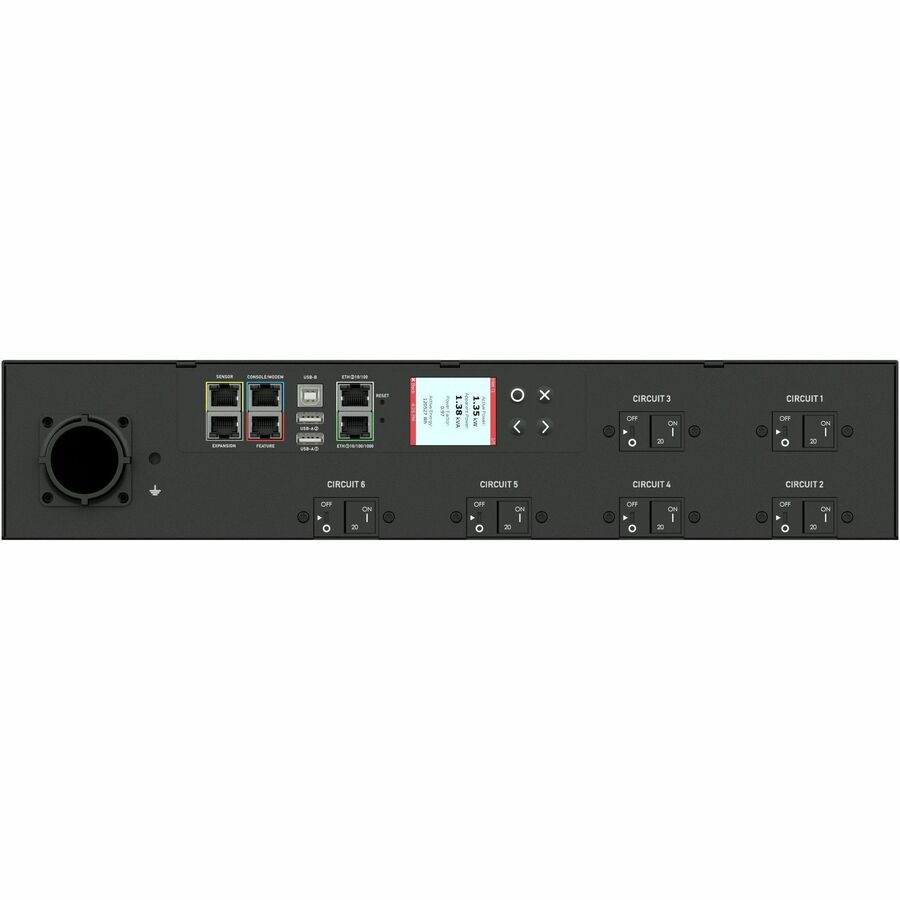

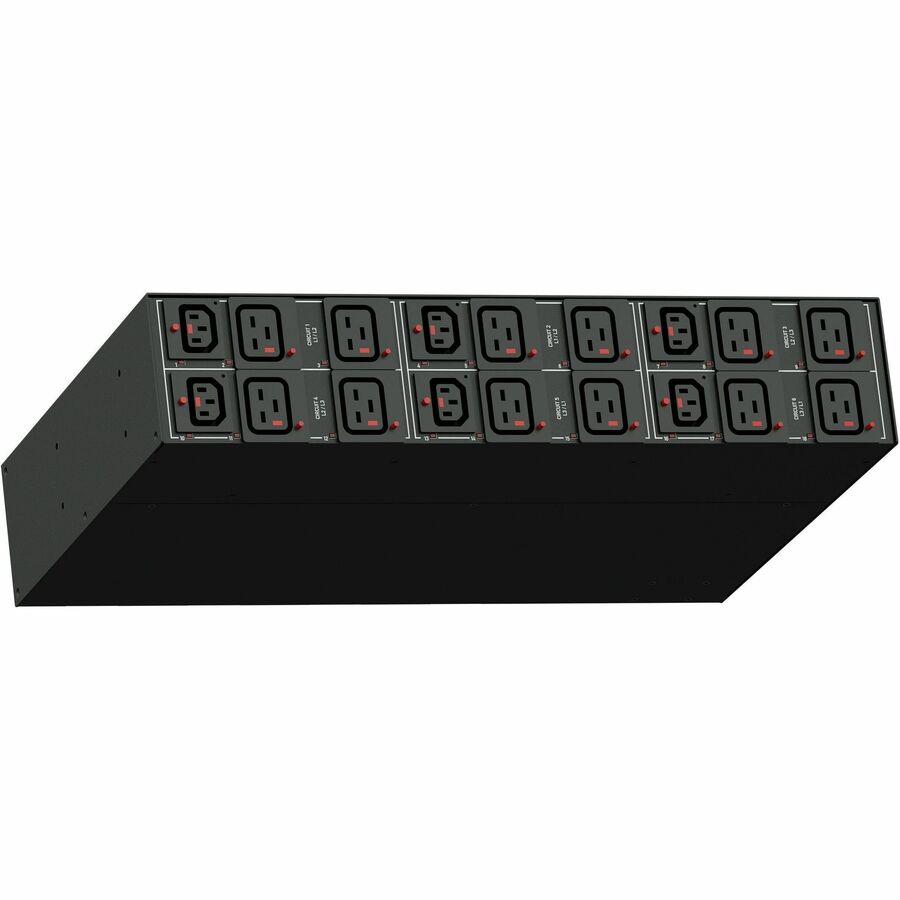

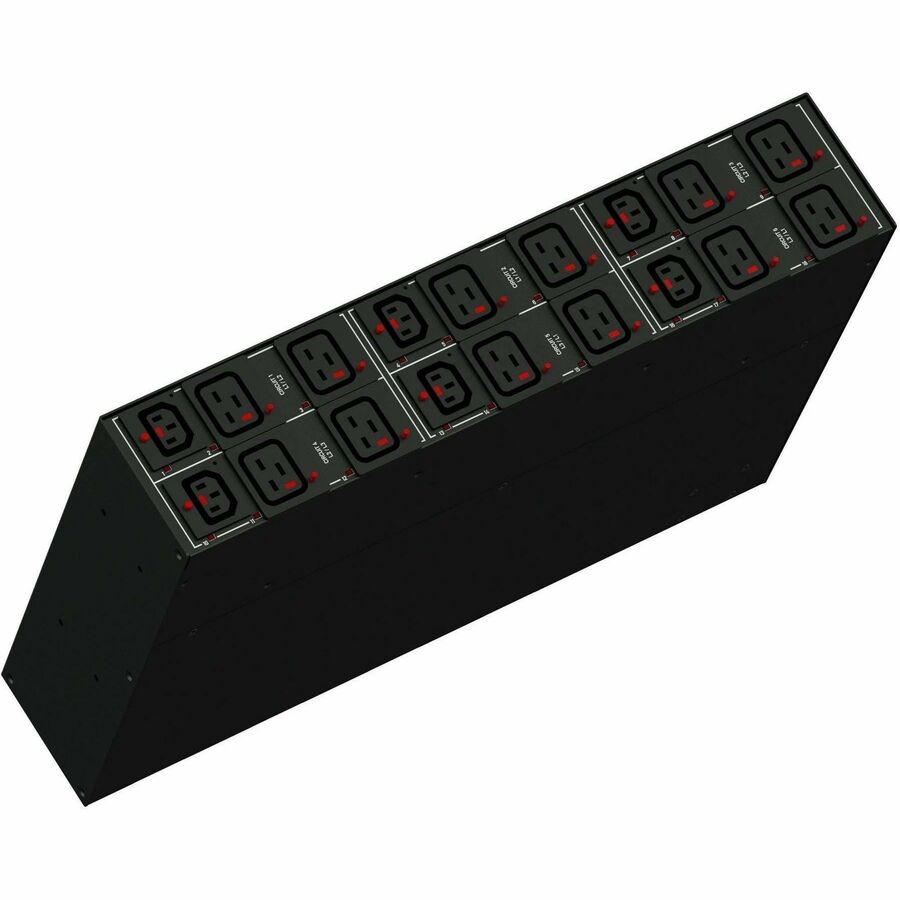

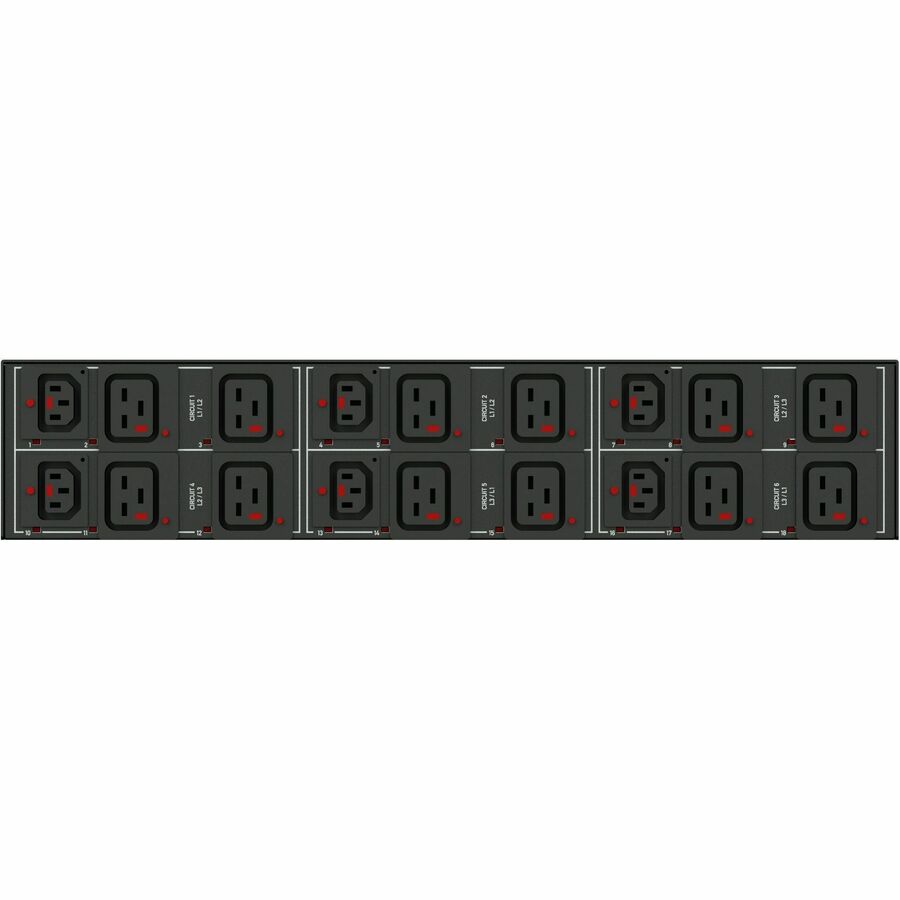

Raritan PX3-5541R-E2 18-Outlets PDU
Switched with Metered-by-Outlet - IEC 60309 3P+E 9h 60A (3P4W) - 6 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - Overload Protection, Branch Circuit - Network (RJ-45) - 9.84 ft Cord Length - 2U - Rack-mountable
- SKU
- PX3-5541R-E2
- Category
- PDUs
MSRP$3,484.00
$3,285.96
Save 6%Back ordered
Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PX3-5541R-E2
- Category
- PDUs
Highlights
- PDU provides active metering enabling energy optimization and circuit protection
- Manage the load and monitor it perfectly with Switched with Metered-by-Outlet anytime with the convenience
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- Three Phase phase PDU for reliable performance with maximum productivity
- IEC 60309 3P+E 9h 60A (3P4W) plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for better reliance and maximum dependability
- 208 V AC output voltage for optimal performance with maximum feasibility
Specifications
| Product Type | PDU |
|---|---|
| Input Voltage | 230 V AC |
| Manufacturer Part Number | PX3-5541R-E2 |
| Limited Warranty | 2 Year |
| Output Voltage | 208 V AC |
| Weight (Approximate) | 29.76 lb |
| Features | LCD Display, Onboard Display |
| Input Current | 60 A |
| Management |
|
| Manufacturer | Legrand Group |
| Product Model | PX3-5541R-E2 |
| Product Name | PX3-5541R-E2 18-Outlets PDU |
| Mount Type | Rack-mountable |
| Protection Type | Overload Protection, Branch Circuit |
| Product Series | PX3 |
| Rack Height | 2U |
| Brand Name | Raritan |
| Plug/Connector Type | IEC 60309 3P+E 9h 60A (3P4W) |
| Input Voltage Range | 208 V AC - 240 V AC |
| Cord Length | 9.84 ft |
| Height | 3.5" |
| Width | 17.3" |
| Depth | 11.5" |
| Input Frequency | 60 Hz |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Environmentally Friendly | Yes |
| Output Voltage Range | 208 V AC - 240 V AC |
| Maximum Operating Temperature | 140°F (60°C) |
| Network (RJ-45) | Yes |
| PDU Type | Switched with Metered-by-Outlet |
| Remote Outlet Switching | Yes |
| Power Rating (VA) | 20 kVA |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Locking Receptacles | SecureLock |
| Receptacle Detail | 6 x IEC 60320 C13, 12 x IEC 60320 C19 |
| Maximum Operating Humidity | 85% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
