Raritan PX3-5516V-M11 24-Outlets PDU
Legrand

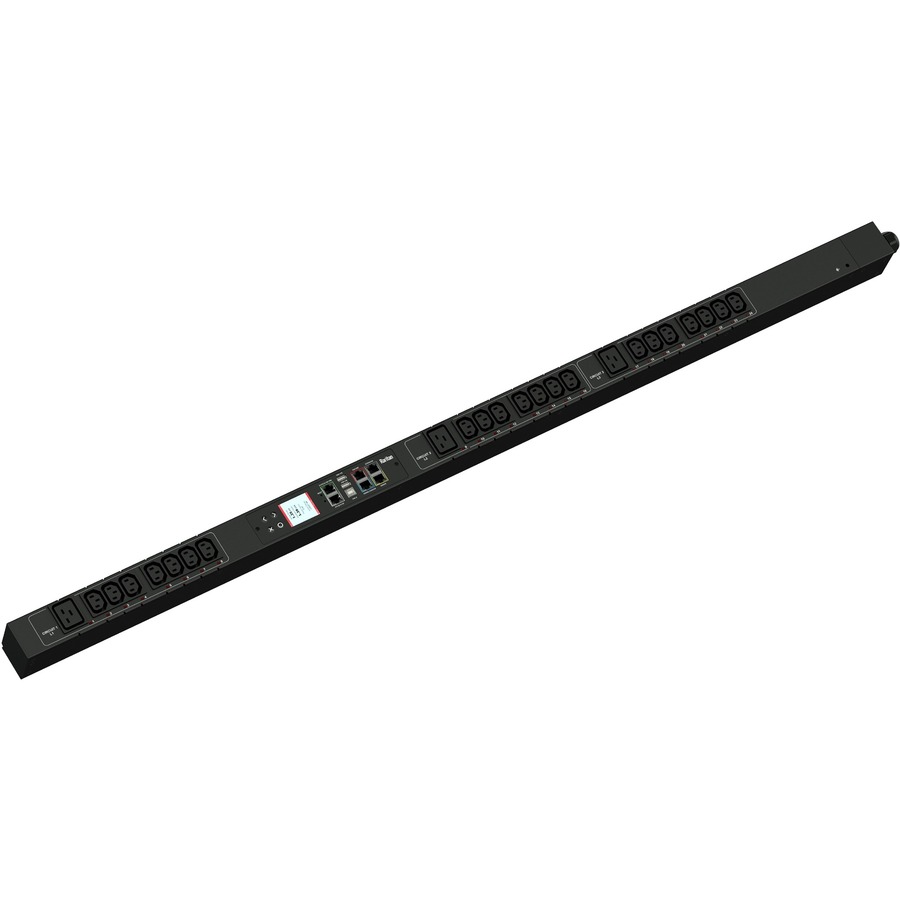

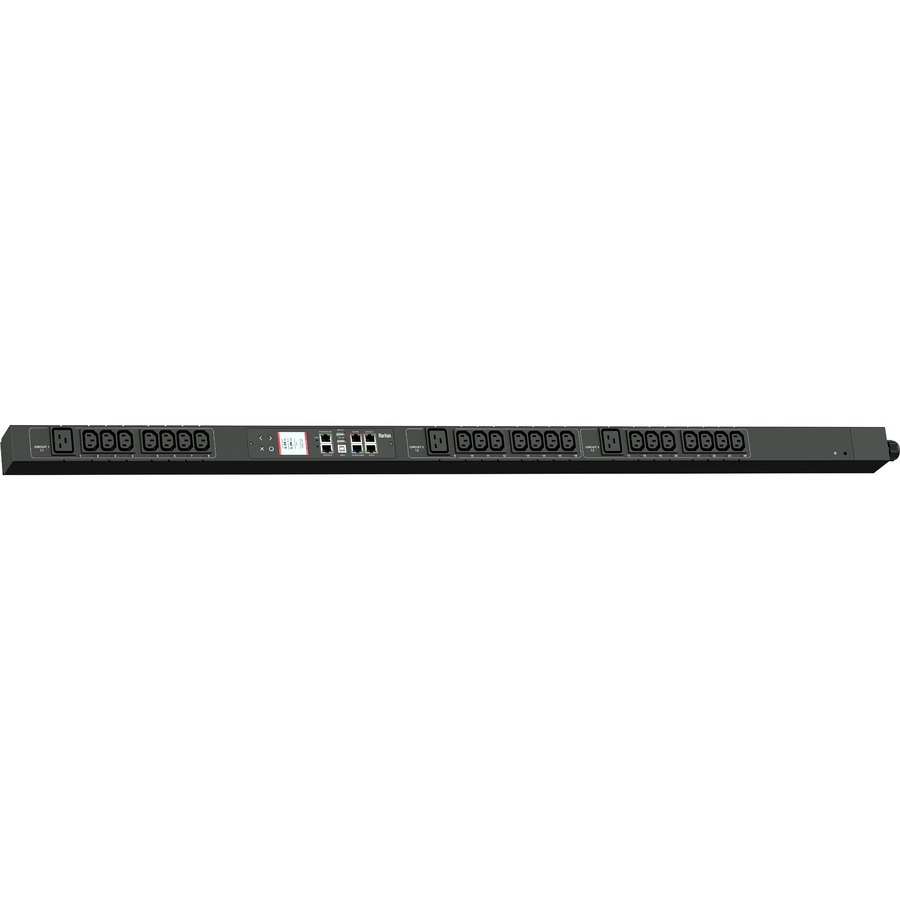

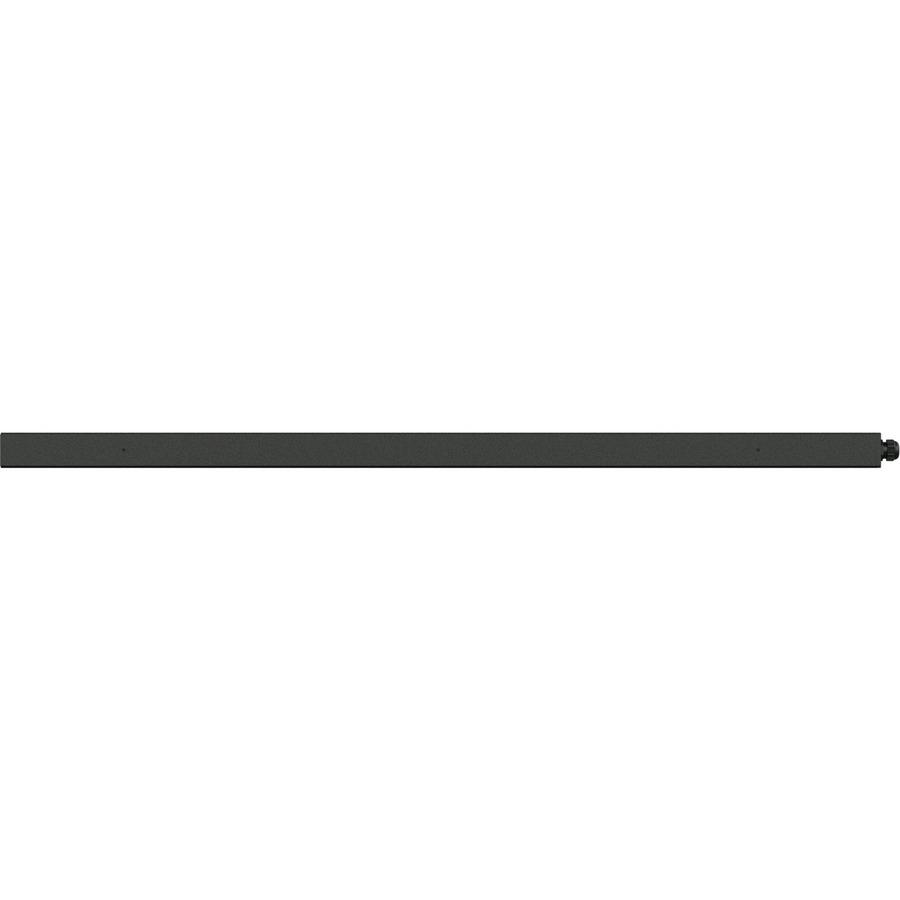

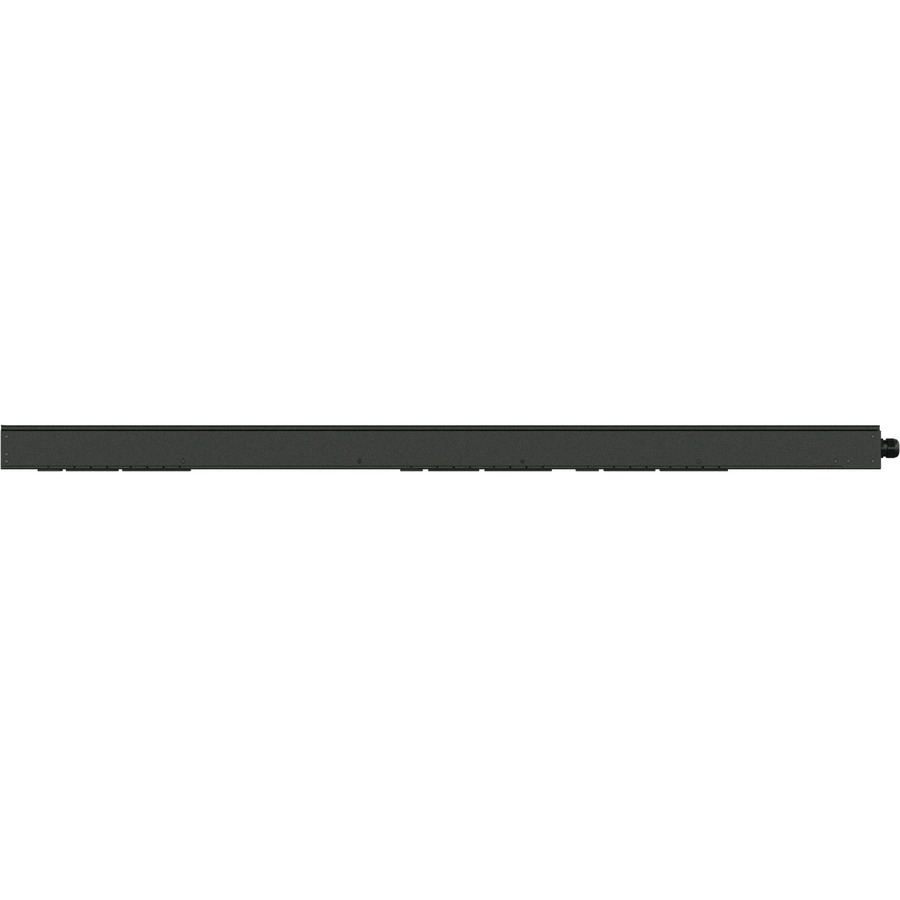

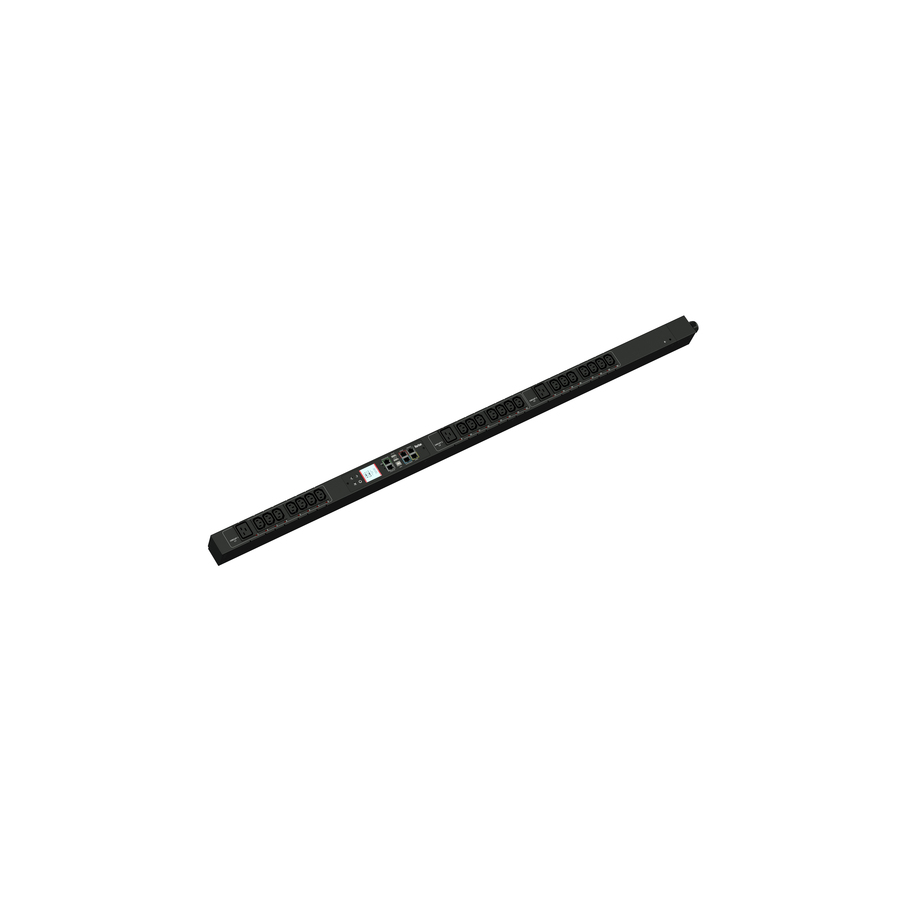

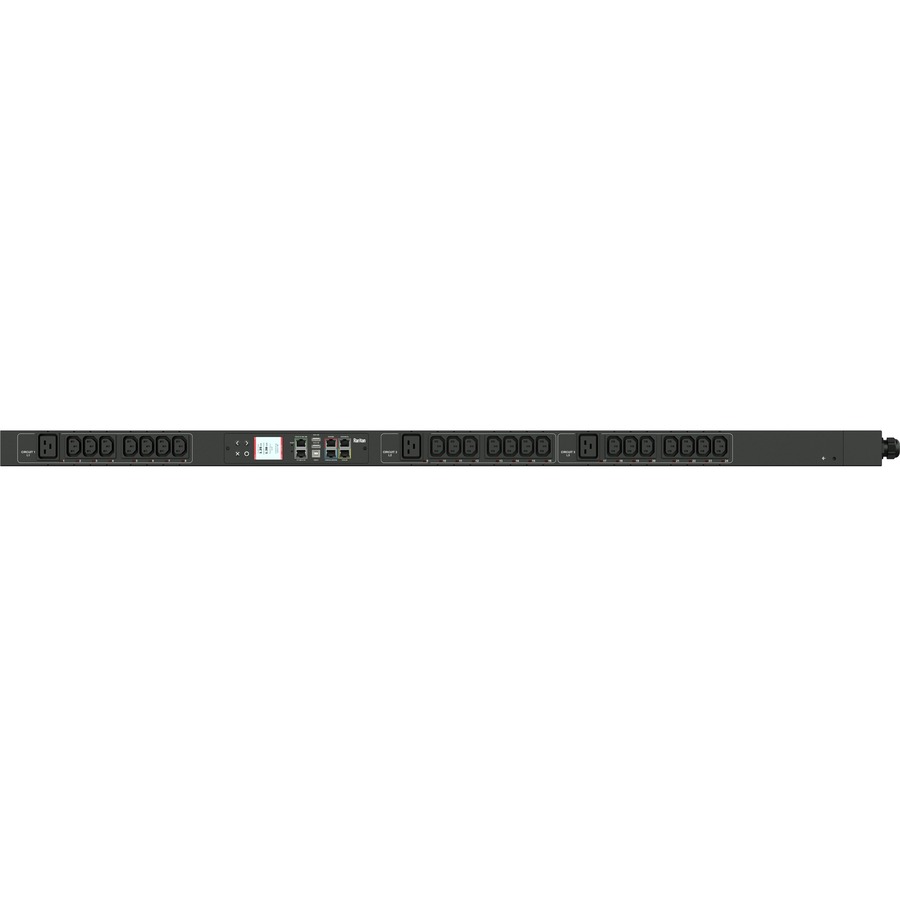

Raritan PX3-5516V-M11 24-Outlets PDU

IEC 60309 3P+N+E 6h 16A (4P5W) - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 400 V AC, 380 V AC, 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable

SKU
PX3-5516V-M11
Category
PDUs

MSRP$2,194.00

$2,069.29

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PX3-5516V-M11
Category
PDUs

Highlights

  • A device fitted with multiple outputs for the distribution of electric power
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • Three Phase phase PDU provides dependable power output with maximum efficiency
  • IEC 60309 3P+N+E 6h 16A (4P5W) plug/connector type for better, dependable connectivity and desired power output
  • 400 V AC input voltage for maximum feasibility and added productivity
  • 230 V AC output voltage for better reliance and maximum usability

Specifications

Product TypePDU
Input Voltage400 V AC, 380 V AC, 415 V AC
Manufacturer Part NumberPX3-5516V-M11
Output Voltage230 V AC, 220 V AC, 240 V AC
Input Current16 A
Management
  • HTTP(s)
  • SSH
  • Telnet
  • RS-232 (Serial)
  • Power IQ
  • SNMP version v2/v3
  • SMTP
  • JSON-RPC
  • Modbus over TCP
  • HTML
  • JSON-RPC
  • MODBUS/TCP
ManufacturerLegrand Group
Product ModelPX3-5516V-M11
Product NamePX3-5516V-M11 24-Outlets PDU
Mount TypeRack-mountable
Protection TypeSplash Proof
Product SeriesPX3
Rack Height0U
Brand NameRaritan
Plug/Connector TypeIEC 60309 3P+N+E 6h 16A (4P5W)
Input Voltage Range380 V AC - 415 V AC
Height51.1"
Width2.1"
Depth2.6"
PhaseThree Phase
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Output Voltage Range220 V AC - 240 V AC
Network (RJ-45)Yes
Remote Outlet SwitchingYes
Mounting OrientationVertical
Power Rating (VA)11100 VA
Receptacle Detail21 x IEC 60320 C13, 3 x IEC 60320 C19
Plug/Connector Detail1 x IEC 60309 3P+N+E 6h 16A (4P5W)
