Raritan Dominion PX3-5497V-C5K6 24-Outlet PDU
Legrand

Raritan Dominion PX3-5497V-C5K6 24-Outlet PDU

NEMA L6-30P - 4 x IEC 60309 C19, 20 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Rack-mountable

SKU
PX3-5497V-C5K6
Category
PDUs

MSRP$2,020.00

$1,905.18

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PX3-5497V-C5K6
Category
PDUs

Overview

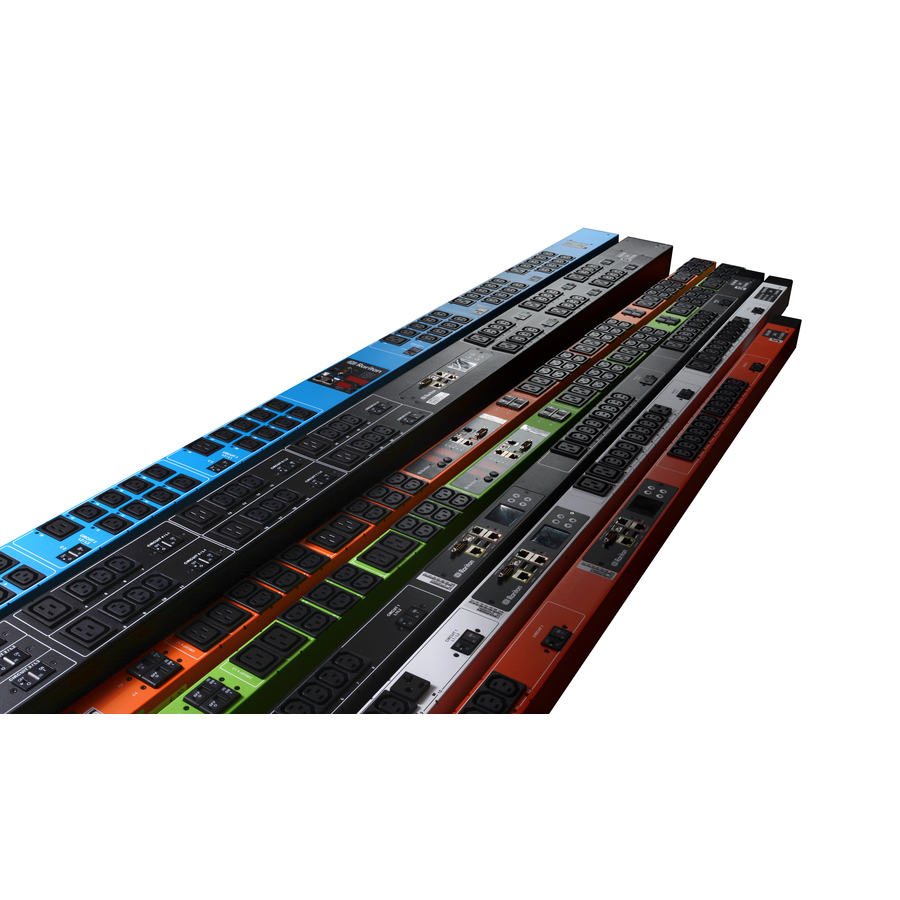

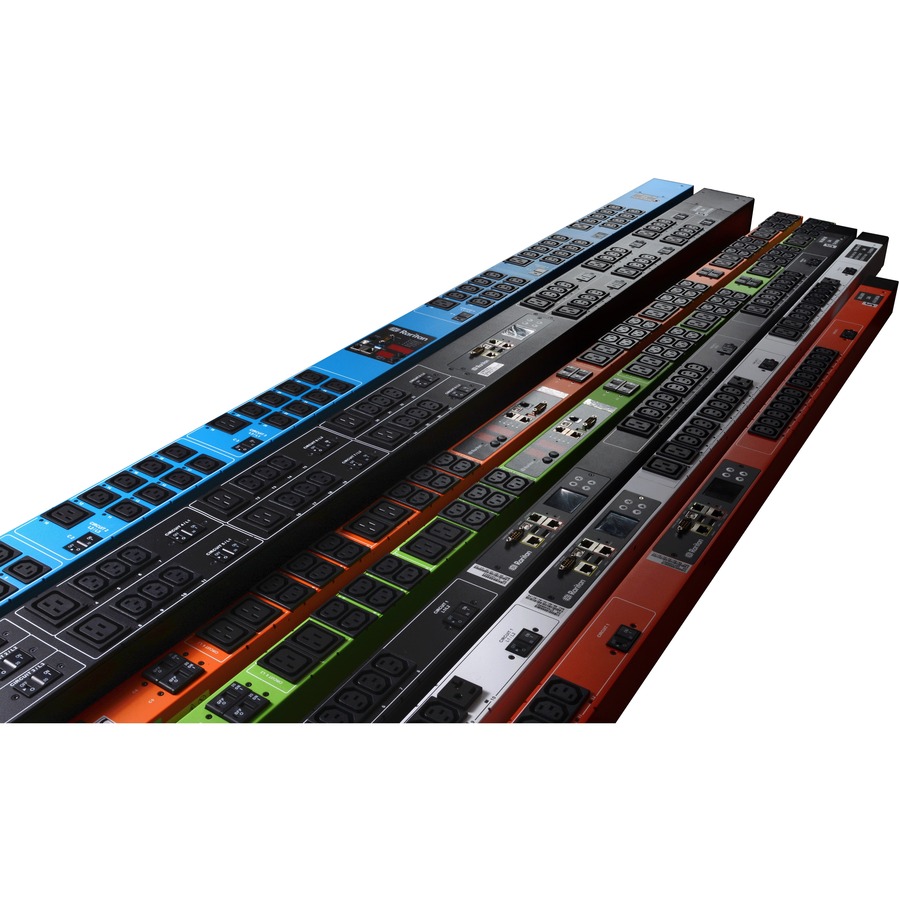

Rack Power Distribution Units (PDUs) The PX series boasts the most reliable and sophisticated rack PDUs on the market. It offers metering at the inlet, outlet, and PDU circuit breaker level. And tracks current, voltage, power, power factor, and energy usage within 1% billing-grade accuracy. In short, it helps you to better manage existing power capacity, and save energy.

But the PX series offers more than reliable power distribution and metering. It also supports sensors that ensure your equipment is operating in a safe environment. And remote outlet switching to ensure proper provisioning and avoid tripped circuit breakers. Or reboot hung servers. All without stepping foot in the data center.

We offer hundreds of models that meet all your needs. Whether you have a small, medium, or large data center; densely packed 400V three-phase racks; high power blade servers; or a lights-out colo deployment -- there's a PX just for you. See more reasons to consider the PX below.

Highlights

  • IEC 60309 C19 receptacle type to ensure maximum usability and reliable power output
  • NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for optimal performance with maximum feasibility

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPX3-5497V-C5K6
Limited Warranty2 Year
Output Voltage208 V AC
Input Current24 A
ManagementProtocols: SNMP 2 Telnet SNMP 3 HTTP HTTPS SSH
ManufacturerLegrand Group
Product ModelPX3-5497V-C5K6
Product NameDominion PX3-5497V-C5K6 24-Outlet PDU
Mount TypeRack-mountable
Product LineDominion
Product SeriesPX2
Rack Height0U
Brand NameRaritan
Plug/Connector TypeNEMA L6-30P
Country of OriginTaiwan
Height60.6"
Width2"
Depth2.6"
Receptacle TypeIEC 60309 C19, IEC 60320 C13
Environmentally FriendlyYes
Network (RJ-45)Yes
Receptacle Detail4 x IEC 60309 C19, 20 x IEC 60320 C13
Plug/Connector Detail1 x NEMA L6-30P
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
