Legrand

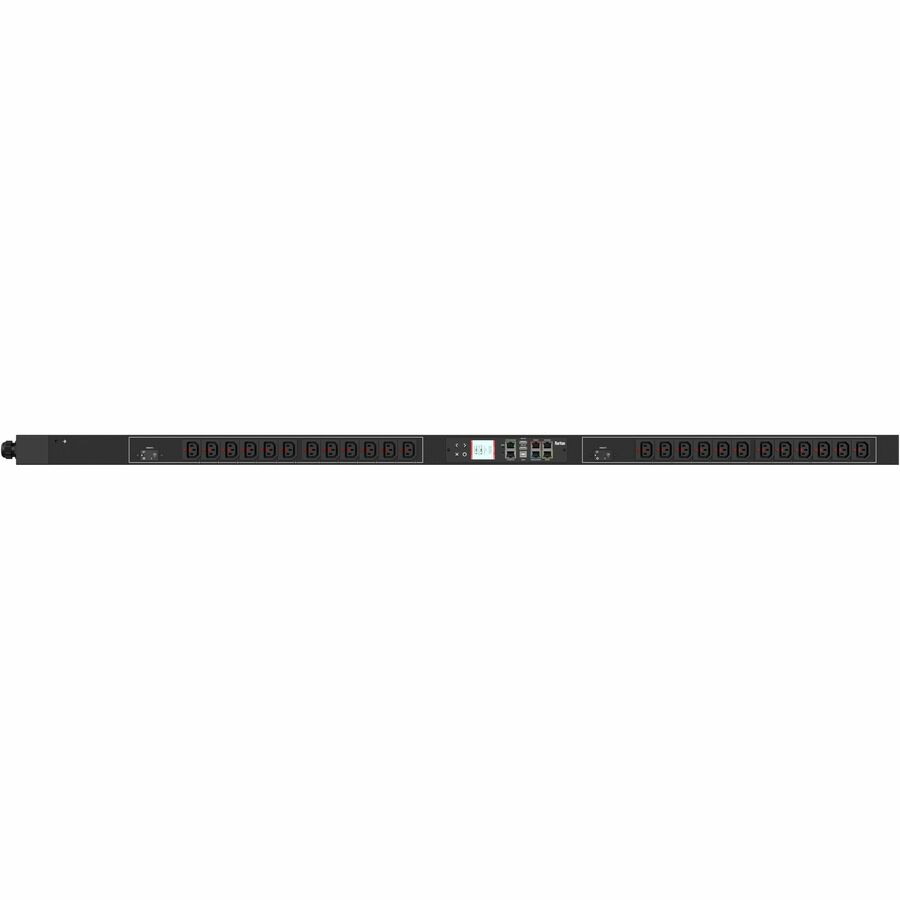

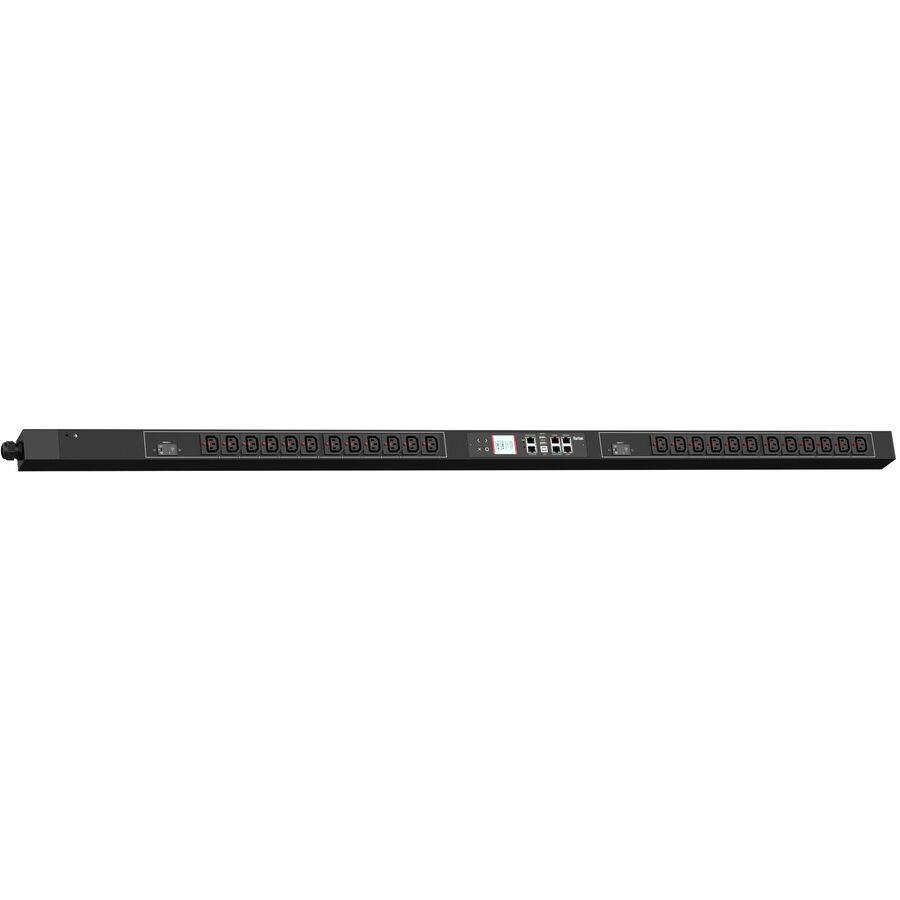

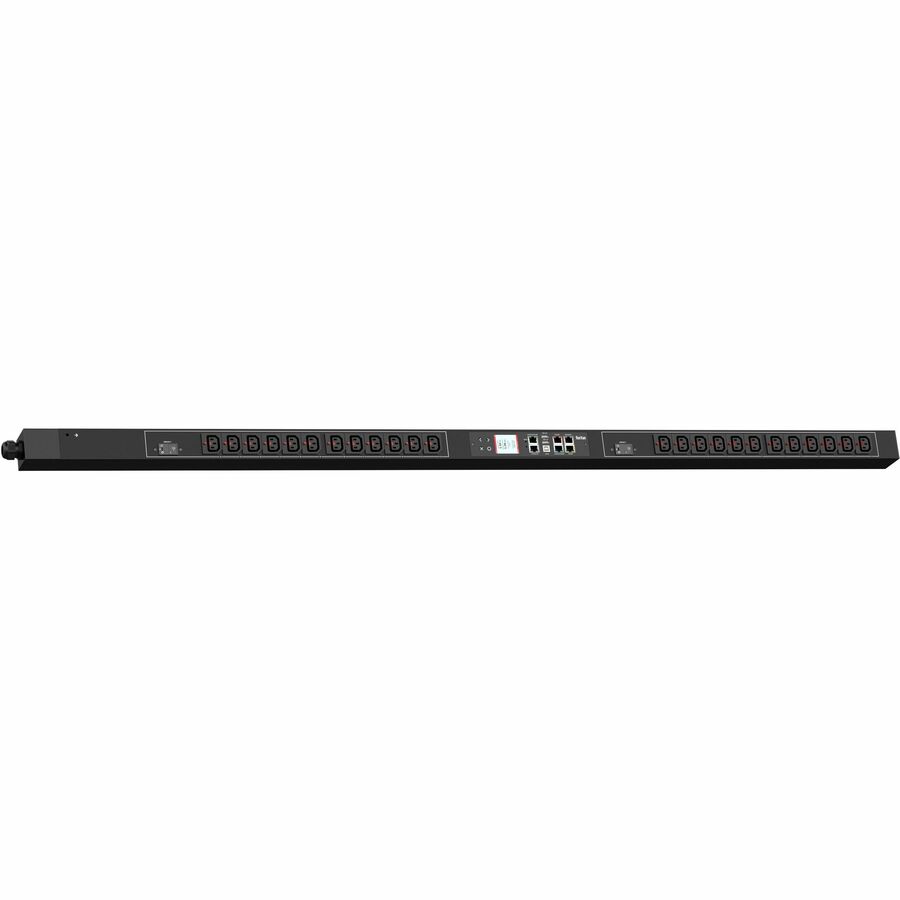

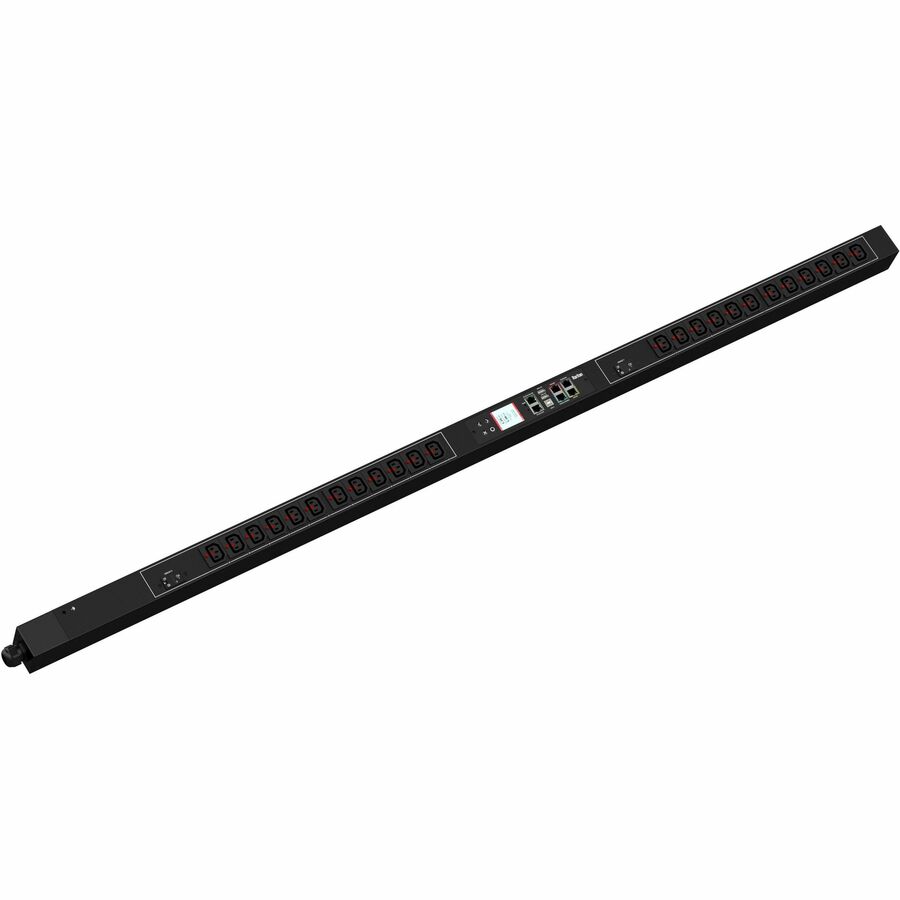

Raritan PX3-5496JV-E2 24-Outlets PDU
Switched with Metered-by-Outlet - NEMA L6-30P (2P3W) - 24 x IEC 60320 C13 - 230 V AC - Branch Circuit, Overload Protection - Network (RJ-45) - 9.84 ft Cord Length - Rack-mountable
- SKU
- PX3-5496JV-E2
- Category
- PDUs
MSRP$2,259.00
$2,130.60
Save 6%Back ordered
Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PX3-5496JV-E2
- Category
- PDUs
Highlights
- PDU is reliable for power protection and management solutions
- Remotely monitor your equipment without any worries with Switched with Metered-by-Outlet
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Single Phase phase PDU for reliable performance with maximum productivity
- NEMA L6-30P (2P3W) plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for optimal performance with maximum usability
- 200 V AC output voltage for optimal performance with maximum feasibility
Specifications
| Product Type | PDU |
|---|---|
| Input Voltage | 230 V AC |
| Manufacturer Part Number | PX3-5496JV-E2 |
| Limited Warranty | 2 Year |
| Output Voltage | 200 V AC |
| Weight (Approximate) | 13.23 lb |
| Features | LCD Display |
| Input Current | 30 A |
| Management |
|
| Manufacturer | Legrand Group |
| Product Model | PX3-5496JV-E2 |
| Product Name | PX3-5496JV-E2 24-Outlets PDU |
| Mount Type | Rack-mountable |
| Protection Type | Branch Circuit, Overload Protection |
| Product Series | PX3 |
| Brand Name | Raritan |
| Plug/Connector Type | NEMA L6-30P (2P3W) |
| Cord Length | 9.84 ft |
| Height | 60.6" |
| Width | 2.1" |
| Depth | 2.6" |
| Input Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 140°F (60°C) |
| Network (RJ-45) | Yes |
| PDU Type | Switched with Metered-by-Outlet |
| Remote Outlet Switching | Yes |
| Power Rating (VA) | 6000 VA |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Locking Receptacles | SecureLock |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Maximum Operating Humidity | 85% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
