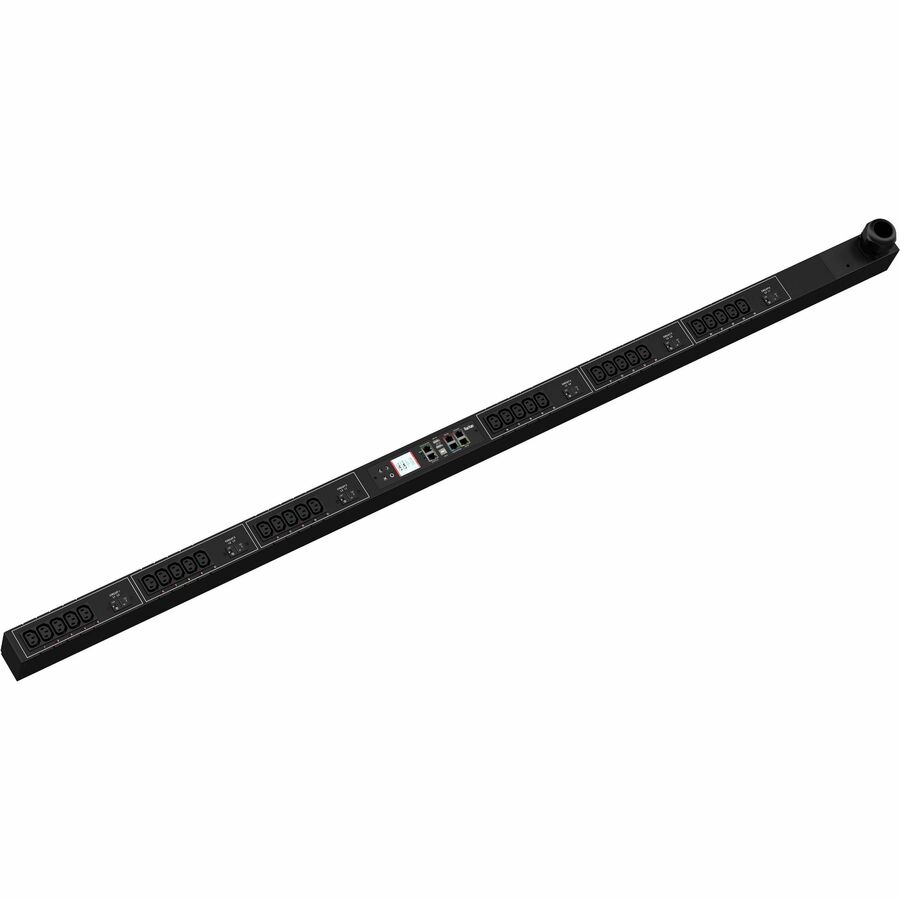

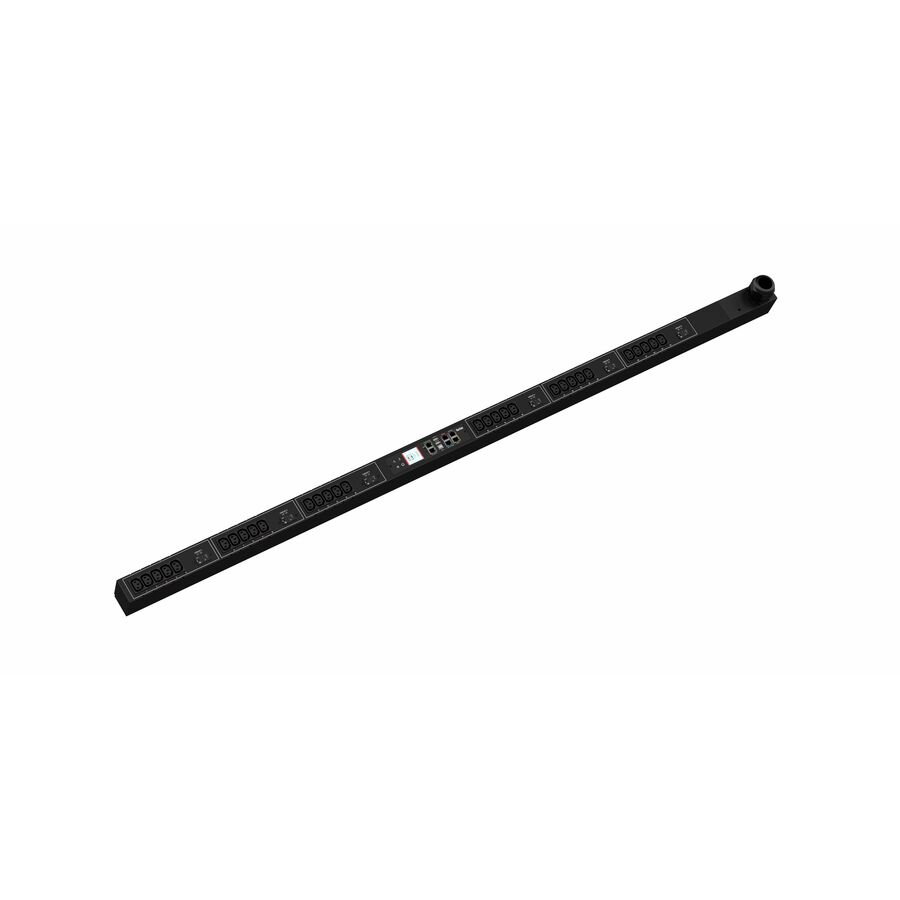

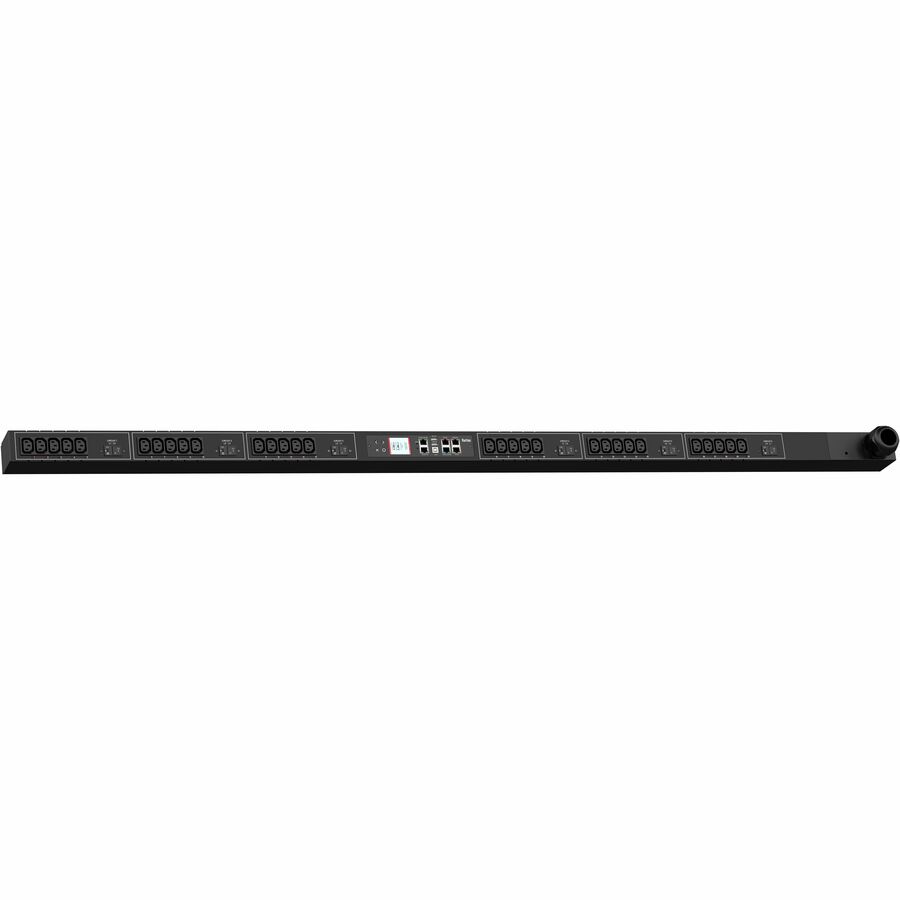

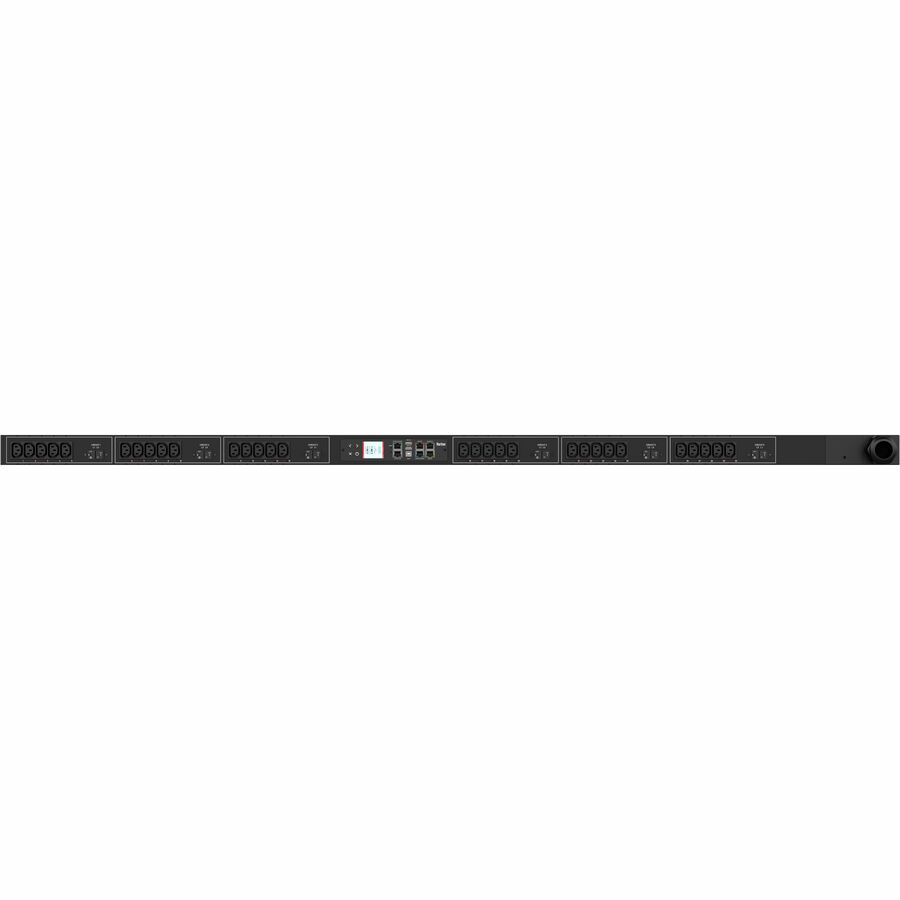

Raritan PX3-5252-N1V2 30-Outlets PDU
Legrand

Raritan PX3-5252-N1V2 30-Outlets PDU

Switched with Metered-by-Outlet - IEC 60309 3P+E 9h 60A (3P4W) - 30 x IEC 60320 C13 - 230 V AC - Overload Protection, Branch Circuit - Network (RJ-45) - 9.84 ft Cord Length - Rack-mountable

SKU
PX3-5252-N1V2
Category
PDUs

MSRP$3,614.00

$3,408.57

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PX3-5252-N1V2
Category
PDUs

Highlights

  • PDU provides power control as remote controlled relay & load monitoring
  • Manage the load and monitor it perfectly with Switched with Metered-by-Outlet anytime with the convenience
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • Single Phase phase PDU provides optimal power output with added usability
  • IEC 60309 3P+E 9h 60A (3P4W) plug/connector type for reliable, productive connectivity and optimal power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for better reliance and maximum usability

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPX3-5252-N1V2
Limited Warranty2 Year
Output Voltage208 V AC
Weight (Approximate)18.52 lb
FeaturesLCD Display, Onboard Display
Input Current60 A
Management
  • HTTP(s)
  • SSH
  • Telnet
  • RS-232 (Serial)
  • Power IQ
  • SNMP version v2/v3
  • SMTP
  • JSON-RPC
  • Modbus over TCP
ManufacturerLegrand Group
Product ModelPX3-5252-N1V2
Product NamePX3-5252-N1V2 30-Outlets PDU
Mount TypeRack-mountable
Protection TypeOverload Protection, Branch Circuit
Product SeriesPX3
Brand NameRaritan
Plug/Connector TypeIEC 60309 3P+E 9h 60A (3P4W)
Input Voltage Range208 V AC - 240 V AC
Cord Length9.84 ft
Height70.1"
Width2.3"
Depth3.1"
Input Frequency60 Hz
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
Environmentally FriendlyYes
Output Voltage Range208 V AC - 240 V AC
Maximum Operating Temperature140°F (60°C)
Network (RJ-45)Yes
PDU TypeSwitched with Metered-by-Outlet
Remote Outlet SwitchingYes
Power Rating (VA)20 kVA
Product ColorBlack Powder Coat
Color FamilyBlack
Locking ReceptaclesSecureLock
Receptacle Detail30 x IEC 60320 C13
Maximum Operating Humidity85%
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
