Raritan PX3-5180R-F5 8-Outlets PDU
Legrand

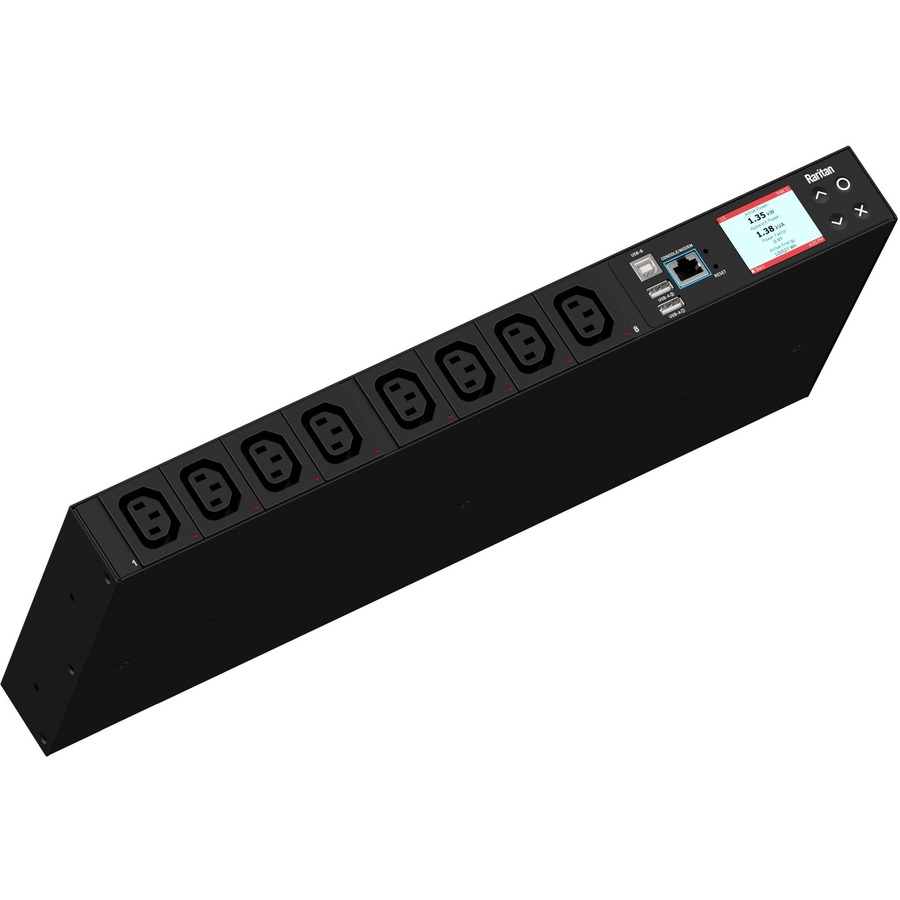

Raritan PX3-5180R-F5 8-Outlets PDU

Monitored - NEMA L6-20P (2P3W) - 8 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable

SKU
PX3-5180R-F5
Category
PDUs

MSRP$1,067.00

$1,006.35

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PX3-5180R-F5
Category
PDUs

Highlights

  • PDU allows power to be more efficiently distributed and controlled
  • With monitored PDU, you can remotely monitor single-or three-phase voltage easily
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • NEMA L6-20P (2P3W) plug/connector type for reliable, productive connectivity and optimal power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for better reliance and maximum usability

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPX3-5180R-F5
Limited Warranty2 Year
Output Voltage208 V AC
Weight (Approximate)6.83 lb
Input Current20 A
Management
  • HTML
  • JSON-RPC
  • SSH
  • Telnet
  • MODBUS/TCP
  • HTTP(s)
  • RS-232 (Serial)
  • Power IQ
  • SNMP version v2/v3
  • SMTP
  • JSON-RPC
  • Modbus over TCP
ManufacturerLegrand Group
Product ModelPX3-5180R-F5
Product NamePX3-5180R-F5 8-Outlets PDU
Mount TypeRack-mountable
Protection TypeOverload Protection, Double Pole, Overcurrent Protection, Splash Proof
Product SeriesPX3
Rack Height1U
Brand NameRaritan
Plug/Connector TypeNEMA L6-20P (2P3W)
Height1.7"
Width17.3"
Depth7.2"
Receptacle TypeIEC 60320 C13
Environmentally FriendlyYes
Network (RJ-45)Yes
PDU TypeMonitored
Remote Outlet SwitchingYes
Mounting OrientationHorizontal
Power Rating (VA)3700 VA
Receptacle Detail8 x IEC 60320 C13
Plug/Connector Detail1 x NEMA L6-20P (2P3W)
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
