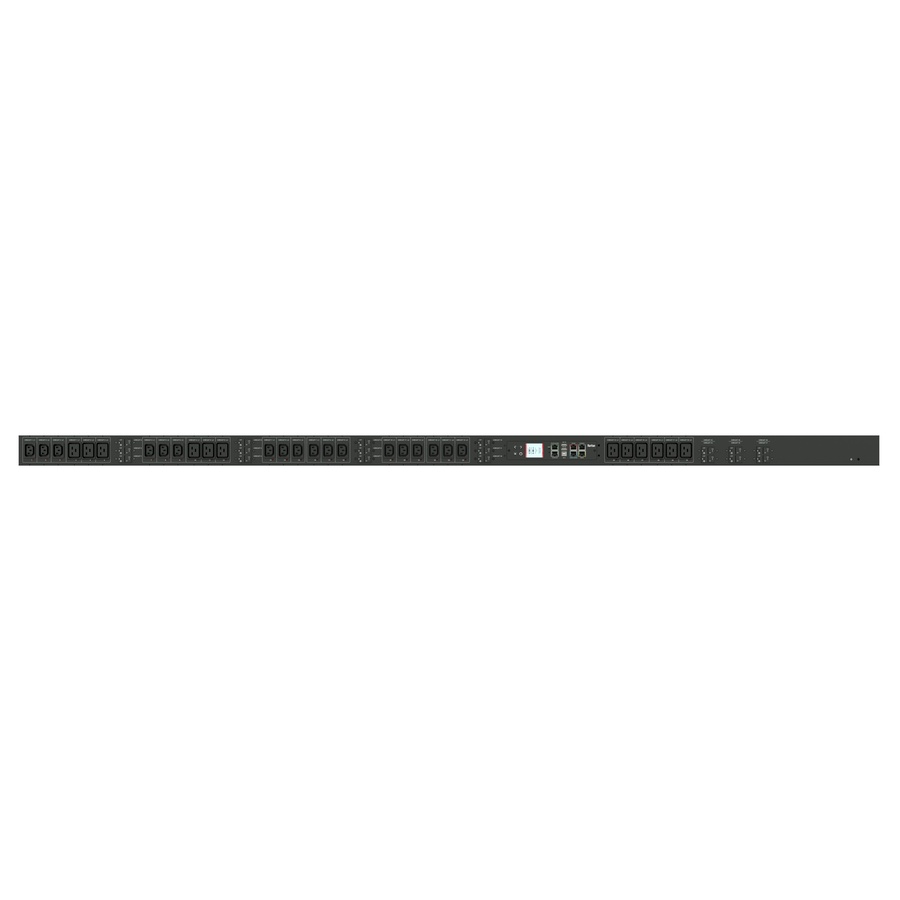

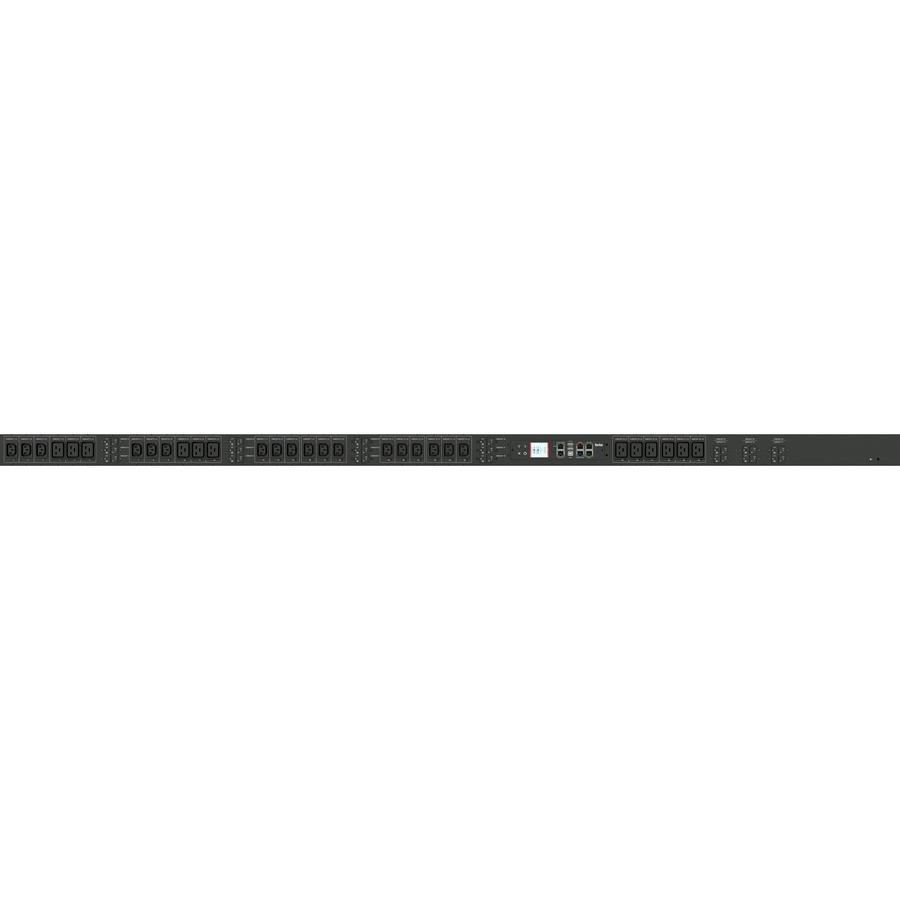

Raritan PX3-5130YU-M10O1V2 30-Outlet PDU
Legrand

Raritan PX3-5130YU-M10O1V2 30-Outlet PDU

Monitored - AC Terminal - 12 x IEC 60320 C19, 18 x IEC 60320 C13 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable

SKU
PX3-5130YU-M10O1V2
Category
PDUs

MSRP$4,645.00

$4,380.97

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PX3-5130YU-M10O1V2
Category
PDUs

Overview

Most Reliable

Rock Solid Uptime, No Compromises.

From the ground up, PX Intelligent PDUs are architected with components, features, and failsafes that ensure the most reliable infrastructure possible, both now and for years to come.

• Built-In Failover Power

• Advanced Alerting and Intelligence

• Circuit Breaker Trip Alarming

Built to Last

Prevent Outages Before They Occur

PX Intelligent PDUs help eliminate human error and can withstand the harshest environments. With monitoring features that spot problems in advance and physical design elements that adapt to the toughest conditions, our solution protects your critical load under any circumstances.

Easiest to Use

Simple to Deploy, Simple to Use.

Thoughtful design pays extraordinary dividends. Engineered with electricians, infrastructure managers, and IT experts in mind, PX Intelligent PDUs offer a simple user experience for seamless physical deployment, configuration, commissioning, monitoring, and power delivery.

Highlights

  • PDU allows power to be more efficiently distributed and controlled
  • With monitored PDU, you can remotely monitor single-or three-phase voltage easily
  • IEC 60320 C19 receptacle type to ensure maximum usability and reliable power output
  • Three Phase phase PDU provides optimal power output with added usability
  • AC Terminal plug/connector type for reliable, productive connectivity and optimal power output
  • 415 V AC input voltage for maximum feasibility and added productivity
  • 240 V AC output voltage for optimal performance with maximum feasibility

Specifications

Product TypePDU
Input Voltage415 V AC
Manufacturer Part NumberPX3-5130YU-M10O1V2
Limited Warranty2 Year
Output Voltage240 V AC
Weight (Approximate)26.24 lb
Input Current80 A
ManagementProtocols: HTML JSON-RPC SSH Telnet MODBUS/TCP SNMPv3 TFTP DHCP/PXE SSH(CLI)
ManufacturerLegrand Group
Product ModelPX3-5130YU-M10O1V2
Product NamePX3-5130YU-M10O1V2 30-Outlet PDU
Mount TypeRack-mountable
Protection TypeOvercurrent Protection, Overload Protection
Product SeriesPX
Rack Height0U
Brand NameRaritan
Plug/Connector TypeAC Terminal
Country of OriginTaiwan
Height79.9"
Width2.8"
Depth3.5"
PhaseThree Phase
Receptacle TypeIEC 60320 C19, IEC 60320 C13
Network (RJ-45)Yes
PDU TypeMonitored
Mounting OrientationVertical
Power Rating (VA)57.50 kVA
Receptacle Detail12 x IEC 60320 C19, 18 x IEC 60320 C13
