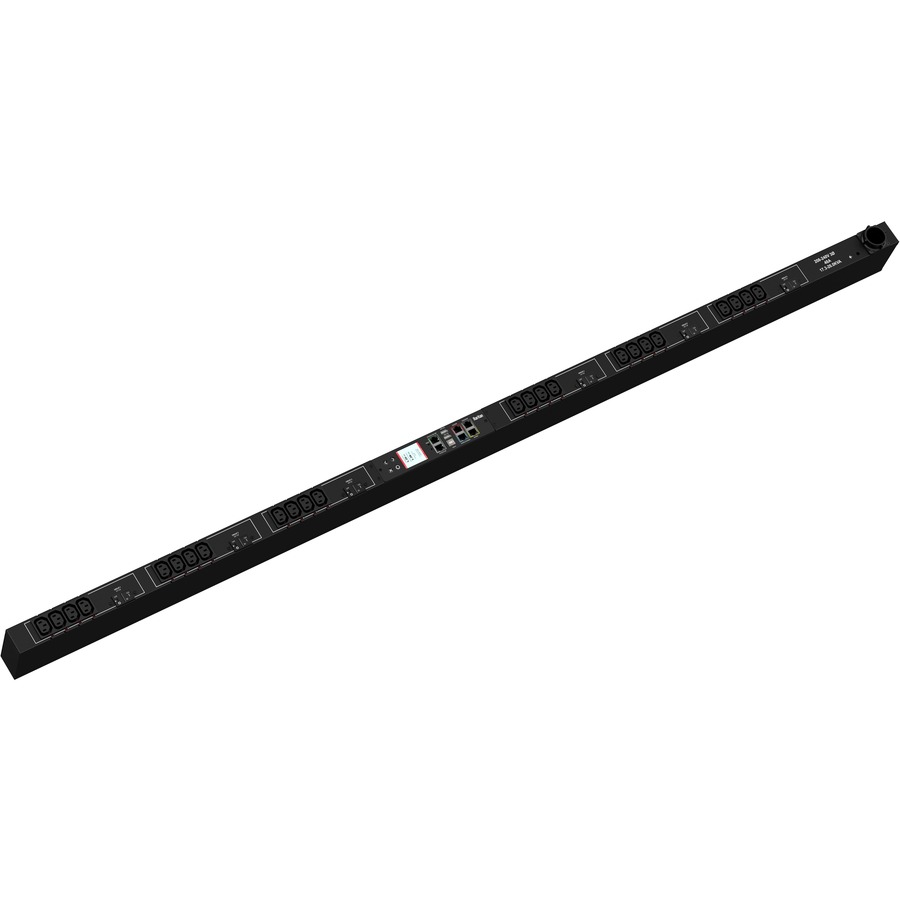

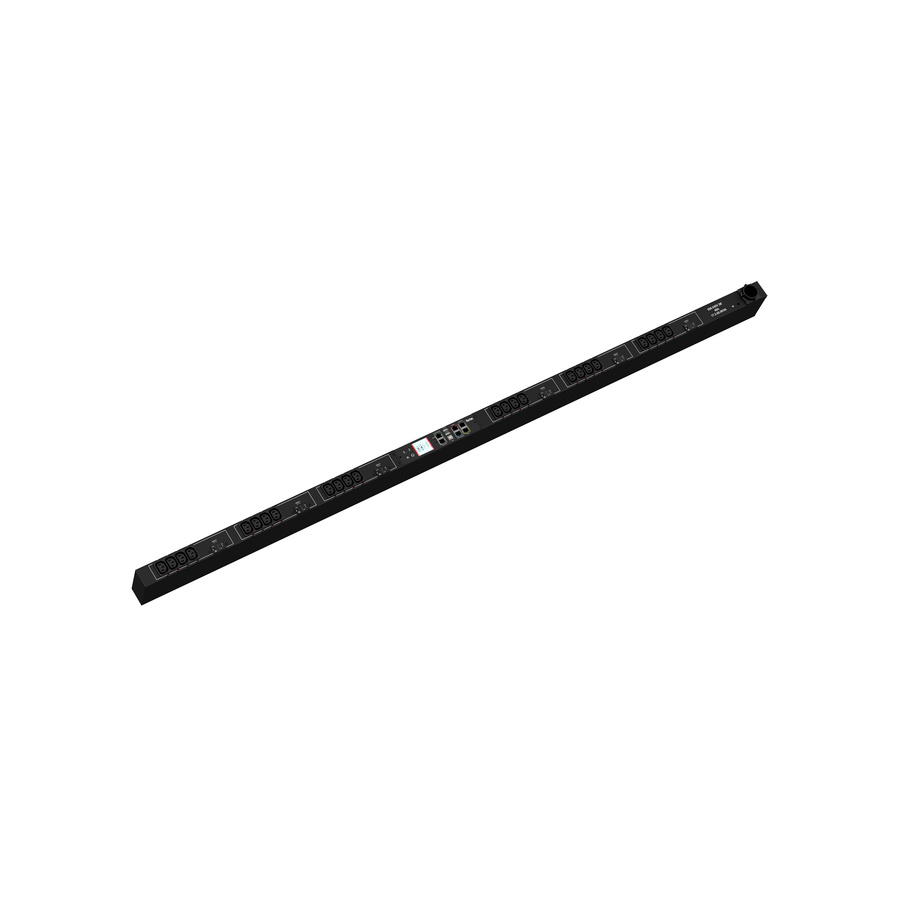

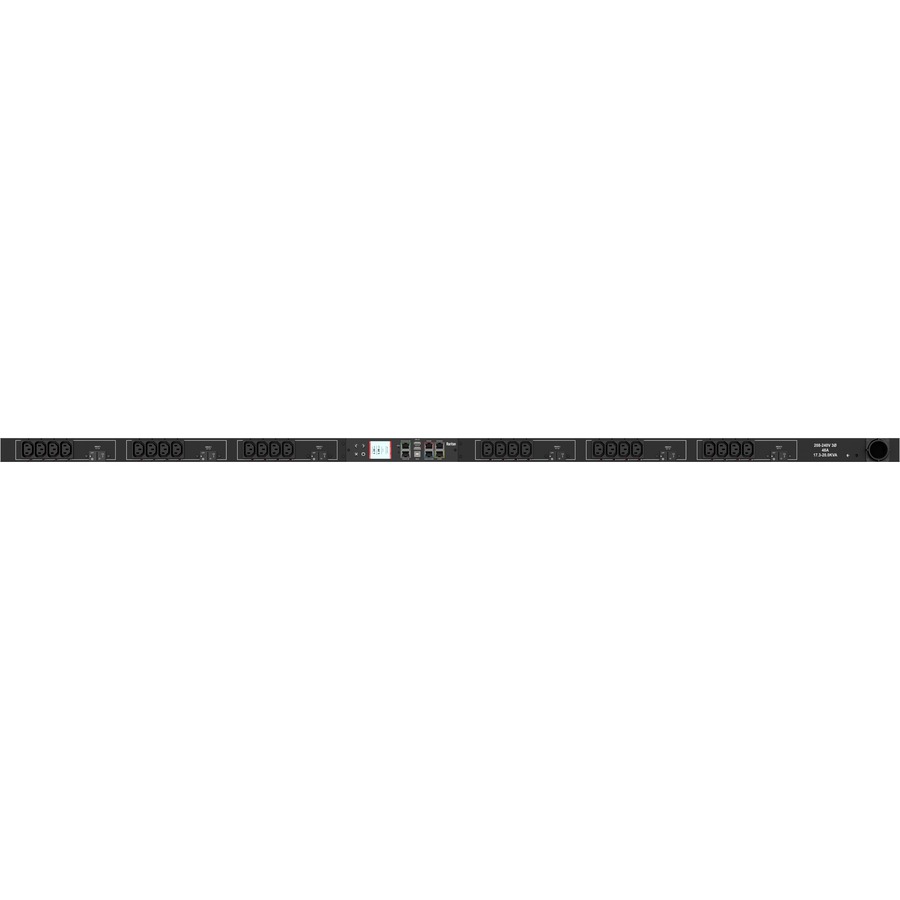

Raritan PX3-4545-N1V2 24-Outlets PDU
Legrand

Raritan PX3-4545-N1V2 24-Outlets PDU

Monitored - IEC 60309 3P+E 9h 60A (3P4W) - 24 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical/Toolless - Rack-mountable

SKU
PX3-4545-N1V2
Category
PDUs

MSRP$2,775.00

$2,617.26

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PX3-4545-N1V2
Category
PDUs

Highlights

  • PDU allows power to be more efficiently distributed and controlled
  • With monitored PDU, you can remotely monitor single-or three-phase voltage easily
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • Three Phase phase PDU provides dependable power output with maximum efficiency
  • IEC 60309 3P+E 9h 60A (3P4W) plug/connector type for efficient connectivity and feasible power output
  • 230 V AC input voltage for better reliance and maximum dependability
  • 208 V AC output voltage for maximum dependability and added productivity

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPX3-4545-N1V2
Limited Warranty2 Year
Output Voltage208 V AC
Input Current60 A
Management
  • HTML
  • JSON-RPC
  • SSH
  • Telnet
  • MODBUS/TCP
  • SNMPv3
ManufacturerLegrand Group
Product ModelPX3-4545-N1V2
Product NamePX3-4545-N1V2 24-Outlets PDU
Mount TypeRack-mountable
Protection TypeOverload Protection, Overcurrent Protection, Double Pole, Circuit Protection
Product SeriesPX3
Rack Height0U
Brand NameRaritan
Plug/Connector TypeIEC 60309 3P+E 9h 60A (3P4W)
Height67"
Width1.8"
Depth3.9"
PhaseThree Phase
Receptacle TypeIEC 60320 C13
Network (RJ-45)Yes
PDU TypeMonitored
Remote Outlet SwitchingNo
Mounting OrientationVertical/Toolless
Power Rating (VA)17.30 kVA
Environmental SensorsTemperature, Humidity, Air Flow, Differential Pressure, Water, Contact Closure
Receptacle Detail24 x IEC 60320 C13
