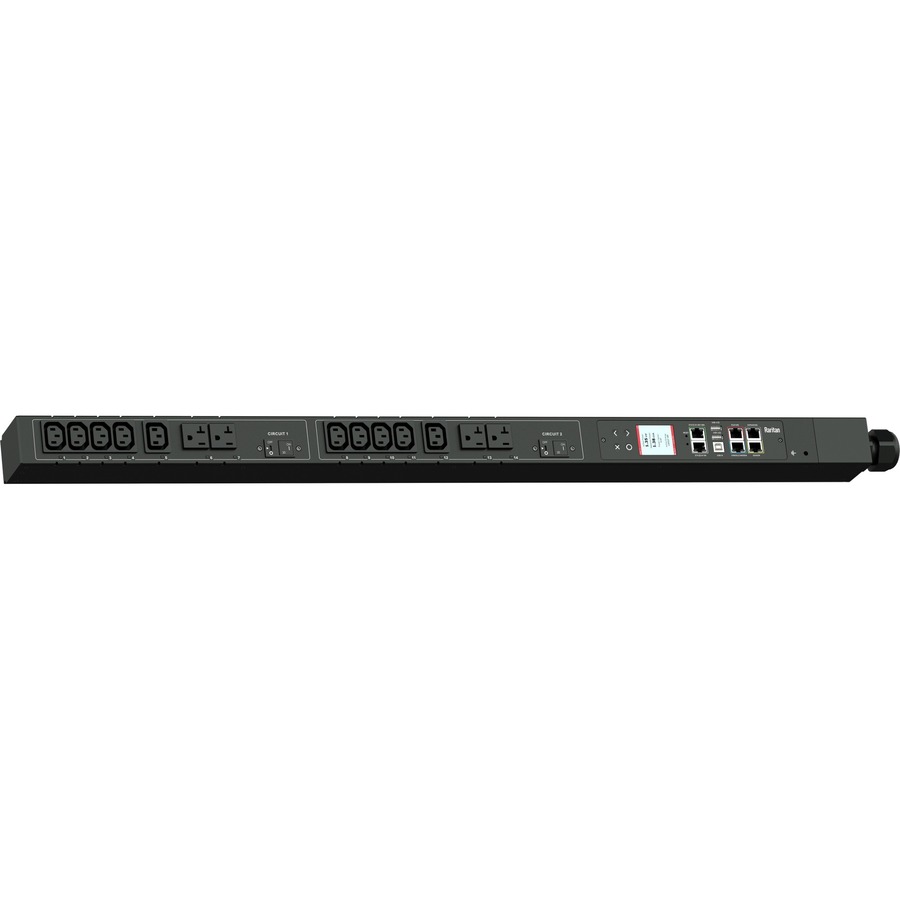

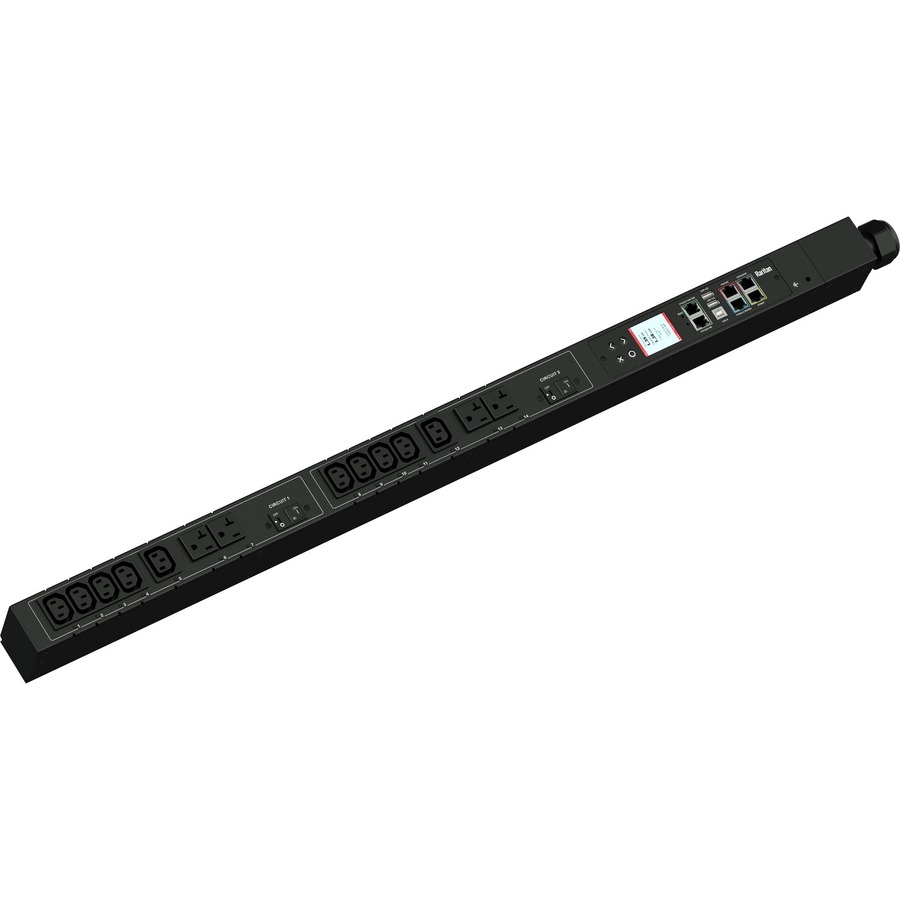

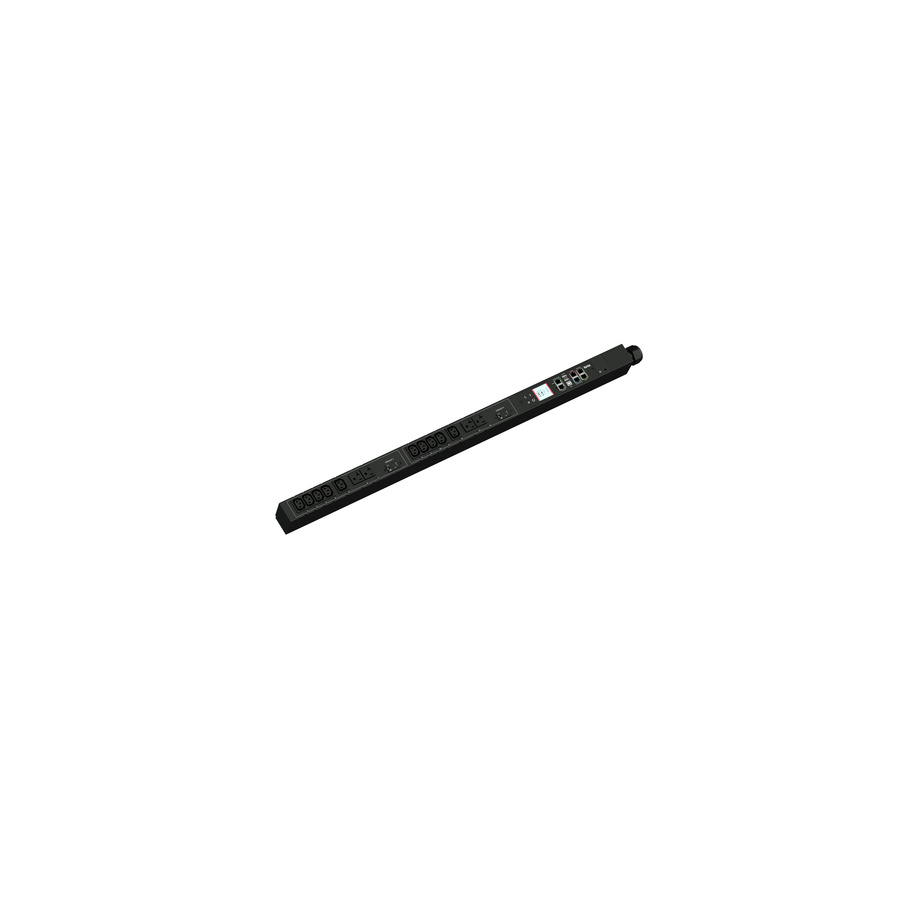

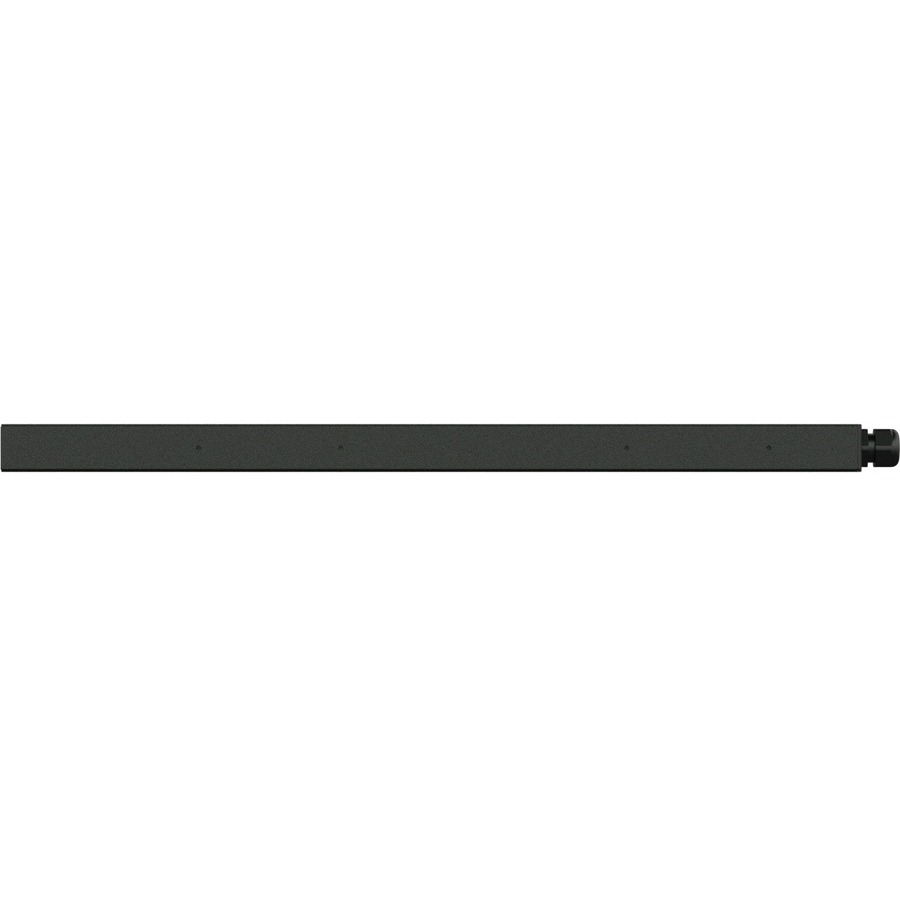

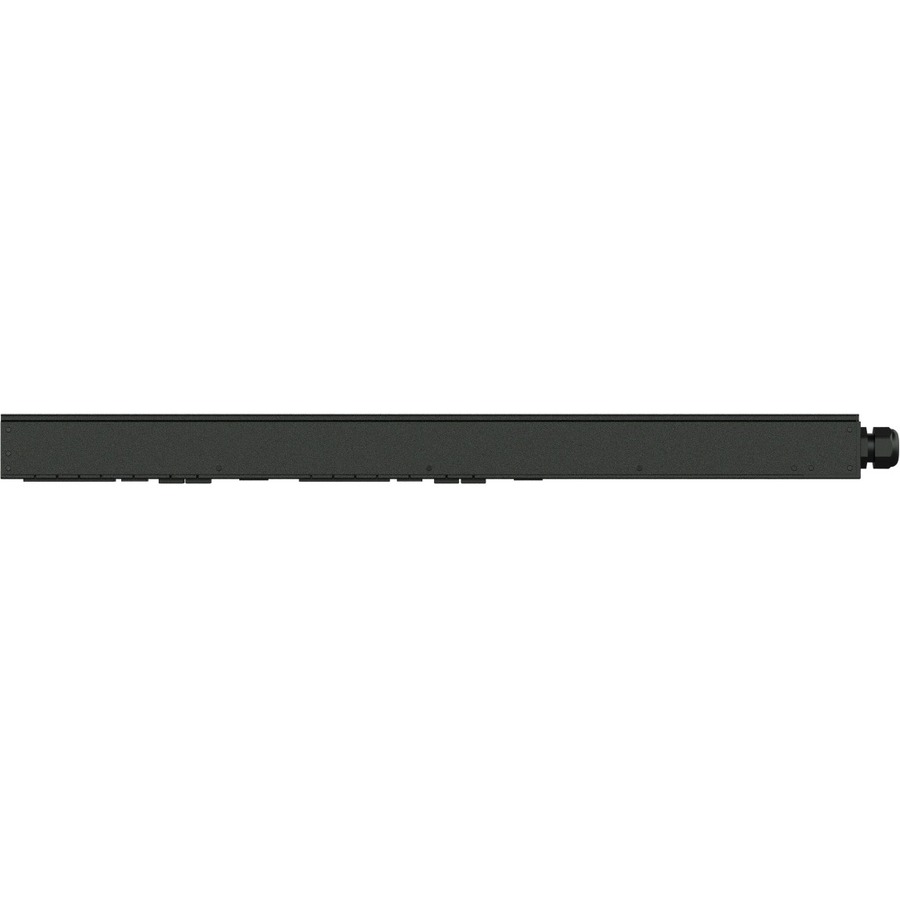

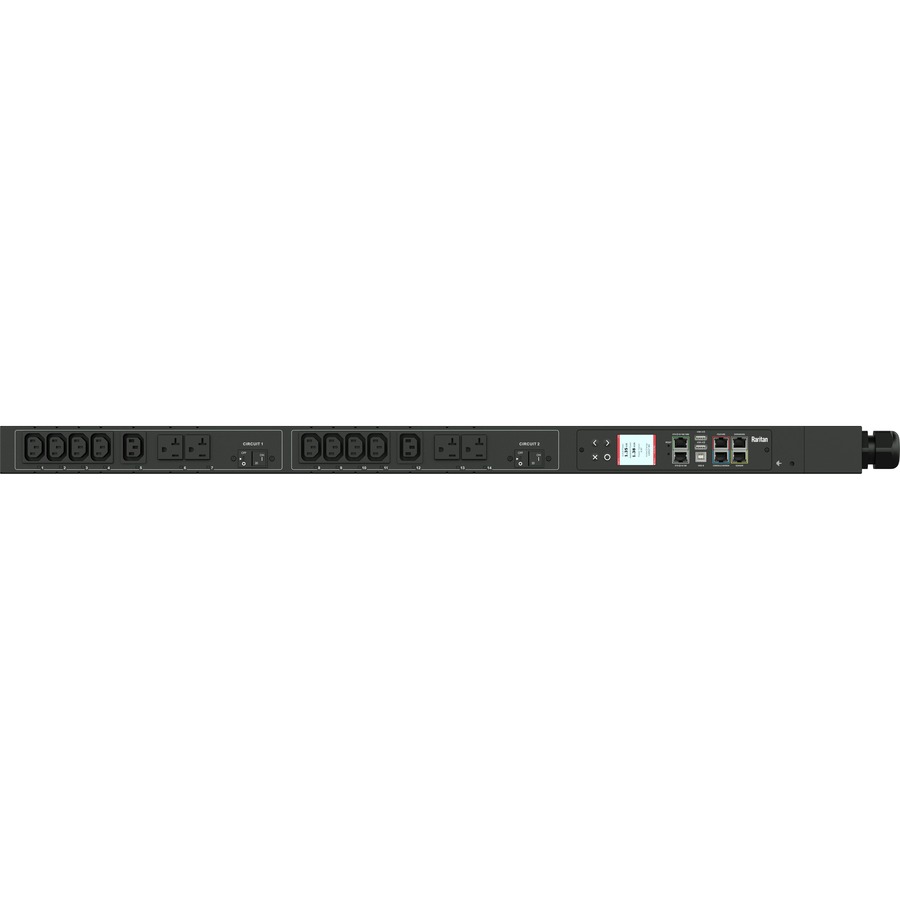

Raritan PX3-4199U-N1 (10) IEC320 C13, (4) NEMA 5-20R PDU
10 x IEC 60320 C13, 4 x NEMA 5-20R - 208 V - Network (RJ-45)
- SKU
- PX3-4199U-N1
- Category
- PDUs
MSRP$1,691.00
$1,594.88
Save 6%Back ordered
Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PX3-4199U-N1
- Category
- PDUs
Highlights
- PDU provides active metering enabling energy optimization and circuit protection
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- Single Phase phase PDU provides optimal power output with added usability
- NEMA L14-30P (3P4W) plug/connector type for reliable, productive connectivity and optimal power output
- 208 V input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for maximum dependability and added productivity
Specifications
| Product Type | PDU |
|---|---|
| Input Voltage | 208 V |
| Manufacturer Part Number | PX3-4199U-N1 |
| Limited Warranty | 2 Year |
| Output Voltage | 208 V AC |
| Weight (Approximate) | 10.36 lb |
| Input Current | 30 A |
| Manufacturer | Legrand Group |
| Product Model | PX3-4199U-N1 |
| Product Name | PX3-4199U-N1 (10) IEC320 C13, (4) NEMA 5-20R PDU |
| Protection Type | Overload Protection |
| Product Series | PX3 |
| Brand Name | Raritan |
| Plug/Connector Type | NEMA L14-30P (3P4W) |
| Height | 37" |
| Width | 2.1" |
| Depth | 2.8" |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13, NEMA 5-20R |
| Network (RJ-45) | Yes |
| Remote Outlet Switching | No |
| Power Rating (VA) | 5000 VA |
| Environmental Sensors | Differential Pressure, Temperature, Water, Air Flow, Humidity, Contact Closure |
| Receptacle Detail | 10 x IEC 60320 C13, 4 x NEMA 5-20R |
