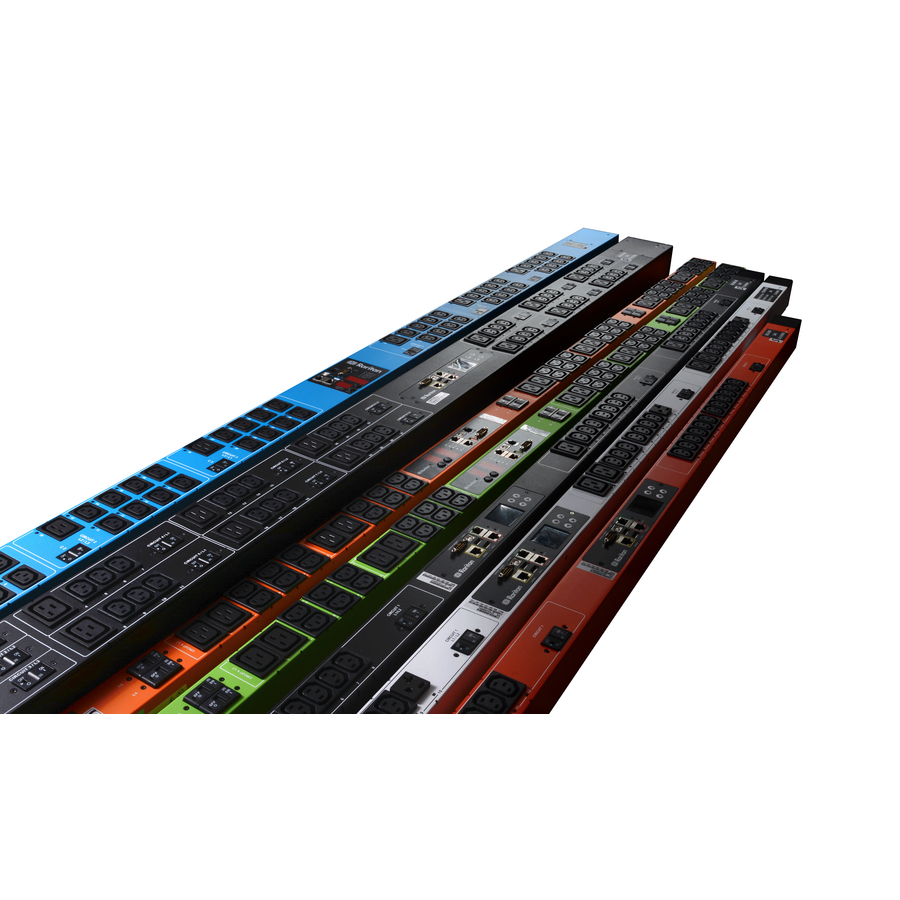

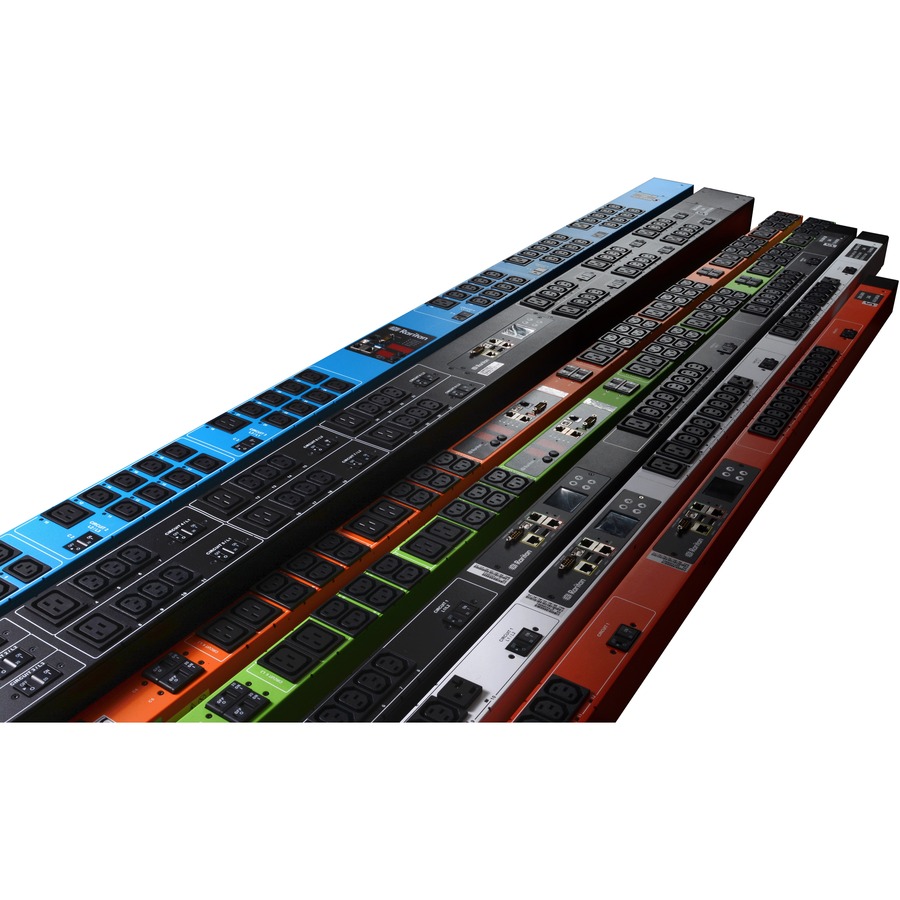

Raritan PX3-1749V-V2N1 36-Outlet PDU
CS8365C - 12 x IEC 60320 C19, 24 x IEC 60320 C13 - 230 V AC - 14.40 kW - 0U - Rack-mountable
- SKU
- PX3-1749V-V2N1
- Category
- PDUs
MSRP$2,323.00
$2,190.96
Save 6%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PX3-1749V-V2N1
- Category
- PDUs
Overview
Rack Power Distribution Units (PDUs) The PX series boasts the most reliable and sophisticated rack PDUs on the market. It offers metering at the inlet, outlet, and PDU circuit breaker level. And tracks current, voltage, power, power factor, and energy usage within 1% billing-grade accuracy. In short, it helps you to better manage existing power capacity, and save energy.
But the PX series offers more than reliable power distribution and metering. It also supports sensors that ensure your equipment is operating in a safe environment. And remote outlet switching to ensure proper provisioning and avoid tripped circuit breakers. Or reboot hung servers. All without stepping foot in the data center.
We offer hundreds of models that meet all your needs. Whether you have a small, medium, or large data center; densely packed 400V three-phase racks; high power blade servers; or a lights-out colo deployment -- there's a PX just for you. See more reasons to consider the PX below.
Highlights
- Electric power fitted to racks of computers and networking equipment within a data center
- IEC 60320 C19 receptacle type to ensure maximum productivity with added feasibility
- CS8365C plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for maximum feasibility and added productivity
Specifications
| Product Type | PDU |
|---|---|
| Input Voltage | 230 V AC |
| Manufacturer Part Number | PX3-1749V-V2N1 |
| Limited Warranty | 2 Year |
| Input Current | 40 A |
| Management | Protocols: SNMP Syslog |
| Manufacturer | Legrand Group |
| Product Model | PX3-1749V-V2N1 |
| Product Name | PX3-1749V-V2N1 36-Outlet PDU |
| Mount Type | Rack-mountable |
| Product Series | PX2 |
| Rack Height | 0U |
| Brand Name | Raritan |
| Plug/Connector Type | CS8365C |
| Country of Origin | Taiwan |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| Power Rating (VA) | 14.40 kVA |
| Receptacle Detail | 12 x IEC 60320 C19, 24 x IEC 60320 C13 |
