Raritan PX2-2497-K1 24-Outlet PDU
Legrand

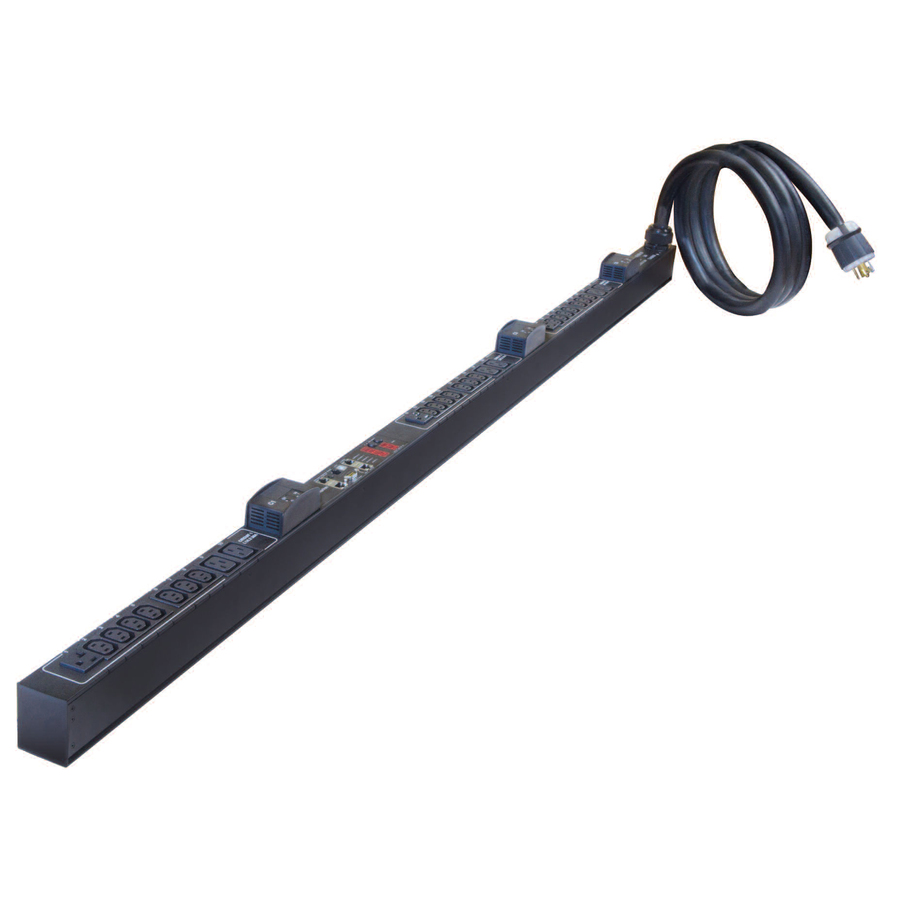

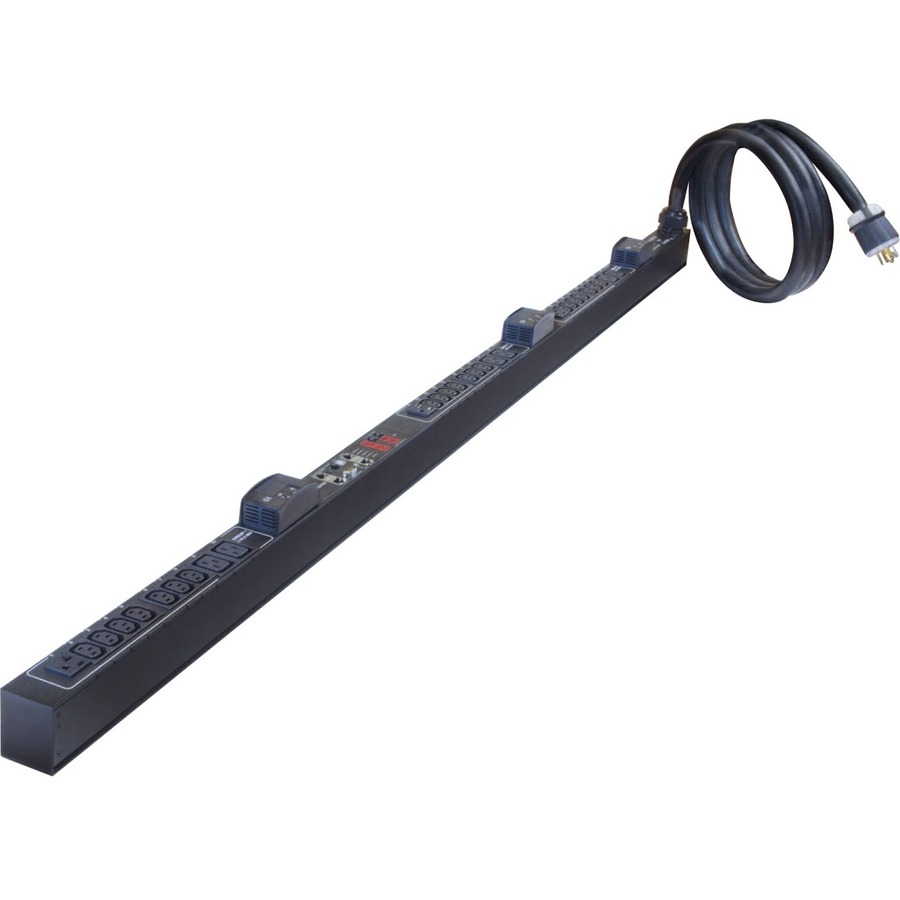

Raritan PX2-2497-K1 24-Outlet PDU

NEMA L6-30P - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 5000 W - 0U - Rack-mountable

SKU
PX2-2497-K1
Category
PDUs

MSRP$1,562.00

$1,473.21

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PX2-2497-K1
Category
PDUs

Overview

Rack Power Distribution Units (PDUs) The Raritan PX family of high-quality, intelligent rack power distribution units (iPDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/- 1% billing-grade accuracy, even at individual outlets.

The PX series offers hundreds of models to meet all your data center applications, including models with remote outlet switching, individual outlet metering, high-power for blade servers and high-density applications, and 400V power distribution.

Highlights

  • Provide circuit protection and easy configuration for trouble-free access
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
  • 230 V AC input voltage for optimal performance with maximum usability

Specifications

Product TypePDU
Input Voltage230 V AC
Manufacturer Part NumberPX2-2497-K1
Limited Warranty2 Year
Input Current24 A
ManufacturerLegrand Group
Product ModelPX2-2497-K1
Product NamePX2-2497-K1 24-Outlet PDU
Mount TypeRack-mountable
Product SeriesPX2
Rack Height0U
Brand NameRaritan
Plug/Connector TypeNEMA L6-30P
Country of OriginTaiwan
Receptacle TypeIEC 60320 C13, IEC 60320 C19
Power Rating (VA)5000 VA
Receptacle Detail20 x IEC 60320 C13, 4 x IEC 60320 C19
