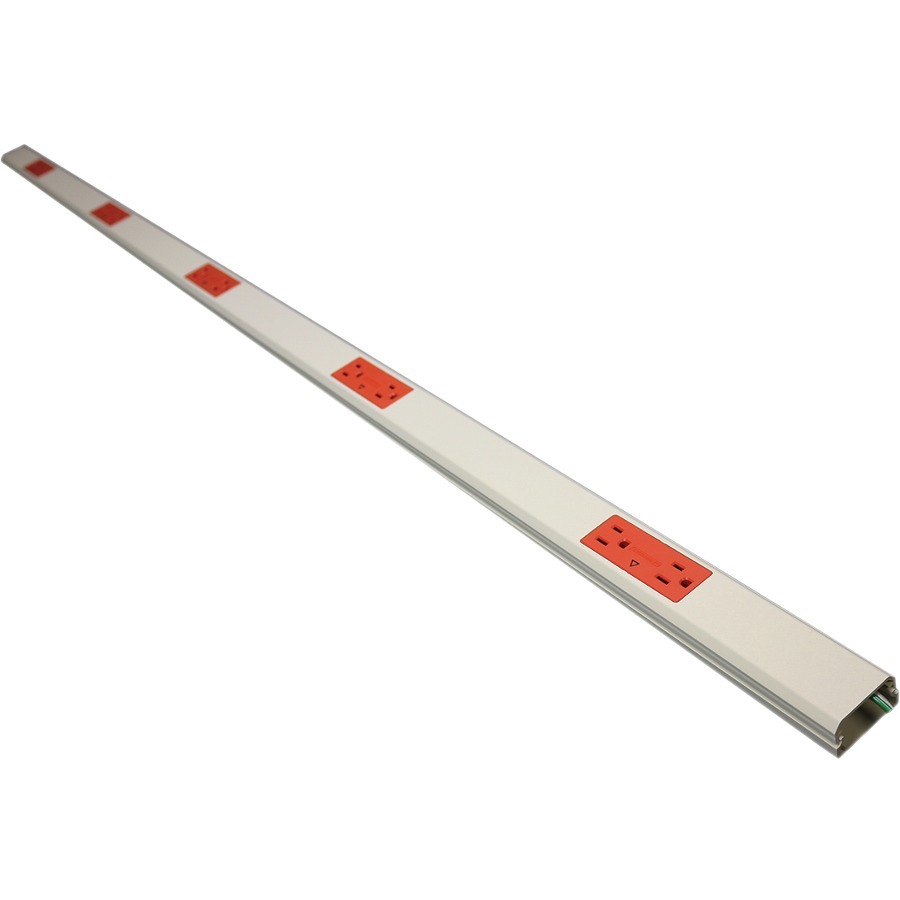

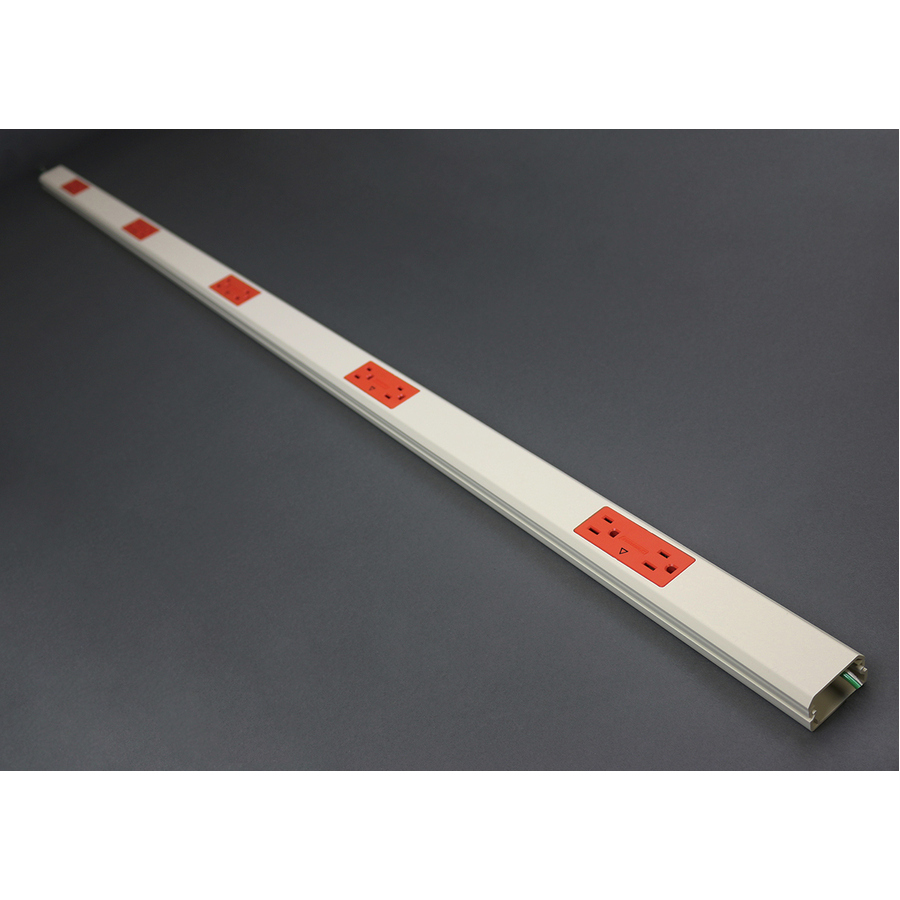

Wiremold NM20IG512 Nonmetallic Plugmold Multioutlet System
Legrand

Wiremold NM20IG512 Nonmetallic Plugmold Multioutlet System

10 x NEMA 5-15R - 15 A Current - 120 V AC Voltage - Ivory, Orange

SKU
NM20IG512
Category
Power Strips

MSRP$129.57

$73.12

Save 44%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
NM20IG512
Category
Power Strips

Overview

Plugmold® Raceway & Multioutlet Assemblies

Plugmold® Multioutlet Systems are available in a wide variety of lengths and fittings and in a variety of finishes to provide versatile solutions for many applications. Plugmold options include single or alternating circuits, standard or isolated ground receptacles, GFCI protection, tamper-resistant protection, USB charging, Snapicoil® harnesses of prewired receptacles, and cord-ended units.

Plugmold® Multioutlet Systems are available in black or ivory ScuffCoat? finish, painted white or gray enamel steel, stylish stainless steel, anodized aluminum and durable textured ivory nonmetallic. The painted steel product works with many types of decor and is paintable to integrate with most color schemes. Durable stainless steel and anodized aluminum Plugmold products are corrosion-resistant, making them ideal for labs.

Highlights

  • Nonmetallic, lightweight with snap-on cover. Speeds installation; provides easy access to wiring for changes or additions.
  • Tapered profile design with textured ivory finish. Blends with surroundings in office, display space, dorm rooms and residential locations.
  • Full range of fittings. Facilitates easy installation of wiring for whatever the job: communication workstation outlets, receptacles, switches and more. Over lapping fittings permit neat butting to raceway.
  • Factory wired harness available with duplex receptacles on multiple spacings. Maximum power distribution to the point of use.
  • NEMA heavy duty duplex receptacles independently tested to Fed. Spec. WC596G performance criteria. Enhanced product quality ensures dependable performance.
  • Snapicoil harnesses of prewired receptacles in 48' and 50'. Eliminates the need for multiple splicing, speeding up installations on long runs.
  • Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12", 18" and 30".
  • Field replaceable surge module. No need to remove the raceway cover to splice in a replacement receptacle. Field changes and maintenance are quick and easy.
  • Customization available. All products can be modified to accommodate virtually any application.

Specifications

Package Contents
  • NM20IG512 Nonmetallic Plugmold Multioutlet System
  • 2 x Blank End Fittings
  • 1 x Base Coupling
Product TypePower Strip
Input Voltage120 V AC
Manufacturer Part NumberNM20IG512
Packaged Quantity2 / Carton
Receptacles Spacing12"
ManufacturerLegrand Group
Product ModelNM20IG512
Product NameNM20IG512 Nonmetallic Plugmold Multioutlet System
Product LinePlugmold
Product SeriesNM2000
Receptacles10 x NEMA 5-15R
Brand NameWiremold
Country of OriginUnited States
Height1"
Width1.8"
Maximum Frequency60 Hz
Environmentally FriendlyYes
Environmental CertificationECO PASSPORT
Maximum Input Current15 A
Product ColorIvory, Orange
Product MaterialPlastic
