Wiremold Evolution EFB6 Cable Protection
Floor Box Cover - Aluminum - Die-cast Aluminum
- SKU
- EFB6810CTAA
- Category
- Cable Management
MSRP$890.43
$586.29
Save 34%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EFB6810CTAA
- Category
- Cable Management
Overview

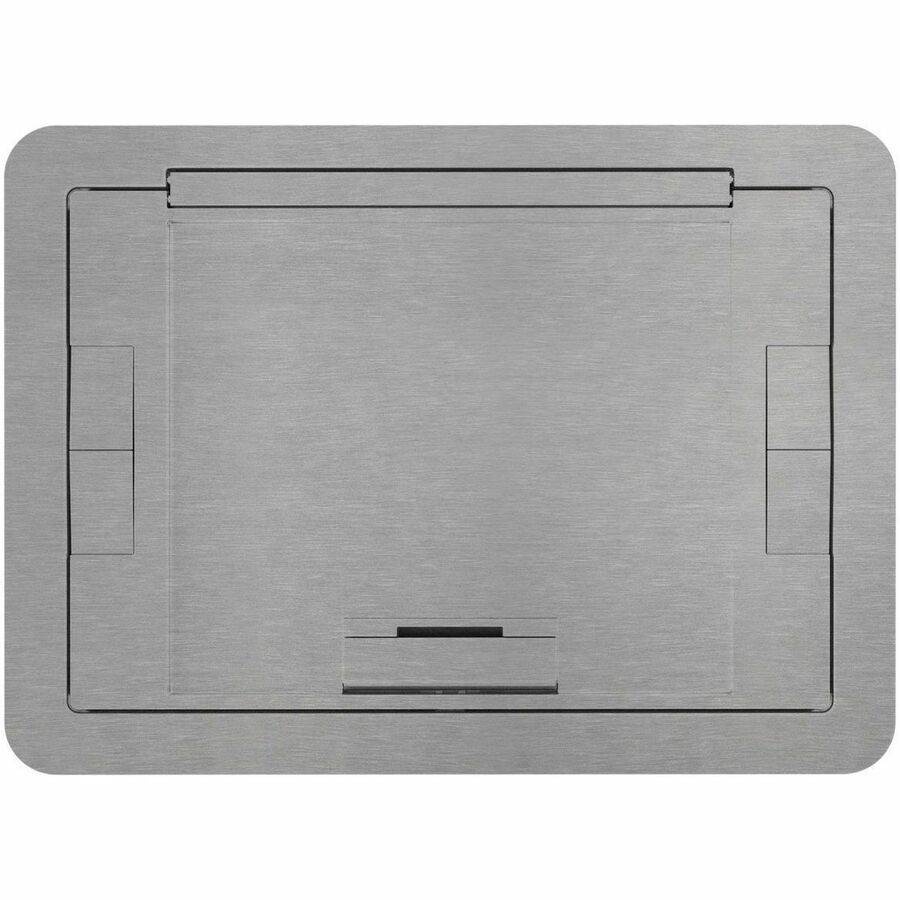

Low profile cover designed to attach to the Evolution Series 6, 8, and 10-gang floor boxes (EFB6, EFB8, and EFB10). Each cover is made of die-cast aluminum and is equipped with a durable hinge which allows the cover to rotate open 180° and two (2) slide egress doors that lock in the open position and automatically close around the cables when the cover is closed. The cover assemblies are designed to work with finished floors such as carpet tile and wood. In order to make the cover assembly flush with the polished concrete or terrazzo floor, the EFB45-CTR (concrete/terrazzo) ring must be used (ring sold separately). The cover assemblies are available in three (3) powder coat finishes: black (BK) gray (GY)and bronze (BZ) and three (3) durable finishes satin brass (SB) satin nickel (SN) and brushed aluminum (AA)
Highlights
- Die cast aluminum cover assemblies.
- Floor Box Covers have been designed to work on multiple floor surfaces and are manufactured from die cast aluminum to provide strength and style
- Decorative powder coat colors (black gray) and durable finishes (brushed aluminum, satin brass, satin nickel) will complement any room décor
- Hinge design enables covers to open a full 180° and lie flat on the floor surface with the durability to support a large cover. Provides easy access to all interior modules and activations while reducing tripping hazards.
- Auto-close egress doors. Cable egress doors lock in position when open and automatically closes around wires to protect cabling and reduce trip hazards.
Specifications
| Additional Warranty Information | 1-Year from Installation or 2-Years from Day of Sale |
|---|---|
| Product Type | Cable Protection |
| Finishing | Brushed Aluminum |
| Manufacturer Part Number | EFB6810CTAA |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 10.30 lb |
| Features | Durable |
| Manufacturer | Legrand Group |
| Product Name | Evolution EFB6 Cable Protection |
| Product Line | Evolution |
| Product Series | EFB6 |
| Brand Name | Wiremold |
| Country of Origin | India |
| Width | 12.50" |
| Cable Manager Type | Floor Box Cover |
| UL Listed | Yes |
| Indoor/Outdoor | Indoor |
| Product Color | Aluminum |
| Color Family | Gray |
| Product Material | Die-cast Aluminum |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Product Environmental Profile (PEP) |
| Mount Surface | Carpet, Tile, Wood |
