Server Technology Smart PRO4X 39-Outlets PDU
Legrand

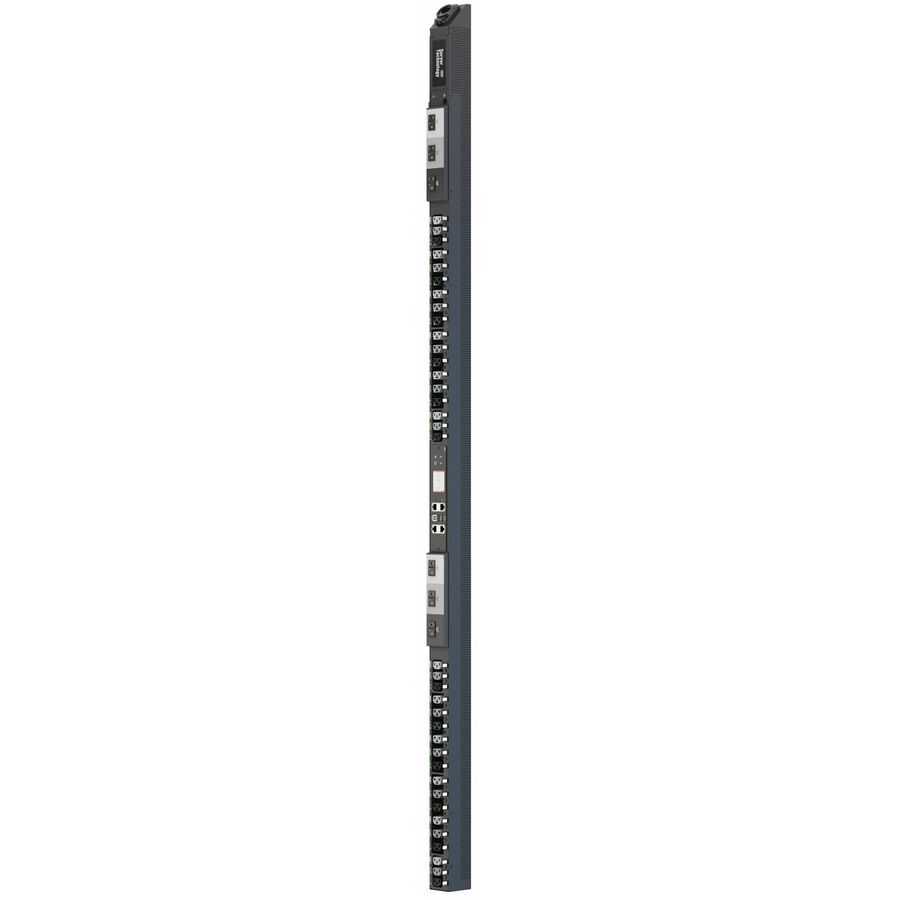

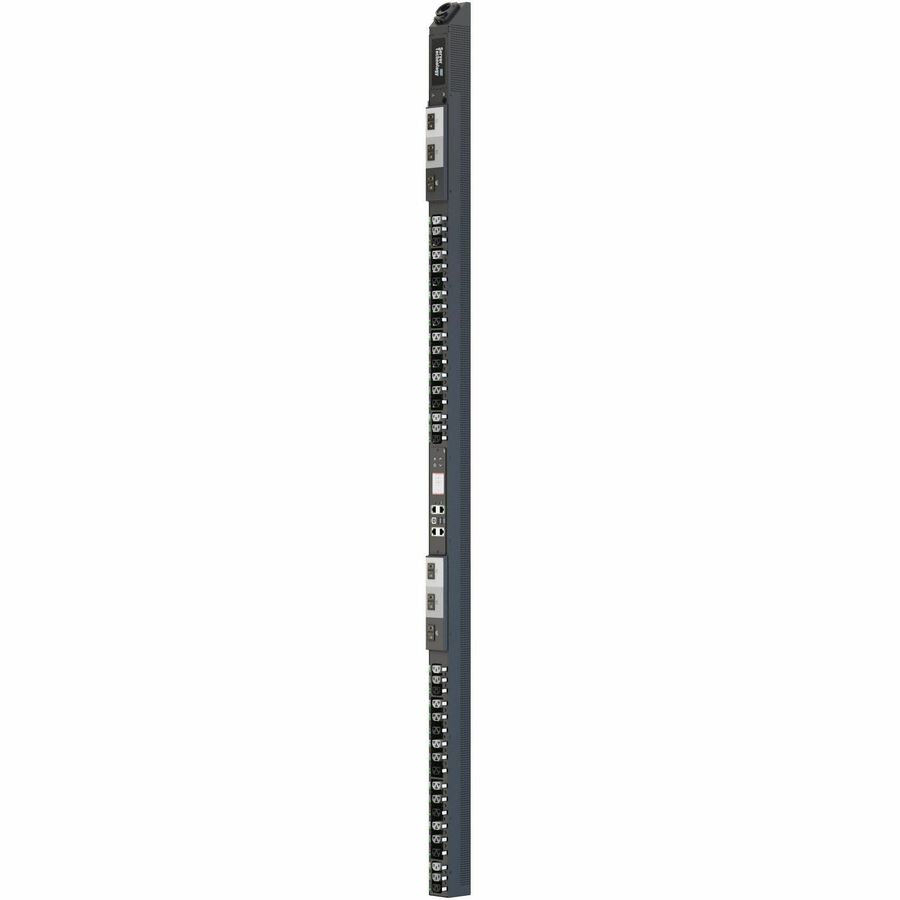

Server Technology Smart PRO4X 39-Outlets PDU

Monitored - NEMA L21-30P - 12 x IEC 60320 C13, 24 x CX, 3 x NEMA 5-20R - 208 V AC - Branch Circuit, Circuit Protection, Fuse, Overload Protection - Network (RJ-45) - 6.56 ft Cord Length - Button Mount

SKU
C4T36RA-YCBE2FE3/20B1
Category
PDUs

MSRP$3,490.00

$3,291.62

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
C4T36RA-YCBE2FE3/20B1
Category
PDUs

Overview

Server Technology's PRO4X Smart POPS PDUs run on our state-of-the-art Xerus network interface platformand provide remote access to power, PDU status, input, outlet and branch current monitoring. The PDU features RamLock, a self-locking mechanismto prevent accidental cord disconnects, and our award-winning HDOT Cx outlets that can be deployed as either a C13 or C19. Smart POPS PDUs are guaranteed secure and feature external authentication and authorization support, while SNMP traps provide automated alerts on power and environmental conditions from Legrand's plug-and-play environmental monitoring sensors like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.

Highlights

  • HDOT Cx Outlets: Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
  • 45 Degree Angled Infeed: The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.
  • Network Monitoring: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
  • Multi-Unit Linking & Cascading: Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.
  • Multi-Color LCD: An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.
  • Hot Swappable Controller: The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.
  • Power Quality Measurements: Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.
  • RGB LED Outlet Indicators: RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.
  • Waveform Capture: Capture voltage and current waveforms automatically or upon demand.
  • RamLock Locking Outlets: A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place.
  • Environmental Monitoring: Support up to 12 daisy-chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.
  • Per-Inlet Power Sensing: PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.
  • Per-Outlet Power Sensing: POPS® (Per Outlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, and Energy per outlet.
  • Branch Circuit Protection: This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.
  • Alternating-Phase Outlets: Evenly distributes multiple phases of power to each outlet for simplified load balancing, reduced cord lengths, and better airflow.
  • High Temperature Rating: This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
  • Flexible Mounting: Includes standard button mounts along with provisions for custom mounting brackets.

Specifications

Application/UsageData Center
Package Contents
  • Smart PRO4X 39-Outlets PDU
  • Standard Button Mounts
Product TypePDU
Input Voltage208 V AC
Manufacturer Part NumberC4T36RA-YCBE2FE3/20B1
Limited Warranty2 Year
Output Voltage208 V AC, 120 V AC
FeaturesMulti-color LCD
Input Current30 A
Management
  • HTTP/HTTPS
  • TLSv1.2
  • SSHv2
  • Telnet
  • SNMPv2c
  • v3 (GET, SET, Traps)
  • IPv4 and IPv6
  • LDAPv3/LDAPS
  • TACACS+
  • RADIUS
  • FTP/SFTP
ManufacturerLegrand Group
Product NameSmart PRO4X 39-Outlets PDU
Mount TypeButton Mount
Product LineSmart
Protection TypeBranch Circuit, Circuit Protection, Fuse, Overload Protection
Product SeriesPRO4X
Brand NameServer Technology
Plug/Connector TypeNEMA L21-30P
Cord Length6.56 ft
Height70"
Width2.2"
Depth2.5"
Input Frequency60 Hz
Receptacle TypeIEC 60320 C13, CX, NEMA 5-20R
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature140°F (60°C)
Minimum Storage Temperature-40°F (-40°C)
Maximum Storage Temperature176°F (80°C)
Network (RJ-45)Yes
Load Capacity (Watt)8600 W
UL ListedYes
PDU TypeMonitored
Product ColorBlack, Blue
Color FamilyDual Color
Locking ReceptaclesRamLock Locking Outlet
Receptacle Detail12 x IEC 60320 C13, 24 x CX, 3 x NEMA 5-20R
