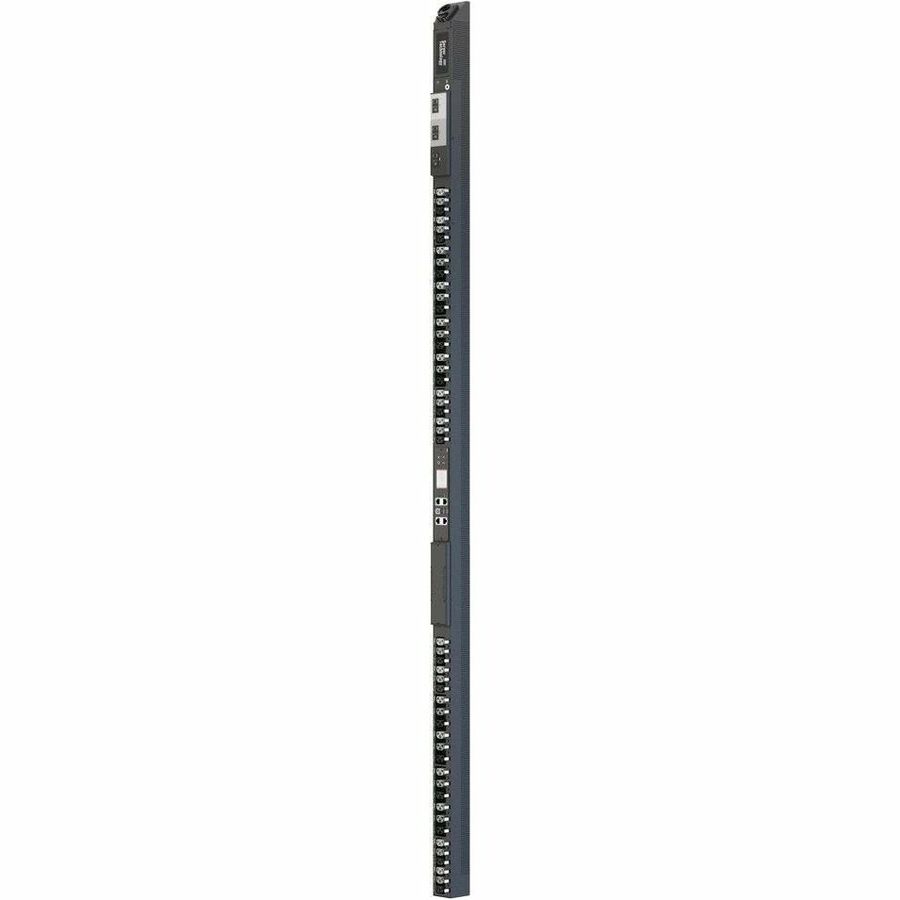

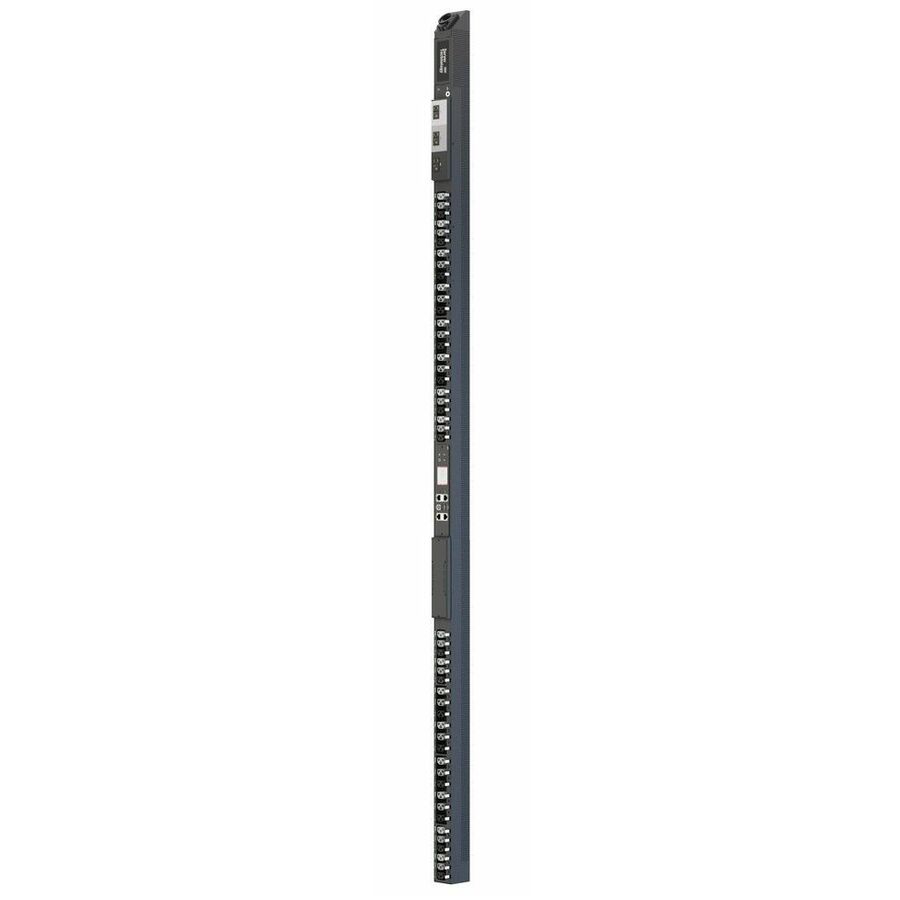

Server Technology PRO4X 36-Outlets PDU

Highlights

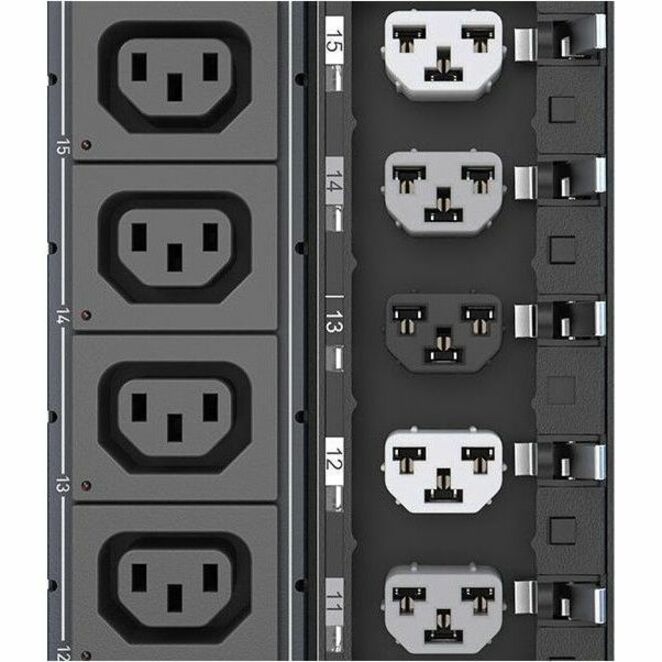

• HDOT Cx Outlets:
• Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
• Network Monitoring:
• Gain access to valuable data through connections including: HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• Multi-Unit Linking & Cascading:
• Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.
• Multi-Color LCD:
• An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.
• Hot Swappable Controller:
• The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.

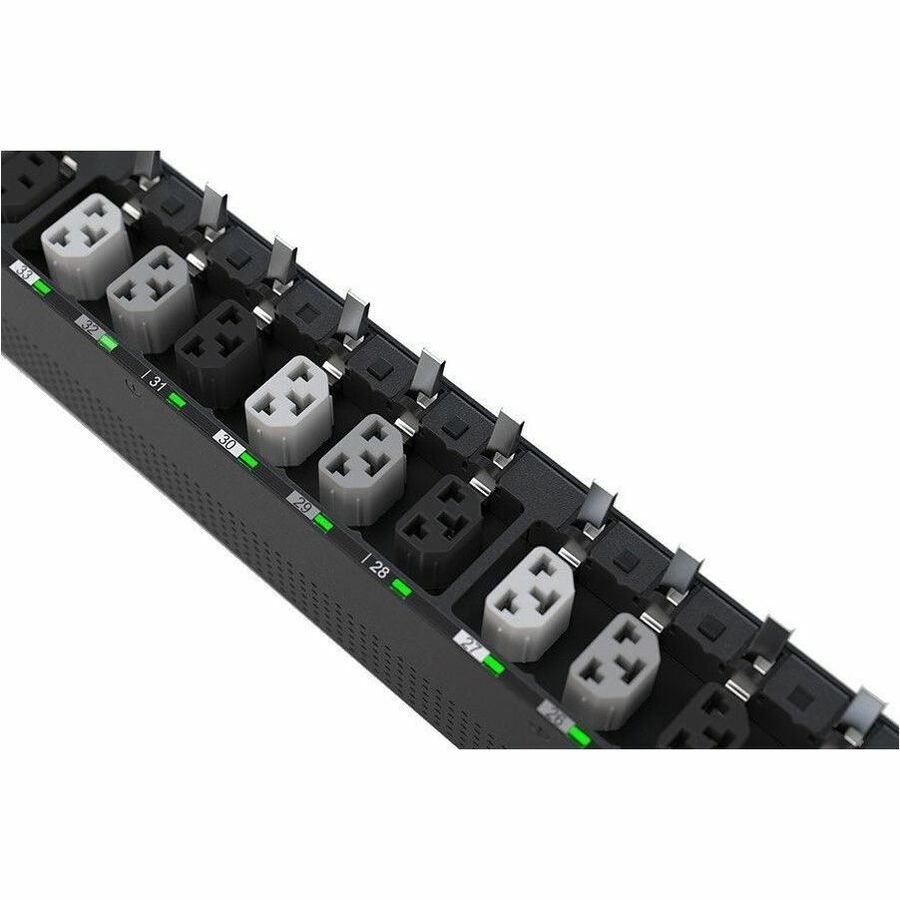

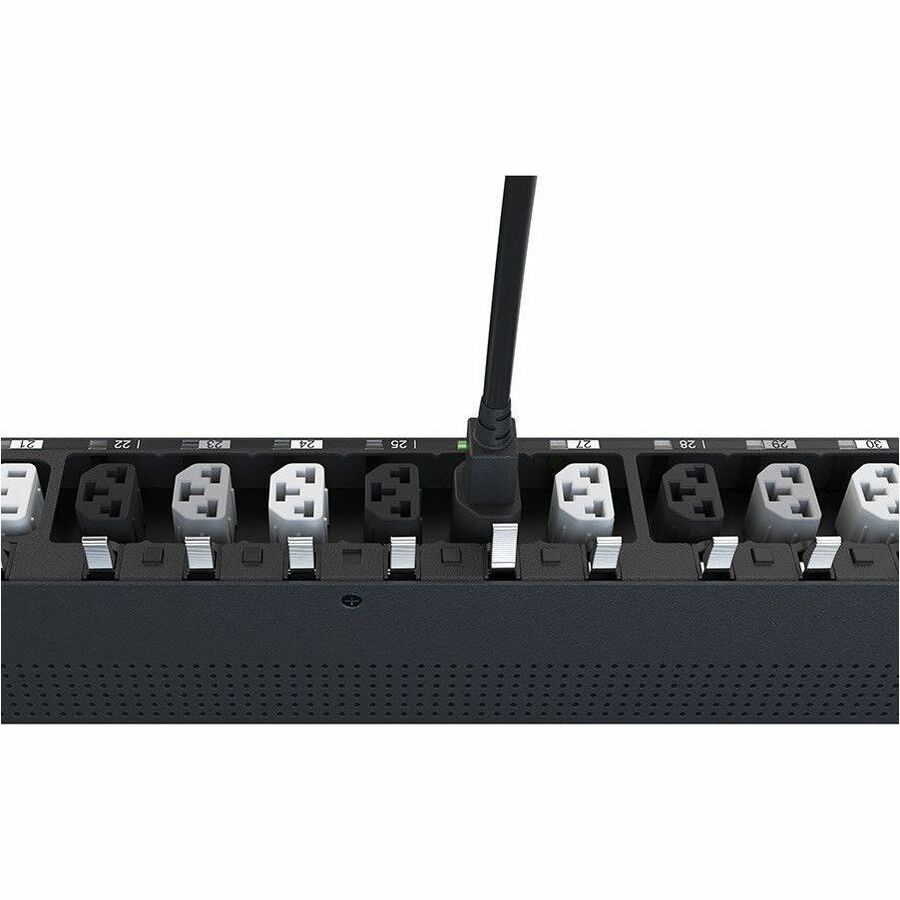

• RamLock Locking Outlets:
• A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place.
• Environmental Monitoring:
• Support up to 12 daisy-chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.
• Per-Inlet Power Sensing:
• PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.
• Branch Current Monitoring:
• Monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
• Branch Circuit Protection:
• This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.
• High Temperature Rating:
• This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
• Flexible Mounting:
• Includes standard button mounts along with provisions for custom mounting brackets.
• Color-Coded Options:
• Select from six colors to designate PDU circuits in the data center - black, white, red, green, blue, and yellow.

Specifications
