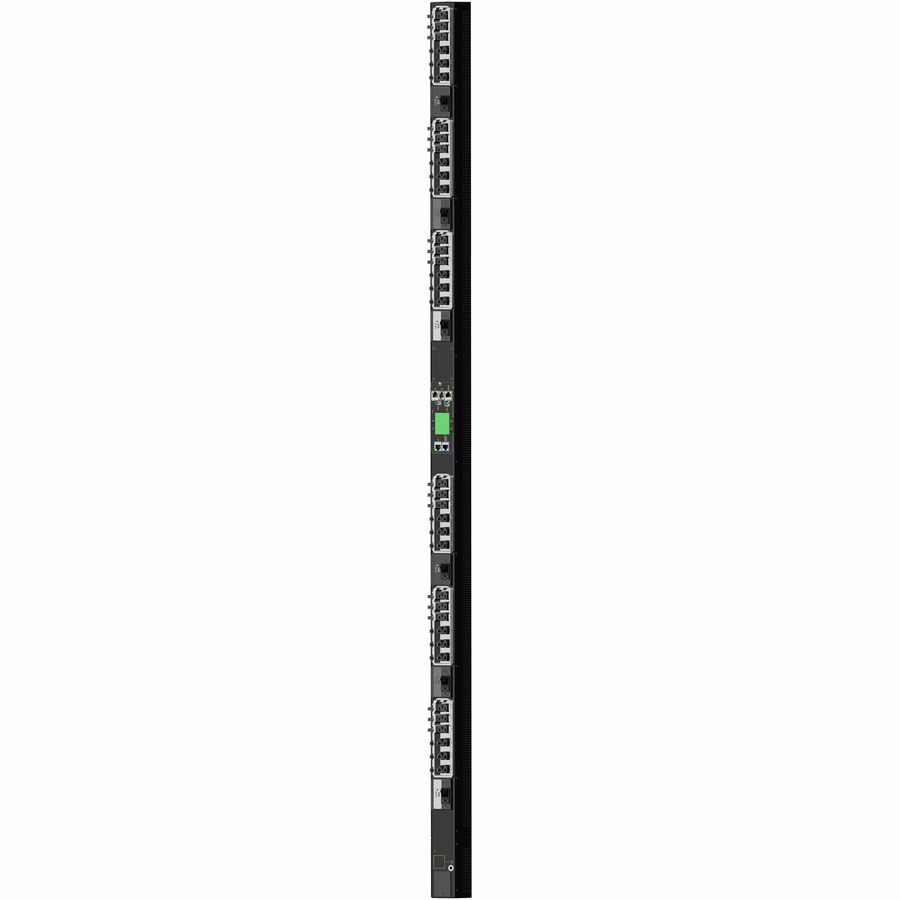

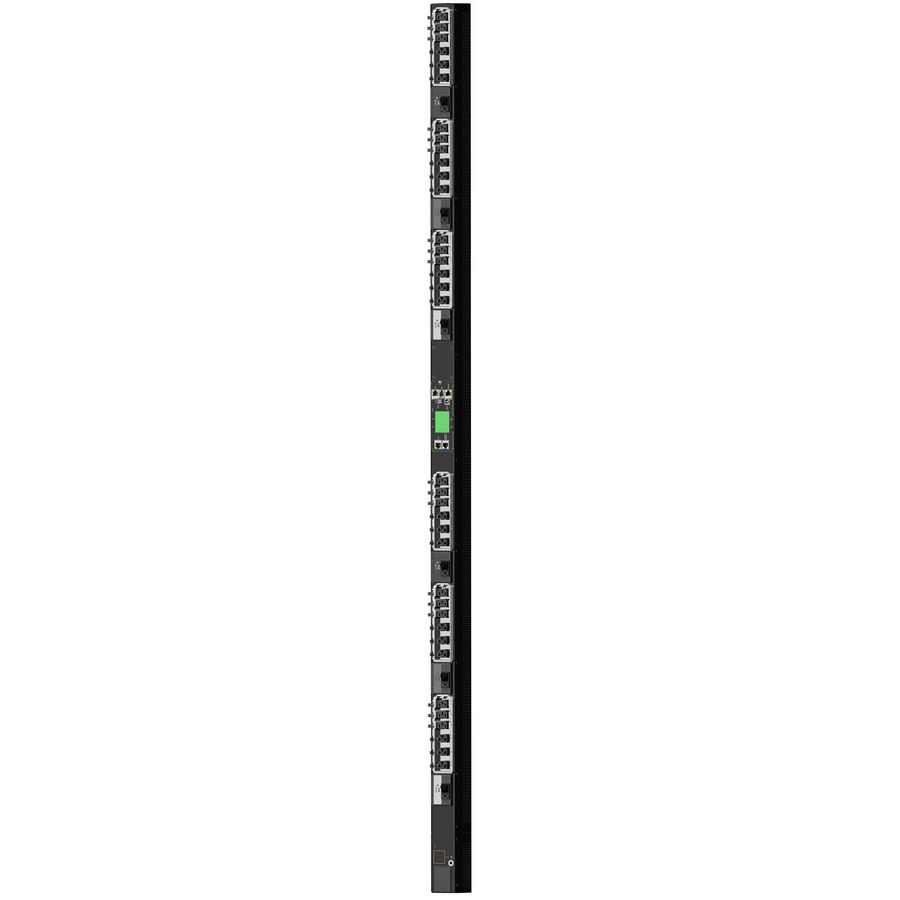

Server Technology PRO3X 36-Outlets PDU
Legrand

Server Technology PRO3X 36-Outlets PDU

Switched - IEC 60309 3P+N+E - 18 x IEC 60320 C13, 18 x CX - 400 V AC, 230 V AC - Branch Circuit, Circuit Protection, Fuse - Network (RJ-45) - 0U - Button Mount

SKU
C3WG36RL-4NJE2MT2
Category
PDUs

MSRP$3,002.00

$2,831.36

Save 6%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
C3WG36RL-4NJE2MT2
Category
PDUs

Overview

This all new Server Technology PRO3X Switched PDU features RamLock HDOT outlets running with the Xerus Technology Platform's state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanismto prevent accidental cord disconnects on standard power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring, and outlet control and supports Legrand plug-and-play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.

Highlights

  • PDU provides active metering enabling energy optimization and circuit protection
  • With switched PDU, remotely monitor, connect or disconnect data center loads
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • Three Phase phase PDU provides dependable power output with maximum efficiency
  • IEC 60309 3P+N+E plug/connector type for reliable, productive connectivity and optimal power output
  • 400 V AC input voltage for better reliance and maximum dependability
  • 230 V AC output voltage for better reliance and maximum usability

Specifications

Application/UsageData Center
Product TypePDU
Input Voltage400 V AC, 230 V AC
Manufacturer Part NumberC3WG36RL-4NJE2MT2
Output Voltage230 V AC
FeaturesMulti-color LCD
Input Current16 A
ManufacturerLegrand Group
Product NamePRO3X 36-Outlets PDU
Mount TypeButton Mount
Product LinePRO3X
Protection TypeBranch Circuit, Circuit Protection, Fuse
Rack Height0U
Brand NameServer Technology
Plug/Connector TypeIEC 60309 3P+N+E
Height70"
Width2.2"
Depth2.5"
Input Frequency60 Hz
PhaseThree Phase
Receptacle TypeIEC 60320 C13, CX
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature140°F (60°C)
Minimum Storage Temperature-22°F (-30°C)
Maximum Storage Temperature176°F (80°C)
Network (RJ-45)Yes
Load Capacity (Watt)11 kW
PDU TypeSwitched
Remote Outlet SwitchingYes
Locking ReceptaclesRamLock Locking Outlet
Receptacle Detail18 x IEC 60320 C13, 18 x CX
