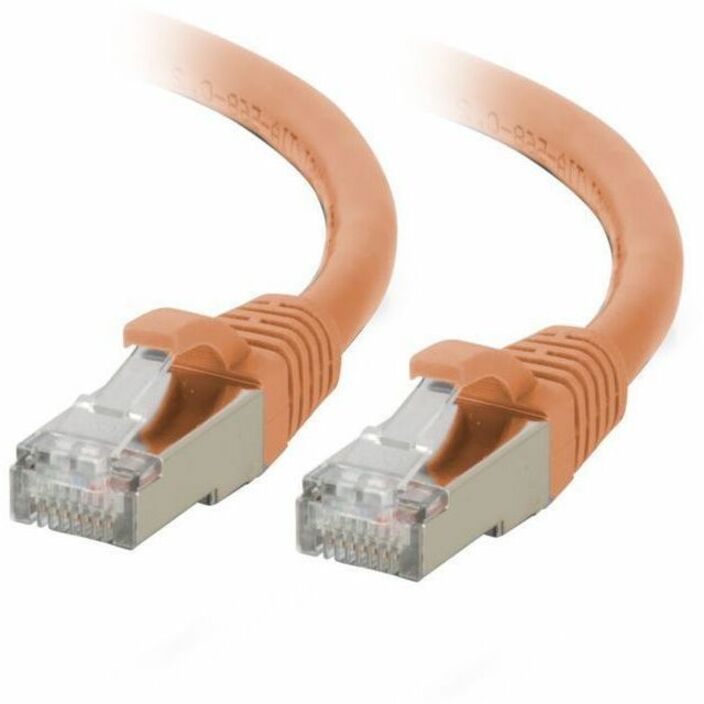

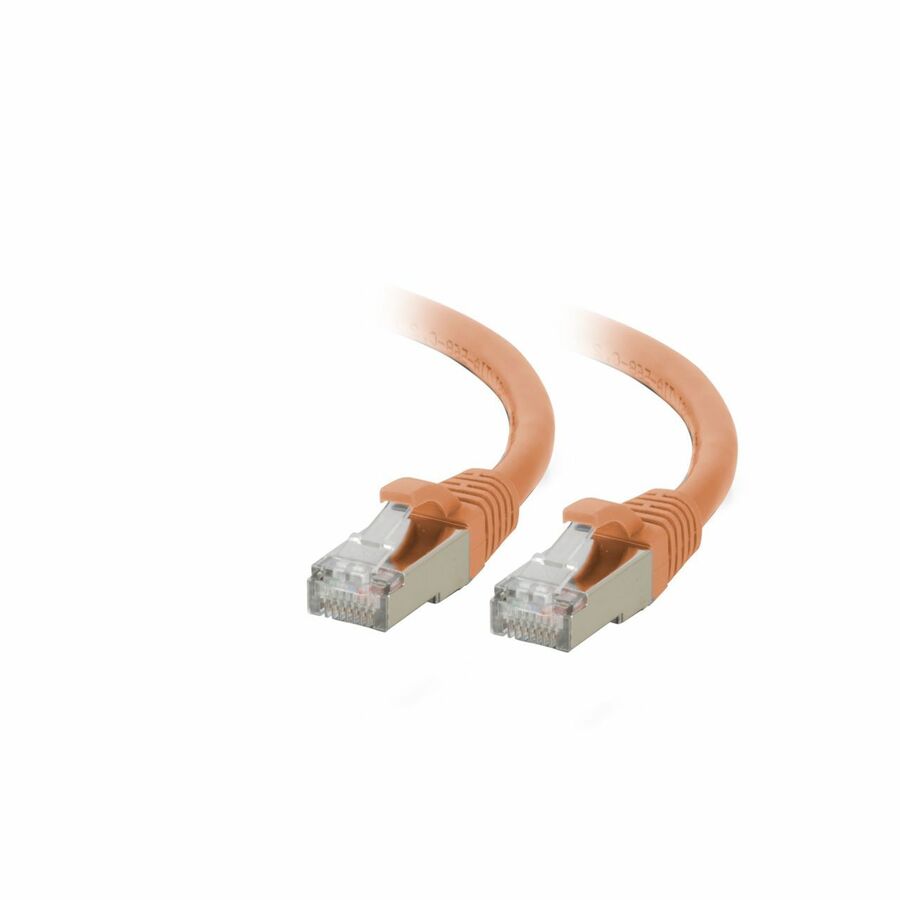

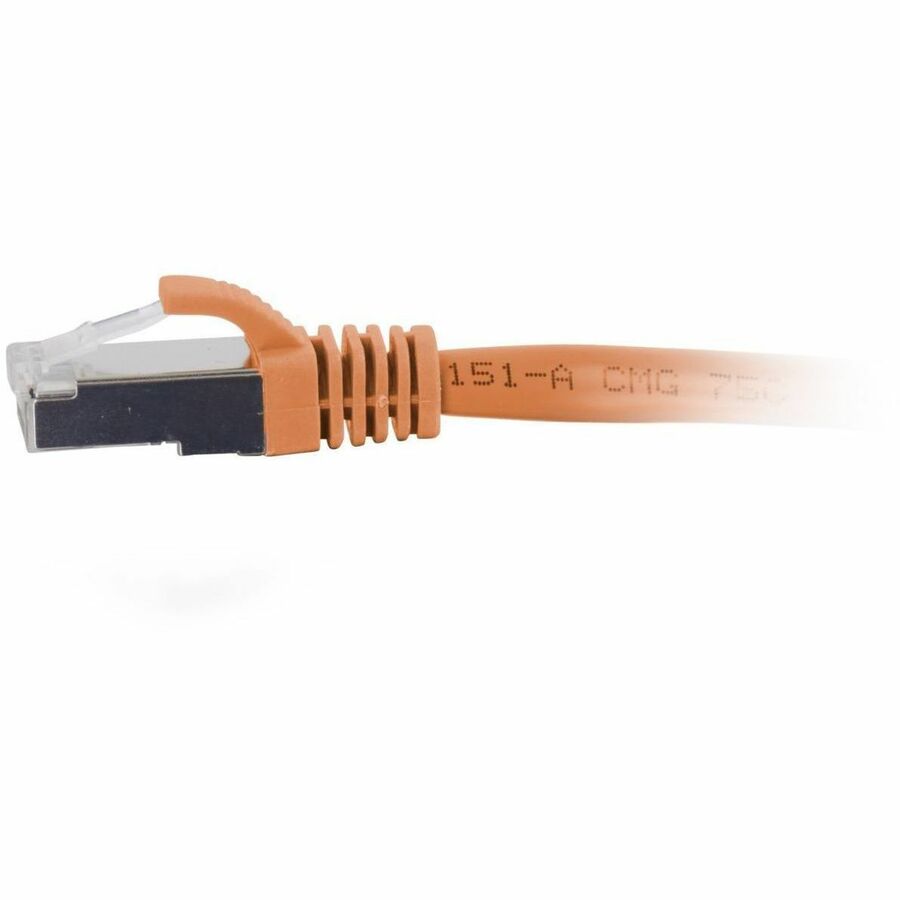

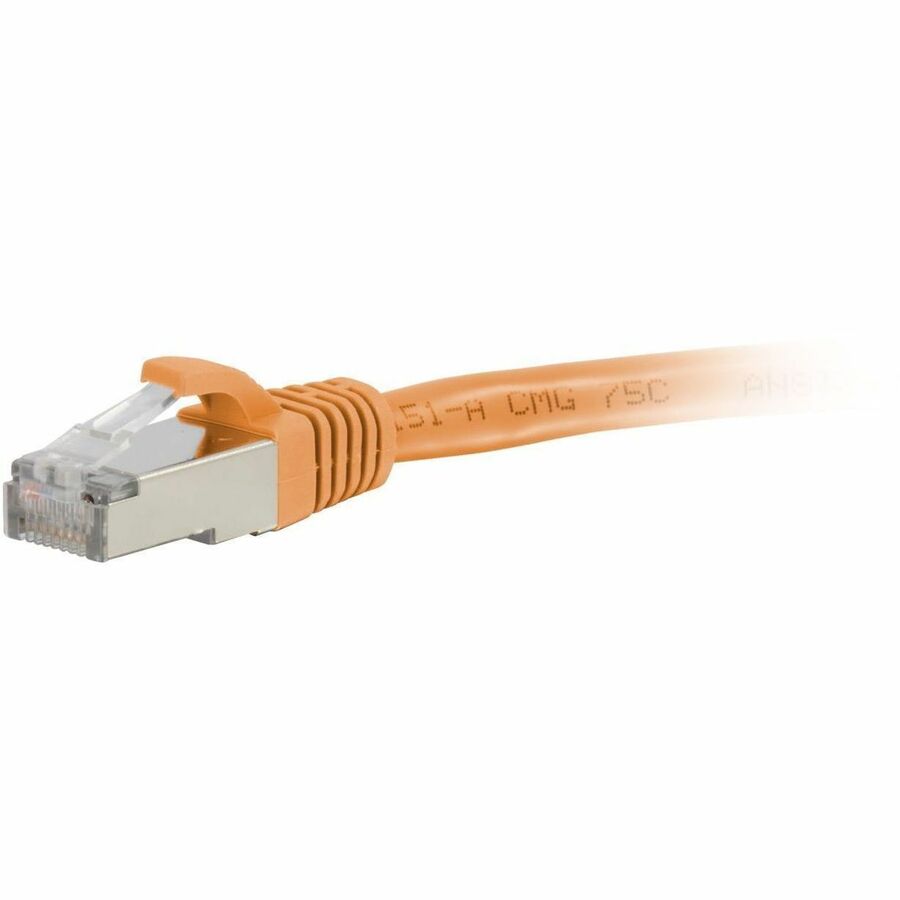

C2G 25ft (7.6m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Orange - RJ45 - M/M
C2G 25ft (7.6m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Orange
- SKU
- C2G07396
- Category
- Connector Cables
MSRP$39.99
$23.84
Save 40%In stock: 66
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- C2G07396
- Category
- Connector Cables
Overview
This Snagless Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.
More from the Manufacturer
Highlights
- Designed for network adapters, hubs, switches, routers, HDBaseT applications and more
- Supports 10 Gigabit networks up to 328ft for fast data transmission and maximum performance
- Meets the ANSI/TIA-568-C.2 Cat6a requirements for supporting a wide variety of applications
- Constructed with shielded twisted pair (STP) wires, designed to protect a high speed network from noise and electromagnetic interference
- Snagless connector design for high density environments and protecting the RJ-45 connector's lock
- Available in a variety of colors to color-code a network
Specifications
| Application/Usage | Data Transmission, Commercial, Industrial, Residential, Indoor |
|---|---|
| Cable Length | 25 ft |
| Product Type | Network Cable |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Network Device, Network Adapter, Hub, Switch, Patch Panel, Router, DSL Modem |
| Jacket Type | Standard Non-rated, CMG |
| Manufacturer Part Number | C2G07396 |
| Shielding | Yes |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 0.67 lb |
| Features | Booted, EMI Protection, Locking Connector, Near End Cross Talk (NEXT), Noise Protection, PoE, Snag Resistant, Stranded |
| Manufacturer | Legrand Group |
| Product Name | C2G 25ft (7.6m) Cat6a Snagless (STP) Ethernet Network Patch Cable - Orange |
| Number of Conductors | 8 |
| Brand Name | C2G |
| Country of Origin | Vietnam |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6a |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Insulation Material | FM-PE |
| Connector Plating | Gold |
| American Wire Gauge | 26 AWG |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Orange |
| Outer Diameter | 0.24" |
| Color Family | Orange |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Product Material | Copper |
| Connector Material | Gold |
| Boot Type | Snagless |
| Number of Pairs | 4 |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Cable Shielding Type | Shielded Twisted Pair (STP) |
