Legrand

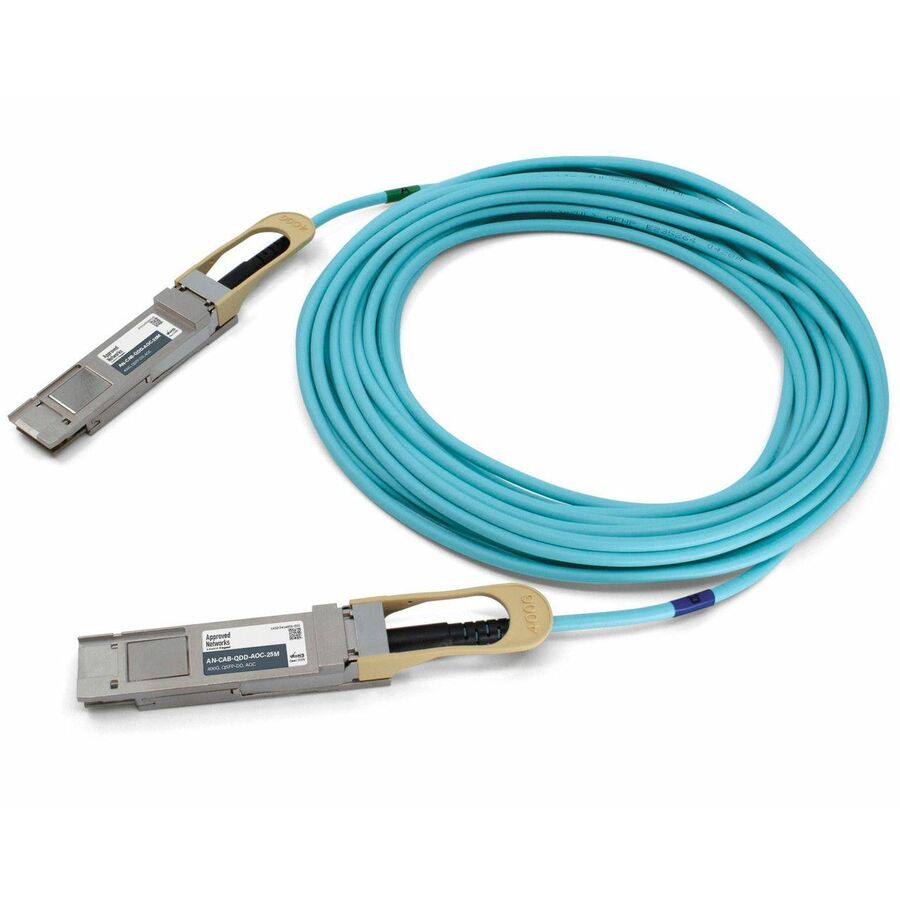

Approved Networks 400G QSFP-DD Active Optical Cable (AOC)
82.02 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP-DD Network - Second End: 1 x QSFP-DD Network - 425 Gbit/s - LSZH - Aqua
- SKU
- AN-CAB-QDD-AOC-25M
- Category
- Connector Cables
MSRP$2,083.22
$1,792.88
Save 14%Back ordered
Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- AN-CAB-QDD-AOC-25M
- Category
- Connector Cables
Highlights
- QSFP-DD MSA Compliant
- Compliant with IEEE 802.3cd and CEI-56-G-VSR-PAM
- Built in Analog CDR
- Low latency for high performance computing application
- Enabled by 850nm VCSE
- Commercial temperature: 0 to 70°C
- Hot pluggable
- Power consumption 7.2W in 400G QSFP-DD
- Transmission distance up to 70m with OM3 MM fiber or 100m with OM4 MM fiber
- Laser Eye Safety Class 1
- Management interface based on CMIS 3.0 or 4.0 (QSFP-DD)
- RoHS compliant
Specifications
| Cable Length | 82.02 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 425 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | LSZH |
| Manufacturer Part Number | AN-CAB-QDD-AOC-25M |
| Limited Warranty | Lifetime |
| Features | AOC Technology, Bendable, Hot Pluggable |
| Manufacturer | Legrand Group |
| Product Name | 400G QSFP-DD Active Optical Cable (AOC) |
| Package Type | OEM |
| Brand Name | Approved Networks |
| Environmentally Friendly | Yes |
| Cable Type | Fiber Optic |
| Connector Type on First End | QSFP-DD Network |
| Connector Type on Second End | QSFP-DD Network |
| Fiber Optic Mode | Multi-mode |
| Maximum Distance | 328.08 ft |
| Product Color | Aqua |
| Connector on First End Details | 1 x QSFP-DD Network |
| Connector on Second End Details | 1 x QSFP-DD Network |
| Fiber Category | OM3 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
