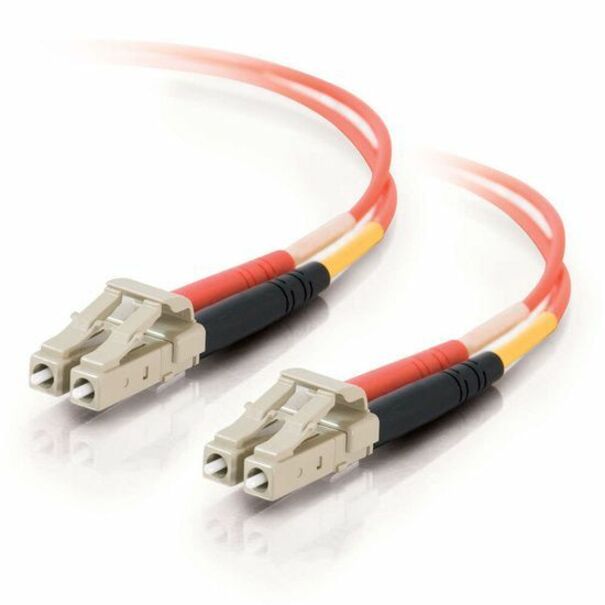

C2G 3.3ft (1m) LC-LC 62.5/125 OM1 Duplex Multimode PVC Fiber Optic Cable - Orange
3.28 ft Fiber Optic Network Cable for Network Device - First End: 2 x LC Network - Male - Second End: 2 x LC Network - Male - Patch Cable - Plenum - 62.5/125 µm - Orange
- SKU
- 33172
- Category
- Connector Cables
MSRP$19.98
$14.55
Save 27%In stock: 408
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 33172
- Category
- Connector Cables
Overview
With LC to LC termination, this high quality fiber optic patch cable is specifically designed for fast ethernet, fiber channel, Infiniband®, ATM and gigabit ethernet applications. The small LC connectors satisfy the need for higher port density both in the telecom room and the work area, and offer twice the port density of traditional SC and ST fiber connectors. The LC connector with its RJ-style latch clip design is easy to engage and disengage, and gives each connection greater durability in resisting pulls, strains, snags, and impacts during cabling installs and maintenance.
The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.
Highlights
- OM1 - 62.5µm core
- Supports 200/500 MHz km OFL at 850/1300nm
- OFNR - Riser rated jacket
- Tested in accordance with EIA/TIA-455-171A
- Connector 1: (1) LC Male Connector 2: (1) LC Male
- Lifetime Warranty
Specifications
| Cable Length | 3.28 ft |
|---|---|
| Product Type | Network Cable |
| Device Supported | Network Device |
| Jacket Type | Plenum |
| Manufacturer Part Number | 33172 |
| Limited Warranty | Lifetime |
| Features | Molded, Pull Resistant Connector, Impact Resistant, Flex Resistant, Snag Resistant, Strain Resistant, Crush Resistant |
| Manufacturer | Legrand Group |
| Product Name | 1m LC-LC 62.5/125 OM1 Duplex Multimode PVC Fiber Optic Cable - Orange |
| Brand Name | C2G |
| Country of Origin | China |
| Cable Characteristic | Patch Cable |
| Environmentally Friendly | Yes |
| Cable Type | Fiber Optic |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Orange |
| Color Family | Orange |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
