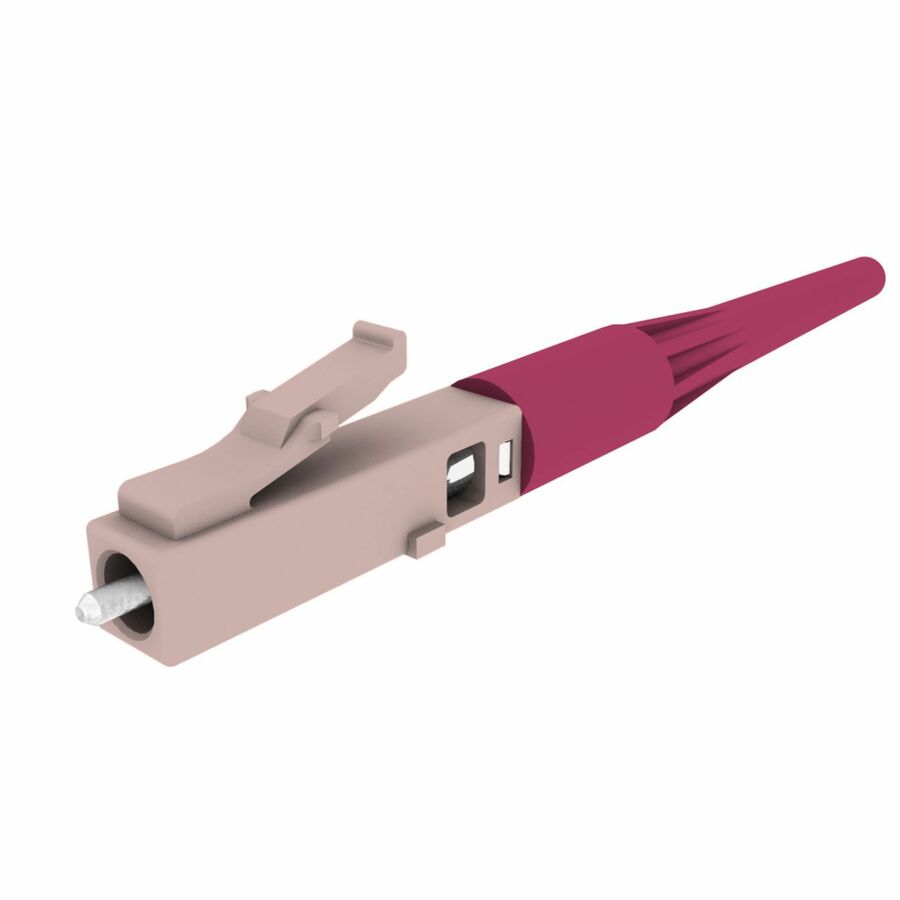

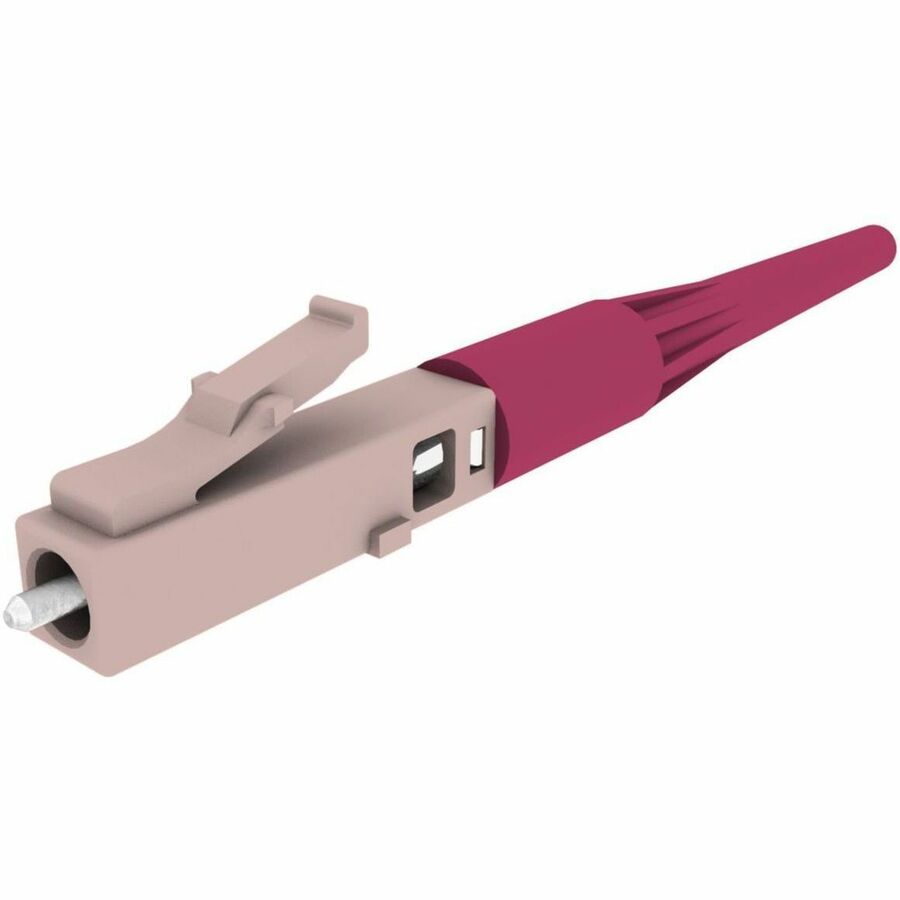

Ortronics Infinium Network Connector
6 Pack - 1 x LC Network - Male - White, Pink, Light Red
- SKU
- 205KKF9GA-50E-A
- Category
- Connectors
MSRP$35.20
$27.01
Save 23%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 205KKF9GA-50E-A
- Category
- Connectors
Overview
Legrand pre-polished keyed LC multimode and single-mode connectors provide the same ease of installation and high-quality performance as our line of standard LC pre-polished connectors. Up to twelve keys/colors of connectors are possible with unique physical keying configurations.
The fusion splicing method is accomplished by fusing the field fiber to the factory-cleaved fiber stub to ensure ease of use and optimal performance. The unique boot allows the entire splice to be concealed and protected. Additionally, an extended brass crimp sleeve provides extra protection to the splice and utilizes the Kevlar® for maximized pull strength.
Highlights
- 12 color/key configurations available
- 50/125 microns and 9/125 microns laser-optimized fiber types available
- LC Keyed cadapters prevent improper connection of separate networks with common access points
- Each LC secure adapter will mate only with same-color LC secure connector
- High quality 1.25 mm zirconia ferrules used
- Internal keying feature prevents tampering
- 1.6 in boot protects the splice for easy cable management
- The solution to managing multiple networks with reduced risks
Specifications
| Application/Usage | Commercial, Data Center |
|---|---|
| Product Type | Network Connector |
| Connector Details | 1 x LC Network - Male |
| Manufacturer Part Number | 205KKF9GA-50E-A |
| Packaged Quantity | 6 Pack |
| Connector Type | LC Network |
| Features | Pre-polished, Booted |
| Manufacturer | Legrand Group |
| Product Name | Infinium Network Connector |
| Product Line | Infinium |
| Brand Name | Ortronics |
| Country of Origin | United States |
| Height | 0.4" |
| Width | 0.2" |
| Depth | 3.7" |
| Product Color | White, Pink, Light Red |
| Connector Gender | Male |
| Color Family | Multicolor |
| Ferrule Material | Zirconia (Zirconium Dioxide) |
