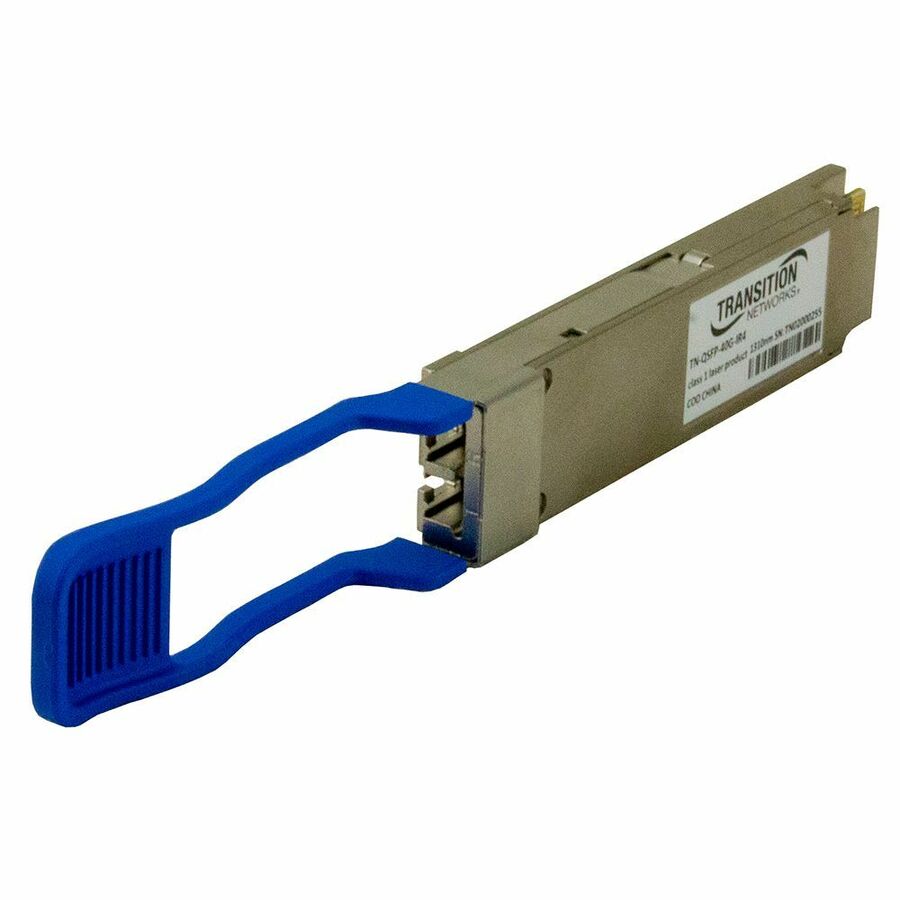

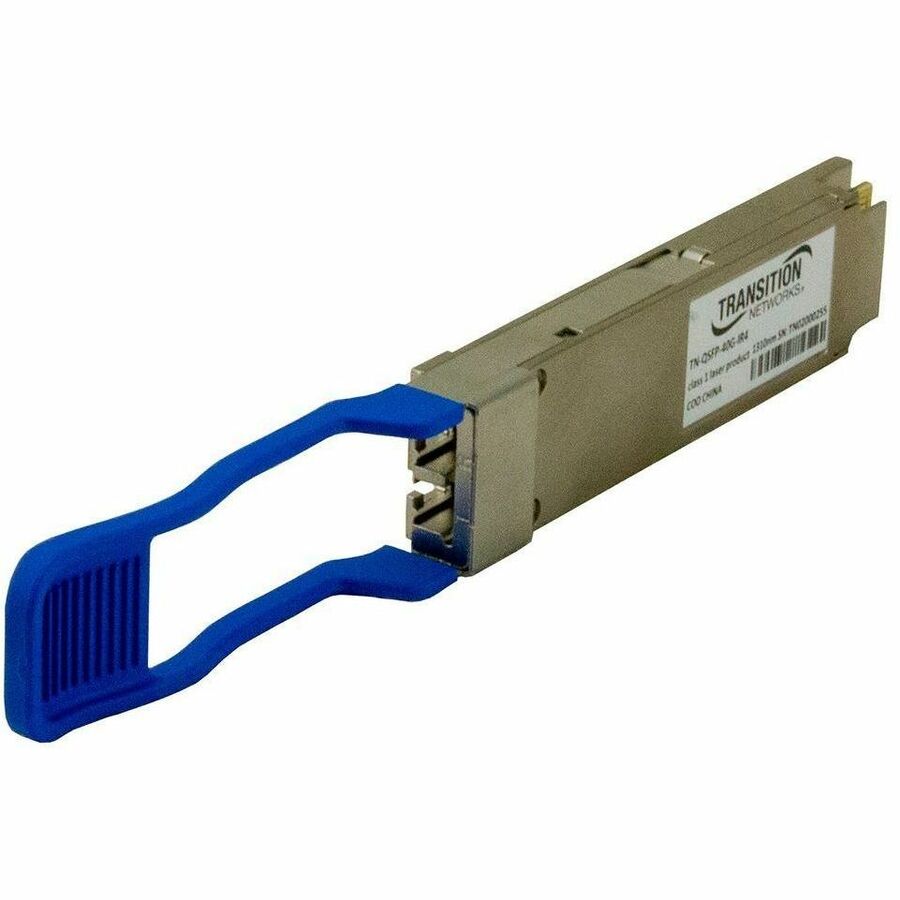

Lantronix TN-QSFP-40G Cisco QSFP+ Module
Lantronix

Lantronix TN-QSFP-40G Cisco QSFP+ Module

For Optical Network, Data Networking - 1 x LC Duplex 40GBase-IR4 Network - Optical Fiber - Single-mode - 40 Gigabit Ethernet - 40GBase-IR42 km Maximum Distance

SKU
TN-QSFP-40G-IR4
Category
Modules

MSRP$1,113.00

$807.36

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
TN-QSFP-40G-IR4
Category
Modules

Overview

Lantronix TN-QSFP-40G series 40G QSFP+ optical transceivers are designed to install in any QSFP+ port allowing for 40GBase-X interfaces to the network through the QSFP+ connector. The TN-QSFP-40G transceivers are Cisco Compliant and are designed for bi-directional serial-optical data communication such as 40G Ethernet

Applications include: 40G Ethernet, 10G Ethernet, and Data Center Aggregation Connection.

Highlights

  • High capacity: up to 44.4 Gbps per module
  • Compliant with SFF 8436 QSFP+ MSA
  • Single +3.3 V Power Supply
  • RoHS Compliant
  • Digital Diagnostic Monitoring
  • Low Power Dissipation : SR4 <1.5 Watts, all other modules <3.5w
  • 40GBase-SR4: 4 lanes, up to 11.1Gbps per lane, Standard MPO connector
  • 40GBase-LR4 & 40GBase-LR4-3: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
  • 40GBase-SR-BD: two transmit/receive channels, 20Gbps each channel, 850 - 900nm wavelength range, Duplex LC connector
  • 40GBase-IR4: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector

Specifications

Application/UsageOptical Network, Data Networking
Product TypeQSFP+
CompatibilityMSA Compliant
Manufacturer Part NumberTN-QSFP-40G-IR4
Maximum Distance Supported2 km
Interfaces/Ports Details1 x LC Duplex 40GBase-IR4 Network
Limited Warranty5 Year
Connector TypeLC
ManufacturerLantronix, Inc
Product NameTN-QSFP-40G Cisco QSFP+ Module
Network Technology40GBase-IR4
Product SeriesTN-QSFP-40G
Brand NameLantronix
Country of OriginChina
Height0.3"
Width0.7"
Depth2.8"
Environmentally FriendlyYes
Ethernet Technology40 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
