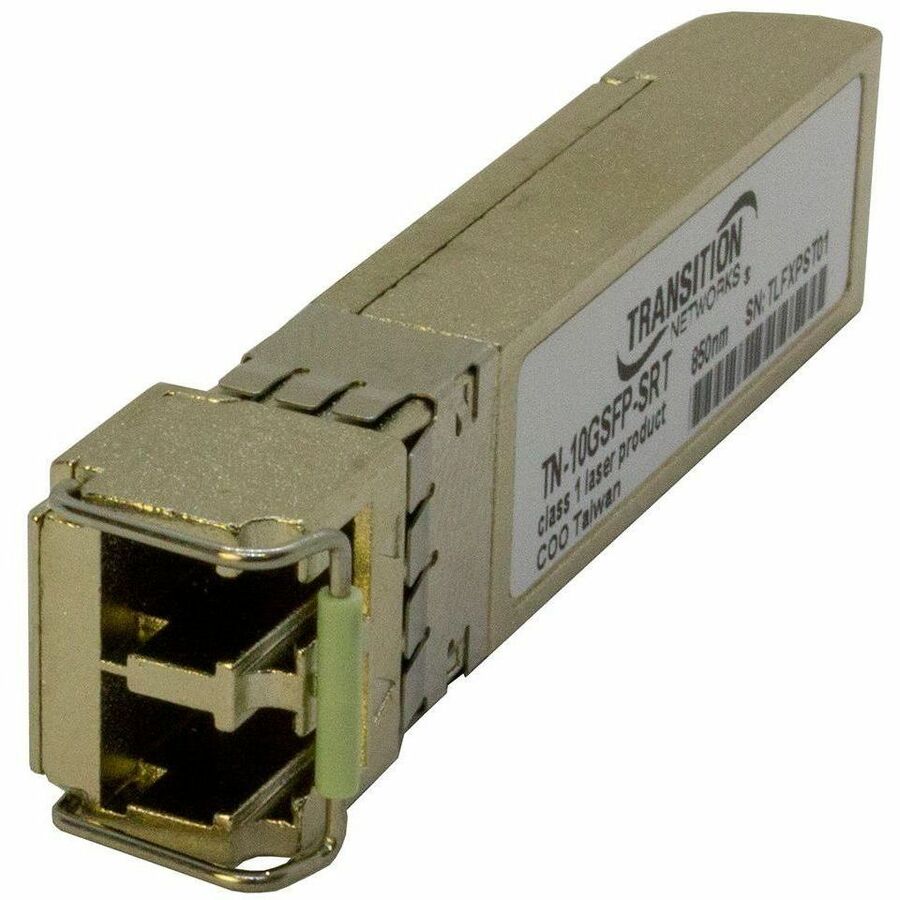

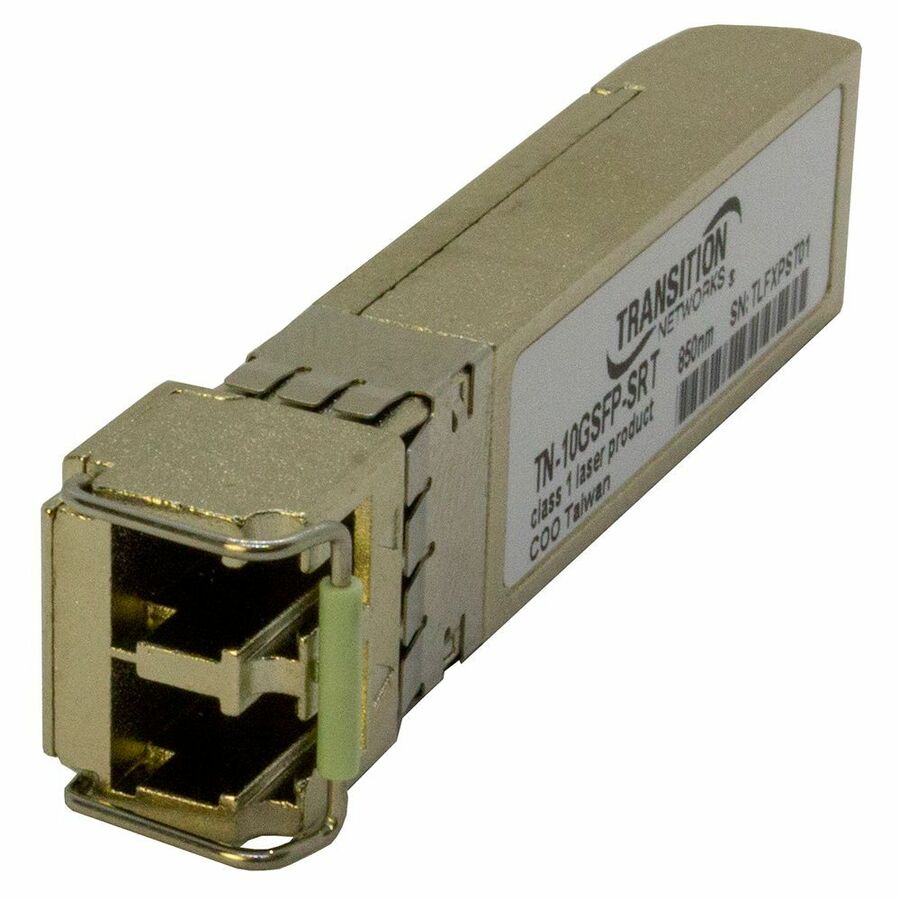

Lantronix TN-10GSFP-xRx SFP+ Module
For Optical Network, Data Networking - 1 x LC 10GBase-SR/SW Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-SR/SW - 10.30 Gbit/s - 0.30 km Maximum Distance - Plug-in Module - TAA Compliant
- SKU
- TN-10GSFP-SRT
- Category
- Modules
MSRP$630.70
$457.50
Save 27%Back ordered
Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TN-10GSFP-SRT
- Category
- Modules
Highlights
- SFP+ Optical Transceiver
- 10G Small Form-Factor Pluggable (SFP+) MSA Compliant
- SFF-8472 Digital Diagnostic Function (DMI)
- Single +3.3 V Power Supply
- Up to 10.5 Gbps bidirectional data links
- RoHS Compliant
- Compliant with 10GBase-SR/SW (TN-10GSFP-SRx Modules Only)
- Compliant with 10GBase-LR/LW (TN-10GSFP-LR1x Modules Only)
- Maximum Link Length of 70KM
Specifications
| Application/Usage | Optical Network, Data Networking |
|---|---|
| Product Type | SFP+ |
| Compatibility | MSA Compliant |
| Manufacturer Part Number | TN-10GSFP-SRT |
| Maximum Distance Supported | 0.30 km |
| Interfaces/Ports Details | 1 x LC 10GBase-SR/SW Network |
| Limited Warranty | Lifetime |
| Connector Type | LC |
| Form Factor | Plug-in Module |
| Manufacturer | Lantronix, Inc |
| Product Name | TN-10GSFP-xRx SFP+ Module |
| Network Technology | 10GBase-SR/SW |
| Product Series | TN-10GSFP-xRx |
| Brand Name | Lantronix |
| Country of Origin | Taiwan |
| Height | 0.3" |
| Width | 0.5" |
| Depth | 2.2" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 10.30 Gbit/s |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
