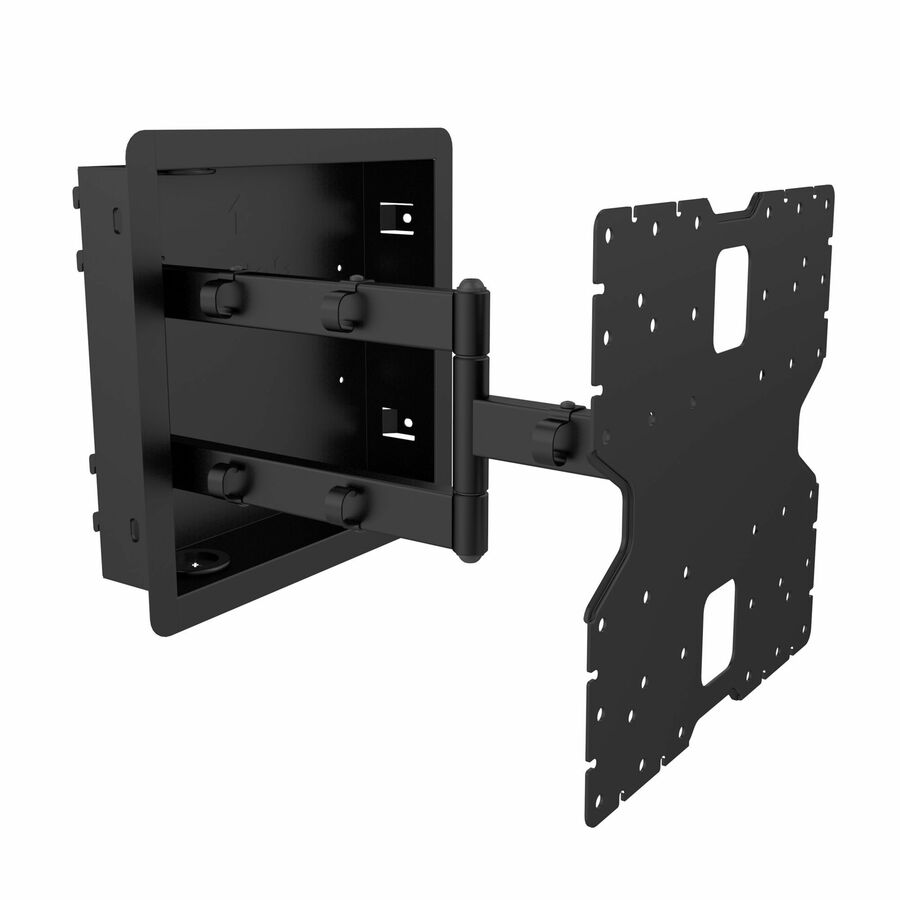

Kanto Mounting Arm for TV, OLED TV
35" to 65" Screen Support - 80 lb Load Capacity - 100 x 100, 400 x 400, 300 x 300 - VESA Mount Compatible - Metal
- SKU
- R400
- Category
- Mounting Kits
MSRP$199.99
$134.40
Save 33%Back ordered — ships when restocked.
Genuine Kanto through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- R400
- Category
- Mounting Kits
Overview

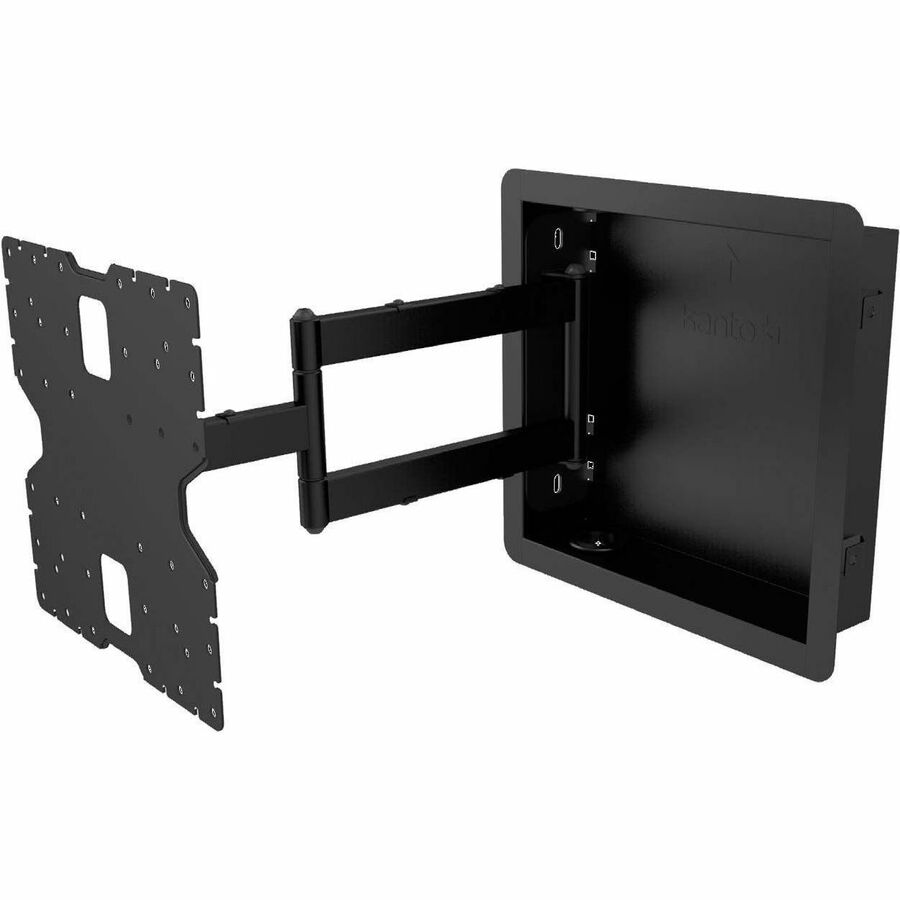

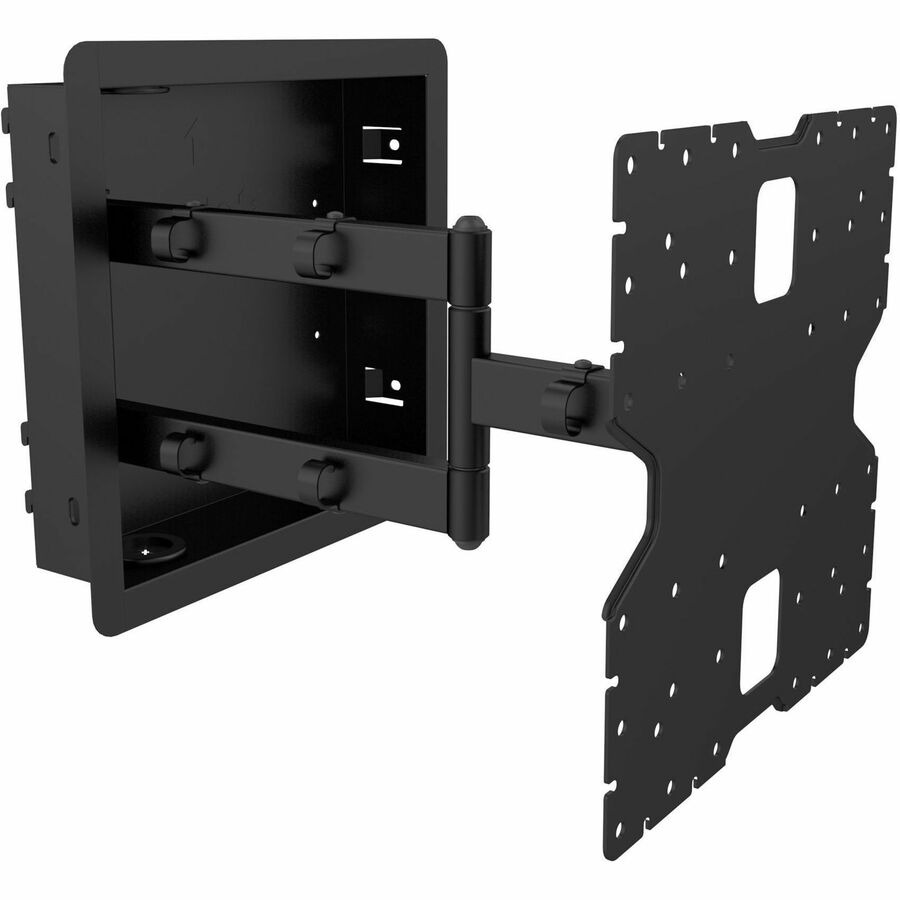

R400 is a mount made for Pro's featuring a true no gap installation that allows your TV to sit perfectly flush against your wall for the ultimate low-profile look. Thin TVs like OLED appear to float like a picture frame with no visible hardware. With a recessed box that sits in-between studs, you can store streaming boxes and other small electronic accessories out of sight. Metal knockouts allow you to easily run a power outlet into the box, while rubber grommets handle all other cabling for a completely in-wall, wire-free experience. Durable metal cable management clips on the articulating arms take care of messy cables when the TV is pulled out to its full 18" of extension.
Highlights
- PERFECTLY FLUSH:R400 is a true zero gap TV mount that allows TVs with a VESA pattern of 300×300 or less to sit directly against the wall for a completely flush look.
- 400x400 VESA Support: 400×400 VESA patterns are supported with provided extensions. Using these only increases the profile to 0.3"

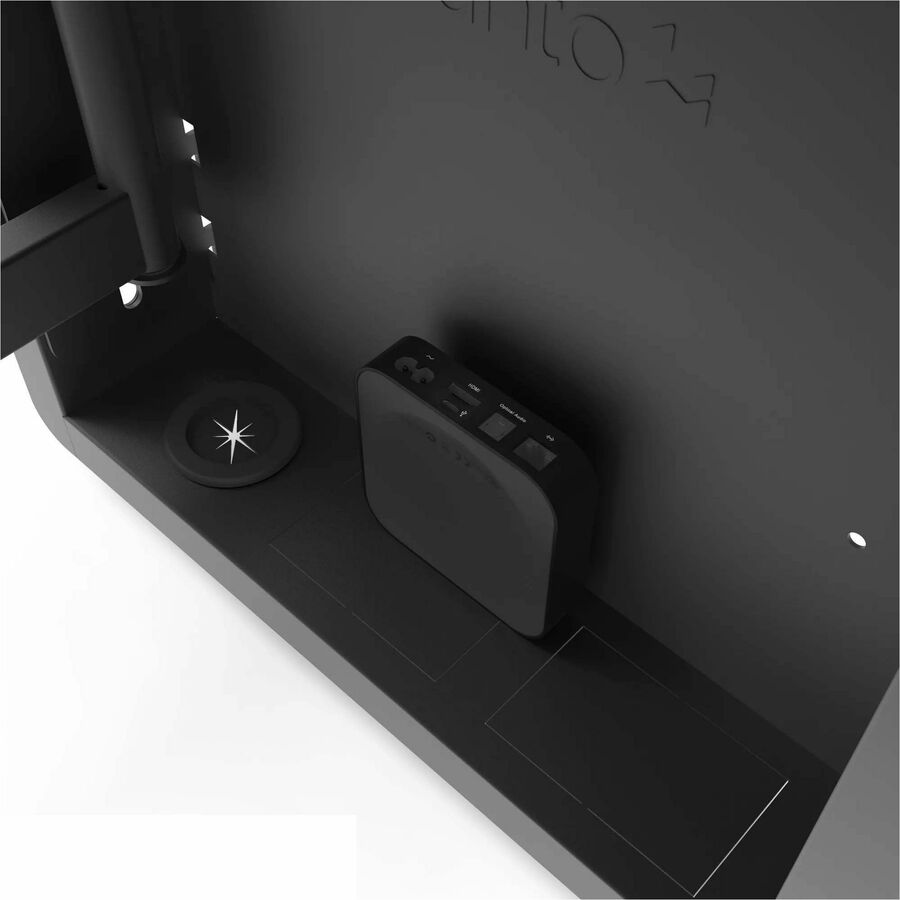

- Out of Sight: The recessed box is deep enough to store streaming boxes and other small AV accessories behind the TV for a clean, modern setup.
- Contractor Friendly: A foldable, in-wall template for new construction can be temporarily placed between studs letting contractors plan cabling and drywall while the mount sits safely in its packaging until needed.

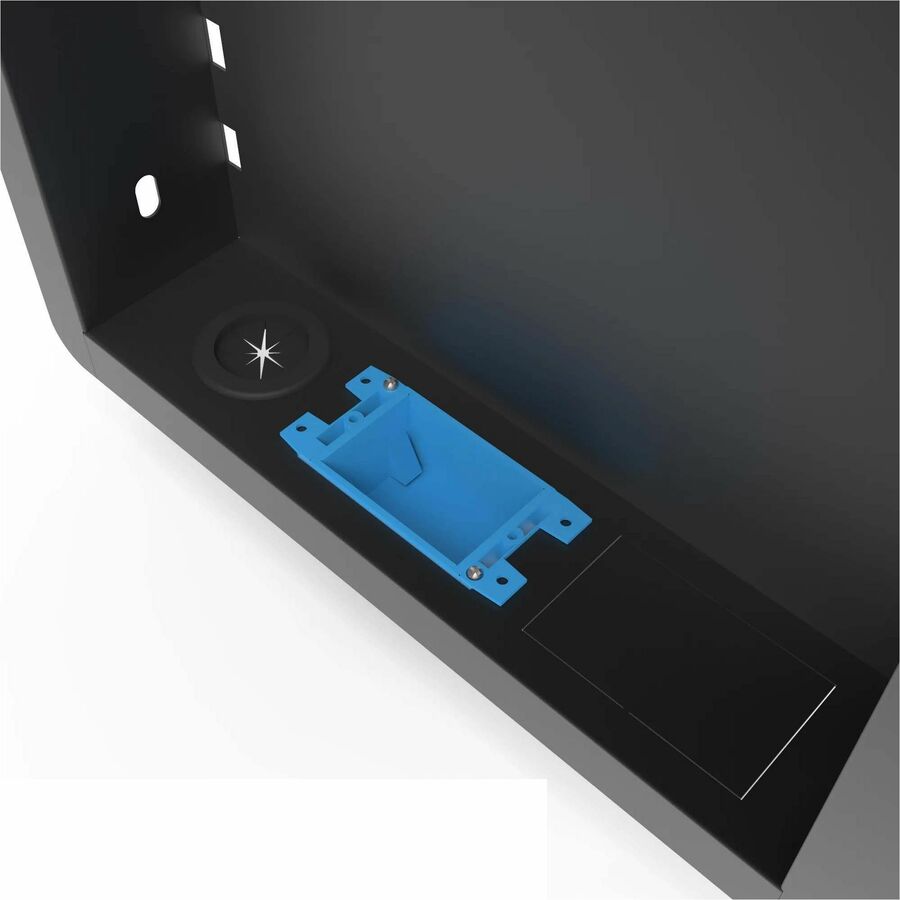

- Power Where You Want: Metal knock-outs allow for the installation of power outlets inside the box so you can keep everything needed to power your equipment within the wall.
- Clean Cabling: Metal cable management clips run along the length of the articulating arm while rubber grommets within the box help you to route your cabling without any mess.
Specifications
| Application/Usage | Stud |
|---|---|
| Package Contents |
|
| Product Type | Mounting Arm |
| Device Supported | TV, OLED TV |
| Manufacturer Part Number | R400 |
| Limited Warranty | 10 Year |
| Weight (Approximate) | 23.10 lb |
| Features | Grommet, Handle, Durable, Cable Management, Foldable, Tilt, Full Motion, Swivel, Articulating Arm |
| Form Factor | Wall Mountable |
| Manufacturer | Kanto |
| Product Name | Recessed In-Wall TV Mount |
| Product Series | Pro |
| Maximum Load Capacity | 80 lb |
| Brand Name | Kanto |
| Minimum Screen Size Supported | 35" |
| Maximum Screen Size Supported | 65" |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 100 x 100, 400 x 400, 300 x 300 |
| Mount Profile | Recessed |
| Maximum Swivel Angle | 90° |
| Product Material | Metal |
| Minimum Tilt Angle | -2° |
| Maximum Tilt Angle | 9° |
