Kanto Wall Mount for TV, Display Screen, Touch Panel - Horizontal/Vertical
55" to 120" Screen Support - 200 lb Load Capacity - 900 x 600, 200 x 100 - VESA Mount Compatible - Solid Steel
- SKU
- PMX800
- Category
- Mounting Kits
MSRP$399.99
$268.80
Save 33%Back ordered — ships when restocked.
Genuine Kanto through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PMX800
- Category
- Mounting Kits
Overview

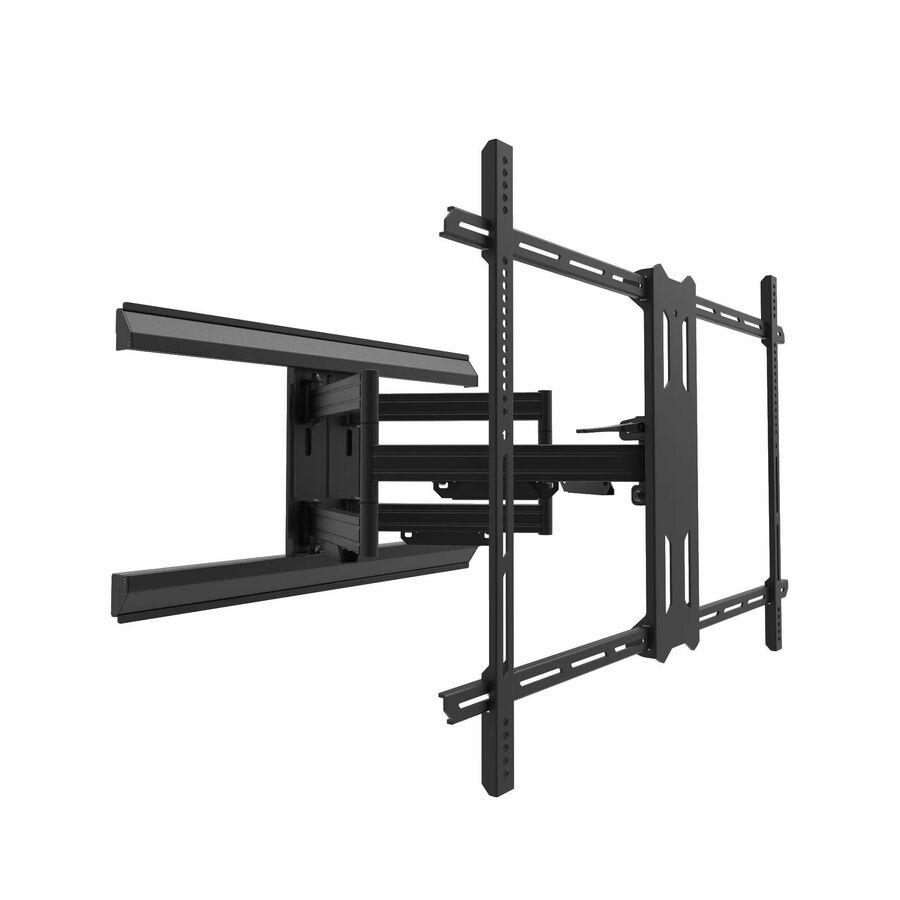

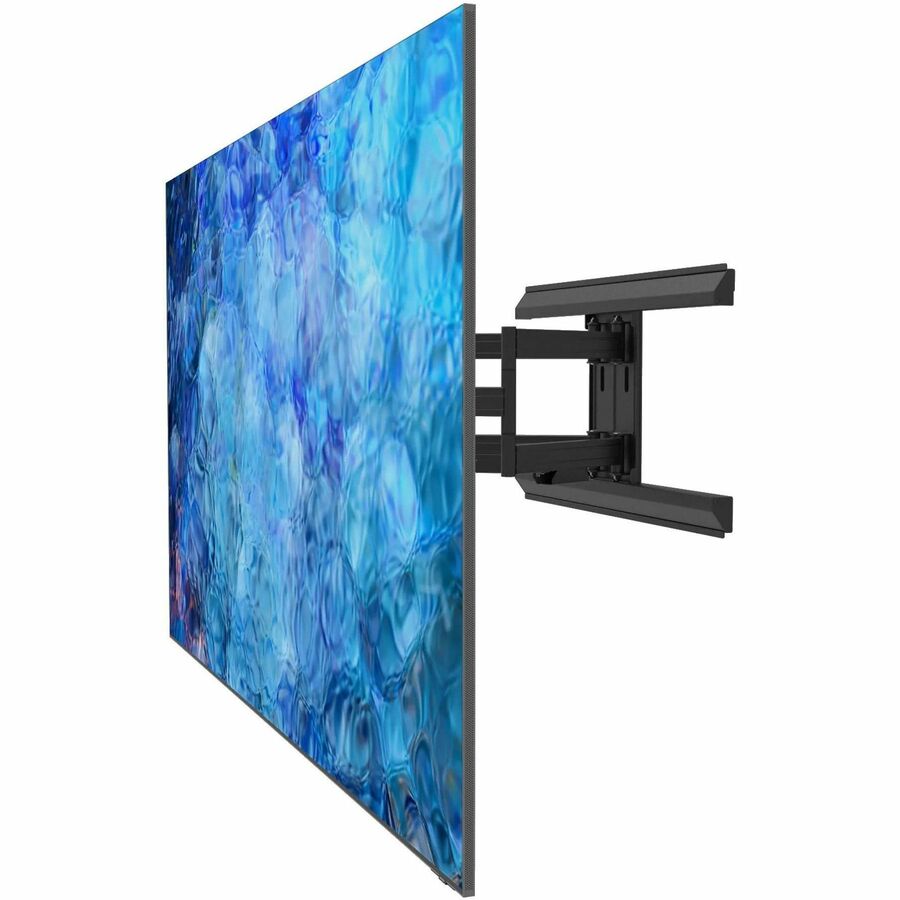

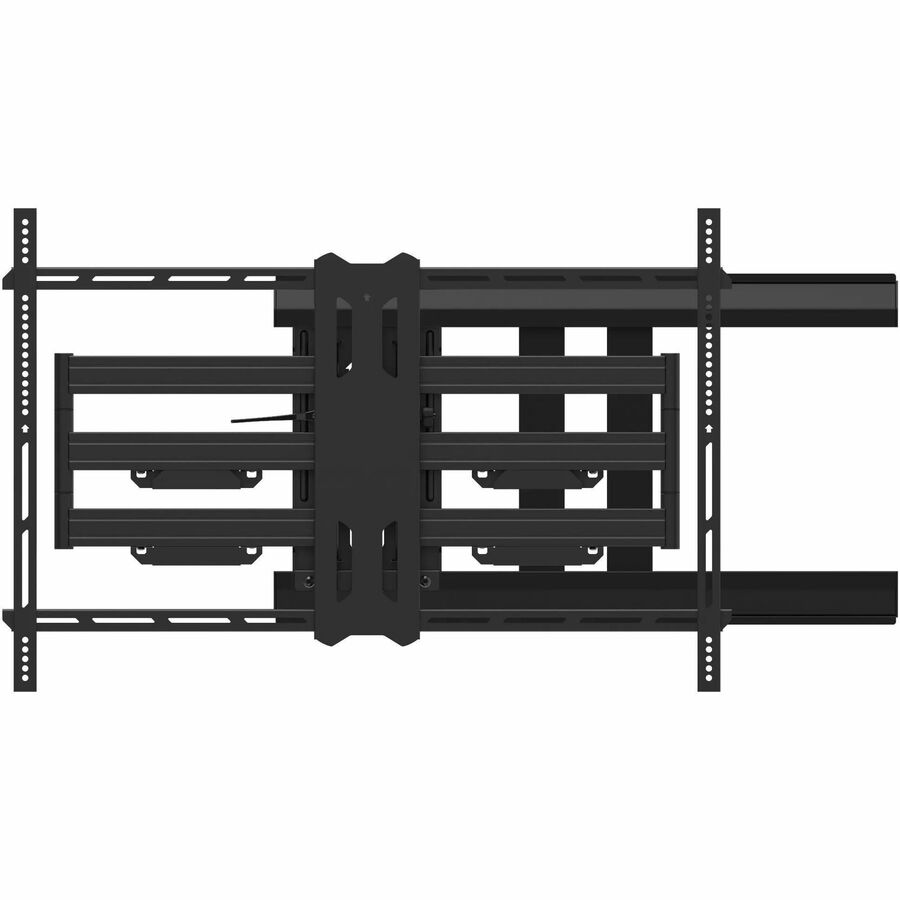

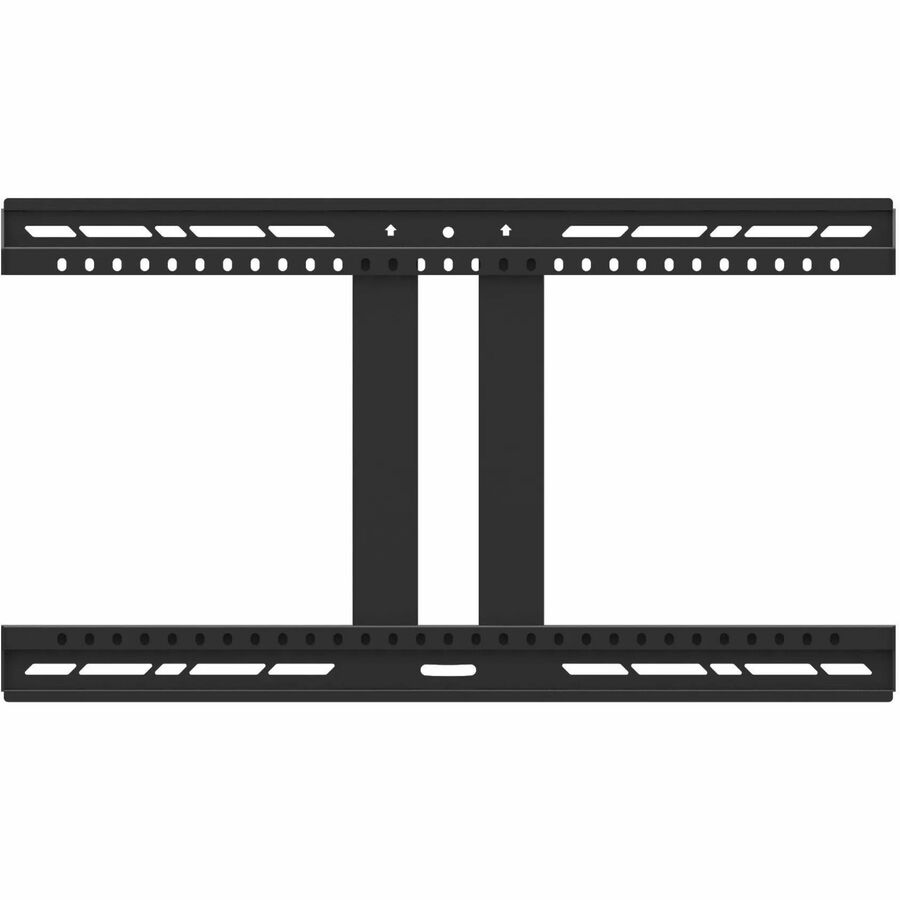

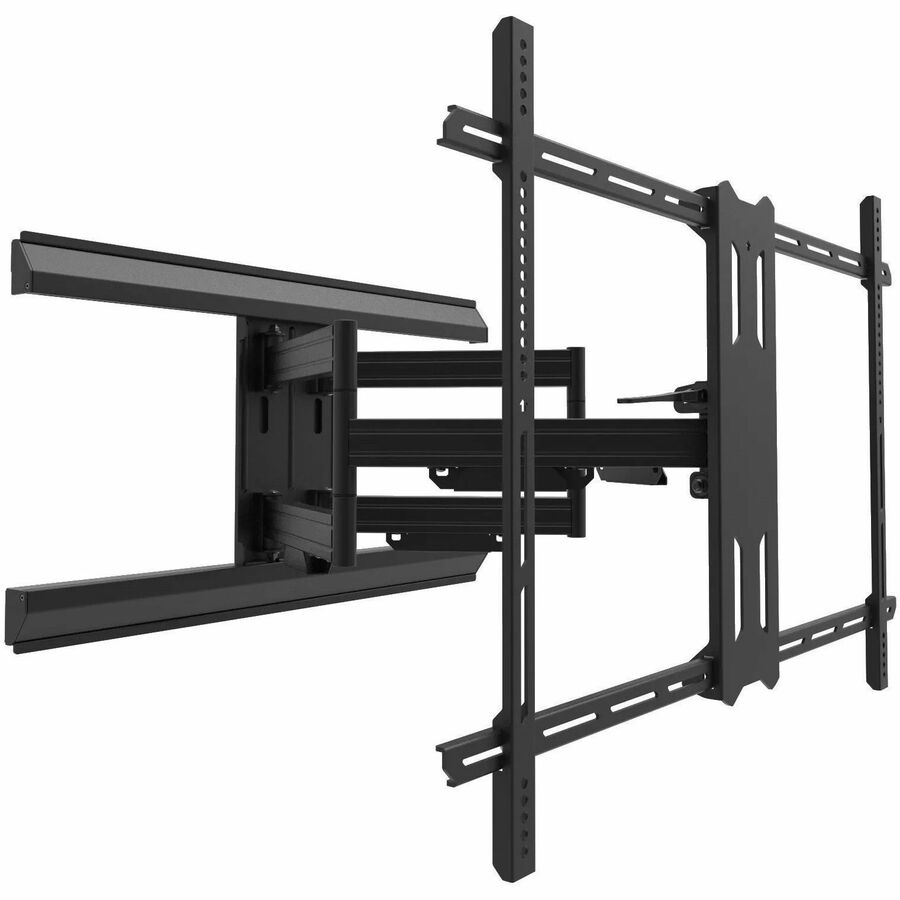

Don't let the size of your TV dictate where you put it. Capable of supporting panels up to 120", PMX800 adjustable wall mount can be horizontally offset 11" in either direction to dial in the lateral placement of your display. An oversized 900×600 VESA interface improves compatibility with extra-large touch screens and provides flexibility for vertical positioning. With 31.3" of extension, this full motion wall mount gives you all the swivel needed to get the perfect viewing angle. Its low-profile design allows your TV to sit 2.6" from the wall when fully retracted and features all-metal cable management and lag bolt covers to stand the test of time. Toolless tilt rounds off PMX800's extensive feature set allowing for on-the-fly adjustments.
Highlights
- Supports Extra Large Displays: Whether you're designing the ultimate home theatre, or installing interactive touch panels, PMX800's 200 lb. weight capacity ensures compatibility with displays of any size.
- Horizontal Offset: Even if your studs are in a suboptimal position, you can still nail your TVs placement with 22 total inches of horizontal offset. Oversized TV brackets provide flexibility to achieve the perfect height.
- Low Profile Design: The unique design of this articulating wall mount allows your TV to sit 2.6 inches from the wall when fully pushed in.
- Impressive Extension: Easily reach over fireplaces or out of recessed locations with 31.3" (79.5 cm) of extension.

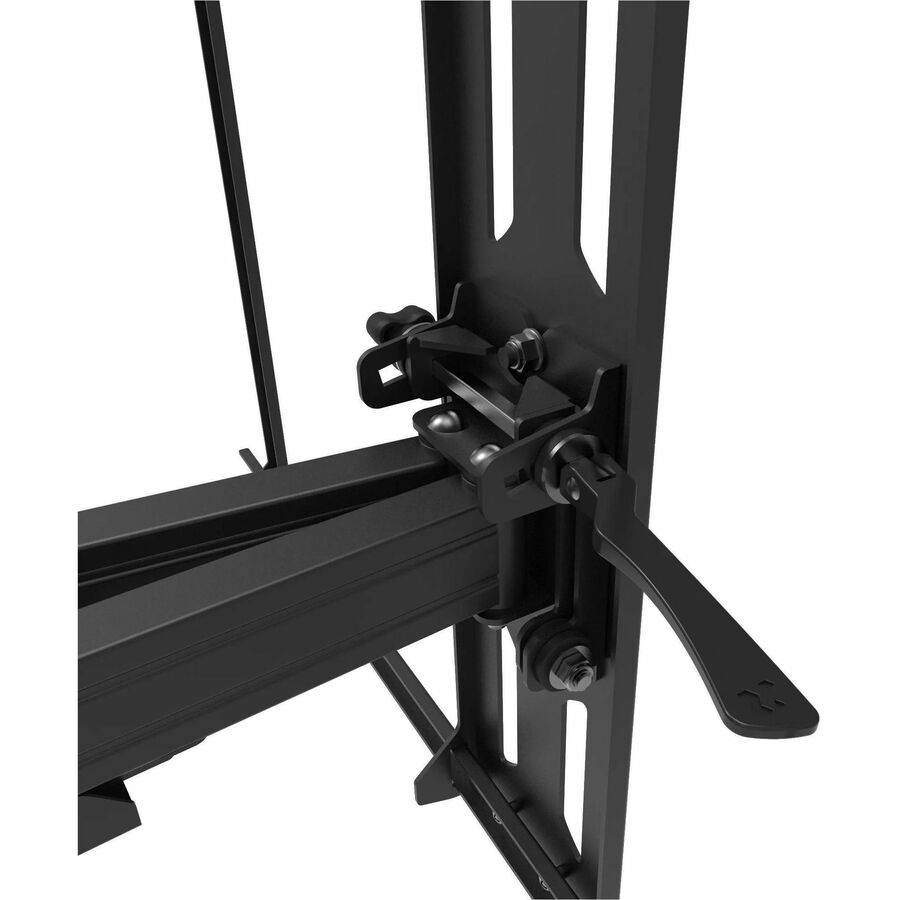

- Toolless Tilt Mechanism: A toolless cam lever tilt mechanism allows for on-the-fly adjustments. Tilt your screen forward up to 12 degrees or backwards 3 degrees
- Aluminum Covers: Maintain a clean, finished appearance while hiding any sign of installation with the aluminum wall plate covers on this fully featured TV wall mount.
- Swivels Up to 180 Degrees: Achieve the best viewing angle regardless of where you're sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.
- Designed to Last: PMX800's cable management system is made of metal to stand up to regular use and reduce potential service calls.
- Convenient Bolt Pack: Because every installation is unique, this pro series full motion wall mount is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.
Specifications
| Application/Usage | Wood Stud, Concrete |
|---|---|
| Package Contents |
|
| Product Type | Wall Mount |
| Device Supported | TV, Display Screen, Touch Panel |
| Manufacturer Part Number | PMX800 |
| Limited Warranty | 10 Year |
| Weight (Approximate) | 48.30 lb |
| Features | Adjustable, Durable, Easy to Install, Full Motion, Retractable |
| Form Factor | Wall Mountable |
| Manufacturer | Kanto |
| Product Name | Full Motion TV Mount For Large Screens |
| Product Series | Pro |
| Maximum Load Capacity | 200 lb |
| Brand Name | Kanto |
| Orientation | Horizontal/Vertical |
| Minimum Screen Size Supported | 55" |
| Maximum Screen Size Supported | 120" |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 900 x 600, 200 x 100 |
| Mount Profile | Low Profile |
| Minimum Swivel Angle | -90° |
| Maximum Swivel Angle | 90° |
| Product Material | Solid Steel |
| Minimum Tilt Angle | -3° |
| Maximum Tilt Angle | 12° |
| Mount Function | Wall Mount, Swivel, Cable Management, Tilt, Articulating |
| Mount Surface | Wall |
