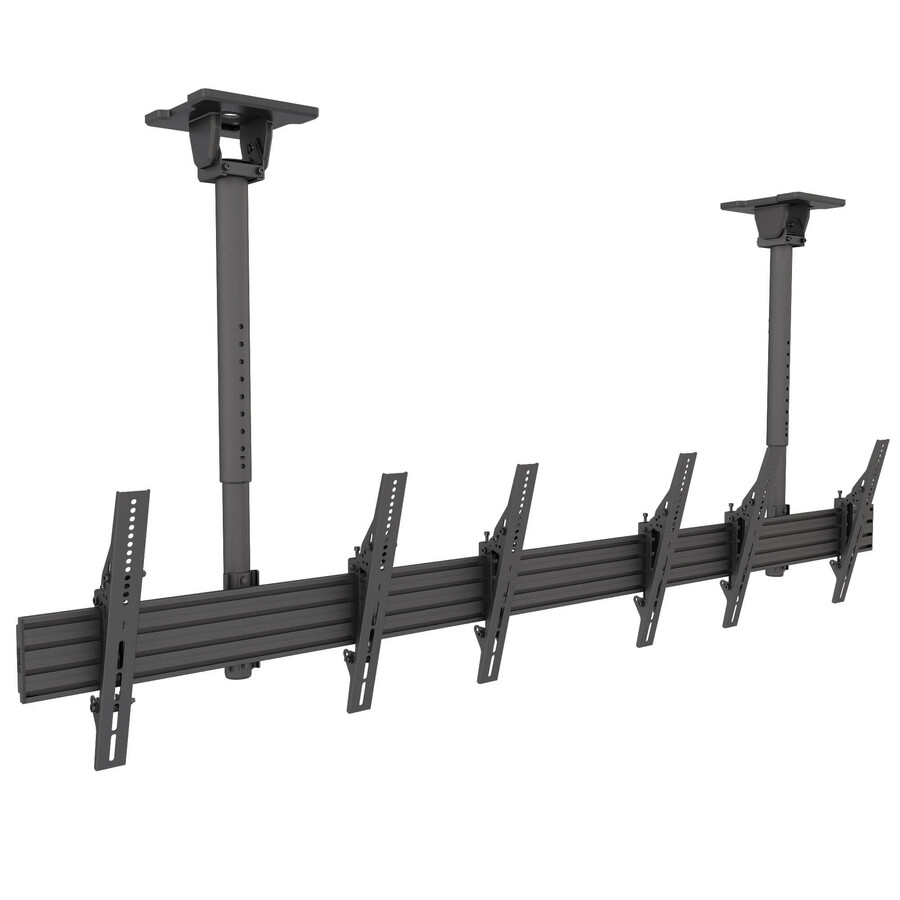

Kanto MBC311T Ceiling Mount for Menu Board, Digital Signage Display, Display Screen, TV
Height Adjustable - 3 Display(s) Supported - 40" to 60" Screen Support - 198 lb Load Capacity - 75 x 75, 600 x 400 - VESA Mount Compatible - Steel, Plastic, Aluminum
- SKU
- MBC311T
- Category
- Mounting Kits
MSRP$799.99
$537.60
Save 33%Back ordered — ships when restocked.
Genuine Kanto through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MBC311T
- Category
- Mounting Kits
Overview
Designed for commercial applications where wall space is limited, the MB Series telescoping ceiling mount system offers a flexible solution for displaying menu boards and other digital signage. MBC311T Menu Board Ceiling Mount System's modular rails allow three screens to be placed adjacent to one another in portrait or landscape orientation, while precision leveling screws ensure perfect alignment. Achieve proper line-of-sight with easy height adjustments and four discrete tilt settings. This all-in-one mounting solution includes everything you need for wood and concrete installations and can swing up to 90° to accommodate sloped ceilings and support beams.
Highlights
- Modular rail system accommodates two to four screens measuring 40" to 60" each
- Supports TVs up to 66 lb (30 kg) each
- Accommodates VESA sizes from 75x75 to 600x400
- Ceiling plate swings up to 90° to accommodate sloped ceilings
- Provides 5°, 10° or 15° of forward tilt and 6° of backward tilt

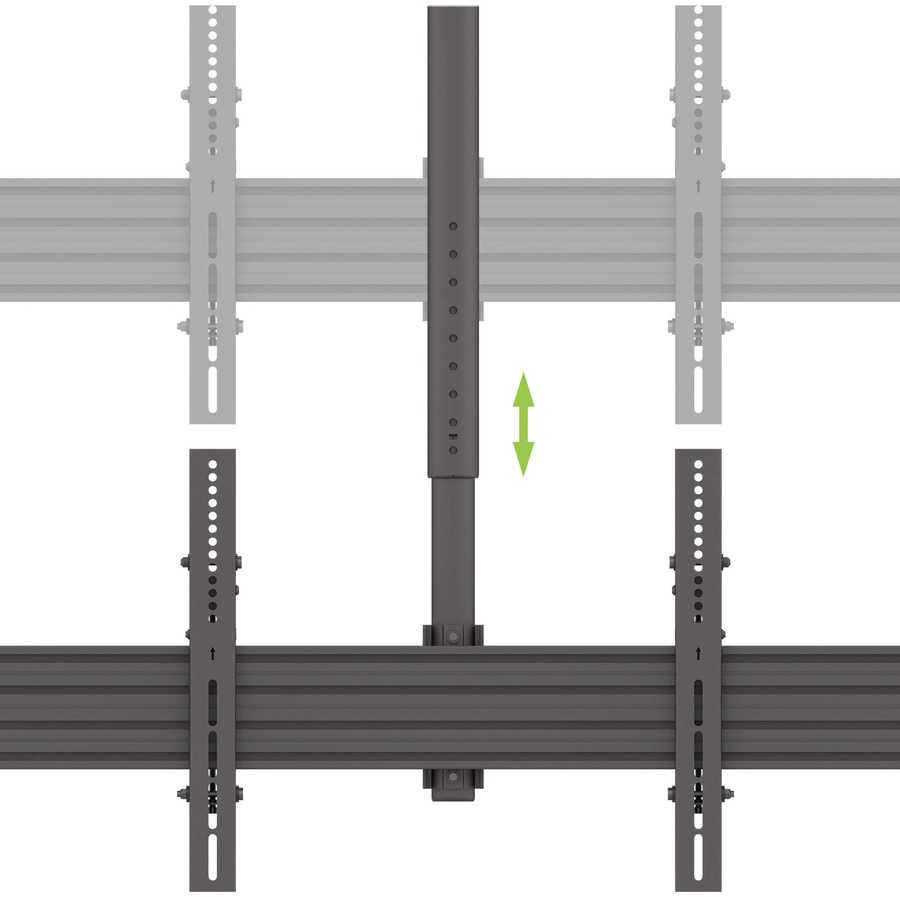

- Short pole provides 12.7" - 17" (32.2 - 43.1 cm) of height adjustment
- Long pole provides 24.3" - 39.3" (32.2 - 43.1 cm) of height adjustment
- Accommodates portrait and landscape orientations
- Includes manual and all mounting hardware for wood stud and concrete installation
- Five year manufacturer's warranty
Specifications
| Application/Usage | Ceiling, Commercial, Wood, Concrete, Beam |
|---|---|
| Package Contents |
|
| Product Type | Ceiling Mount |
| Device Supported | Menu Board, Digital Signage Display, Display Screen, TV |
| Manufacturer Part Number | MBC311T |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 52 lb |
| Features | Telescoping, Flexible, Lightweight, Screen Level Adjustment, Extendable, Cable Management, 5° Tilt, 10° Tilt, 15° Tilt |
| Manufacturer | Kanto |
| Product Model | MBC311T |
| Product Name | Menu Board Ceiling Mount System |
| Product Series | MB |
| Maximum Load Capacity | 198 lb |
| Brand Name | Kanto |
| Minimum Screen Size Supported | 40" |
| Maximum Screen Size Supported | 60" |
| VESA Mount Compatible | Yes |
| Number of Displays Supported | 3 |
| Mounting Pattern | 75 x 75, 600 x 400 |
| Product Material | Steel, Plastic, Aluminum |
| Height Adjustable | Yes |
