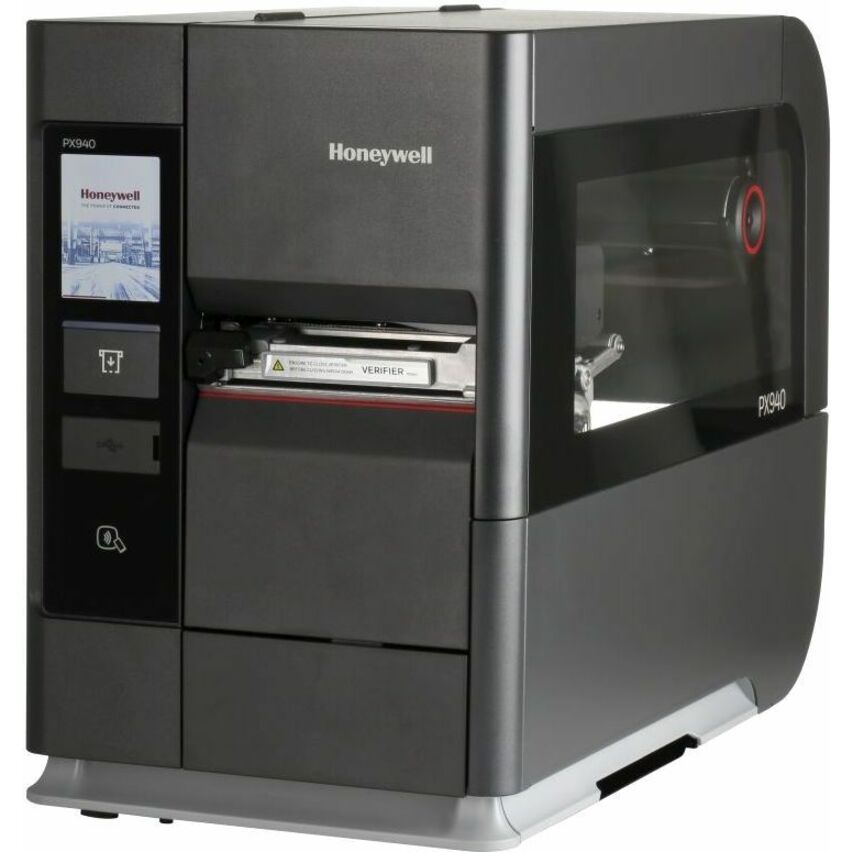

Honeywell PX940V Industrial, Healthcare, Manufacturing, Warehouse, Automotive Direct Thermal Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Serial - Near Field Communication (NFC)
15.75 ft Print Length x 4.25" Print Width - 13.78 in/s Mono - 203 dpi - 4.49" Label Width - DPL, Fingerprint, ZSim2, ZPL II, WMSDirect Protocol (DP), Intermec Printer Language (IPL), XML-enabled for SAP AII & Oracle WMS, PDF Emulation - For PC
- SKU
- PX940V30100000602
- Category
- Label/Receipt Printers
MSRP$7,241.41
$4,945.02
Save 32%Back ordered — ships when restocked.
Genuine Honeywell International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PX940V30100000602
- Category
- Label/Receipt Printers
Overview
The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.
Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.
The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE, used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer.
With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
Highlights
- Direct Thermal Printer provides high-quality label/receipt printing with maximum dependability
- 203 maximum print resolution (dpi) offers great dependability with added efficiency
- Produce high-quality documents with this monochrome printer to increase your productivity
- Enjoy the optimal performance in today's on-demand labeling applications
- Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
- 4.49" maximum label width for your convenience and feasible usability
- Supports gap media type for maximum feasibility and better accommodation of your requirements
- Direct Thermal Printer with industrial application/usage provides reliable, feasible printing solution
- Comes with 1 GB standard memory to make you productive with the direct thermal printer smooth performance
Specifications
| Application/Usage | Industrial, Healthcare, Manufacturing, Warehouse, Automotive |
|---|---|
| Barcode Symbology Supported | 2D, 1D, Code 128, Code 39, EAN-128, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128, HIBC Code 128, HIBC Code 39, ISBT-128, ITF-14, Interleaved 2 of 5, RSS14E, SCC-14, UPC-A, UPC-E |
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | PX940V30100000602 |
| Platform Supported | PC |
| Maximum Print Width | 4.25" |
| Power Source | AC Supply |
| Recommended Use | Label Print |
| Maximum Roll Diameter | 8.39" |
| Standard Memory | 1 GB |
| Weight (Approximate) | 51.81 lb |
| Language Emulation | DPL, Fingerprint, ZSim2, ZPL II, WMSDirect Protocol (DP), Intermec Printer Language (IPL), XML-enabled for SAP AII & Oracle WMS, PDF |
| Manufacturer | Honeywell International, Inc |
| Product Model | PX940V |
| Product Name | PX940 Industrial Printer |
| Product Series | PX940 |
| Brand Name | Honeywell |
| Media Type | Gap, Black Mark, Tag, Notch, Label |
| Height | 15.7" |
| Width | 10.3" |
| Depth | 19.9" |
| Maximum Mono Print Speed | 13.78 in/s |
| Environmentally Friendly | Yes |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| USB | Yes |
| Serial Port | Yes |
| Maximum Label Width | 4.49" |
| USB Host | Yes |
| Print Color Capability | Monochrome |
| Maximum Print Length | 15.75 ft |
| Energy Star | Yes |
| Storage Relative Humidity | 20% - 85% |
| Storage Temperature | 68°F (20°C) - 158°F (70°C) |
| Near Field Communication (NFC) | Yes |
| Maximum Print Resolution (dpi) | 203 |
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Operating Relative Humidity | 20% - 85% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
