AMX Enova DGX DXLink Twisted Pair Output Board
Harman International Industries

AMX Enova DGX DXLink Twisted Pair Output Board

SKU
FG1058-580-FX
Category
Miscellaneous Devices

MSRP$2,487.00

$1,026.72

Save 59%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FG1058-580-FX
Category
Miscellaneous Devices

Overview

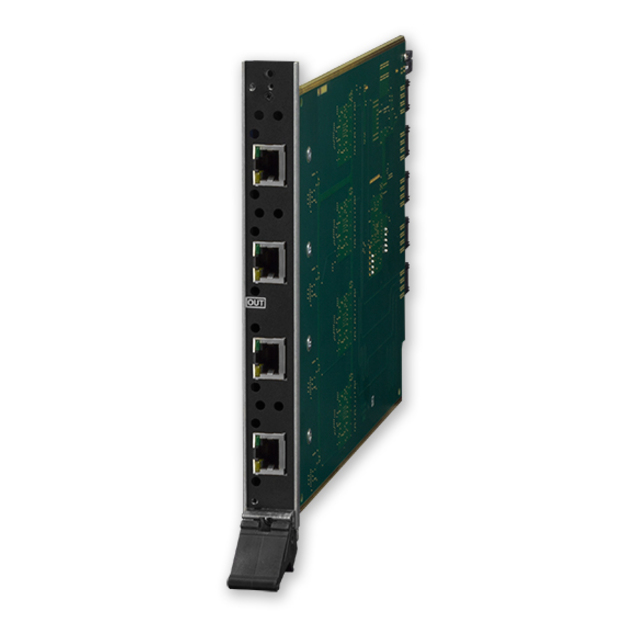

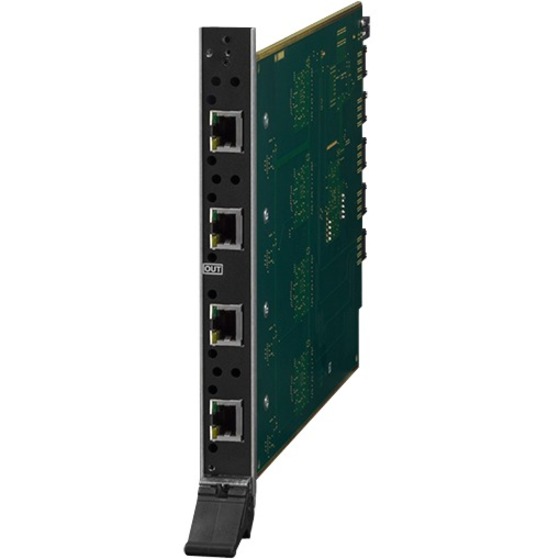

The DGX-O-DXL is a HDCP compliant twisted pair cable output board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per DXLink Output Board and is designed to transmit audio and video to DXLink Twisted Pair Receivers while passing bi-directional control and Ethernet over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Output Board to power DXLink Twisted Pair Receivers.

Common Applications

The Enova DGX DXLink Twisted Pair Output Board is ideal for applications where destination devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.

Highlights

  • Only One Cable - Send audio and video while passing control, Ethernet and power over one twisted pair cable
  • Send HDMI signals up to 100 Meters - Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable - Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
  • Hot Swappable - Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • HDCP Compliant

Specifications

Application/UsageCommercial, Residential, Digital Media Switcher
Product TypeDXLINK Twisted Pair Output Board
CompatibilityEnova DGX Digital Media Switchers: DGX 8 DGX 16 DGX 32 DGX 64
Manufacturer Part NumberFG1058-580-FX
ManufacturerHarman International Industries, Inc
Product ModelDGX-O-DXL
Product NameEnova DGX DXLink Twisted Pair Output Board
Product LineEnova
Product SeriesDGX 100
Brand NameAMX
