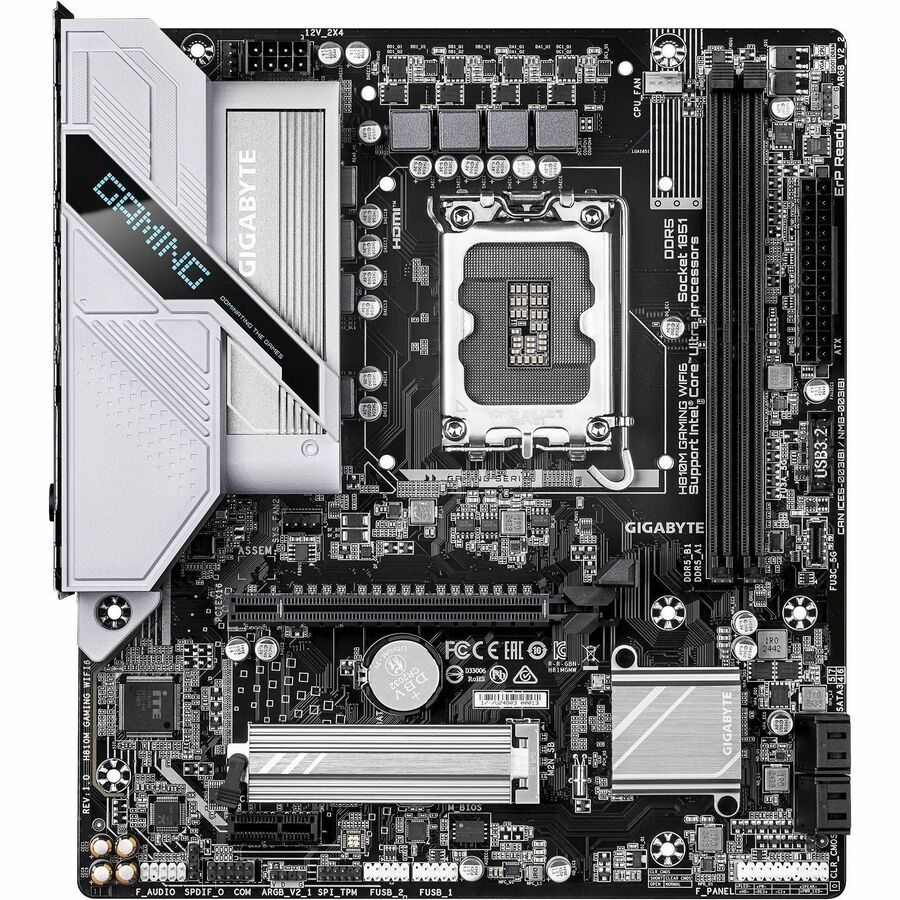

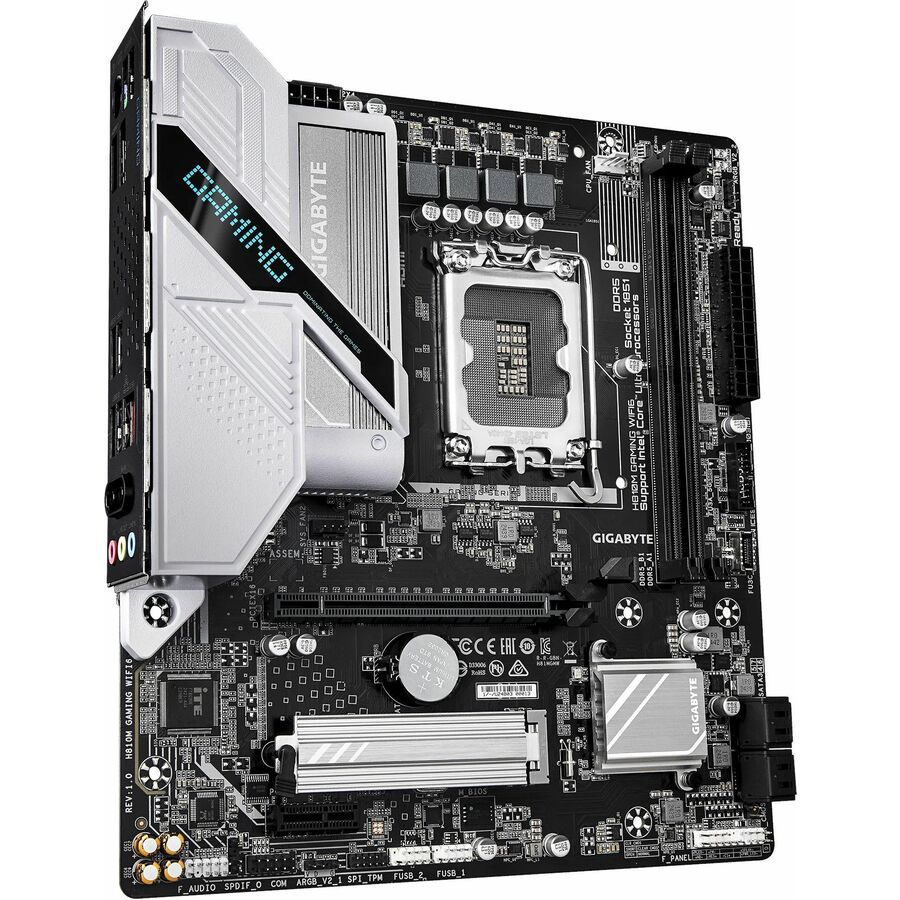

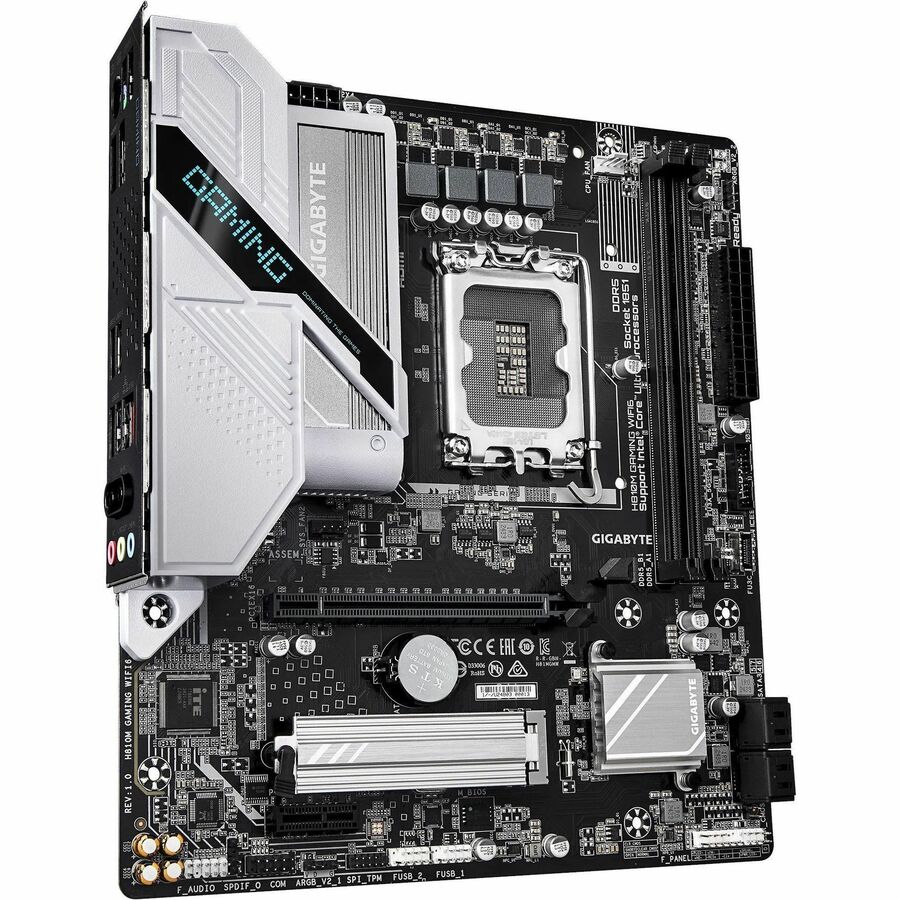

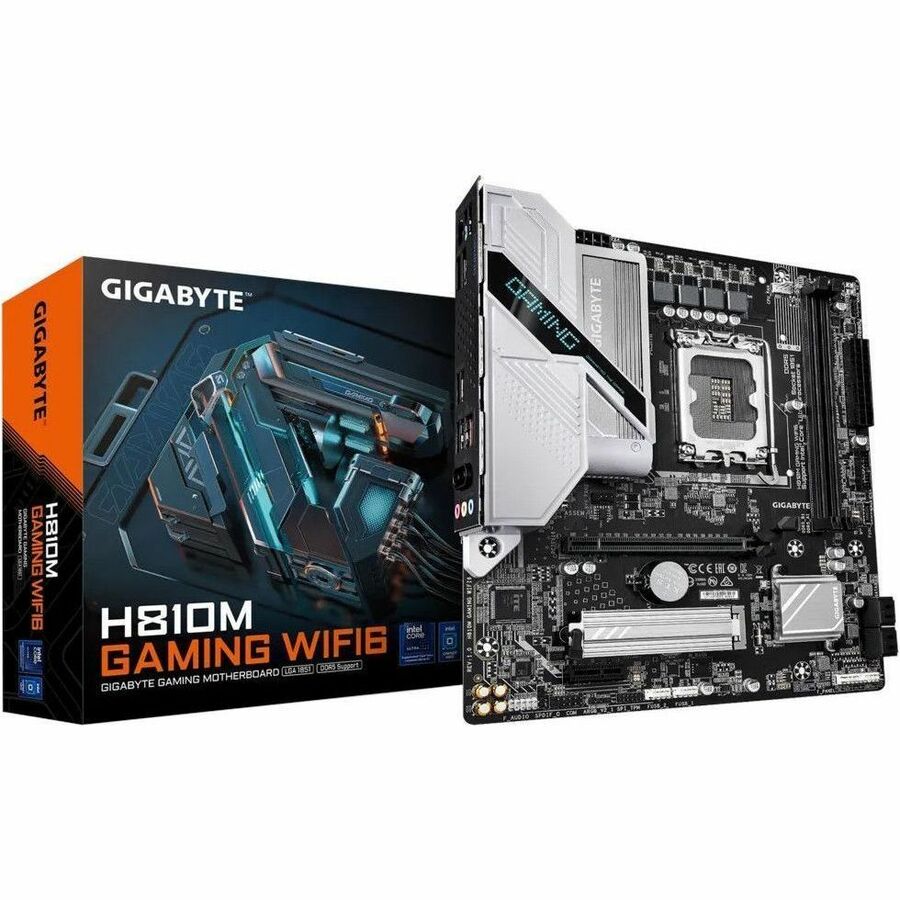

GIGABYTE Ultra Durable H810M GAMING WIFI6 Gaming Desktop Motherboard - Intel H810 Chipset - Socket LGA-1851 - Micro ATX
Core Ultra Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- H810M GAMING WIFI6
- Category
- Motherboards
$160.31
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- H810M GAMING WIFI6
- Category
- Motherboards
Overview
Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.

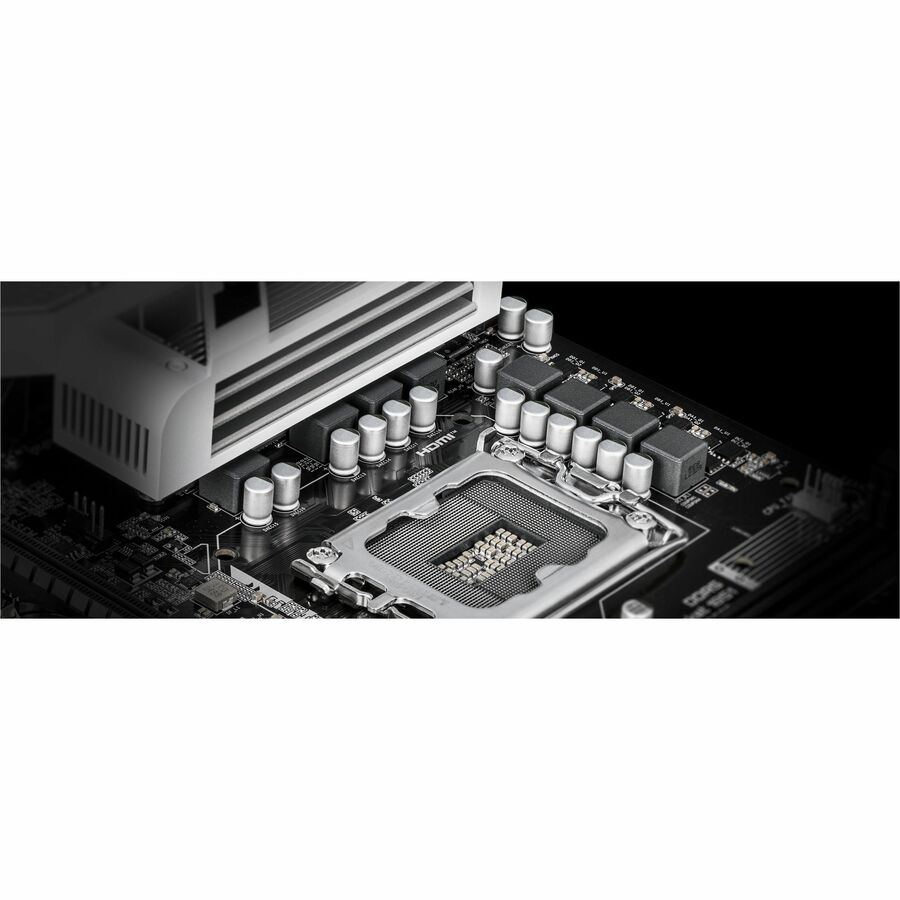

Hybrid VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
VCORE Phases
Unlock the full power of your multi-core CPU for unmatched performance.
VCCGT Phase
Optimized for integrated GPU performance and memory management within the CPU.
VCCSA Phases
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Future Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Born from Ultra Durable?
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
Highlights
- Supports Intel® Core? Ultra processors (Series 2)
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs
- Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax

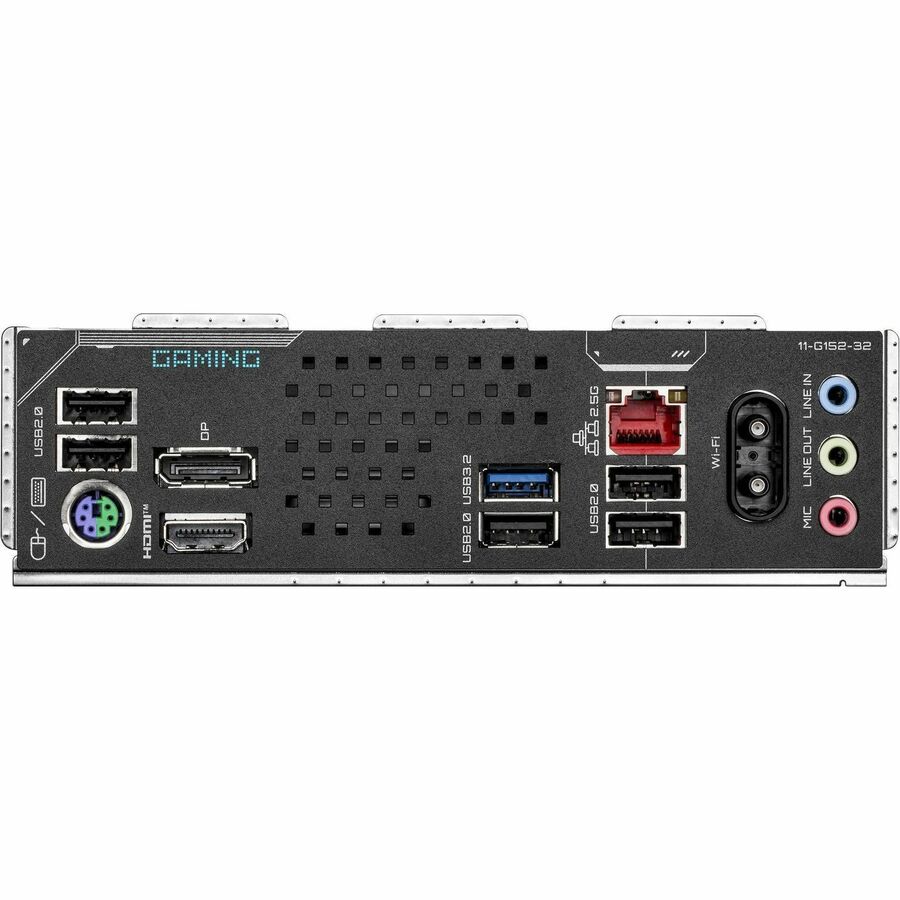

- Extended Connectivity: HDMI, DisplayPort
Specifications
| Product Type | Gaming Desktop Motherboard |
|---|---|
| Error Checking | ECC |
| Manufacturer Part Number | H810M GAMING WIFI6 |
| Maximum Memory Supported | 128 GB |
| S/PDIF | Yes |
| Limited Warranty | 3 Year |
| Form Factor | Micro ATX |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | H810M GAMING WIFI6 |
| Product Name | H810M GAMING WIFI6 Gaming Desktop Motherboard |
| Processor Supported | Core Ultra |
| Product Line | Ultra Durable |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1851 |
| Brand Name | GIGABYTE |
| Memory Technology | DDR5 SDRAM |
| Country of Origin | China |
| Width | 9.6" |
| Depth | 8.5" |
| Chipset Manufacturer | Intel |
| Chipset Model | H810 |
| Number of Memory Slots | 2 |
| Graphics Controller Manufacturer | Intel |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.3 |
| Number of PCI Express x1 Slots | 1 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 1 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 5 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Onboard S/PDIF Header | Yes |
| PCI Express Standard | PCI Express 4.0, PCI Express 3.0 |
| Total Number of PCI Express Slots | 2 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 2 |
| Number of M.2 Interfaces | 1 |
| Memory Speed Supported | 6400 MHz, 5600 MHz |
| Number of USB 3.2 Gen 1 Ports | 1 |
| 2.5Gigabit Ethernet | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
