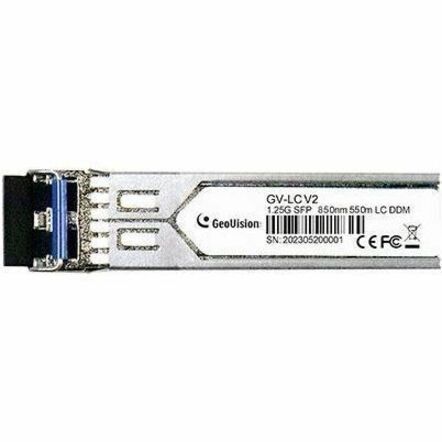

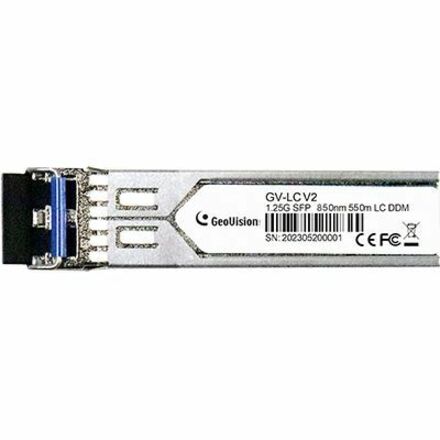

GeoVision SFP Transceiver
For Data Networking, Optical Network - 1 x LC 1000Base-SX Network - Optical Fiber - 50 µm - 850 nm Wavelength - Multi-mode - 1.25 Gigabit Ethernet - 1000Base-SX - 1.25 Gbit/s - 0.55 km Maximum Distance - Hot-swappable
- SKU
- GV-LC V2
- Category
- Modules
MSRP$74.00
$55.38
Save 25%Back ordered — ships when restocked.
Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GV-LC V2
- Category
- Modules
Overview
The SFP Transceiver is designed to plug into the SFP port of the GV-POE Switch and is the interface between the switch and optical fiber cables. This product complies with IEEE 802.3z 1000BaseSX/LX standards. The SFP Transceiver is a hot swappable device; you can add or remove the device without powering down.
Highlights
- SFP is the single answer to all your desired and specified application execution needs
- With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
- 1.25 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
- Hot-swappable form factor for your convenience and simplicity of usage
- SFP with data networking application/usage for reliability and maximum efficiency
Specifications
| Application/Usage | Data Networking, Optical Network |
|---|---|
| Product Type | SFP |
| Compatibility | GeoVision GV-POE Switches: GV-APOE0410-E GV-APOE0811 GV-APOE0811-V2 GV-APOE081C GV-APOE1611 GV-APOE1611-V2 GV-APOE2411 GV-APOE2411-V2 GV-APOE4813 GV-POE0410-E GV-POE0410-E-V2 GV-POE0801 GV-POE0811 GV-POE0811-V2 GV-POE0812 GV-POE1601 GV-POE1601-V2 GV-POE1611 GV-POE2401 GV-POE2401-V2 GV-POE2411 GV-POE2411-V2 |
| Manufacturer Part Number | GV-LC V2 |
| Maximum Distance Supported | 0.55 km |
| Interfaces/Ports Details | 1 x LC 1000Base-SX Network |
| Connector Type | LC |
| Features | Digital Optical Monitoring (DOM) |
| Form Factor | Hot-swappable |
| Manufacturer | GeoVision, Inc |
| Product Name | SFP Transceiver |
| Network Technology | 1000Base-SX |
| Brand Name | GeoVision |
| Maximum Data Transfer Rate | 1.25 Gbit/s |
| Ethernet Technology | 1.25 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Core/Cladding Specification | 50 µm |
| Fiber Optic Cable Wavelength | 850 nm |
