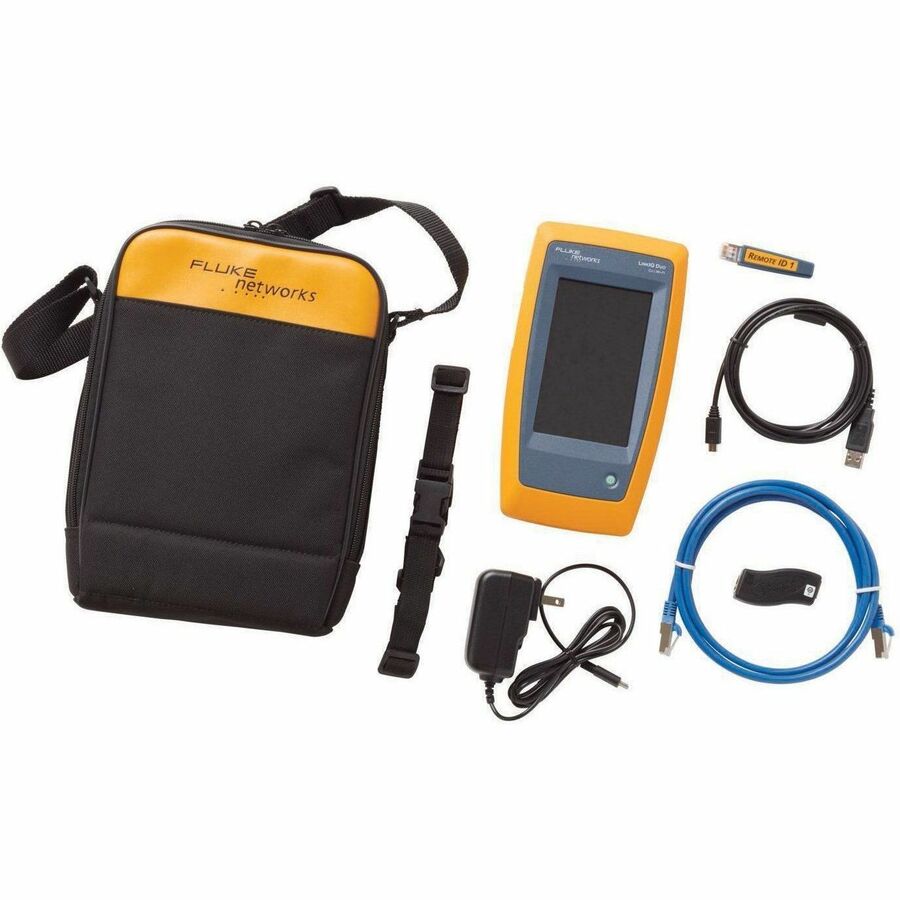

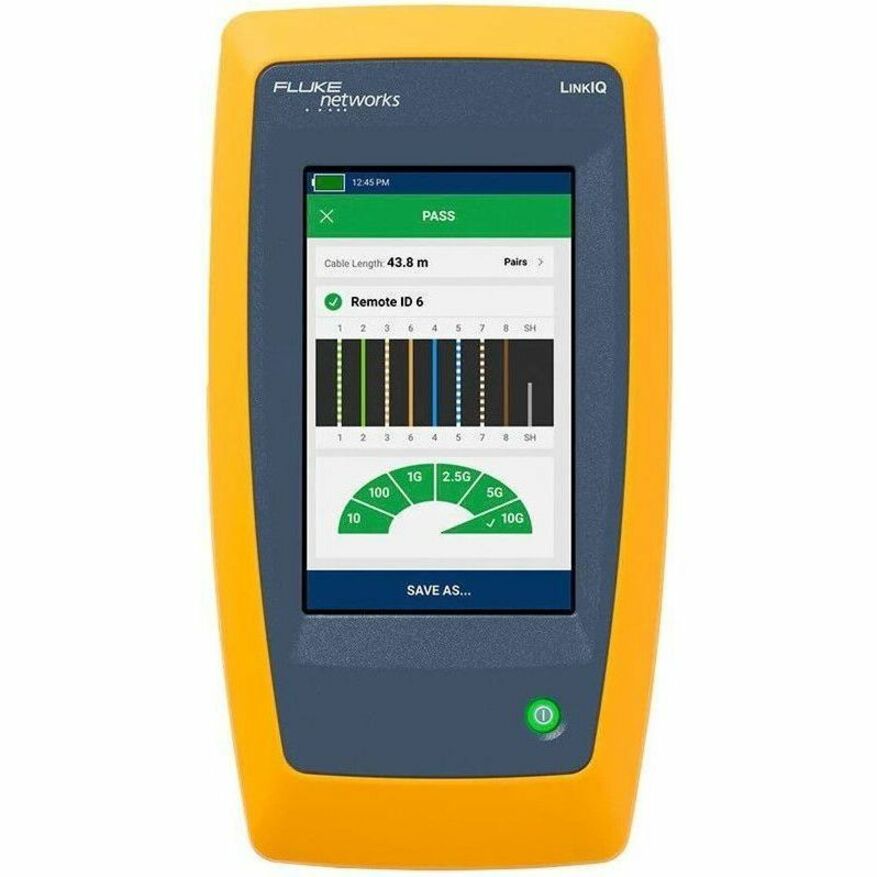

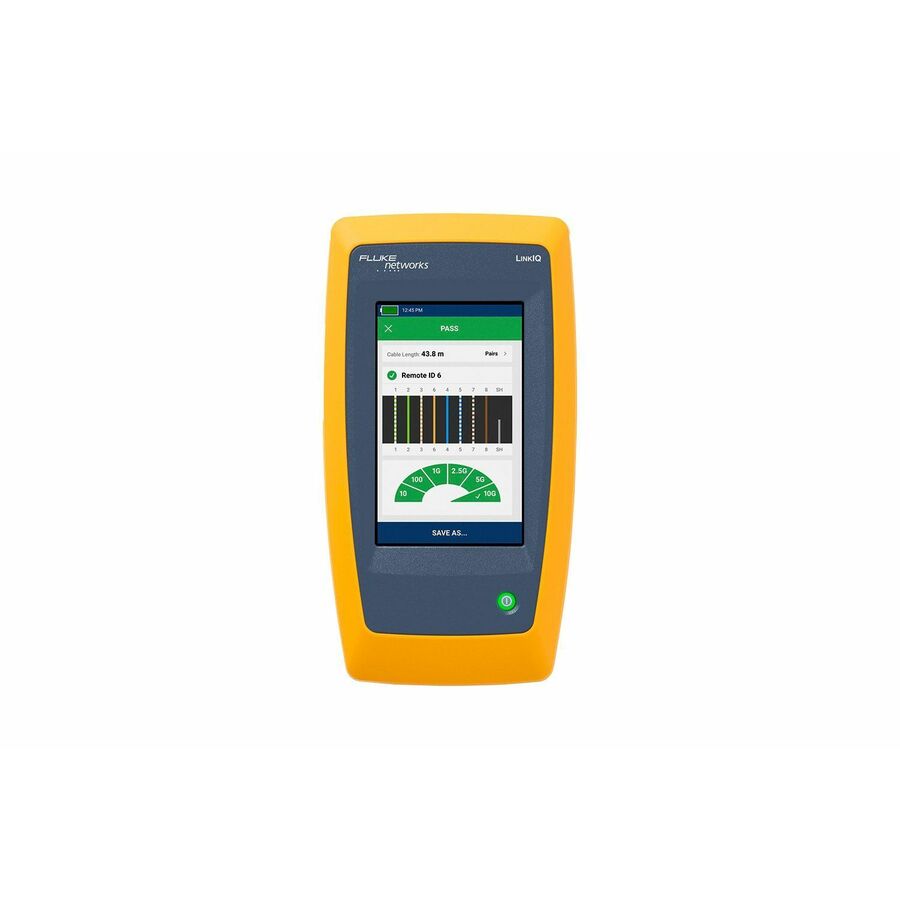

Fluke Networks LinkIQ LIQ-100/FPC3 Cable/Network Tester
Network Testing, Cable Testing, Wireless Connectivity Testing, Access Point Detection, Channel Testing, PoE Testing, IP Testing, Network Troubleshoot - USB - 1 x Network (RJ-45) - Twisted Pair - 10 Gigabit Ethernet - 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-TX, 10Base-T - 3.6V - Battery Rechargeable - Lithium Ion (Li-Ion)
- SKU
- LIQ-100/FPC3
- Category
- Test Equipment
MSRP$3,892.71
$3,414.19
Save 12%Back ordered — ships when restocked.
Genuine Fluke Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LIQ-100/FPC3
- Category
- Test Equipment
Overview
The LinkIQ? Cable+Wi-Fi+Network Tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. The LinkIQ tester validates cable performance using frequency-based measurements and a wire map of the cable under test. It also performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration - eliminating the need for another device. The LinkIQ Duo model adds Wi-Fi analysis to Wi-Fi 6E (where approved), including networks, channels, and access points plus warning of common configuration issues. The IE models allow identification of miswired and split pairs on RJ45, M12X, M12D, and M8D terminated cables supporting EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols. Additional features include Analog and Digital Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare? PC.
Highlights
- Cable performance testing up to 10GBASE-T plus troubleshooting (distance to fault, wire map, toning)
- Test and troubleshoot EtherNet/IP, PROFINET, EtherCAT cabling with M12X, M12D, and M8D adapters (IE versions)
- Network features include IPv4 and v6 ping, nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates)
- Ethernet Alliance-certified PoE Verification detects the PoE class (1-8) and power, and performs a load test of available PoE from the connected switch
- Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points (Duo model - 6 GHz support only in countries where allowed)
- Manage results and print reports from LinkWare? PC
Specifications
| Battery Life | 8 Hour |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Product Type | Cable/Network Tester |
| Manufacturer Part Number | LIQ-100/FPC3 |
| Packaged Quantity | 1 |
| Weight (Approximate) | 1 lb |
| Manufacturer | Fluke Networks |
| Product Model | LIQ-100/FPC3 |
| Product Name | LinkIQ LIQ-100/FPC3 Cable/Network Tester |
| Product Line | LinkIQ |
| Brand Name | Fluke Networks |
| Height | 8.5" |
| Width | 4.5" |
| Depth | 1.8" |
| Network Standard | 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-TX, 10Base-T |
| Battery Size Supported | 3.6V |
| Battery Rechargeable | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Device Function | Network Testing, Cable Testing, Wireless Connectivity Testing, Access Point Detection, Channel Testing, PoE Testing, IP Testing, Network Troubleshoot |
| Maximum Length Measurement | 1000 ft |
