Fluke Networks Industrial Ethernet DSX CableAnalyzer Kit
Fluke Networks

Fluke Networks Industrial Ethernet DSX CableAnalyzer Kit

SKU
DSX2-5-IE-K1
Category
Miscellaneous Kits

MSRP$14,264.63

$12,999.11

Save 9%

In stock: 2

Get a quote

Genuine Fluke Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DSX2-5-IE-K1
Category
Miscellaneous Kits

Overview

Fluke Premium Care eligible

When you invest in your Fluke test tools, you want your money to go as far as possible.Fluke Premium Careis a paid offering that provides coverage above and beyond the original product warranty, so you don't need to worry about unexpected downtime caused by damaged test equipment, accessories, or tools in need of calibration or repair.

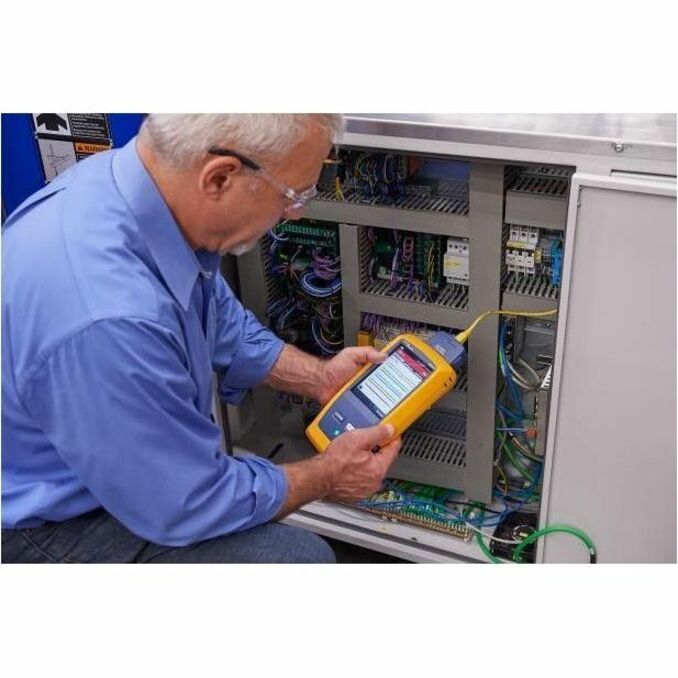

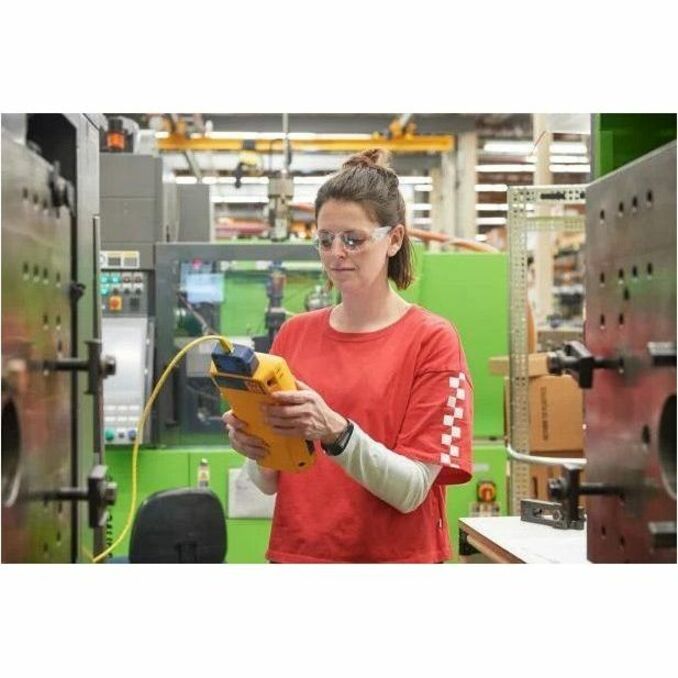

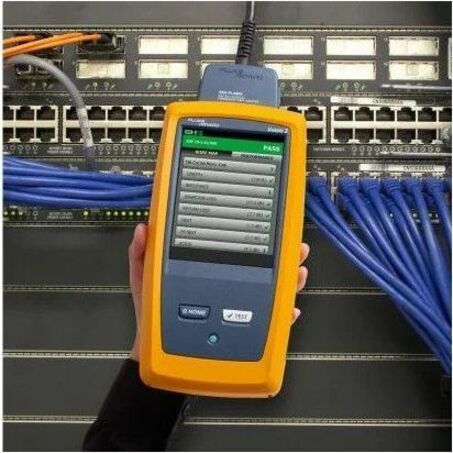

Studies show that half of Industrial Ethernet problems are caused by cabling. The DSX CableAnalyzer validates cable performance to TIA 1005-A and ISO 11801:3 standards, allowing industrial companies and machine builders to ensure compliance, start up faster, and reduce production down time.

The DSX CableAnalyzer works on cables running EtherNet/IP?, Profnet?, ModBus TCP?, EtherCAT, plus other protocols. It offers touchscreen project management, TIA Level IIIe accuracy, and advanced troubleshooting, all with integrated Wi-Fi and 8-hour battery life.

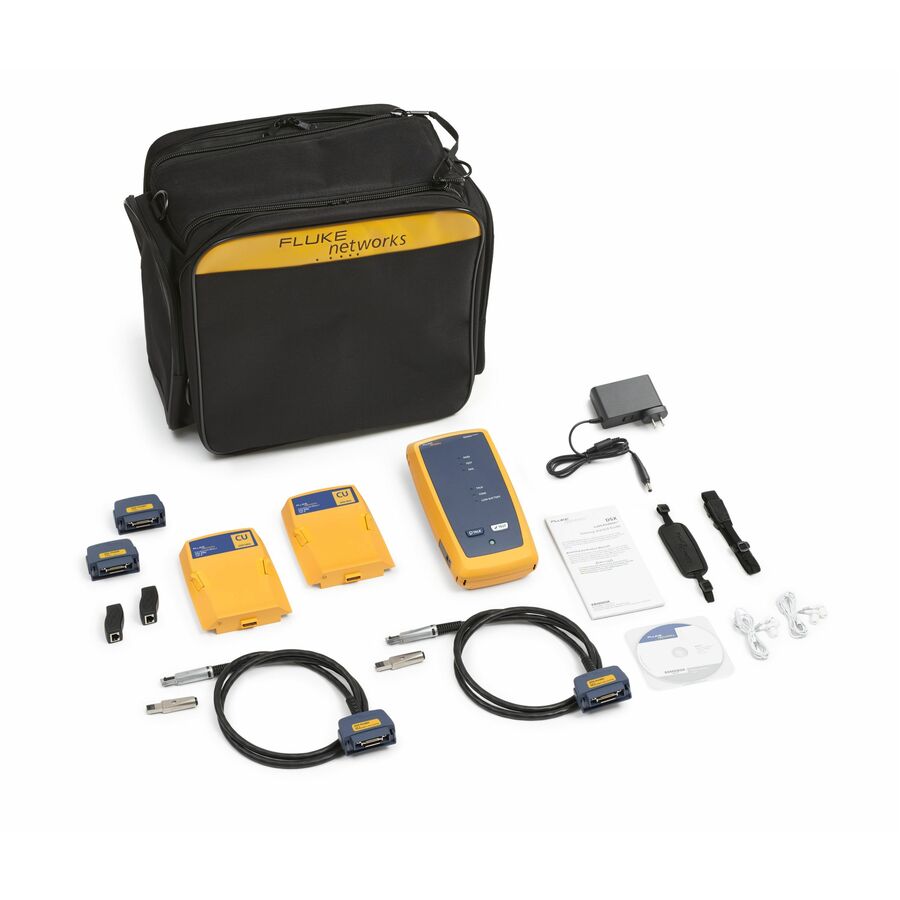

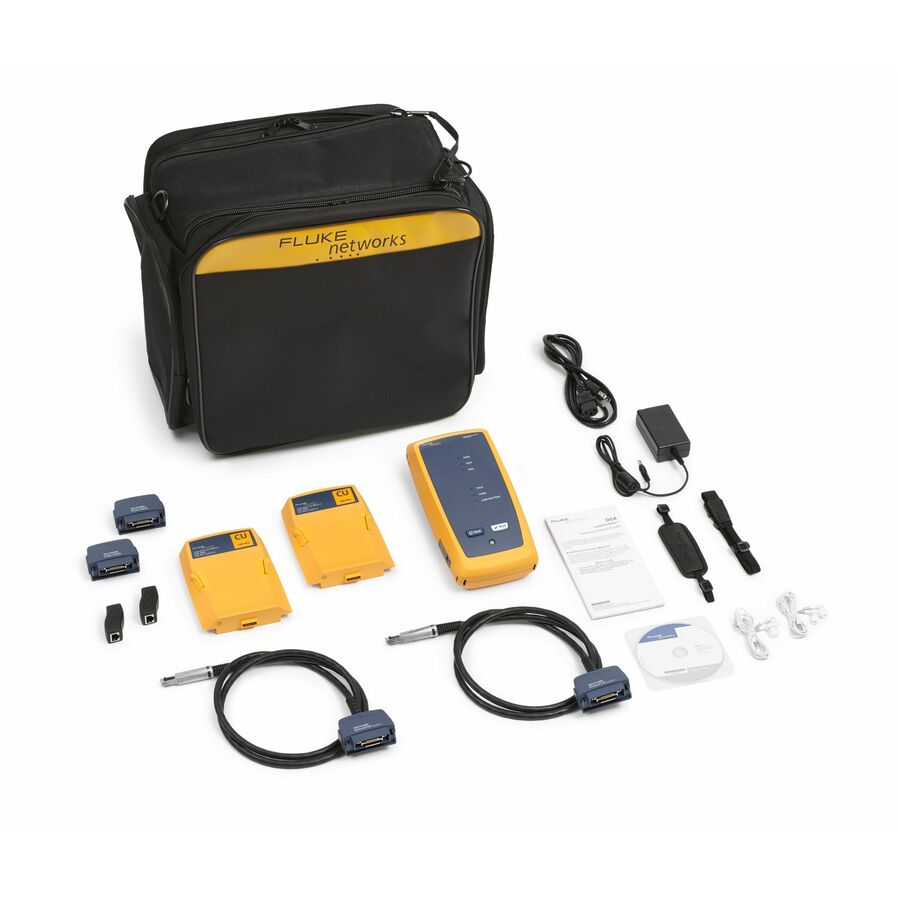

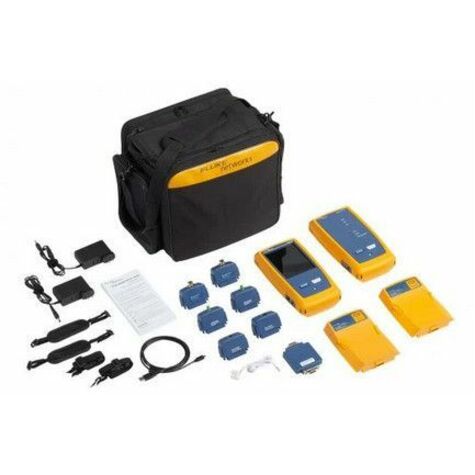

The kit includes the Versiv mainframe and remote units, a reference module, adapters, commonly used accessories, and a statement of calibration.

Highlights

  • Certifies copper cable for TIA category 5 through 6A
  • Shows Pass/Fail in 10 seconds, with full measurement details
  • Supports RJ45, M12D, and M12X connectors
  • Documents results with LinkWare? PC

Specifications

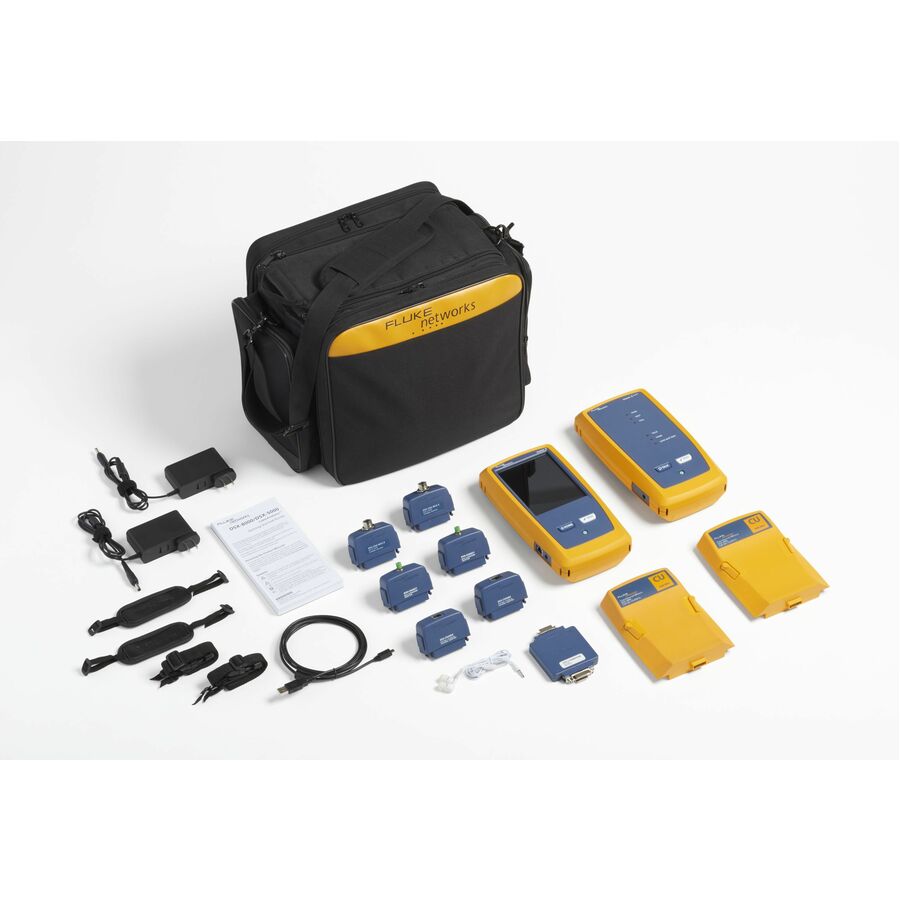

Package Contents
  • 1 x Versiv Mainframe and Remote
  • 2 x DSX-5000 Copper CableAnalyzer Modules
  • Set of Cat 6A/Class EA Channel Adapters
  • Set of M12X adapters
  • Set of M12D adapters
  • Reference module*
  • 2 x Headsets
  • 2 x Hand strap
  • 2 x Shoulder straps
  • Carry case
  • USB interface cable
  • 2 x AC chargers
  • Integrated Wi-Fi
  • Statement of calibration
  • Getting started guide
Product TypeCable Tester Kit
DimensionsMain Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Manufacturer Part NumberDSX2-5-IE-K1
Weight (Approximate)Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)
ManufacturerFluke Networks
Product ModelDSX2-5-IE-K1
Product NameIndustrial Ethernet DSX CableAnalyzer Kit
Brand NameFluke Networks
Maximum Battery Run Time8 Hour
