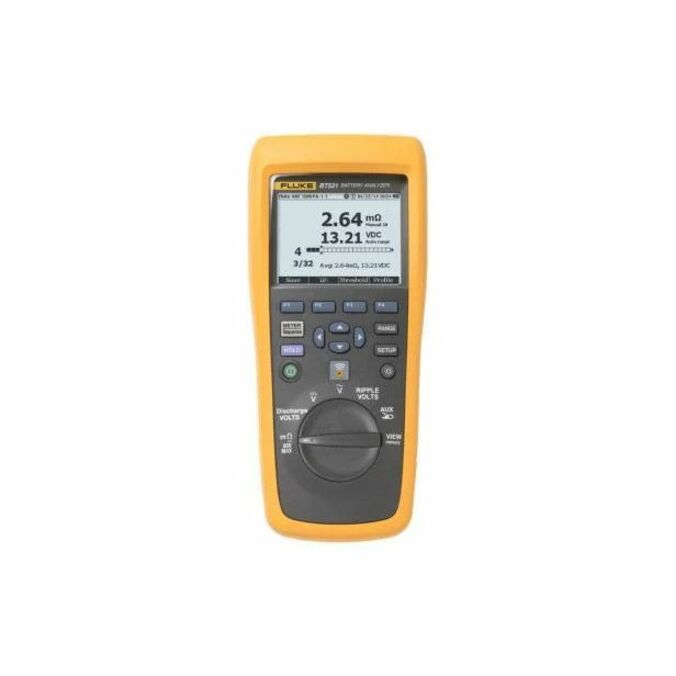

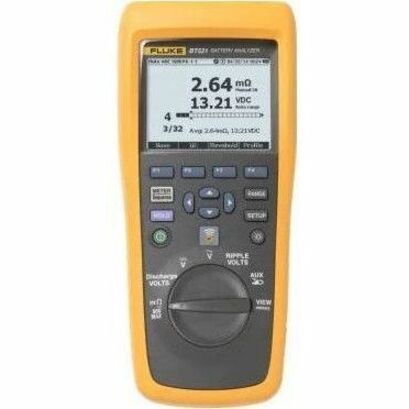

Fluke 500 BT521ANG Battery Testing Device
Fluke

Fluke 500 BT521ANG Battery Testing Device

LCD - USB - Battery Included - Lithium Ion (Li-Ion)

SKU
FLUKE-BT521ANG
Category
Test Equipment

MSRP$8,159.99

$7,135.27

Save 13%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Fluke through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FLUKE-BT521ANG
Category
Test Equipment

Overview

Reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing.

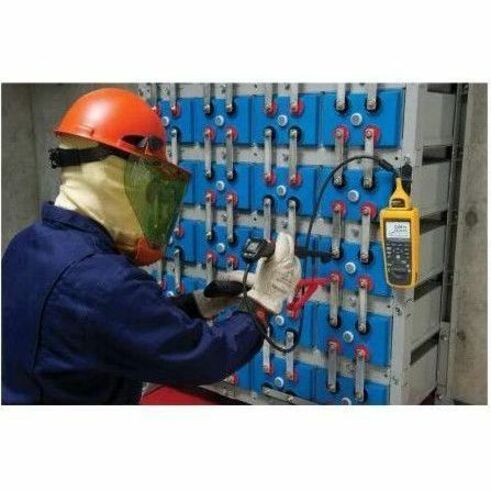

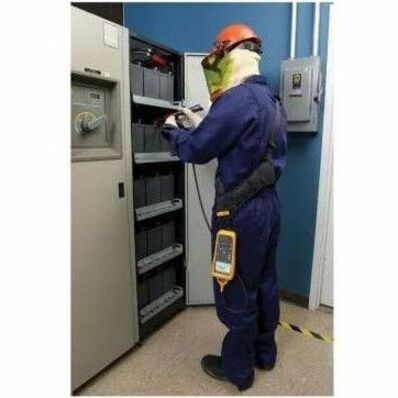

• The ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications

• The intuitive user interface, compact design and rugged construction ensure optimum performance, test results and reliability

• Covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using automated string function testing and the test probe integrated infra-red temperature measurement system

• Designed for measurements on stationary batteries of all types.

Voltage and resistance thresholds

Fluke Battery Analyzers allow you to quickly and easily define upper and lower measurement thresholds or tolerance ranges. During the testing process, measured values are automatically compared to the predefined threshold levels producing a PASS, FAIL or WARN indication after each measurement. A maximum of 10 sets of thresholds can be stored and threshold indications are determined based on the following criterion:

Fluke battery management software

Fluke Battery Management Software Easily allows you to quickly and easily import data from the battery analyzer to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used compare results, switch results between conductance and resistance readings and perform trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports.

• Quick view saved readings

• Profile management

• Histogram of a battery string with end user defined threshold

• Historical trend data of batteries

• Multiple rounds of discharge voltage

• Quick Report Generation

• Upgrade Fluke Battery Analyzer firmware

• Switch measurement results between conductance and resistance readings

Fluke Battery Analyzer mobile app

The BT521 offers wireless communication for data download and remote display while measuring via the dedicated Fluke Battery Analyzer mobile app (note: the Fluke BT521 is not currently Fluke Connect compatible). Using the Fluke Battery Analyze mobile app you can:

• Browse profile

• Review sequence testing data

• E-mail sequence testing data

Highlights

  • Key measurements
  • - Internal battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and temperature.
  • Sequence measurement mode
  • - Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature (with BTL21 intelligent test probe), eliminating the need to press a button each time a measurement needs to be saved.
  • Comprehensive logging
  • - All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis.

Specifications

Battery ChemistryLithium Ion (Li-Ion)
Package Contents
  • 500 BT521ANG Battery Testing Device
  • 4-Wire Test Pin (set)
  • BTL10 Basic Test Lead (set)
  • TL175 TwistGuard? Test Leads with Adapter

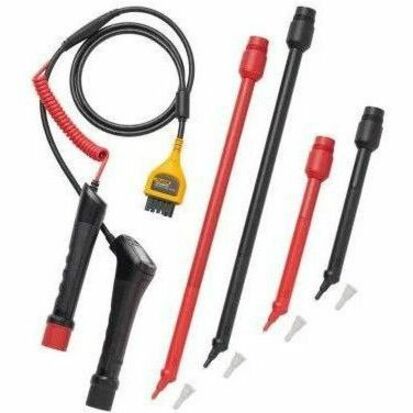

  • BTL20ANG Intelligent Test Probe Set, with Extender and Angled Tips (no Temperature Sensor)
  • BTL21 Intelligent Test Probe Set, with Extender and Temperature Sensor
  • i410 AC/DC Current Clamp
  • BP500 Lithium-ion Battery
  • BC500 AC Charger
  • Mini-USB Cable
  • Shoulder Strap
  • Belt Strap
  • Magnetic Hanging Strap
  • FlukeView® Battery Management Software
  • Soft Carrying Case
  • Spare Fuses (2)
  • Battery Tags
  • Zero Ohm Calibration Resistor
Product TypeBattery Testing Device
Manufacturer Part NumberFLUKE-BT521ANG
Limited Warranty3 Year
Weight (Approximate)1.87 lb
ManufacturerFluke Corporation
Product ModelBT521ANG
Product Name500 BT521ANG Battery Testing Device
Product Series500
Brand NameFluke
Height8.7"
Width4.1"
Depth2.3"
Battery IncludedYes
Display Screen TypeLCD
USBYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS)
