Finisar Fiber Optic Duplex Network Cable
Finisar

Finisar Fiber Optic Duplex Network Cable

16.40 ft Fiber Optic Network Cable for Network Device - First End: 1 x QSFP+ Network - Male - Second End: 4 x SFP+ Network - Male - 40 Gbit/s - Fan-out Cable - Brown

SKU
FCBN510QE2C05
Category
Connector Cables

MSRP$1,312.83

$1,144.83

Save 13%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FCBN510QE2C05
Category
Connector Cables

Overview

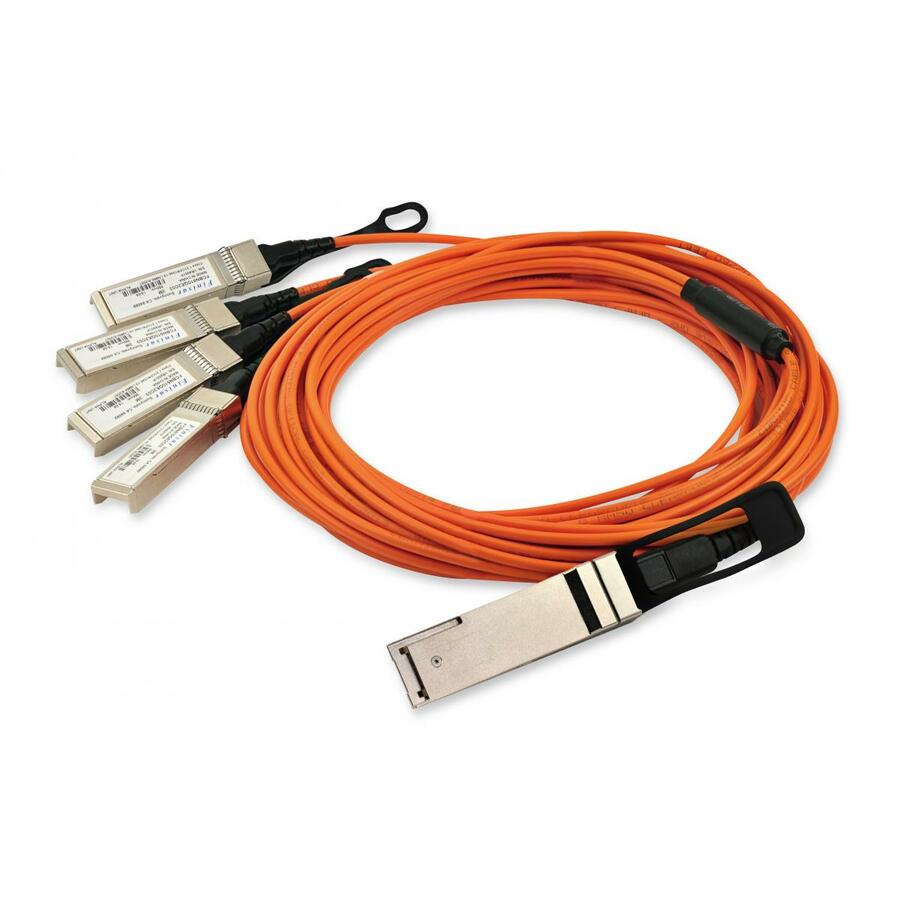

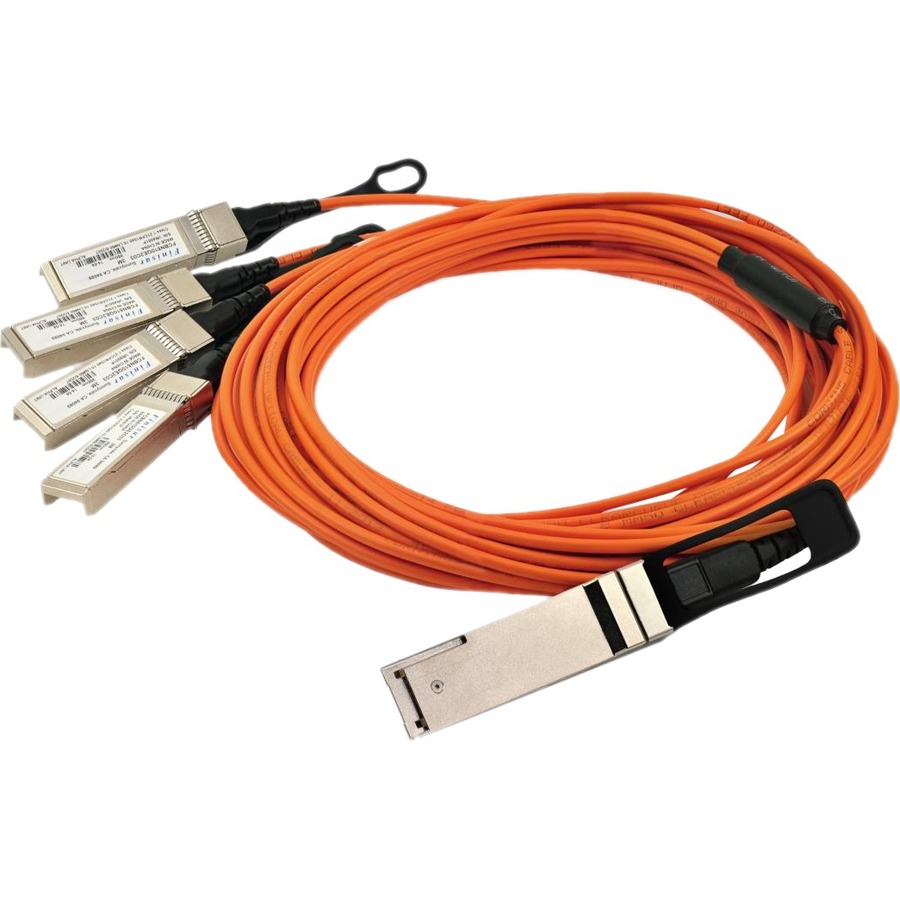

Finisar's Quadwire® Fan-Out AOC is a 4x10 Gb/s parallel active optical cable for storage, data, and high-performance computing interconnectivity. It transmits four separate streams of 10 Gb/s data over ribbon cables in a point-to-multipoint configuration. The cable contains a QSFP+ module on one end and four separate SFP+ modules at the other ends.

Based on Finisar's proven VCSEL array technology and designed with MSA-compliant QSFP+ and SFP+ high-density connectors, these cables are compact, lightweight, and low power. With reaches up to 30 meters, the Quadwire® Fan-Out active optical cable is ideally suited for high-density 10G Ethernet, InfiniBand QDR, and other datacom and high-performance computing applications.

Highlights

  • Four-channel full-duplex active optical cable with breakout from QSFP+ to four SFP+
  • 10.3125 Gb/s per channel
  • Low weight for high port count architectures
  • High-density 40 Gb/s interconnectivity
  • Small bend radius for easy installation and fiber management
  • Low power consumption
  • Complies with QSFP+ and SFP+ MSA form factors
  • Utilizes Finisar's vertically integrated and highly reliable VCSEL technology

Specifications

Cable Length16.40 ft
Product TypeNetwork Cable
Data Transfer Rate40 Gbit/s
Device SupportedNetwork Device
Manufacturer Part NumberFCBN510QE2C05
FeaturesActive
ManufacturerFinisar Corporation
Product NameFiber Optic Duplex Network Cable
Product LineQuadwire
Brand NameFinisar
Cable CharacteristicFan-out Cable
Environmentally FriendlyYes
Cable TypeFiber Optic
Connector Type on First EndQSFP+ Network - Male
Connector Type on Second EndSFP+ Network - Male
Fiber Optic ModeMulti-mode
Product ColorBrown
Connector on First End Details1 x QSFP+ Network - Male
Connector on Second End Details4 x SFP+ Network - Male
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
