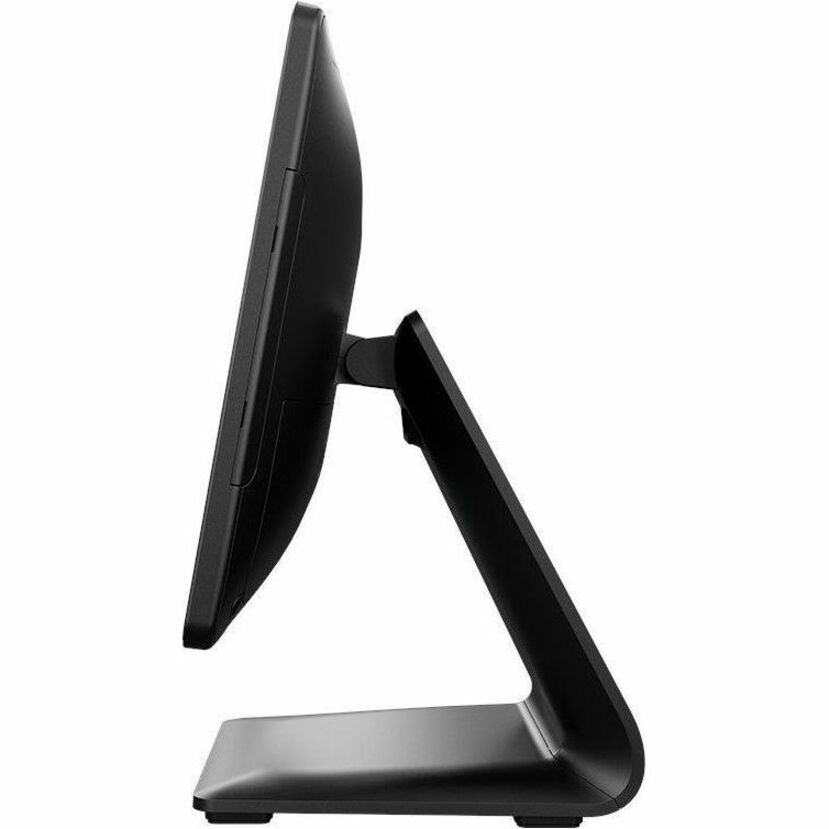

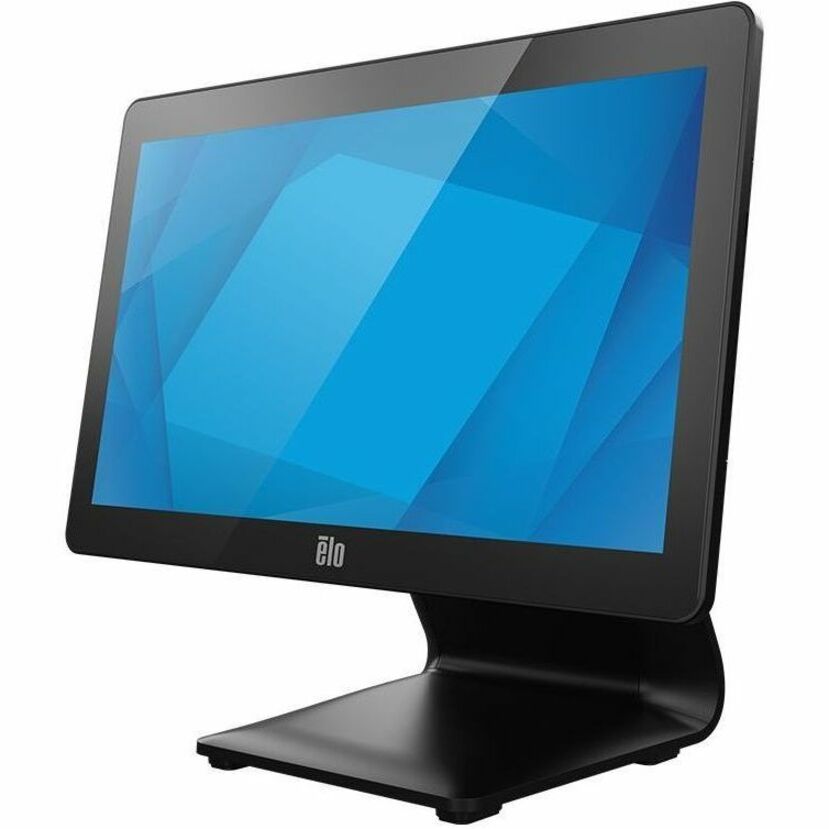

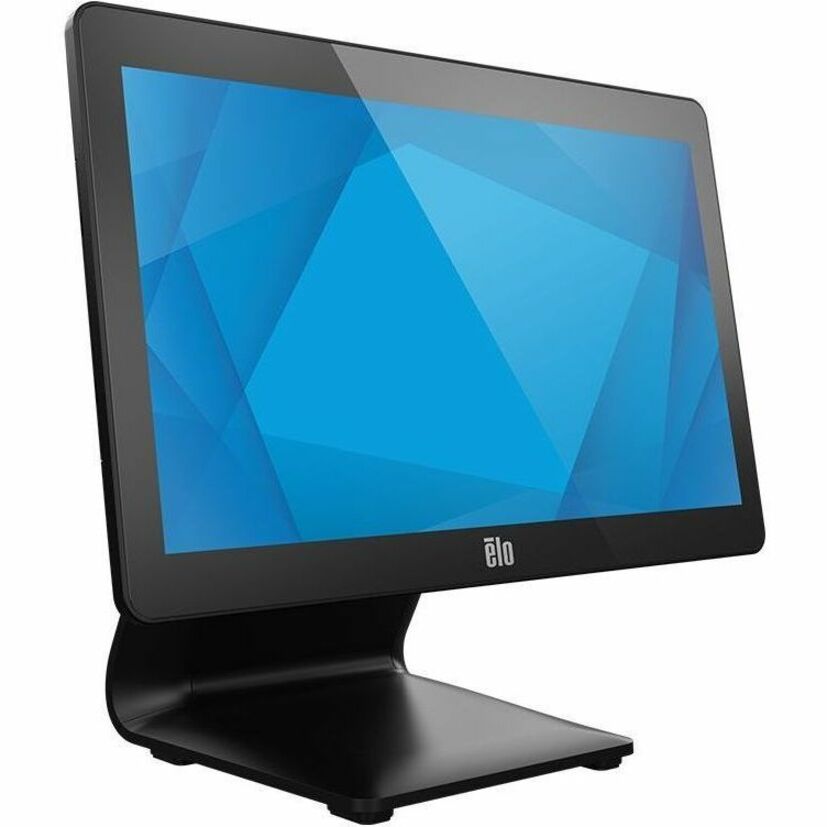

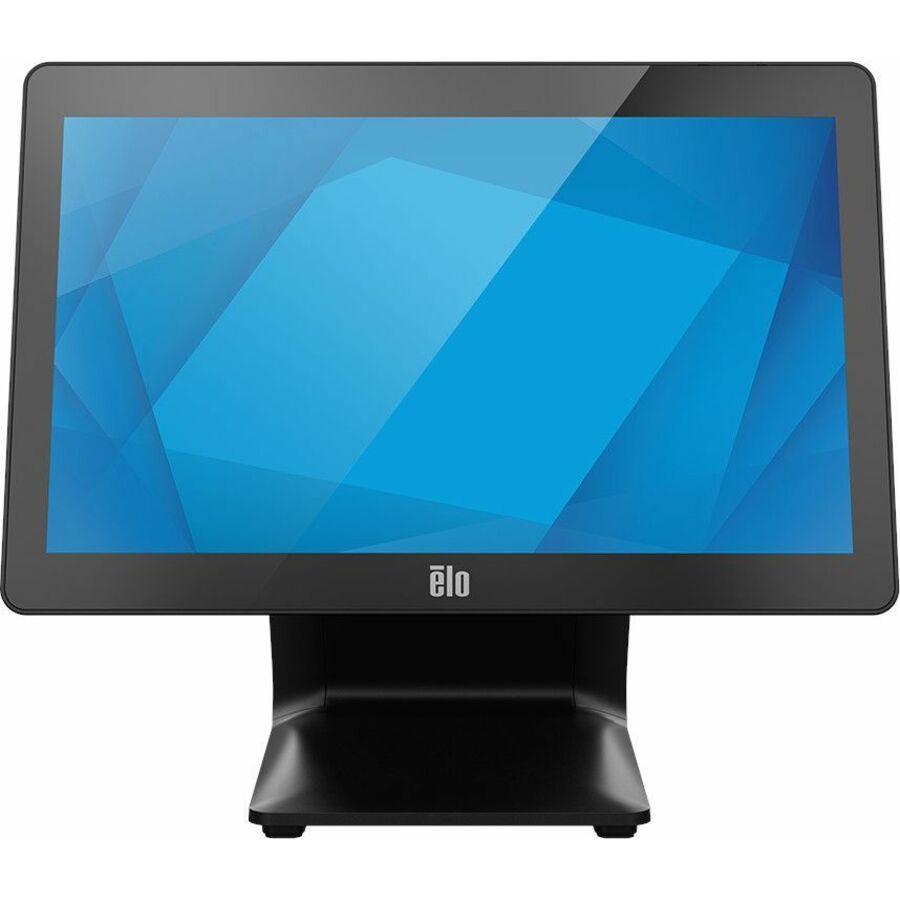

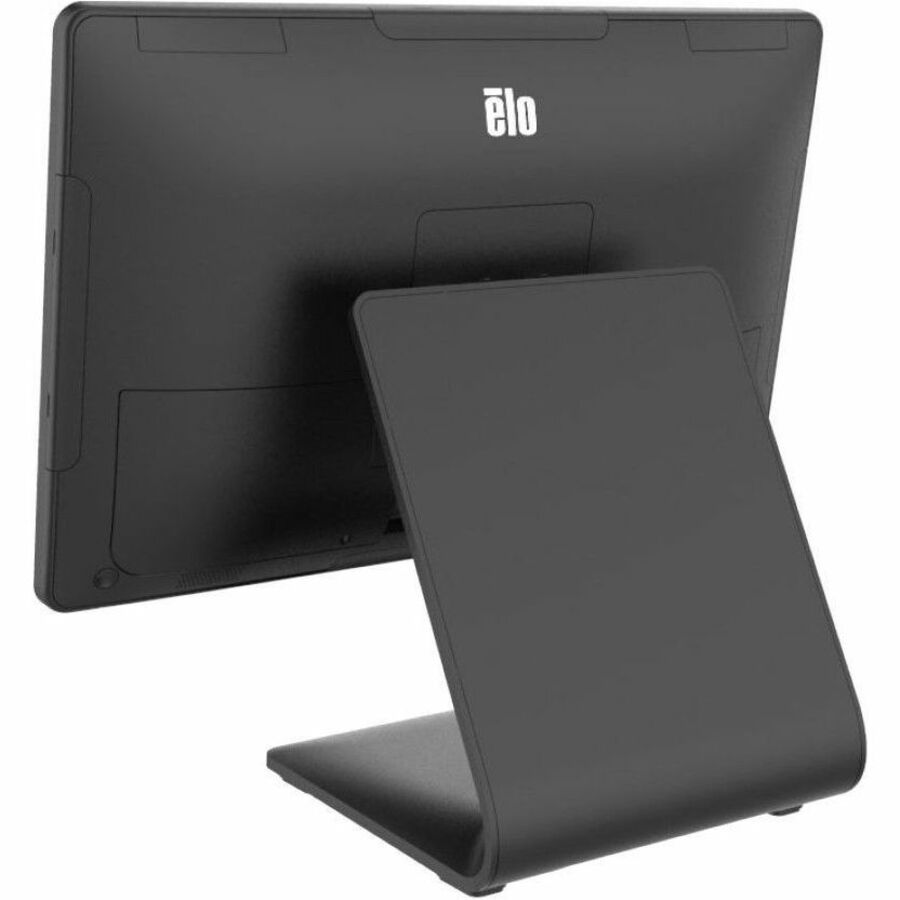

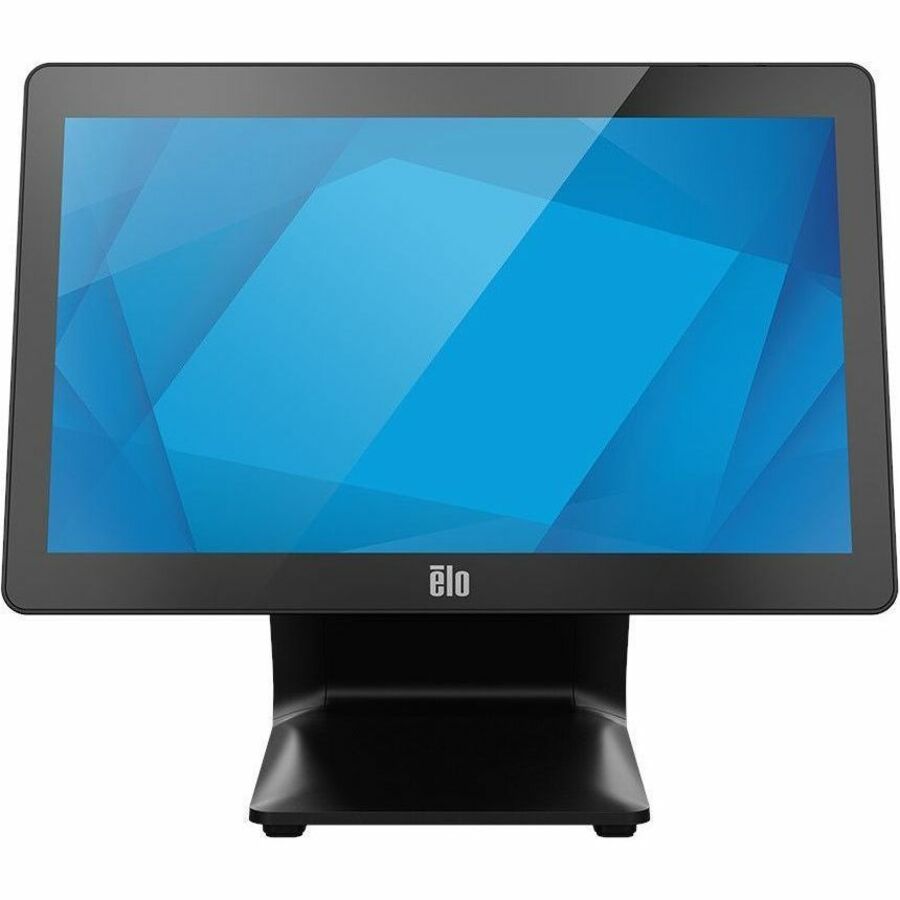

Elo I-Series 3 POS Terminal
Core i3 i3-1215UL - 8 GB DDR5 SDRAM - 128 GB SSD M.2/PCI Express - Windows 10 IoT Enterprise LTSC (64-bit)
- SKU
- E705831
- Category
- POS Terminals
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- E705831
- Category
- POS Terminals
Overview
Completely redesigned | I-Series 3 with Intel.
Brilliant and beautiful, | interactive platform.
10-touch Touch Pro PCAP, Fanless, IP54 rated design, HD IPS Touchscreen, Easy to clean edge-to-edge glass, 50,000 MTBF
Modular design.| Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need.
Highlights
- Touchscreen interface enables swift access
- 15.6" screen area for showcasing digital content with supreme clarity
- 128 GB SSD for spacious storage with faster data transfer speed than standard hard drives. It can hold tons of digital content
- Built-in 8 GB DDR5 SDRAM memory for a crisp and detail display
- The fanless cooling architecture promotes noise-free
Specifications
| Aspect Ratio | 16:9 |
|---|---|
| Package Contents |
|
| Product Type | POS Terminal |
| Contrast Ratio | 1,000:1 |
| Manufacturer Part Number | E705831 |
| Maximum Memory Supported | 64 GB |
| Response Time | 25 ms |
| Limited Warranty | 3 Year |
| Standard Memory | 8 GB |
| Weight (Approximate) | 6.40 lb |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Color Supported | 16.2 Million Colors |
| Features | Edge-to-Edge Glass Design, Anti-glare |
| Form Factor | All-in-One |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Name | I-Series 3 POS Terminal |
| Mount Type | Table Mount |
| Processor Type | Core i3 |
| Product Line | I-Series 3 |
| Screen Size | 15.6" |
| Brand Name | Elo |
| Screen Mode | Full HD |
| Memory Technology | DDR5 SDRAM |
| Processor Model | i3-1215UL |
| Processor Cache | 10 MB |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Touchscreen | Yes |
| Number of Speakers | 2 |
| Graphics Controller Model | UHD Graphics |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Display Screen Type | LED |
| Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Touchscreen Technology | Projected Capacitive |
| Bluetooth Standard | Bluetooth 5.3 |
| Ethernet Technology | Gigabit Ethernet |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 4 |
| Cooling Fan | Fanless |
| Multi-touch Screen | Yes |
| Cash Drawer Port | Yes |
| Panel Technology | In-plane Switching Technology (IPS) |
| Maximum Turbo Speed | 4.40 GHz |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Energy Star | Yes |
| Number of Micro USB Ports | 4 |
| USB Type-C | Yes |
| Speaker Power | 2 W |
| Product Color | Black |
| Color Family | Black |
| Ingress Protection (IP) Rating | IP54 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Active Display Size (Horizontal) | 13.55" |
| Active Display Size (Vertical) | 7.62" |
| Number of Simultaneous Touch Points | 10 |
| Number of USB Type C Ports | 1 |
