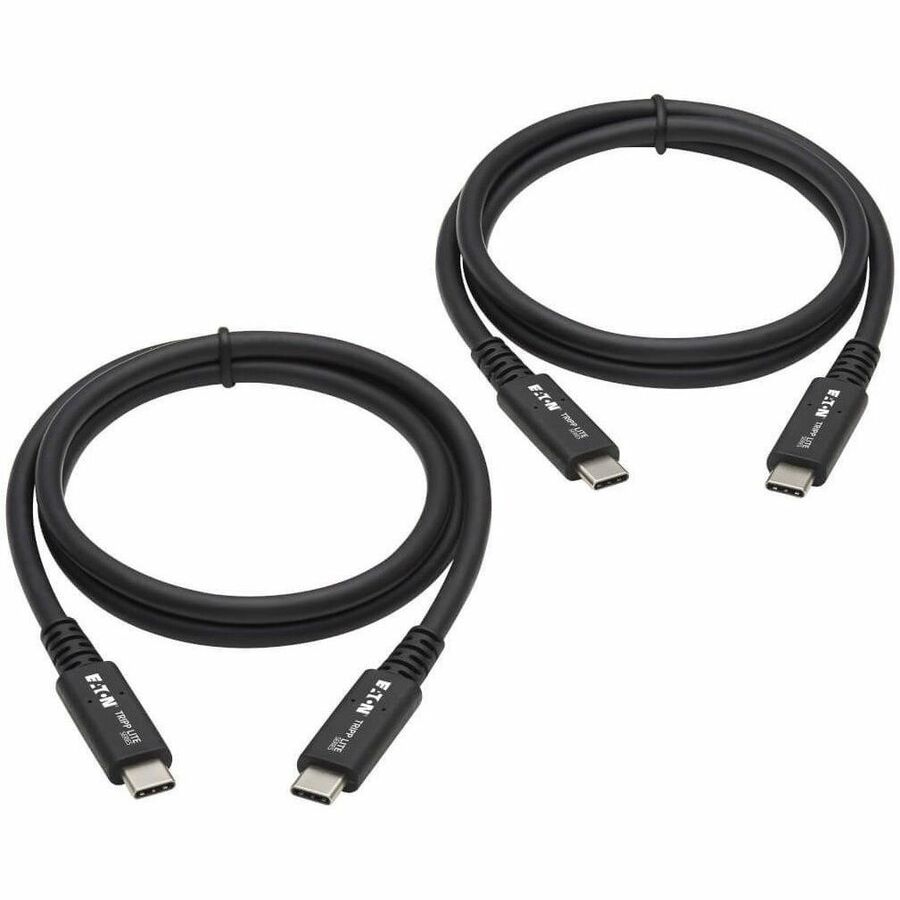

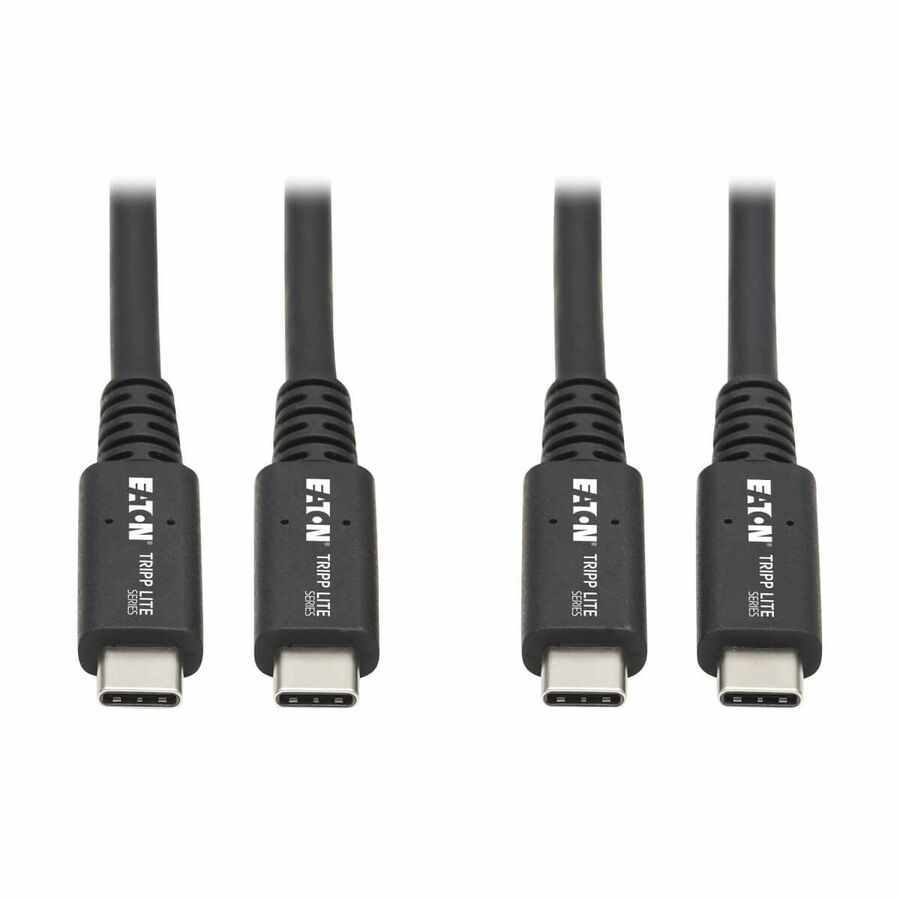

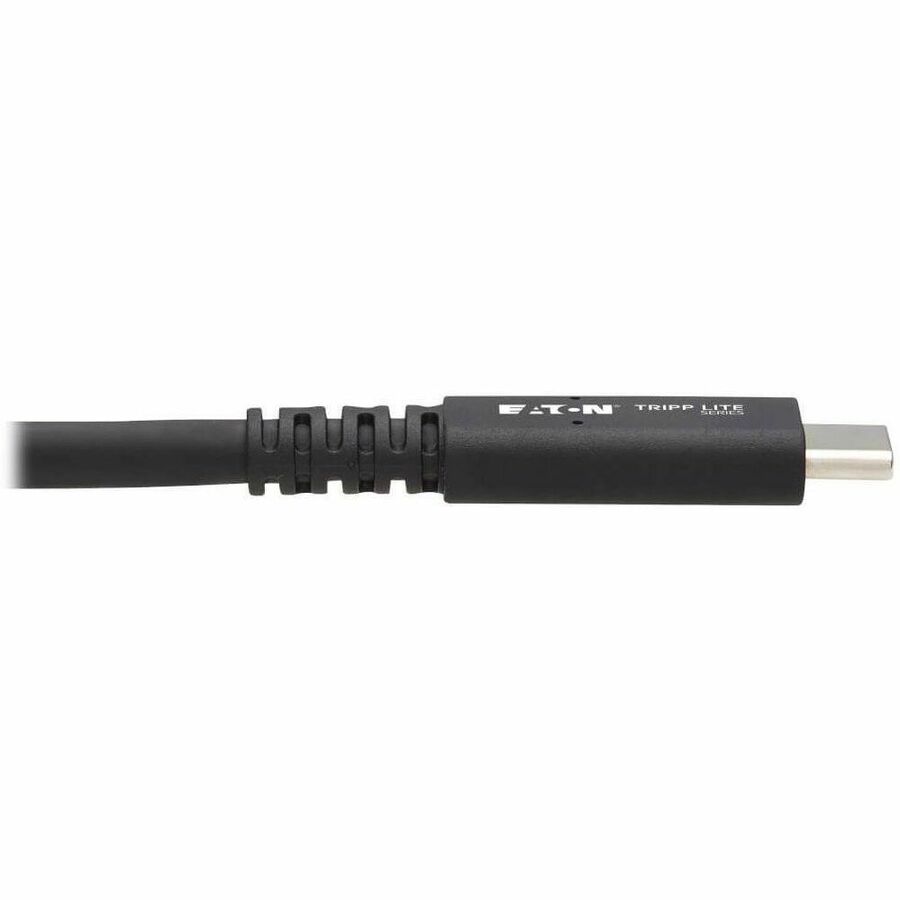

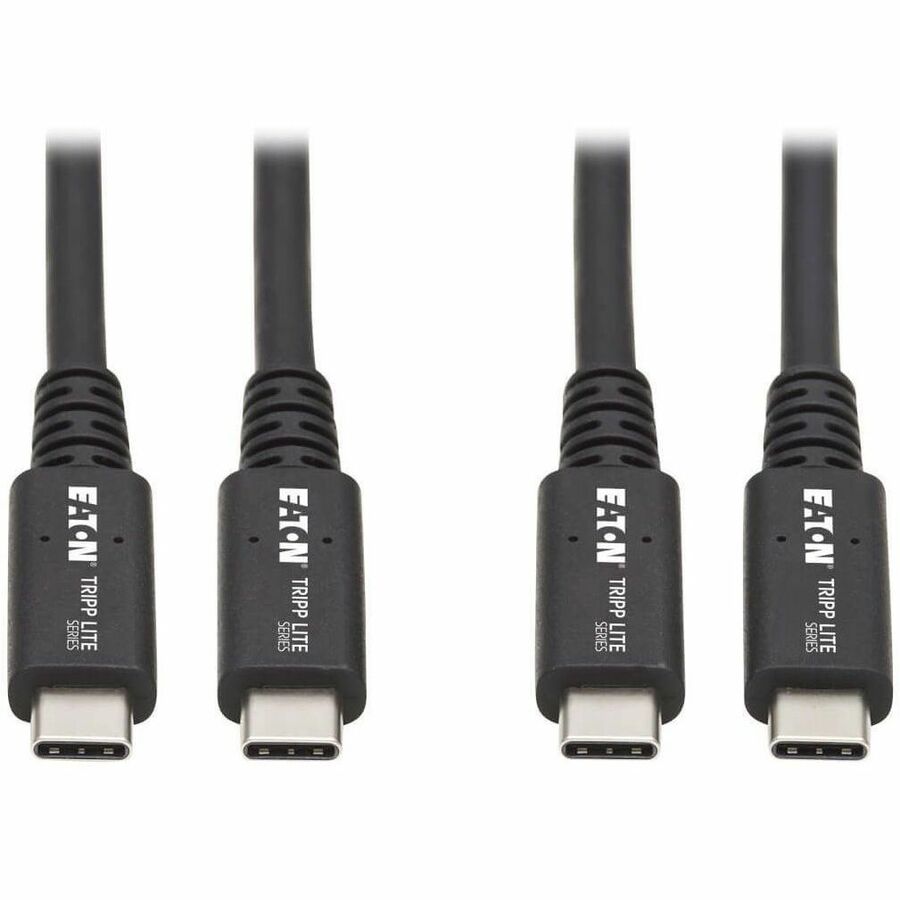

Tripp Lite by Eaton USB4 40Gbps Cable (M/M) - USB-C 8K 60 Hz 100W PD Charging Black 31 in. (0.8 m)
2.62 ft Thunderbolt 3 Data Transfer Cable for Notebook, Smartphone, Dock, PC, MacBook, Chromebook, External Hard Drive, Tablet, Docking Station, Wall Charger, Mobile Device - First End: 1 x USB4 Type C Thunderbolt 3 - Male - Second End: 1 x USB4 Type C Thunderbolt 3 - Male - 80 Gbit/s - Supports up to 7680 x 4320 - Nickel Plated Connector - Gold Plated Contact - VW-1 - Black
- SKU
- U520-31N
- Category
- Connector Cables
MSRP$67.48
$29.35
Save 57%In stock: 8
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- U520-31N
- Category
- Connector Cables
Overview
USB4 Cable Streams Video and Downloads Data at 40 Gbps, 8x Faster Than USB 3.0
This USB4 40Gbps cable (M/M) transmits across two bidirectional lanes, supporting speeds up to 40 Gbps, which is eight times faster than USB 3.0. Unlike previous USB generations, the USB4 40Gbps cable has the ability to allocate resources. Instead of splitting video and data equally between its two lanes, the U520-31N allows the connected display as much bandwidth as it needs, while saving all remaining bandwidth for high-speed data transfers. This makes the cable perfectly suited for 4K or 8K video streaming and editing, as well as transferring large RAW video or CAD files.
Supports DisplayPort Alternate Mode for Unidirectional 80 Gbps Video Connections
By connecting a 4K or 8K display to a host device that supports DisplayPort Alt Mode 1.4, this cable can use both high-speed lanes to transmit 4K or even 8K video at 60 Hz in one direction at 80 Gbps maximum speed. The U520-31N supports a single 8K display or dual 4K displays at 60 Hz.
Backward Compatible with Legacy USB and Thunderbolt 3 Devices
Though both connected devices must support USB4 40Gbps for the cable to reach its full potential, the U520-31N is backward compatible with USB 3.x, USB 2.0 and Thunderbolt 3 devices. It connects two USB-C devices, including MacBooks, Chromebooks, Windows laptops, smartphones, external hard drives, tablets, docking stations and wall chargers. It is compatible with all USB-C and Thunderbolt 3 devices, enabling use in existing installations while preparing for future upgrades.
PD Charging Cable Keeps the Connected Notebook, Tablet or Other Device at Capacity
The U520-31N supports Power Delivery (PD) 3.0 charging of the connected PD Charging-compliant device. It carries power output up to 20V 5A (100W), which is sufficient for fast-charging and powering your MacBook or other mobile device.

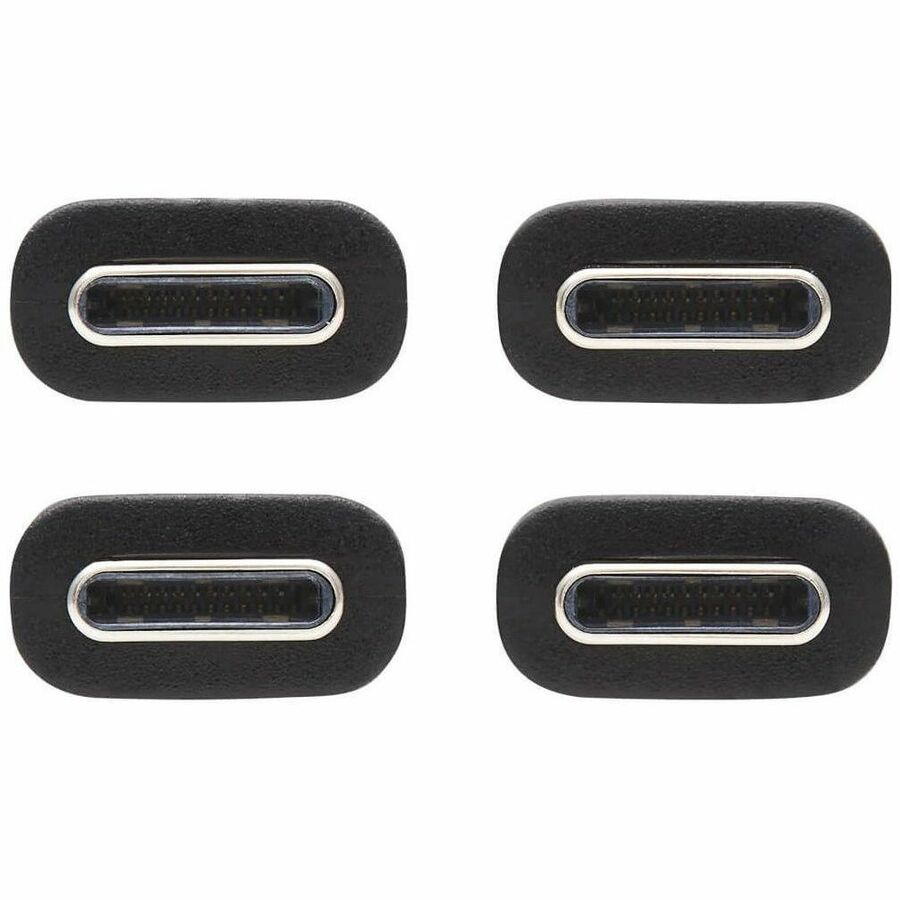

Reversible USB-C Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Transfers large video and data files at speeds up to 40 Gbps - 8x faster than USB 3.0
- Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
- Supports single 8K display or dual 4K displays at 60 Hz up to 80 Gbps
- PD Charging cable supports 100W power output for charging high-powered devices
- Backward compatible with USB 3.x, USB 2.0 and Thunderbolt 3 devices
- 3-year limited warranty
Specifications
| Cable Length | 2.62 ft |
|---|---|
| Product Type | Data Transfer Cable |
| Data Transfer Rate | 80 Gbit/s |
| Device Supported | Notebook, Smartphone, Dock, PC, MacBook, Chromebook, External Hard Drive, Tablet, Docking Station, Wall Charger, Mobile Device |
| Jacket Type | VW-1 |
| Manufacturer Part Number | U520-31N |
| Limited Warranty | 3 Year |
| Features | Charging, USB- Power Delivery (USB PD), Reversible |
| Manufacturer | Eaton Corporation |
| Product Model | U520-31N |
| Product Name | USB4 40Gbps Cable (M/M)-USB-C, 8K 60 Hz, 100W PD Charging, Black, 31 in.(0.8 m) |
| Brand Name | Tripp Lite series |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Cable Type | Thunderbolt 3 |
| Connector Type on First End | USB4 Type C Thunderbolt 3 - Male |
| Connector Type on Second End | USB4 Type C Thunderbolt 3 - Male |
| Connector Plating | Nickel |
| Supported Resolution | 7680 x 4320 |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Contact Plating | Gold |
| Product Color | Black |
| Color Family | Black |
| Connector on First End Details | 1 x USB4 Type C Thunderbolt 3 - Male |
| Connector on Second End Details | 1 x USB4 Type C Thunderbolt 3 - Male |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
